Boxco

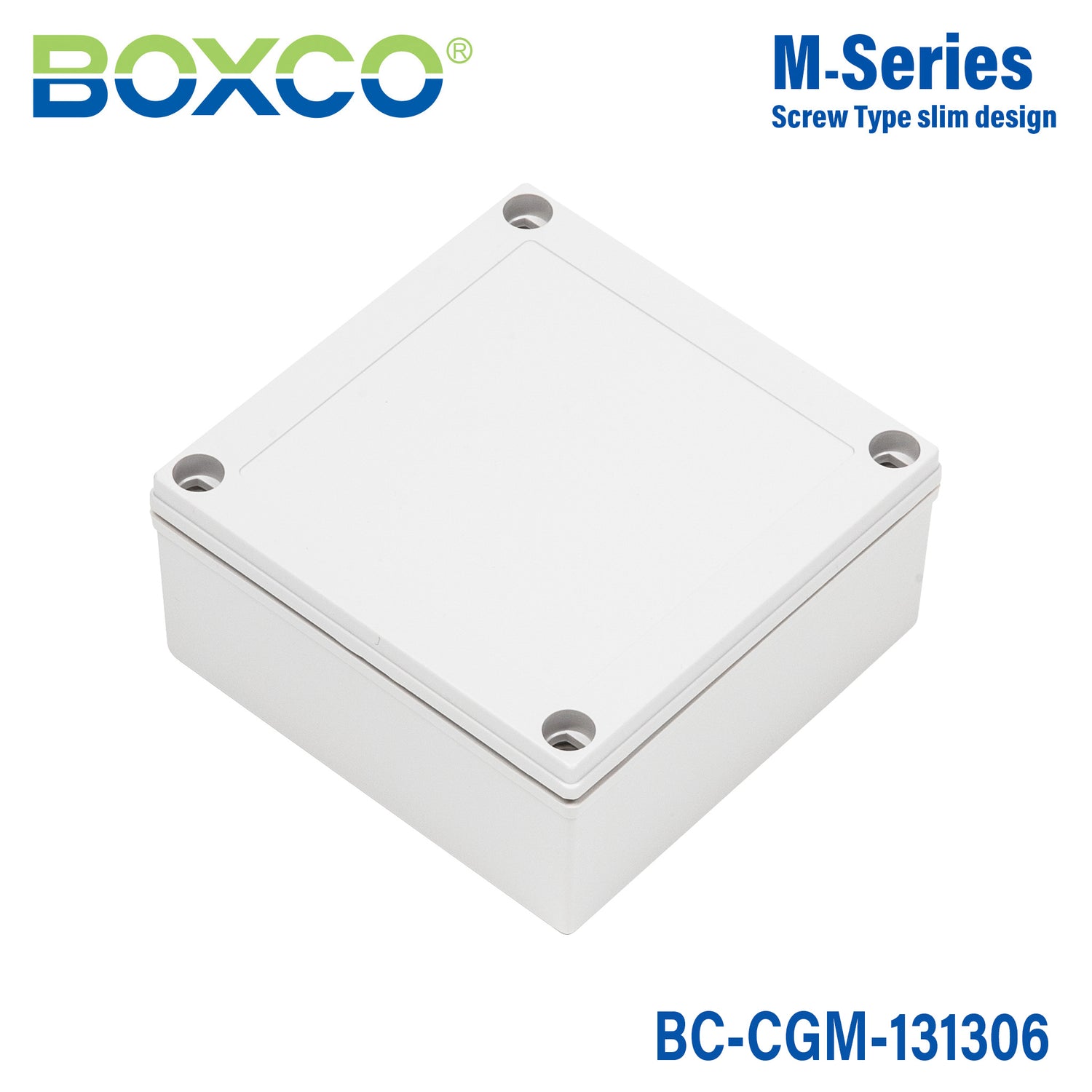

Boxco M-Series 130x130x60mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGM-131306
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGM-131306 is a 130×130×60 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CGM-131306Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
130×130×60 mm (5.12×5.12×2.36 in)
Mounting plate dimension M1 × M2
98 × 98 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1212 G (Plastic, G type), 1313 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

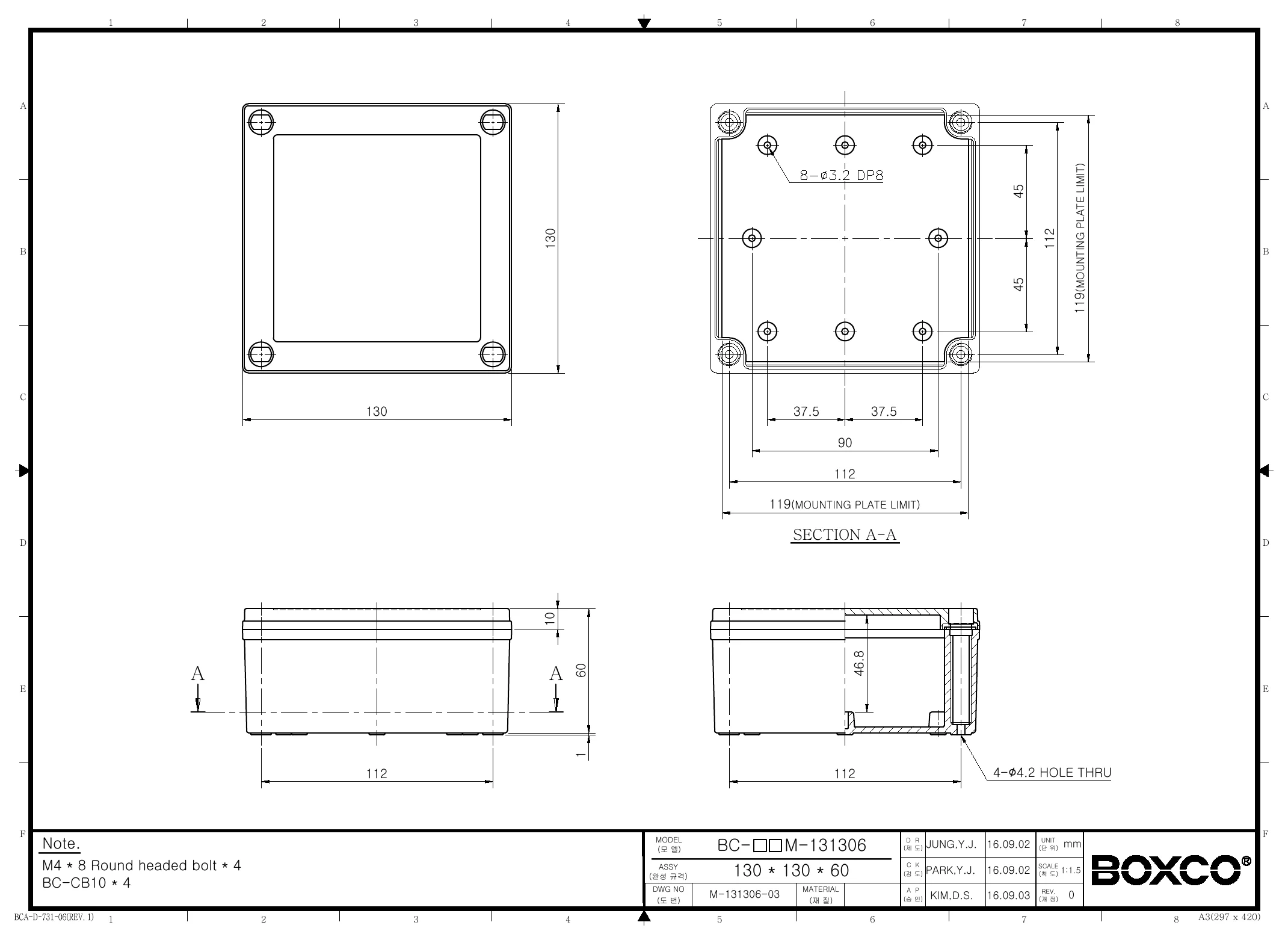

BC-CGM-131306 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco M-Series BC-CGM-131306 enclosure suited for?

This enclosure is suited for protecting electronic components in industrial and commercial environments where a sealed plastic housing is needed. Its recessed screw-type cover also makes it appropriate for applications that use a membrane keypad on the enclosure surface.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that this M-Series enclosure includes an ultraviolet stabilizer to help protect it during outdoor use. The material is designed to limit noticeable color change even after long-term exposure.

What level of environmental protection does this model provide?

The BC-CGM-131306 is rated IP67 and IK08. That means it is designed for strong protection against dust and temporary water ingress, along with resistance to external impact for demanding environments.

What material is this enclosure made from?

This model is made from PC and has a grey cover. Boxco also notes the use of anti-static material to help protect sensitive electronic instruments from static electricity.

What are the dimensions and weight of this enclosure?

The enclosure measures 5.12 x 5.12 x 2.36 inches, which corresponds to 130 x 130 x 60 mm. The listed weight for this model is 0.2660 kg.

What operating temperatures can this enclosure handle?

This model is specified for temperatures from -40 degrees C to 110 degrees C. That range makes it suitable for applications exposed to both low and elevated temperatures within those limits.

How does this screw-type enclosure compare with a standard flat-cover design?

This model uses a screw-type recessed cover rather than a standard flat cover. The recessed design is specifically noted as being used for mounting a membrane keypad, which can make it a better fit for interface-focused enclosure applications.
