Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

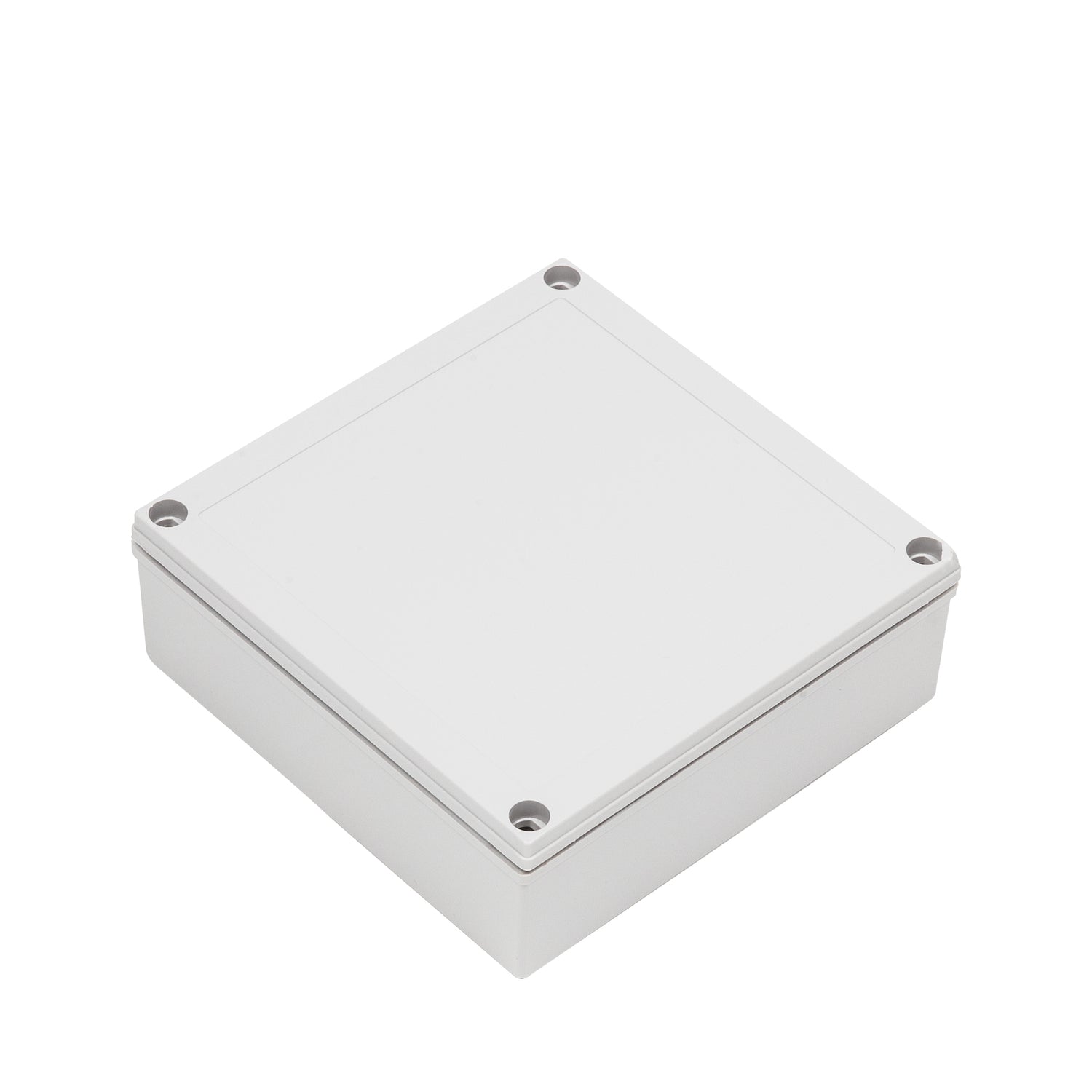

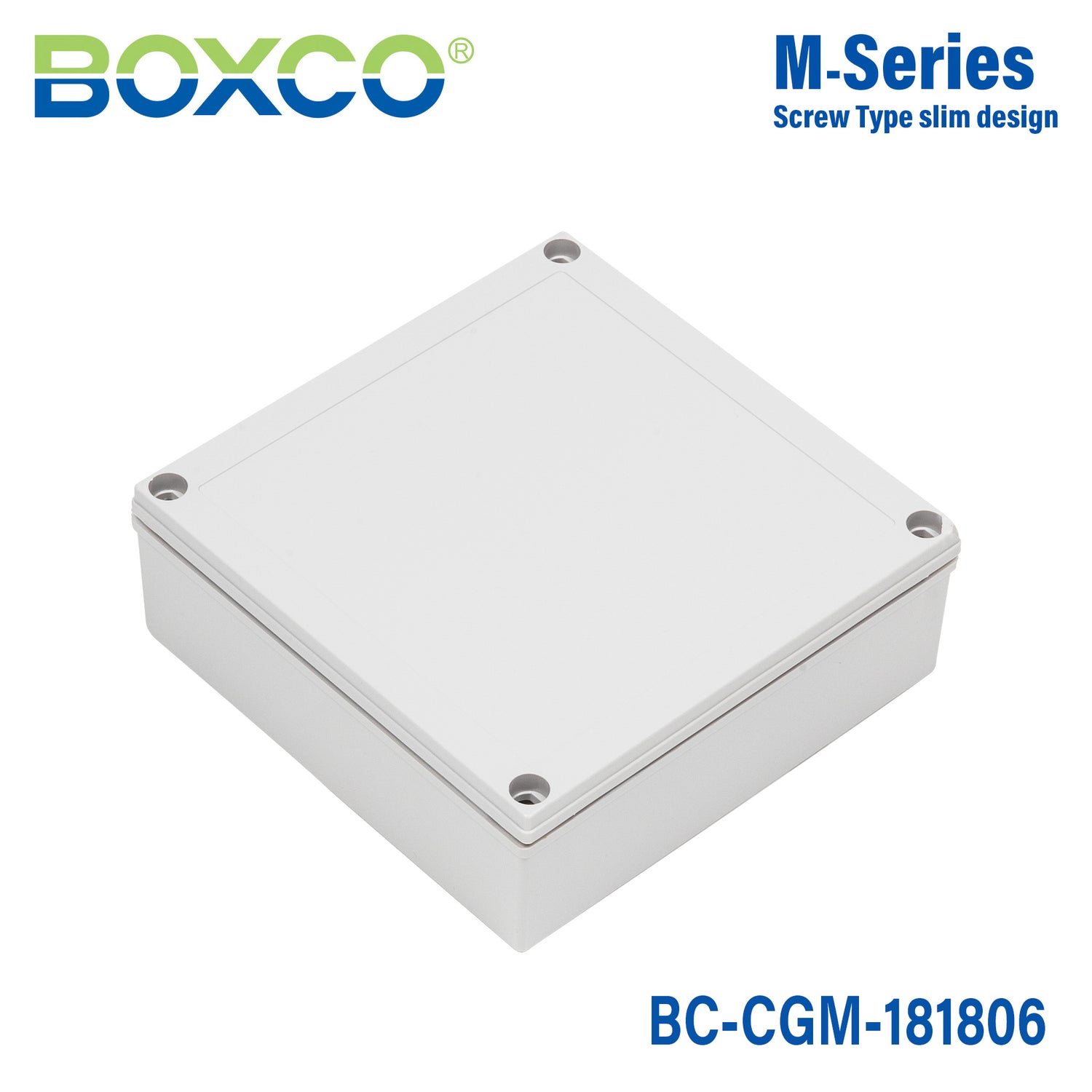

Boxco M-Series 180x180x60mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGM-181806
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGM-181806 is a 180×180×60 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CGM-181806Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
180×180×60 mm (7.09×7.09×2.36 in)
Mounting plate dimension M1 × M2
148 × 148 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1818 G (Plastic, G type), 1818 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

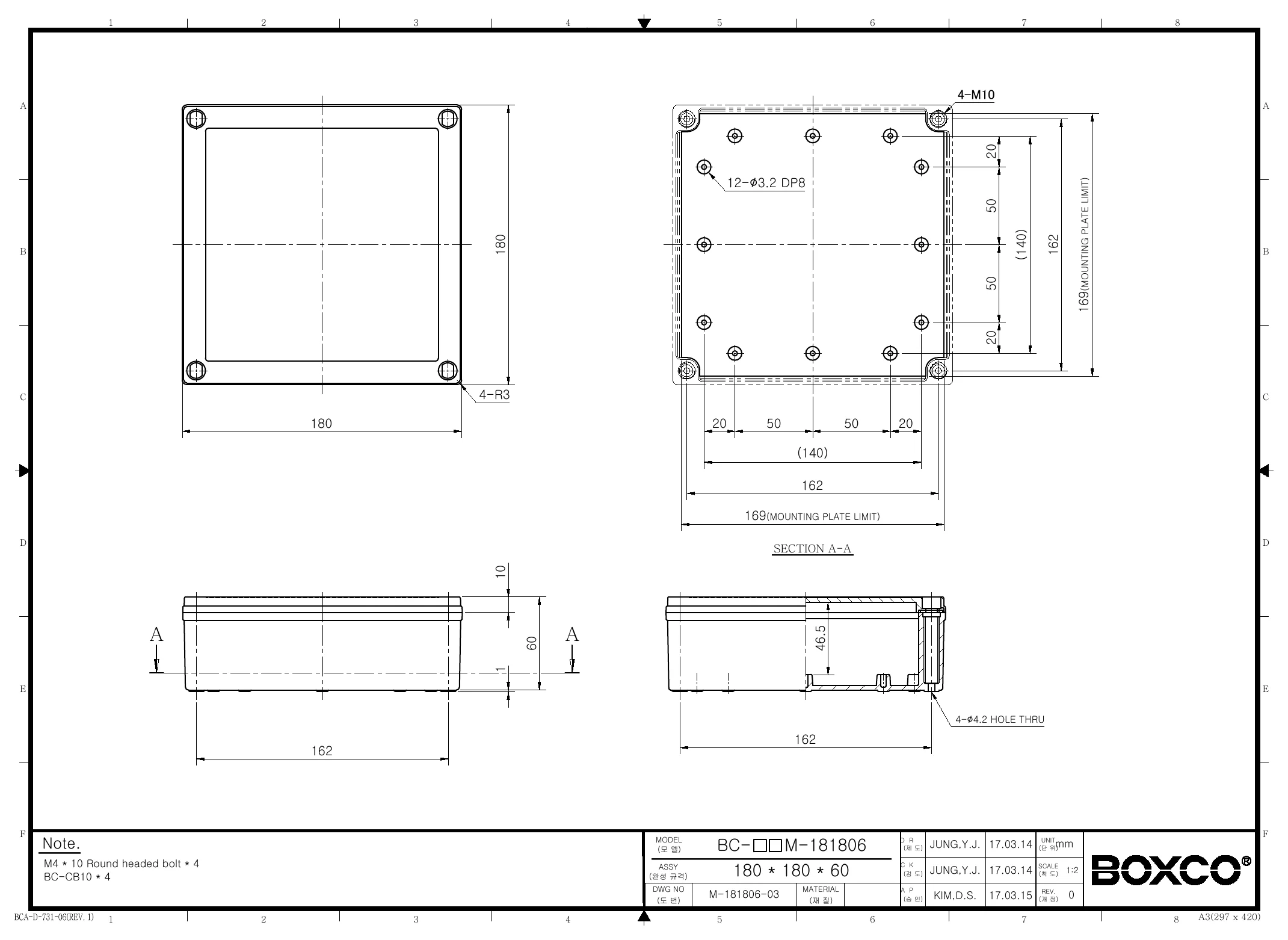

Technical drawings

BC-CGM-181806 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco M-Series enclosure best suited for?

This enclosure is suited for protecting electronics and control components in industrial and commercial environments where a sealed plastic housing is needed. Its screw-type recessed cover also makes it a practical choice for applications using a membrane keypad on the enclosure face.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure in outdoor use and reduce visible color change over time. Its IP67 rating also supports use where resistance to dust and water ingress is important.

What are the main specifications of this enclosure?

This model measures 7.09 x 7.09 x 2.36 inches (180 x 180 x 60 mm) and weighs 0.91 kg. It is a polycarbonate (PC) screw-type enclosure with a grey cover, rated IP67 and IK08, and backed by a 1-year warranty.

What temperature range can this enclosure handle?

This enclosure is specified for temperatures from -40 °C to 110 °C. That range makes it suitable for demanding environments where both low-temperature and elevated-heat performance matter.

How does the screw-type recessed cover affect product selection?

A screw-type recessed cover is useful when you want a more secure closed enclosure and a front surface designed for mounting a membrane keypad. Compared with a general flat-cover style, this configuration is better aligned with applications that need a recessed cover format.

Is this enclosure a good fit for protecting sensitive electronic equipment?

Yes. The description notes that anti-static material is used to help protect sensitive electronic instruments from static electricity. It is also made from high-impact-resistant material to improve durability against external impact and reduce breakage during processing.
