Boxco

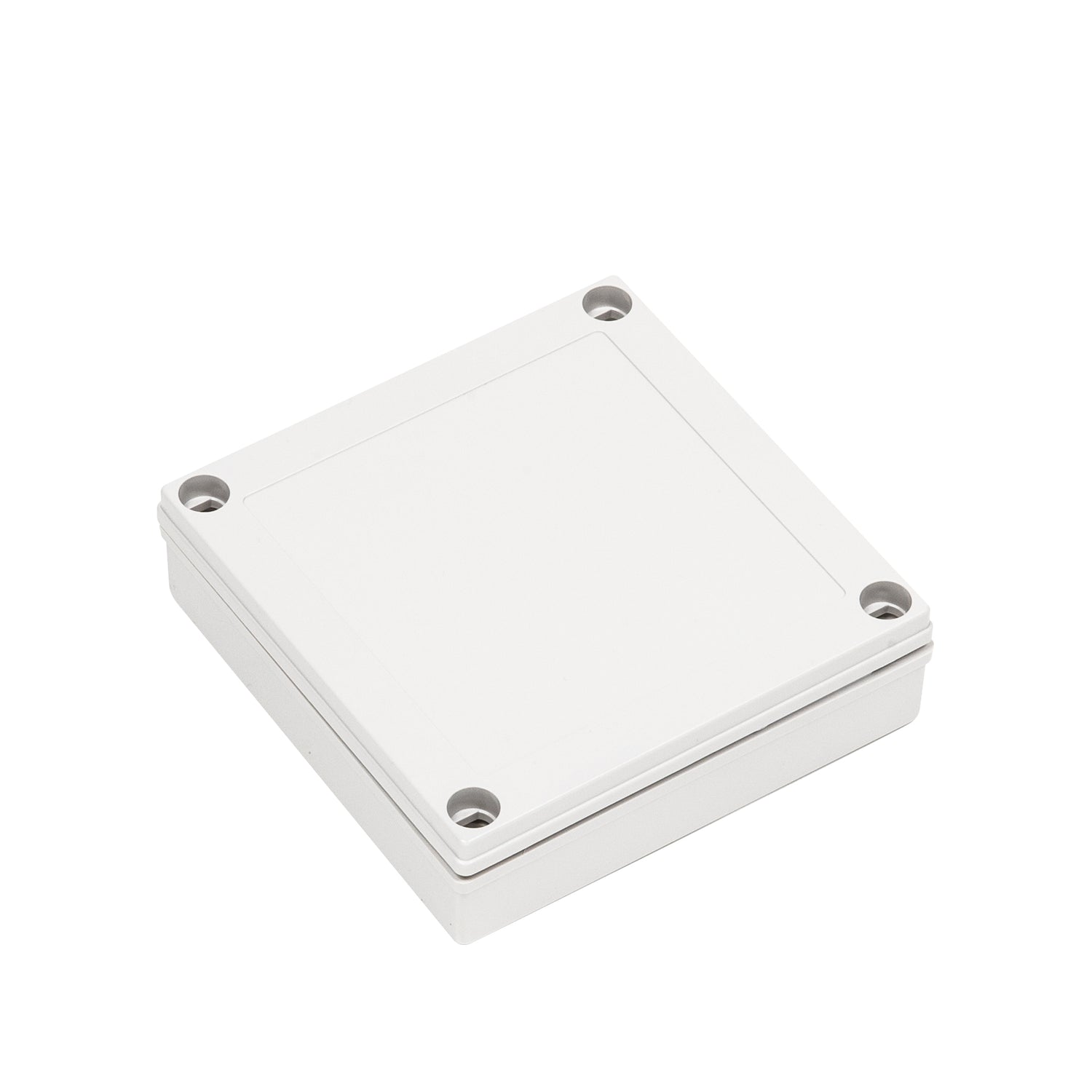

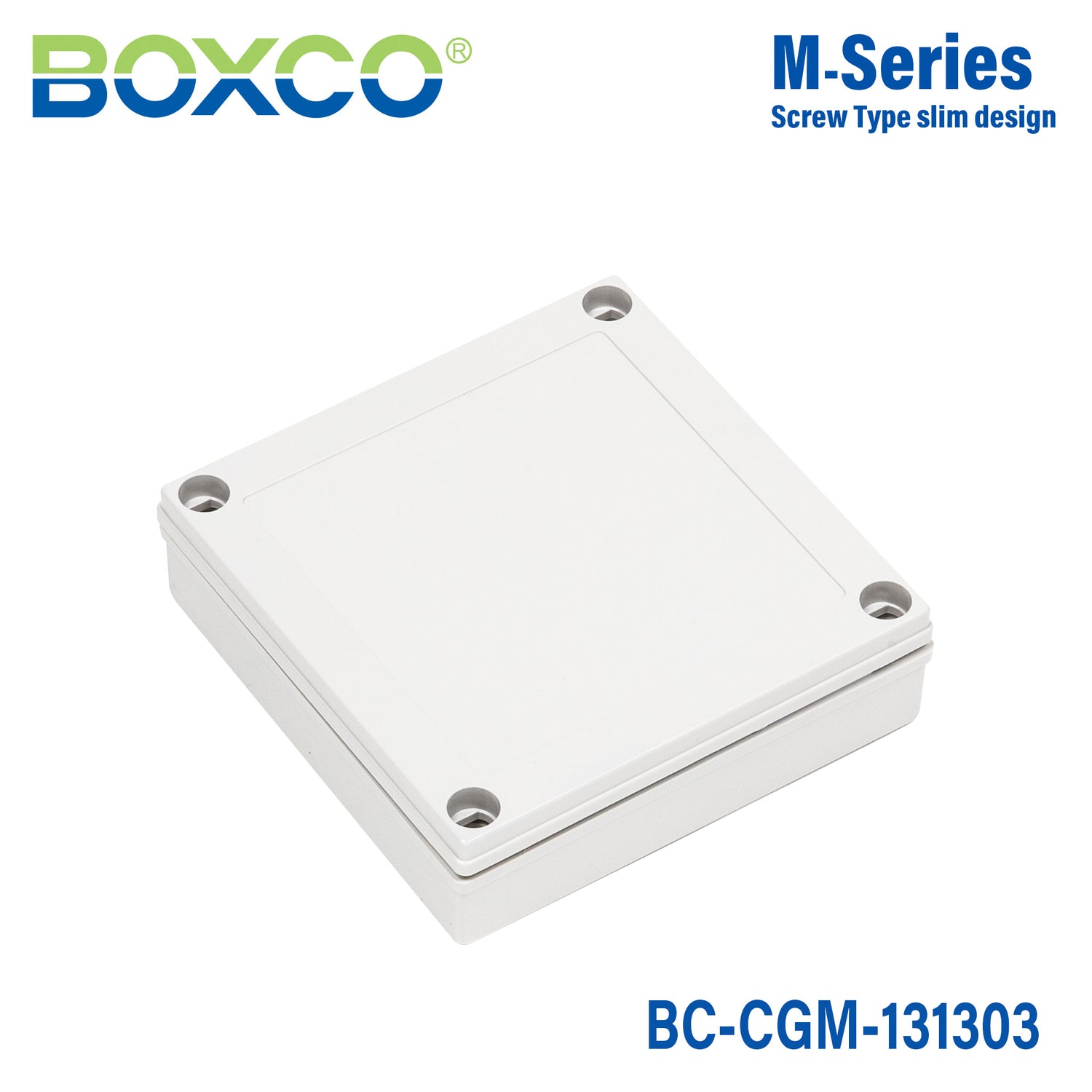

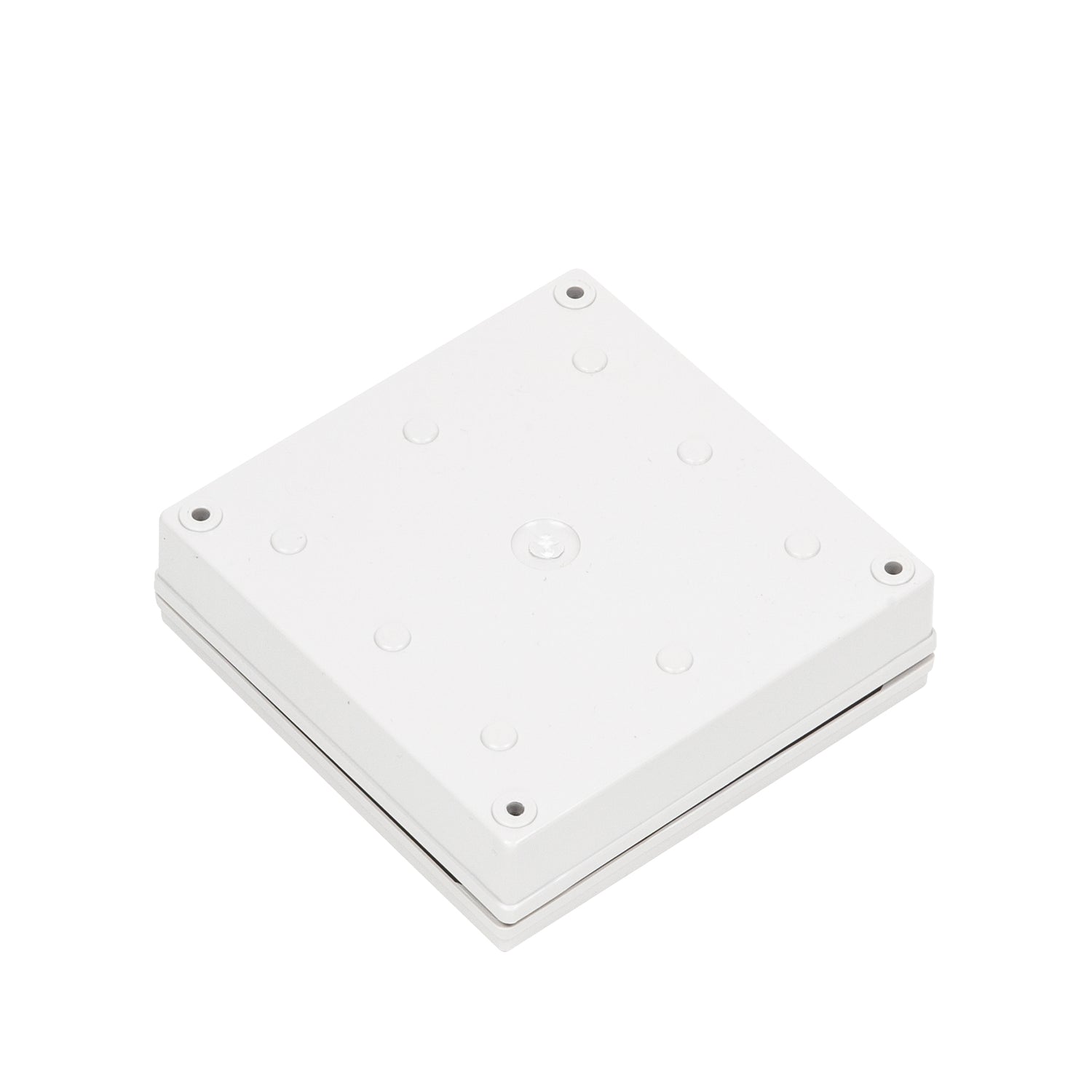

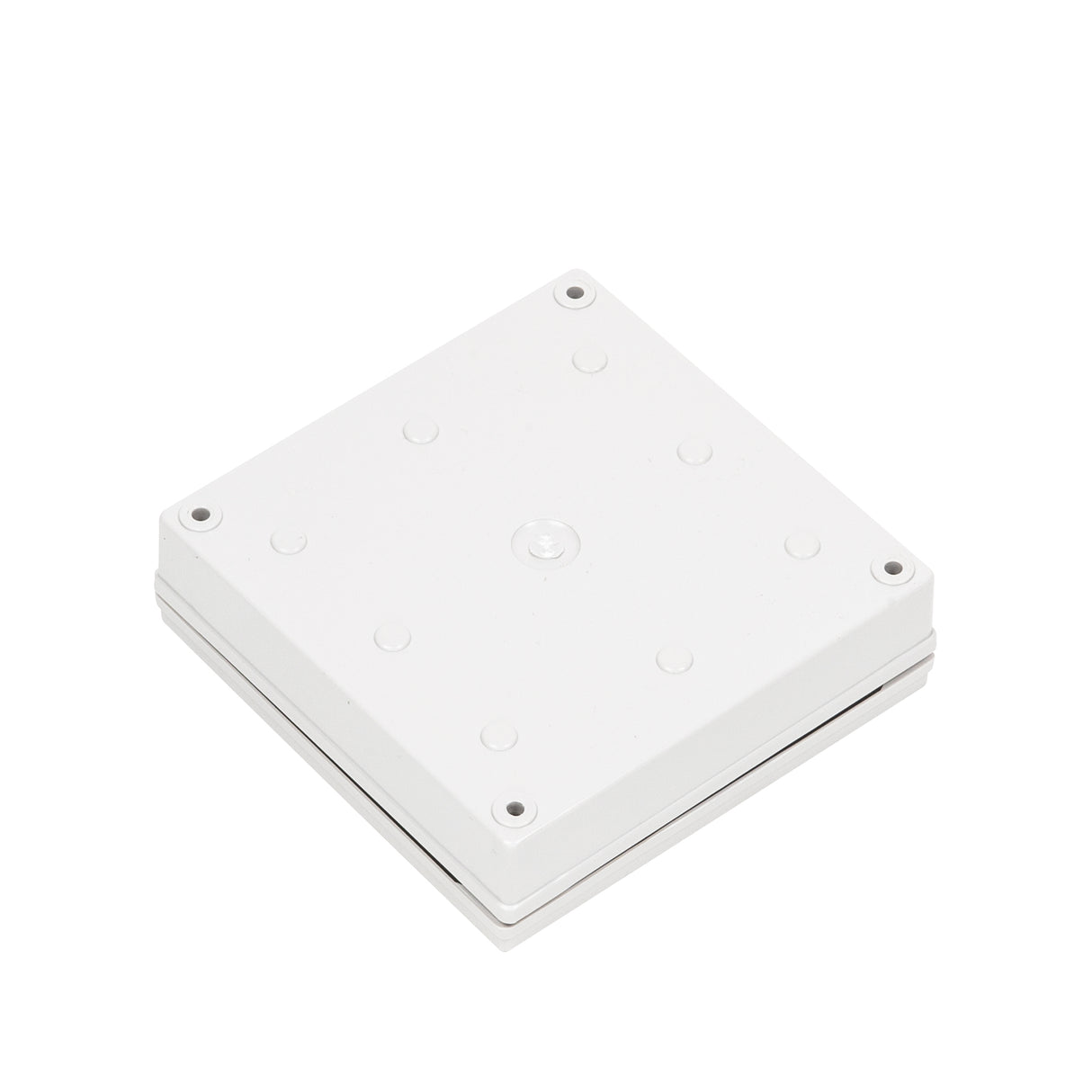

Boxco M-Series 130x130x35mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGM-131303
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGM-131303 is a 130×130×35 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco M Series.

Features

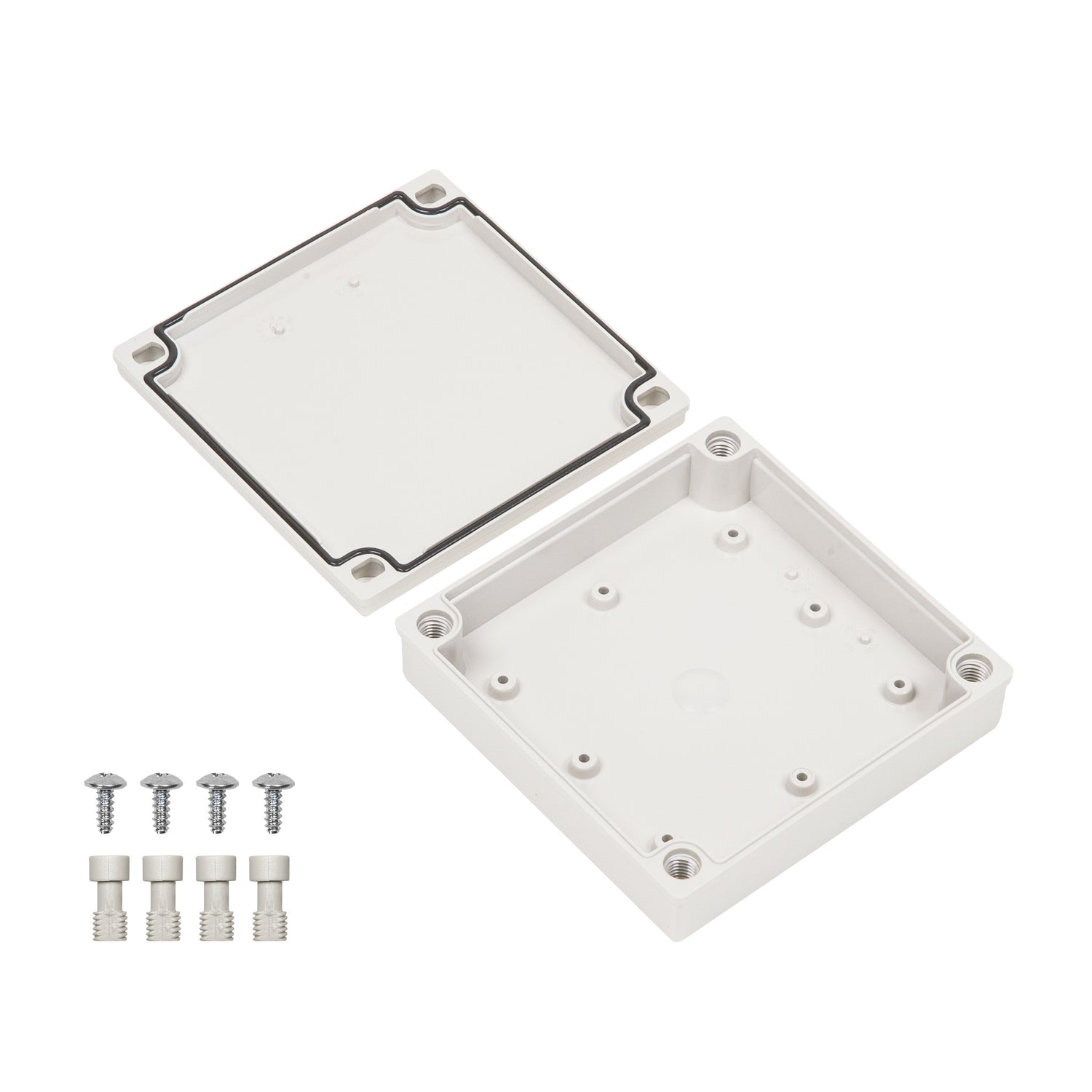

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CGM-131303Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
130×130×35 mm (5.12×5.12×1.38 in)
Mounting plate dimension M1 × M2
98 × 98 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1212 G (Plastic, G type), 1313 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

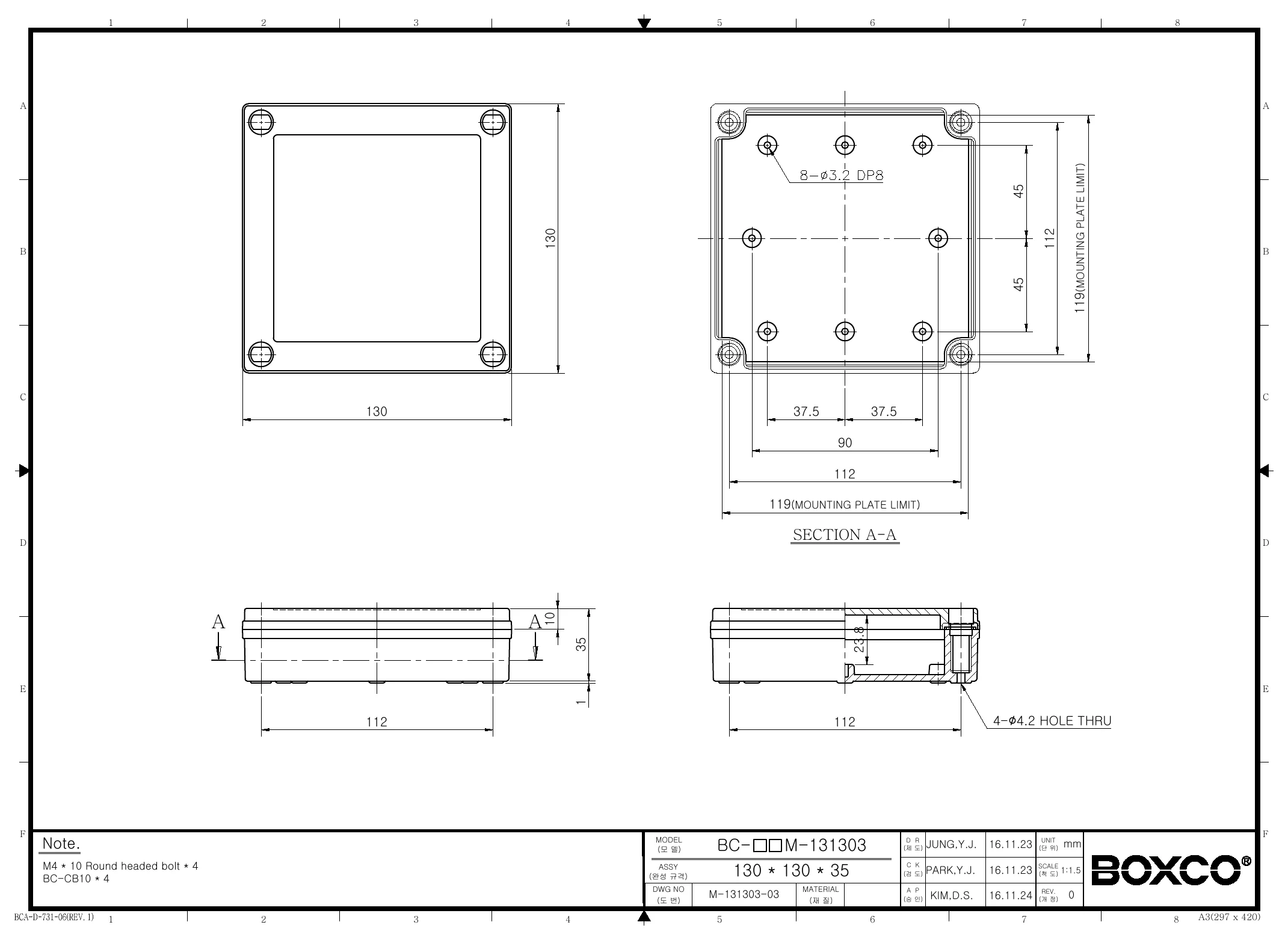

Technical drawings

BC-CGM-131303 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco M-Series BC-CGM-131303 plastic enclosure suitable for?

This enclosure is suited for protecting electronic components and sensitive instruments in industrial or outdoor environments. Its recessed screw-type cover is also used for applications that require mounting a membrane keypad on the enclosure surface.

Is this enclosure appropriate for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long periods. Its IP67 rating also indicates strong protection against dust and water ingress in demanding environments.

How durable is this Boxco enclosure against impact?

This model is rated IK08 for impact resistance and is described as being made from high impact resistant material. That makes it a good fit for applications where the enclosure may be exposed to mechanical contact or rough handling.

What are the size, material, and temperature range of this enclosure?

The BC-CGM-131303 measures 5.12 x 5.12 x 1.38 inches, which is 130 x 130 x 35 mm. It is made of polycarbonate (PC) and is rated for temperatures from -40 degrees C to 110 degrees C.

Does this enclosure help protect sensitive electronics from static electricity?

Yes. The description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. This makes it a practical option for housing electronics that benefit from added static-control properties.

What distinguishes this screw-type enclosure from a standard general-purpose box?

This model uses a screw-type recessed cover, which is specifically noted as being used for mounting membrane keypads. It also combines UV-stabilized outdoor suitability, IK08 impact resistance, and anti-static material in a compact polycarbonate enclosure.
