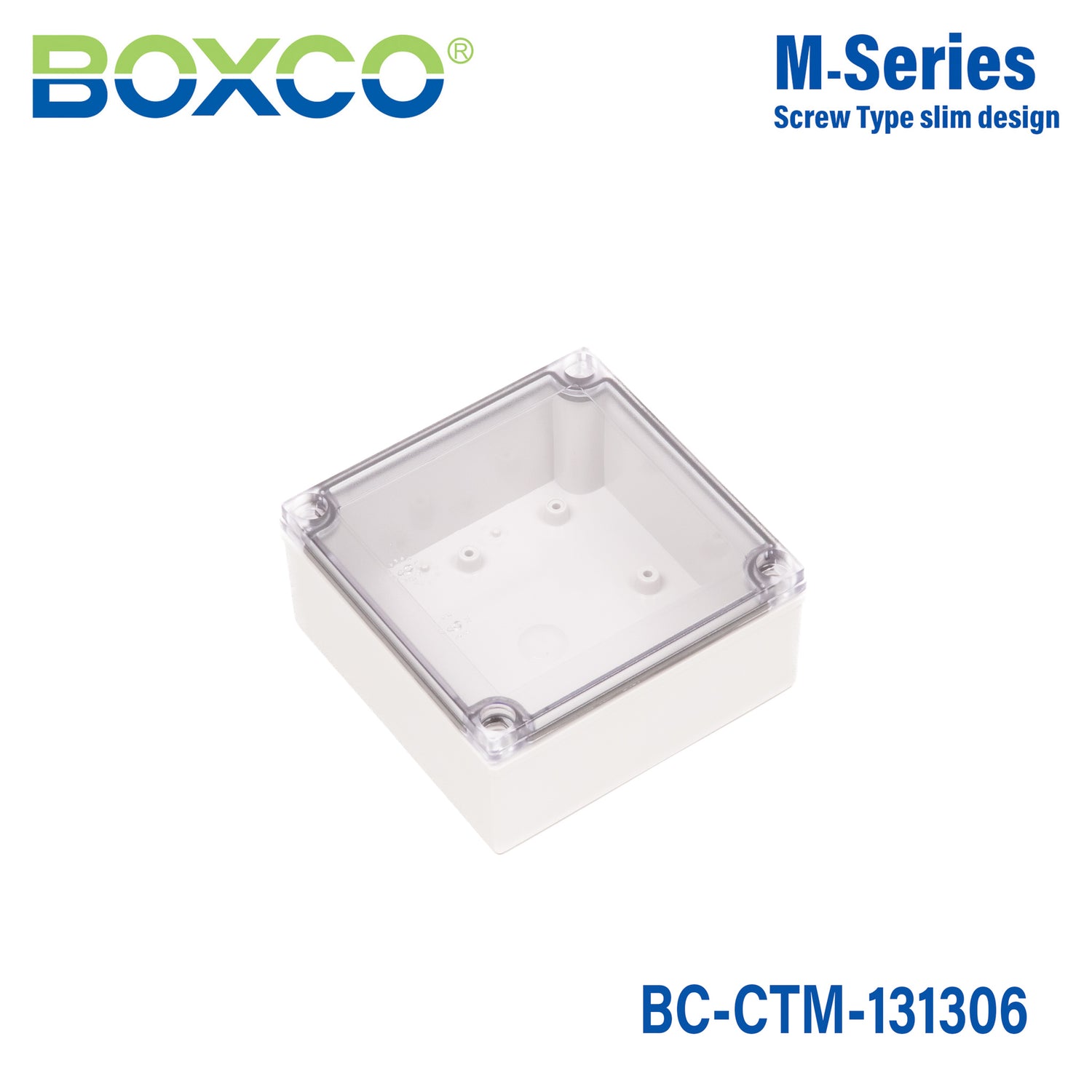

Boxco M-Series 130x130x60mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTM-131306
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTM-131306 is a 130×130×60 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CTM-131306Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
130×130×60 mm (5.12×5.12×2.36 in)
Mounting plate dimension M1 × M2
98 × 98 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1212 G (Plastic, G type), 1313 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

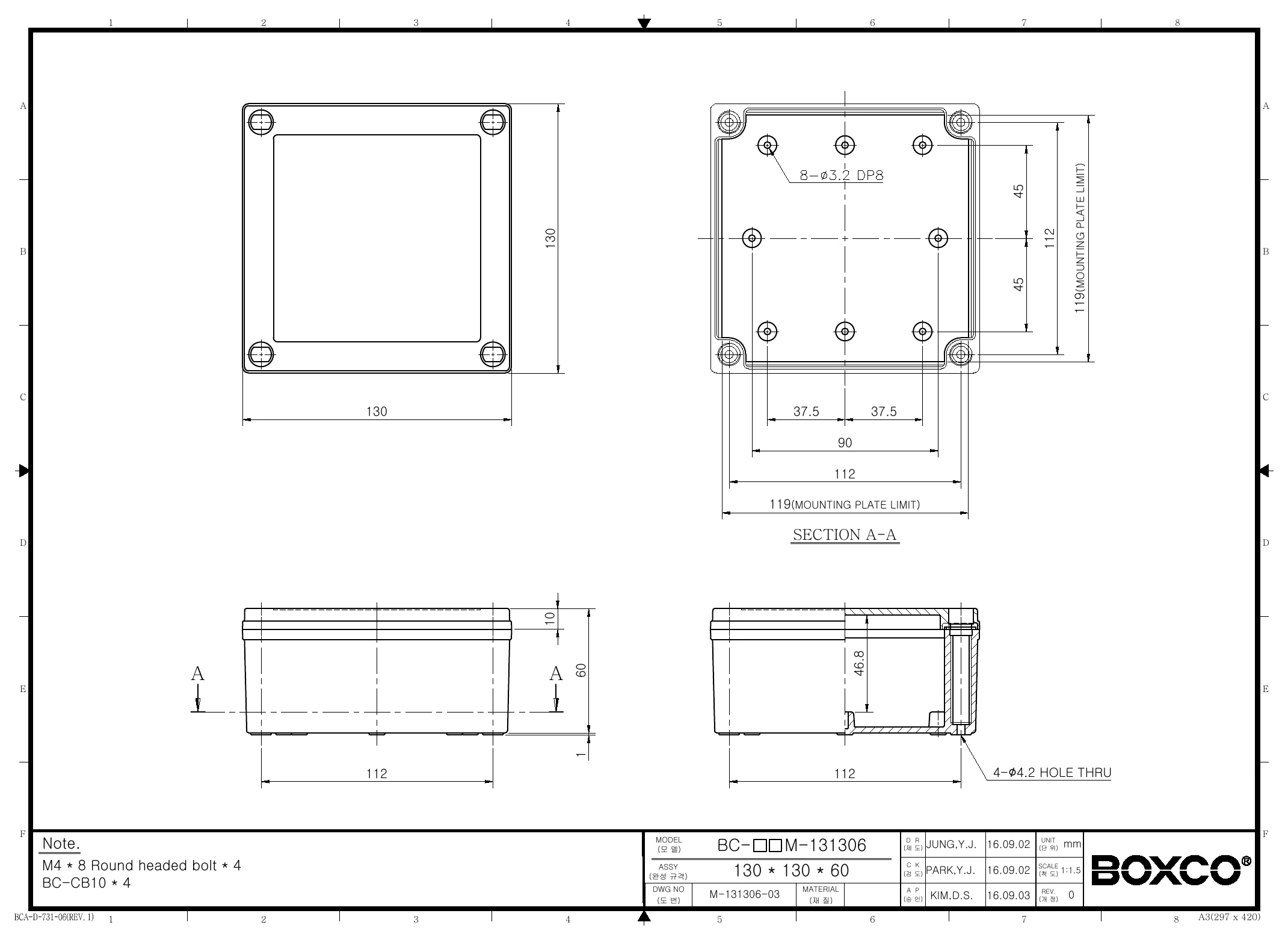

Technical drawings

BC-CTM-131306 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of this Boxco M-Series enclosure?

This model measures 5.12 x 5.12 x 2.36 inches, which is 130 x 130 x 60 mm. It is a plastic enclosure in the Boxco M-Series with a transparent cover and screw-type recessed lid.

Is this enclosure suitable for outdoor use?

Yes, the product description states that an ultraviolet stabilizer is added for outdoor usage. That helps limit visible color change over long-term exposure compared with non-stabilized enclosures.

What environmental protection ratings does this enclosure have?

This enclosure is rated IP67 and IK08. Those ratings indicate protection against dust and temporary water ingress, along with resistance to external impact for demanding industrial environments.

What kinds of applications is this enclosure commonly used for?

This screw-type enclosure is designed for protecting electronic instruments and similar components that need a durable housing. The recessed cover design also makes it suitable for applications using a membrane keypad.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C to 110 degrees C. That range supports use in both low-temperature and high-temperature operating environments.

Is this enclosure a good choice for sensitive electronic equipment?

Yes, the description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. It is also made from high impact resistant polycarbonate for added mechanical durability.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Other Boxco M Series Models (10 closest sizes)

49 other models
ModelMaterialCover
Boxco M-Series 180x255x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type ABS Grey View
Boxco M-Series 180x180x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type ABS Grey View
Boxco M-Series 130x180x60mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type ABS Grey View
Boxco M-Series 180x255x75mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type PC Grey View
Boxco M-Series 80x130x35mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type ABS Transparent View
Boxco M-Series 180x255x125mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type ABS Grey View
Boxco M-Series 80x130x75mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type ABS Transparent View
Boxco M-Series 80x130x60mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type ABS Transparent View
Boxco M-Series 130x180x60mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type ABS Transparent View
Boxco M-Series 130x130x60mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type ABS Grey View
Boxco M-Series 80x130x35mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type ABS Grey View
Boxco M-Series 180x255x125mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type ABS Transparent View
Boxco M-Series 150x180x60mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type ABS Transparent View
Boxco M-Series 130x180x35mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type ABS Transparent View
Boxco M-Series 180x255x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type ABS Grey View
Boxco M-Series 180x180x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type ABS Grey View
Boxco M-Series 180x180x60mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type ABS Grey View
Boxco M-Series 130x180x35mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type ABS Grey View
Boxco M-Series 130x130x35mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type ABS Grey View
Boxco M-Series 80x130x125mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type ABS Grey View
Boxco Steel Mounting Plate 1825 M Steel — View
Boxco M-Series 180x255x125mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type PC Transparent View
Boxco M-Series 180x255x100mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type PC Transparent View
Boxco M-Series 180x255x75mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type PC Transparent View
Boxco M-Series 180x180x125mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type PC Transparent View
Boxco M-Series 180x180x100mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type PC Transparent View
Boxco M-Series 180x180x75mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type PC Transparent View
Boxco M-Series 180x180x60mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type PC Transparent View
Boxco M-Series 150x180x60mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type PC Transparent View
Boxco M-Series 130x180x60mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type PC Transparent View
Boxco M-Series 130x180x35mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type PC Transparent View
Boxco M-Series 130x130x35mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type PC Transparent View
Boxco M-Series 80x130x125mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type PC Transparent View
Boxco M-Series 80x130x100mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type PC Transparent View
Boxco M-Series 80x130x85mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type PC Transparent View
Boxco M-Series 80x130x75mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type PC Transparent View
Boxco M-Series 80x130x60mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type PC Transparent View
Boxco M-Series 80x130x35mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type PC Transparent View
Boxco M-Series 180x255x125mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type PC Grey View
Boxco M-Series 180x255x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type PC Grey View
Boxco M-Series 180x180x125mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type PC Grey View
Boxco M-Series 180x180x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type PC Grey View
Boxco M-Series 180x180x75mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type PC Grey View
Boxco M-Series 180x180x60mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type PC Grey View
Boxco M-Series 150x180x60mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type PC Grey View
Boxco M-Series 130x180x60mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type PC Grey View
Boxco M-Series 130x180x35mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type PC Grey View
Boxco M-Series 130x130x60mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type PC Grey View
Boxco M-Series 130x130x35mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type PC Grey View
View all 78 Boxco M Series models
{ "id":8433861591339, "variants" :[{ "context":"default", "variant_id": 45677388759339, "sku":"BC-CTM-131306", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }
Boxco M-Series 130x130x60mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type
Boxco

Boxco M-Series 130x130x60mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

Log in to see price

For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
