Boxco

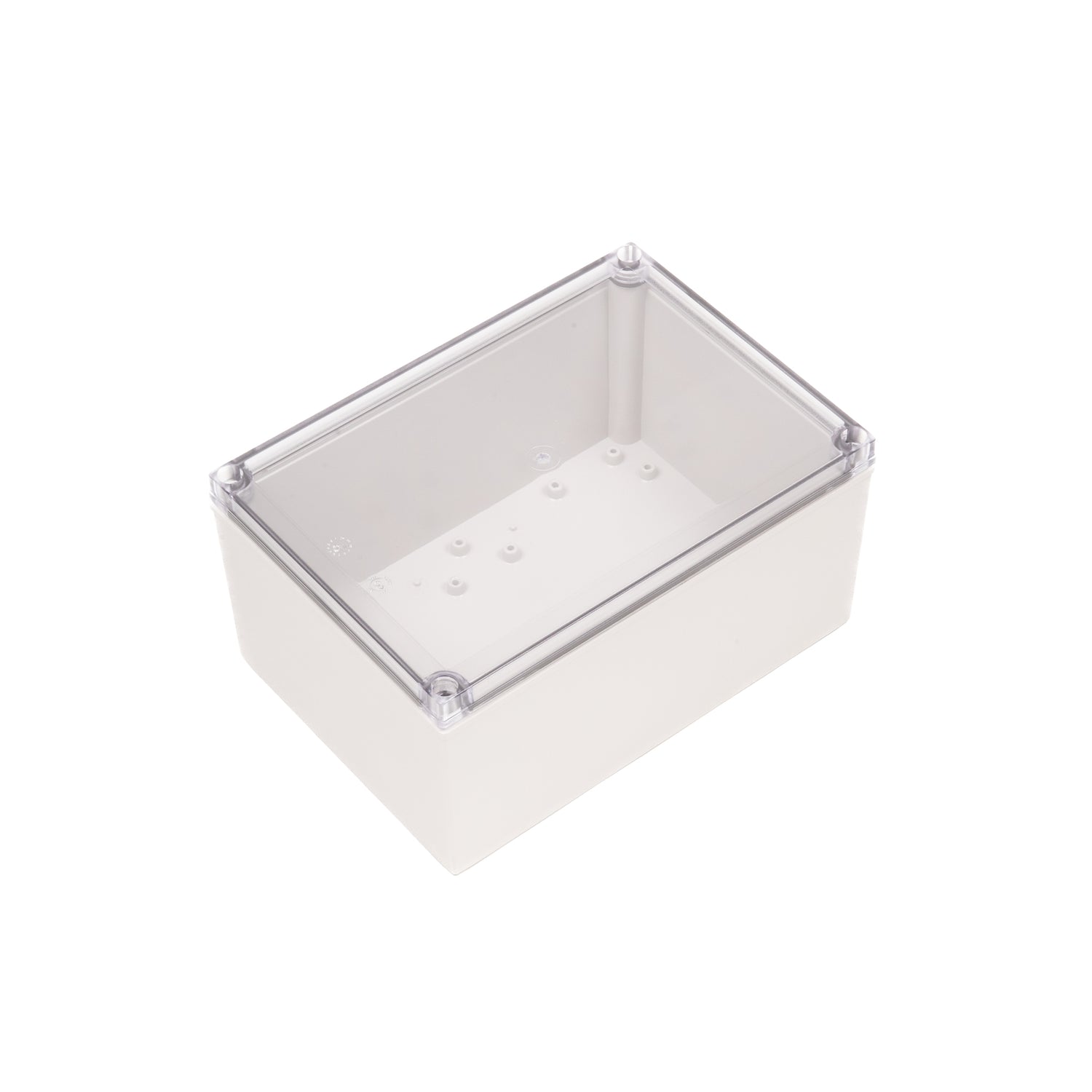

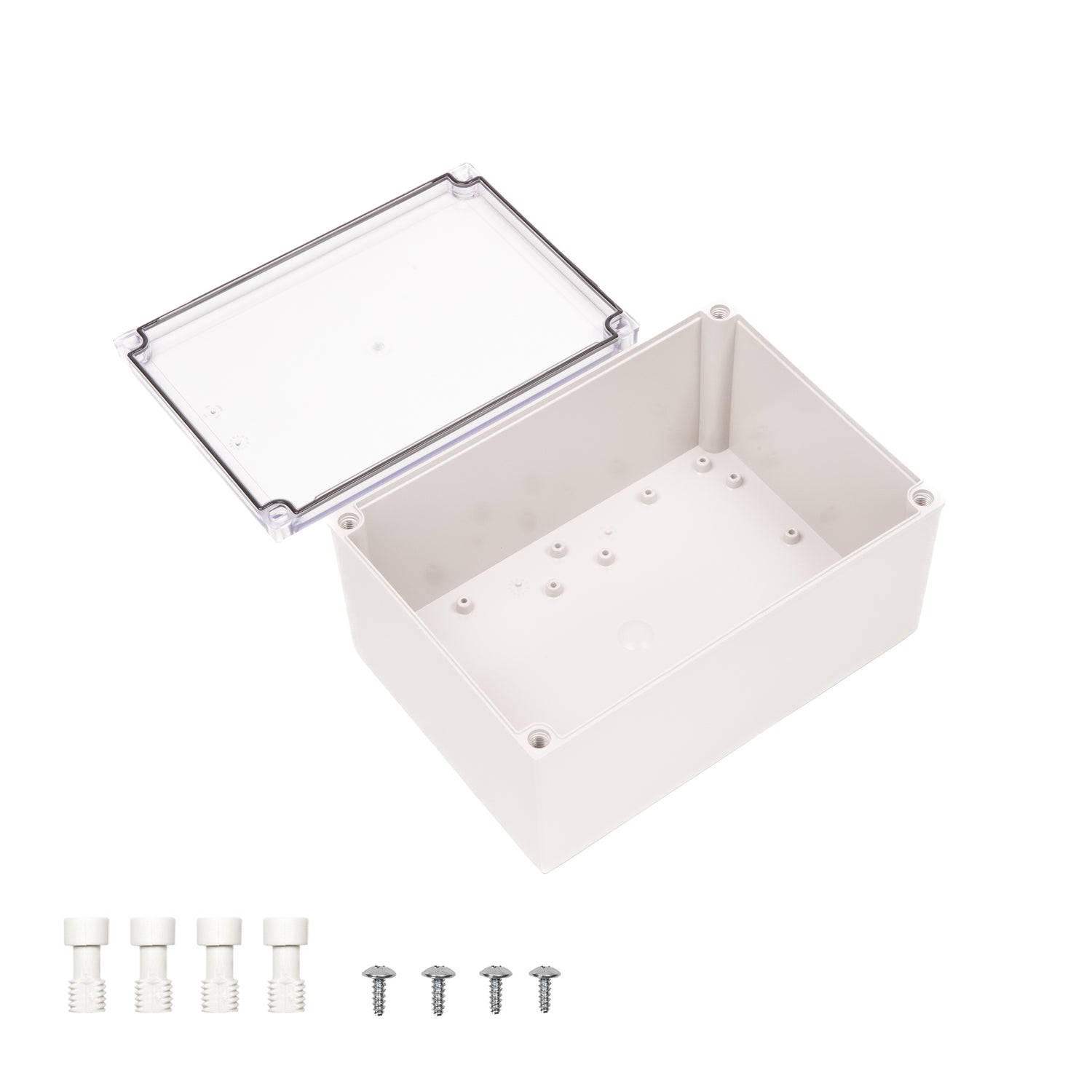

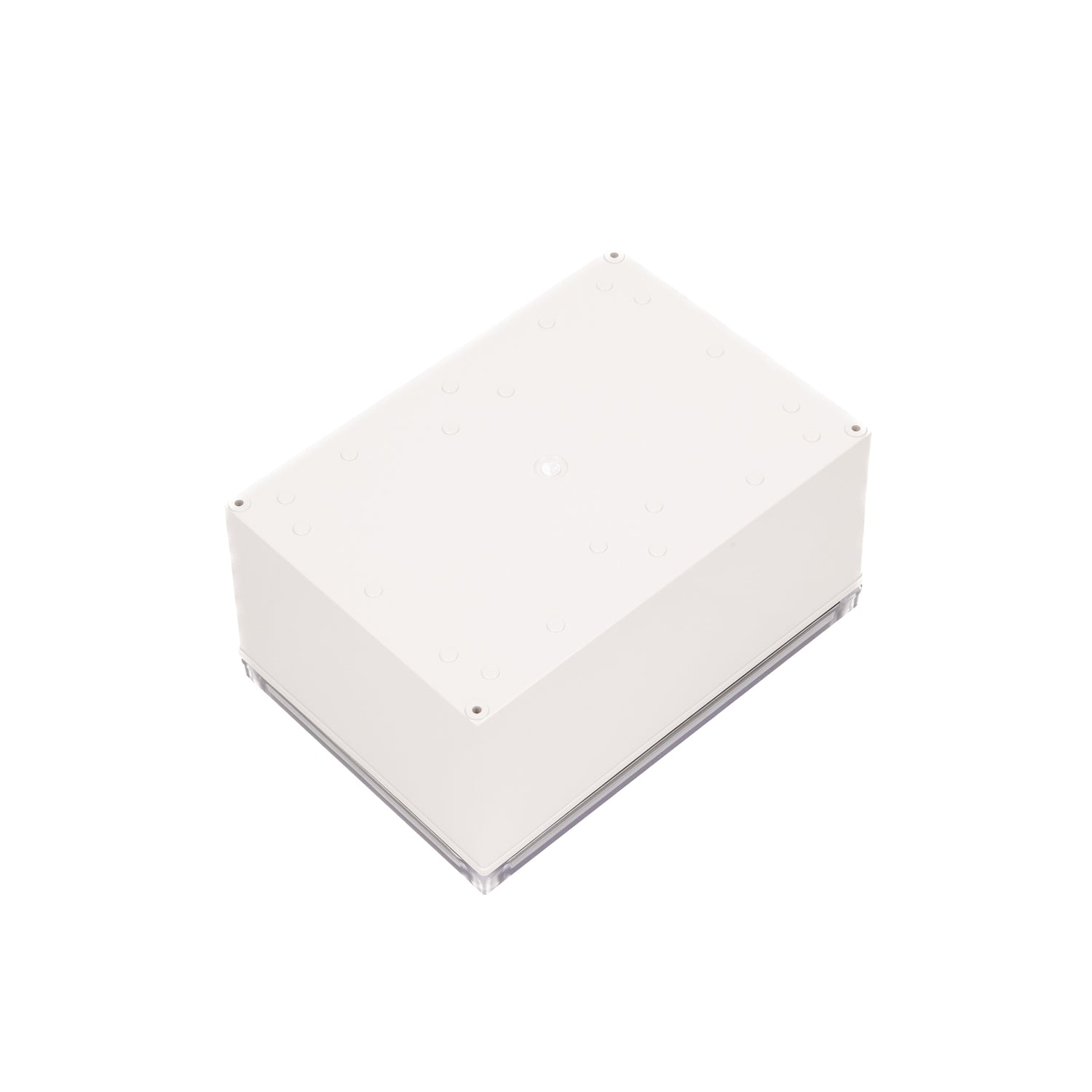

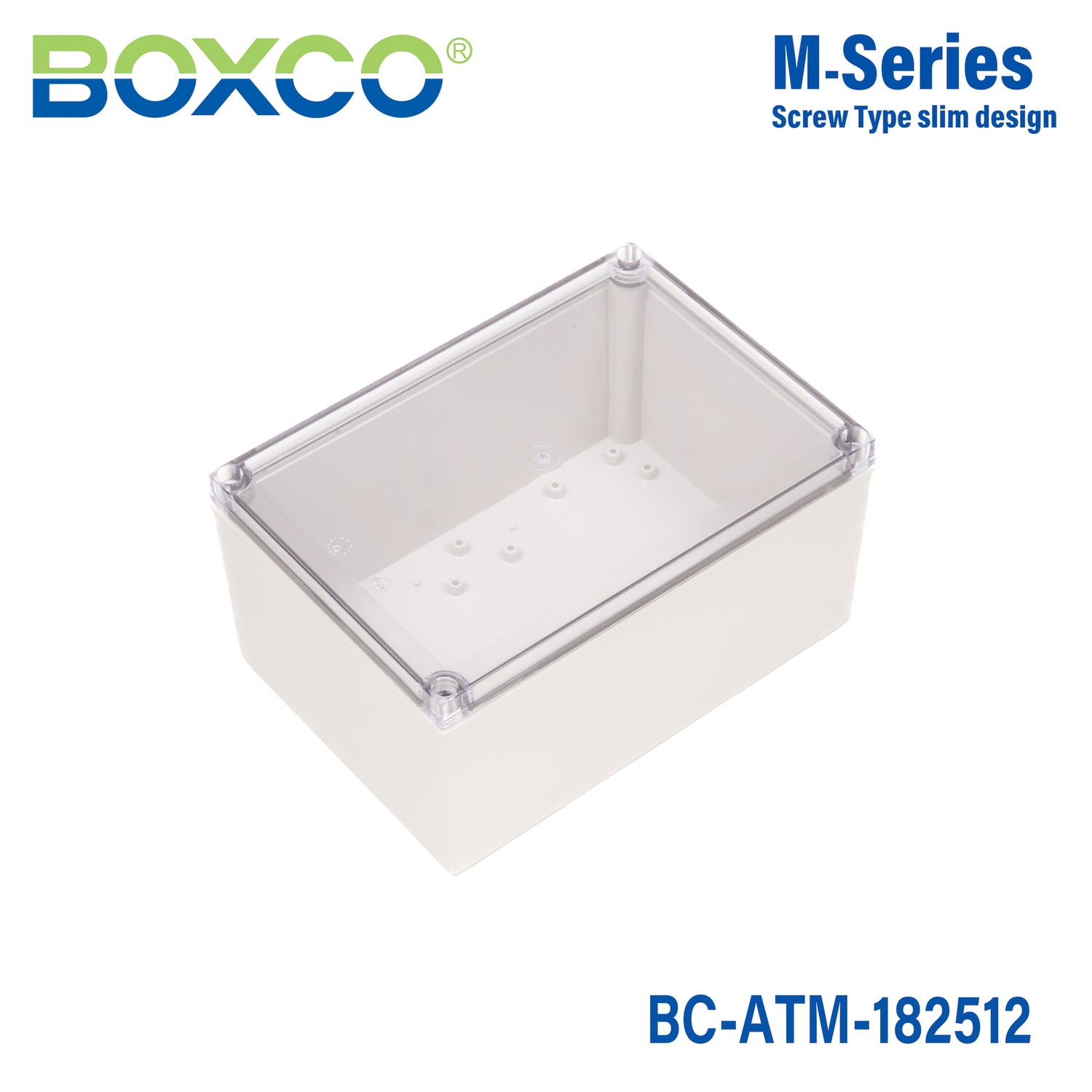

Boxco M-Series 180x255x125mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATM-182512
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATM-182512 is a 180×255×125 mm ABS enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-ATM-182512Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
180×255×125 mm (7.09×10.04×4.92 in)
Mounting plate dimension M1 × M2
148 × 223 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1825 G (Plastic, G type), 1825 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

BC-ATM-182512 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco M-Series enclosure typically used for?

This enclosure is intended for protecting electronic components and instruments in industrial or commercial applications where a sealed plastic housing is needed. Its recessed transparent cover also makes it suitable for designs that use a membrane keypad or require visual access without opening the box.

What are the main specifications of this enclosure?

This model measures 7.09 x 10.04 x 4.92 inches, which corresponds to 180 x 255 x 125 mm. It is an ABS plastic enclosure with a transparent screw-type cover, rated IP67 and IK08, and weighs 1.09 kg.

Is this enclosure suitable for outdoor environments?

Yes, the product description states that an ultraviolet stabilizer is added for outdoor usage. Boxco also notes that only minor color changes are expected even after long-term use.

How well does this enclosure resist dust, water, and impact?

This model carries an IP67 rating, indicating strong protection against dust ingress and temporary immersion conditions. It also has an IK08 impact rating, and the description notes that the material is designed to resist external impact and reduce breakage during processing.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 °C to 70 °C. That makes it suitable for applications exposed to both low-temperature and moderately elevated-temperature environments within that range.

Does the transparent cover offer any practical advantage over an opaque cover?

Yes, a transparent cover can be useful when the contents or indicators inside the enclosure need to remain visible without opening it. On this model, the recessed screw-type cover is also noted as being used for mounting a membrane keypad.
