Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

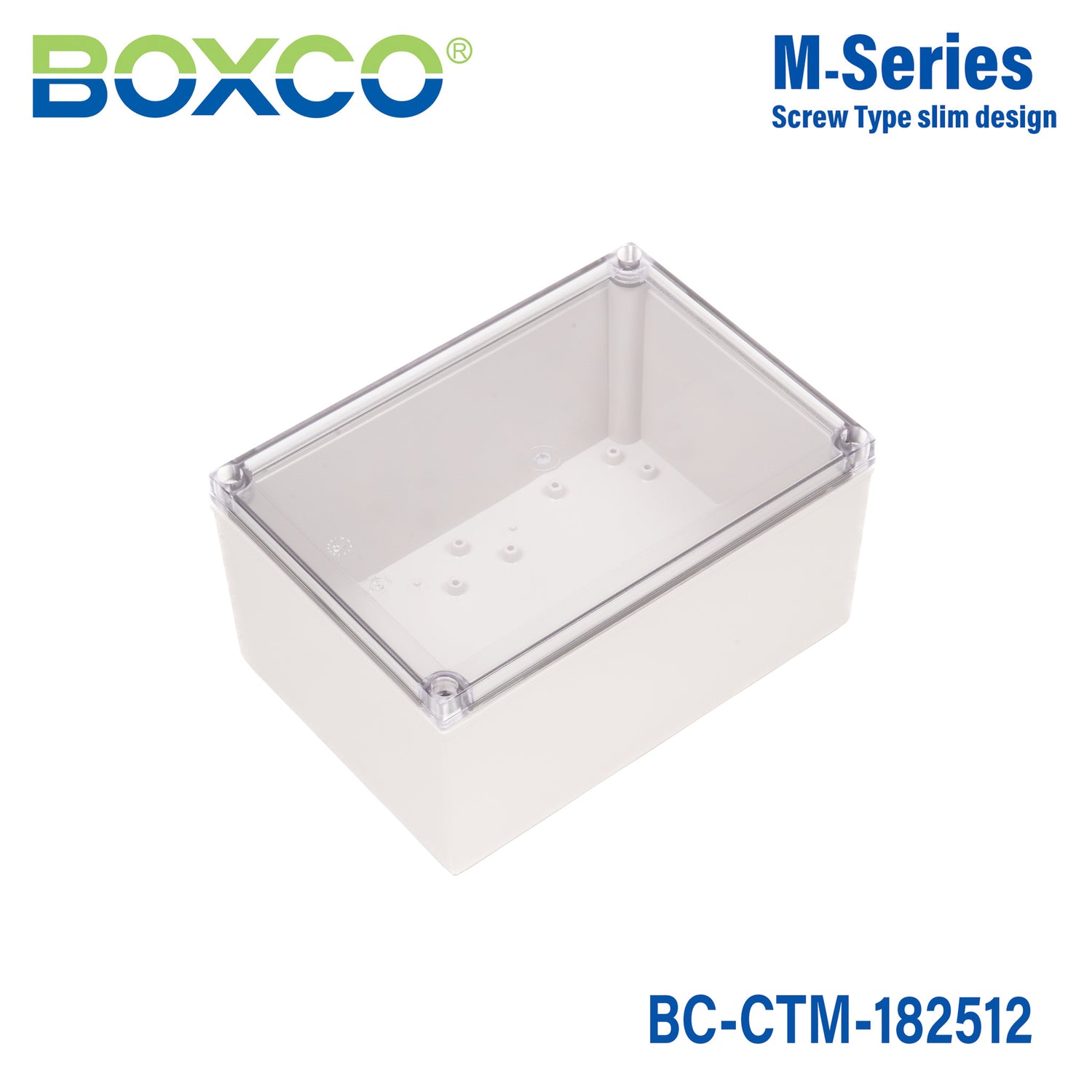

Boxco M-Series 180x255x125mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTM-182512
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTM-182512 is a 180×255×125 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CTM-182512Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
180×255×125 mm (7.09×10.04×4.92 in)
Mounting plate dimension M1 × M2
148 × 223 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1825 G (Plastic, G type), 1825 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

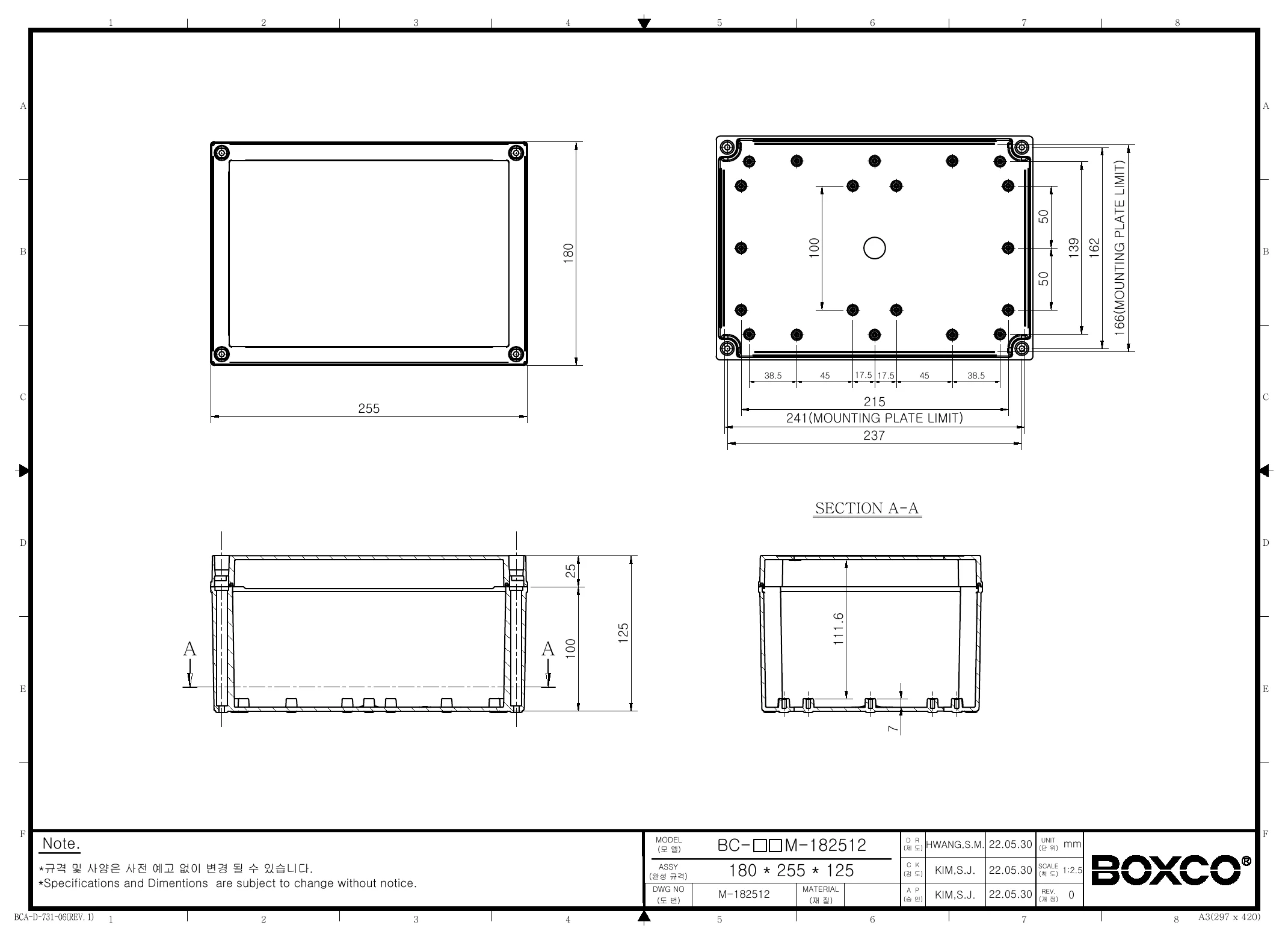

Technical drawings

BC-CTM-182512 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco M-Series enclosure commonly used for?

This enclosure is suited for protecting electronic equipment that needs a durable non-metallic housing in indoor or outdoor environments. Its recessed transparent cover also makes it a practical choice for applications that use a membrane keypad or need visual access to indicators without opening the box.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long exposure. Its IP67 rating also indicates strong protection against dust and water ingress in demanding environments.

What does the transparent cover offer on this model?

The transparent cover allows visual inspection of enclosed components, displays, or status indicators without opening the enclosure. This can be useful when monitoring equipment while keeping the housing sealed.

What are the key size and material specifications for this enclosure?

This model measures 7.09 x 10.04 x 4.92 inches, which corresponds to 180 x 255 x 125 mm. It is made from polycarbonate (PC) and has a listed weight of 1.36 kg.

How durable is this enclosure against impact and harsh conditions?

This enclosure is rated IP67 for dust-tight and water-resistant performance and IK08 for impact resistance. The description also notes that it uses high impact resistant material designed to withstand external impact and resist breakage during processing.

What temperature range can this enclosure handle?

The listed operating temperature range is -40 degrees C to 110 degrees C. That makes this model suitable for applications exposed to both low and elevated temperatures within that range.

Is this enclosure a good fit for sensitive electronic equipment?

Yes. The description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes it a relevant option where electrostatic protection is an important consideration.
