Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

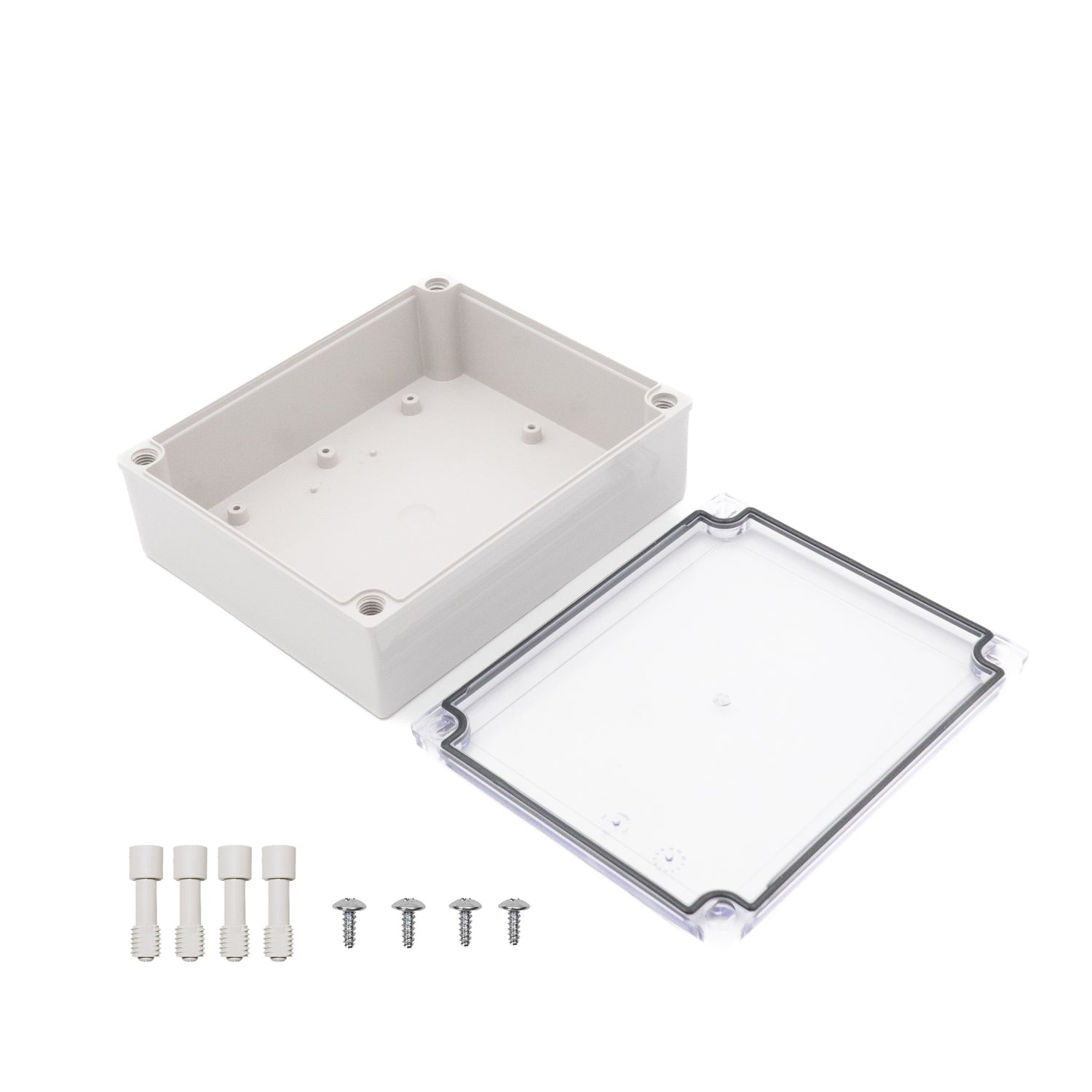

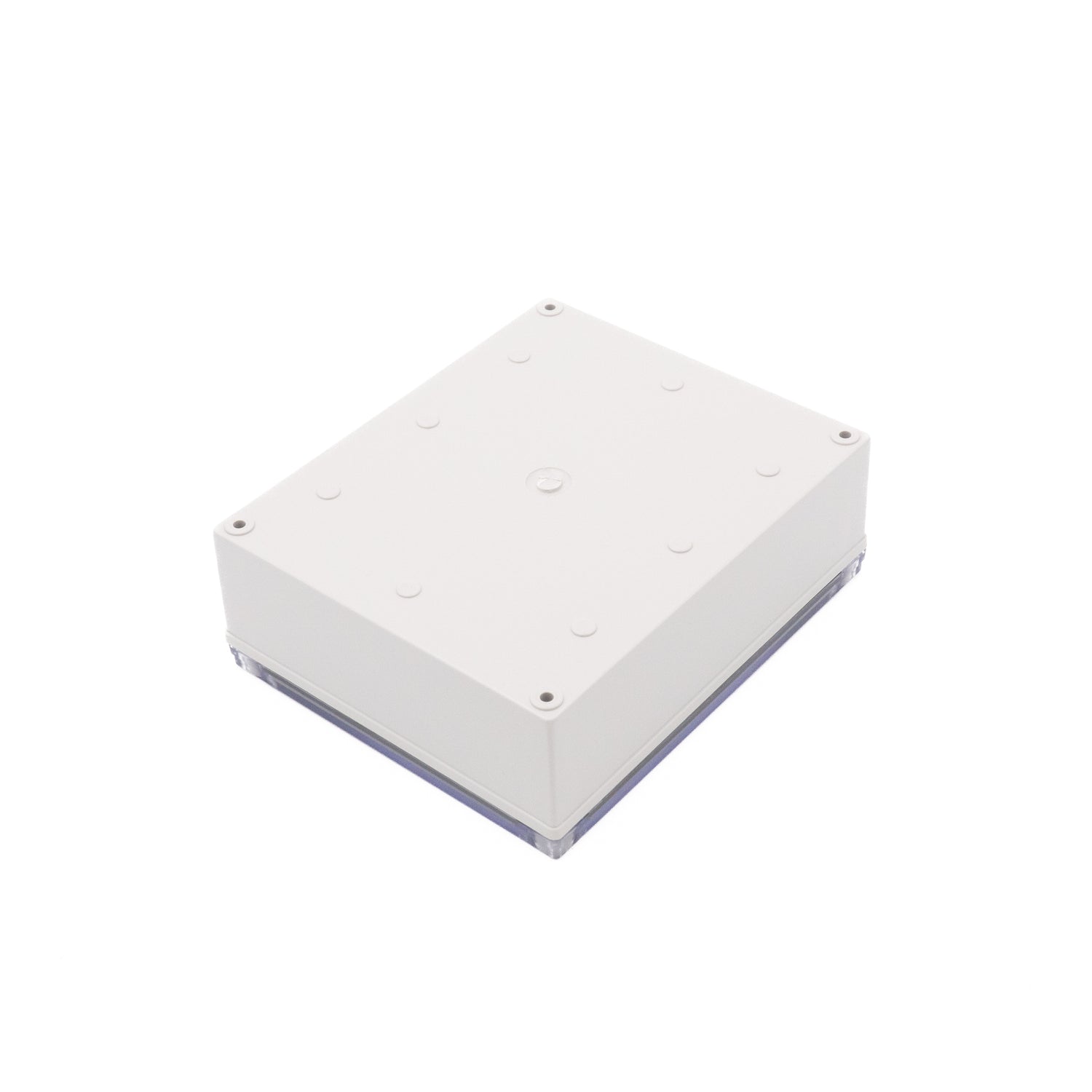

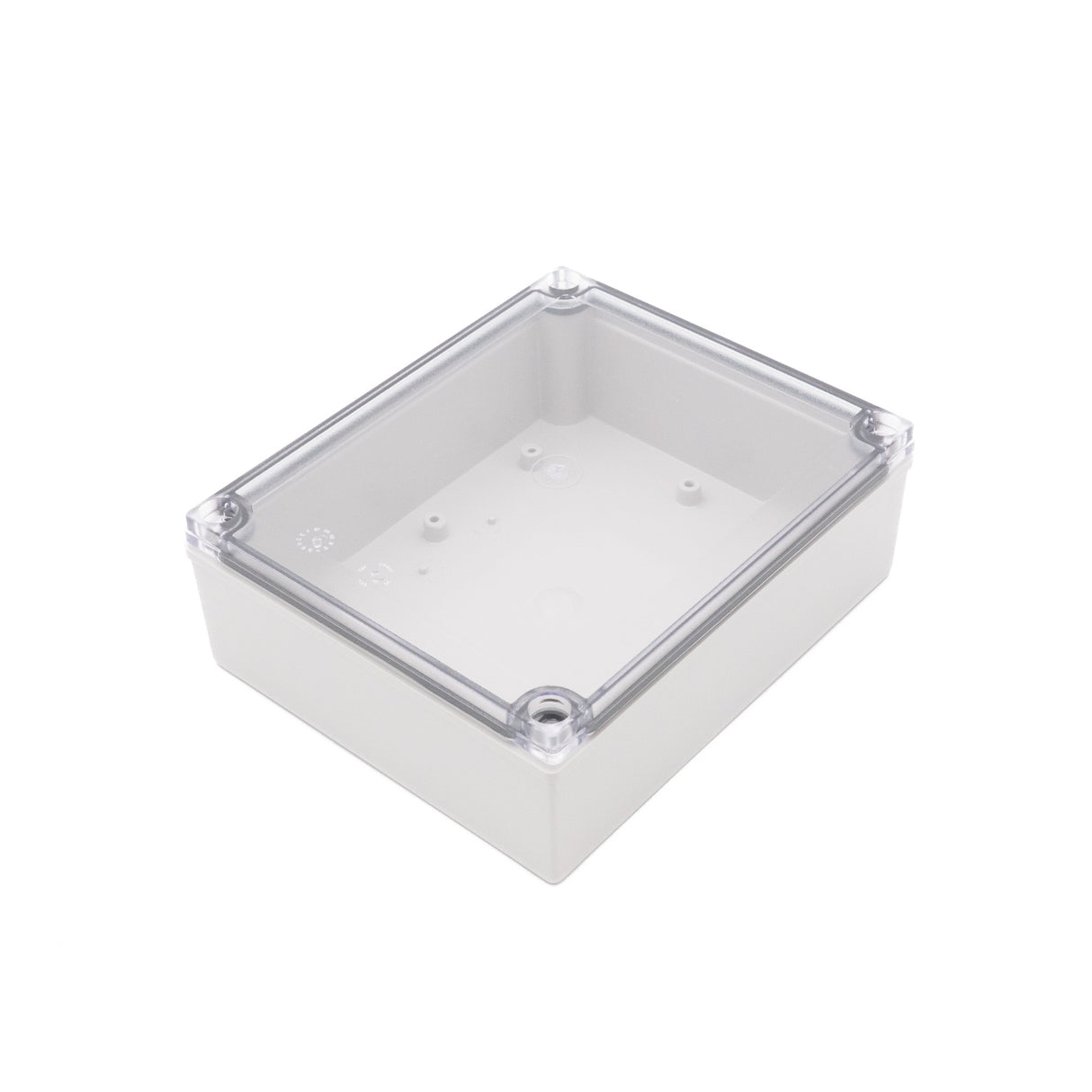

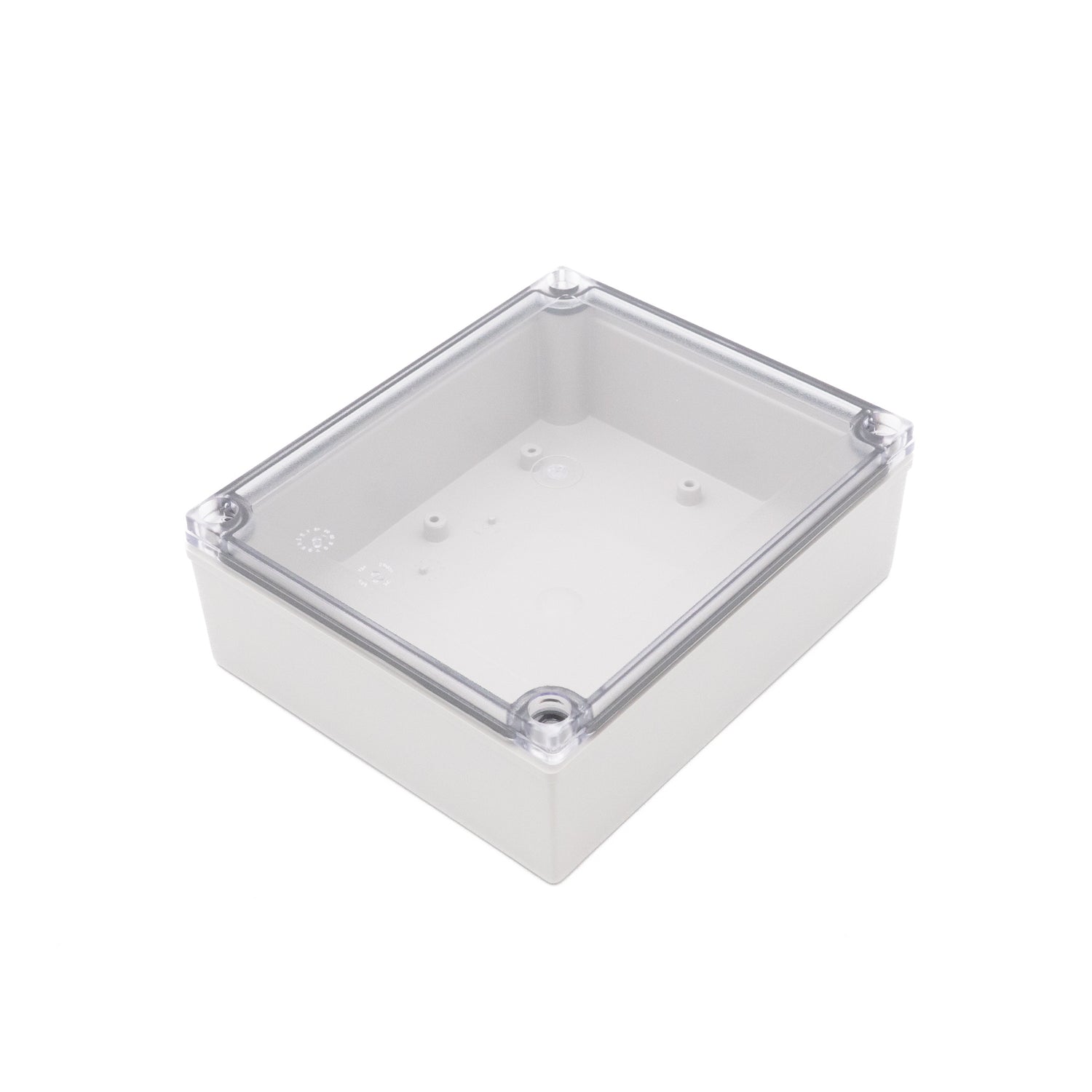

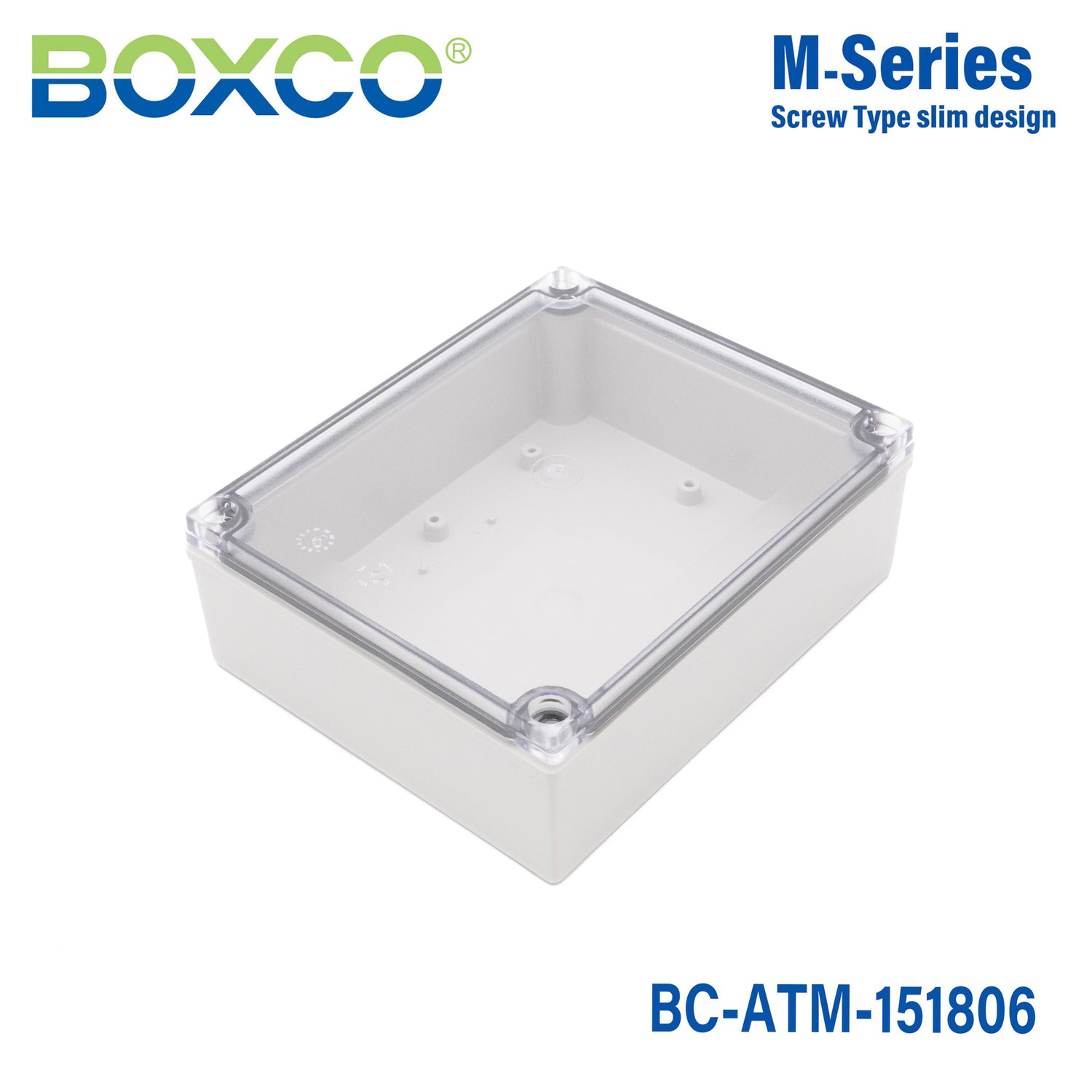

Boxco M-Series 150x180x60mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATM-151806
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATM-151806 is a 150×180×60 mm ABS enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-ATM-151806Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×180×60 mm (5.91×7.09×2.36 in)
Mounting plate dimension M1 × M2
120 × 148 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1417 G (Plastic, G type), 1518 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

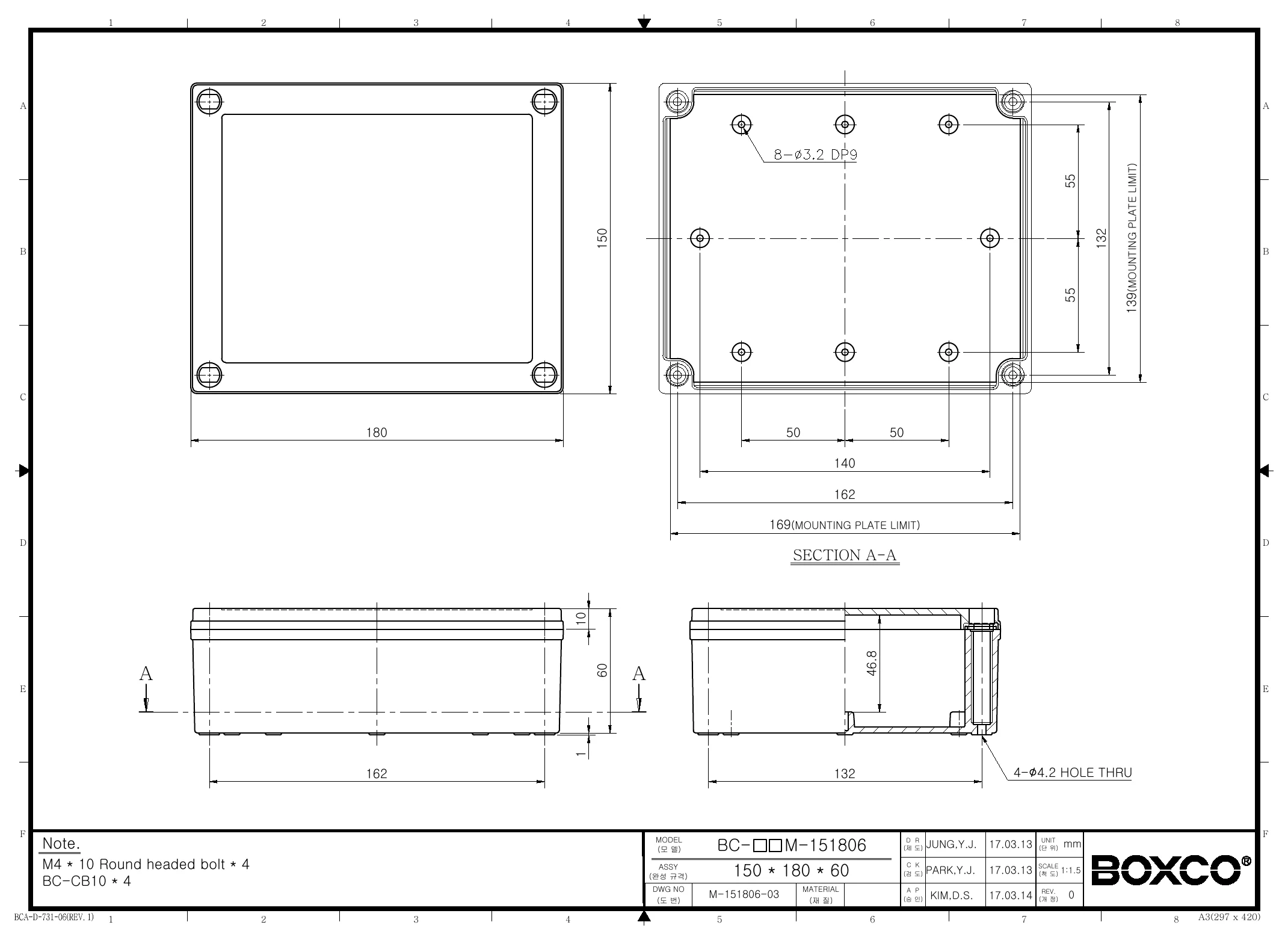

BC-ATM-151806 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this enclosure typically used for?

This Boxco M-Series enclosure is designed to protect electronic components and instruments in industrial or commercial applications. Its recessed transparent cover also makes it suitable for setups that need visibility of indicators or labels while keeping the enclosure closed.

Is this enclosure suitable for outdoor environments?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure for outdoor usage and reduce visible color change over time. Its IP67 rating also supports use where dust protection and resistance to temporary water exposure are important.

What are the main material and impact characteristics of this model?

This model is made from ABS and is described as using high impact resistant material. It is rated IK08, which indicates a defined level of impact protection for the enclosure body.

Does this enclosure allow visibility without opening the cover?

Yes. This version includes a transparent cover, which can help when visual access is needed for displays, labels, or internal status indicators. It is also a screw-type enclosure with a recessed cover design.

What size is this Boxco M-Series enclosure?

This enclosure measures 5.91 x 7.09 x 2.36 inches, which corresponds to 150 x 180 x 60 mm. That size can make it a practical choice when you need a compact-to-medium plastic enclosure for protected component housing.

What temperature range is this enclosure rated for?

The stated operating temperature range is -40 degrees C to 70 degrees C. This makes it suitable for applications that may experience both low and elevated ambient temperatures within that range.
