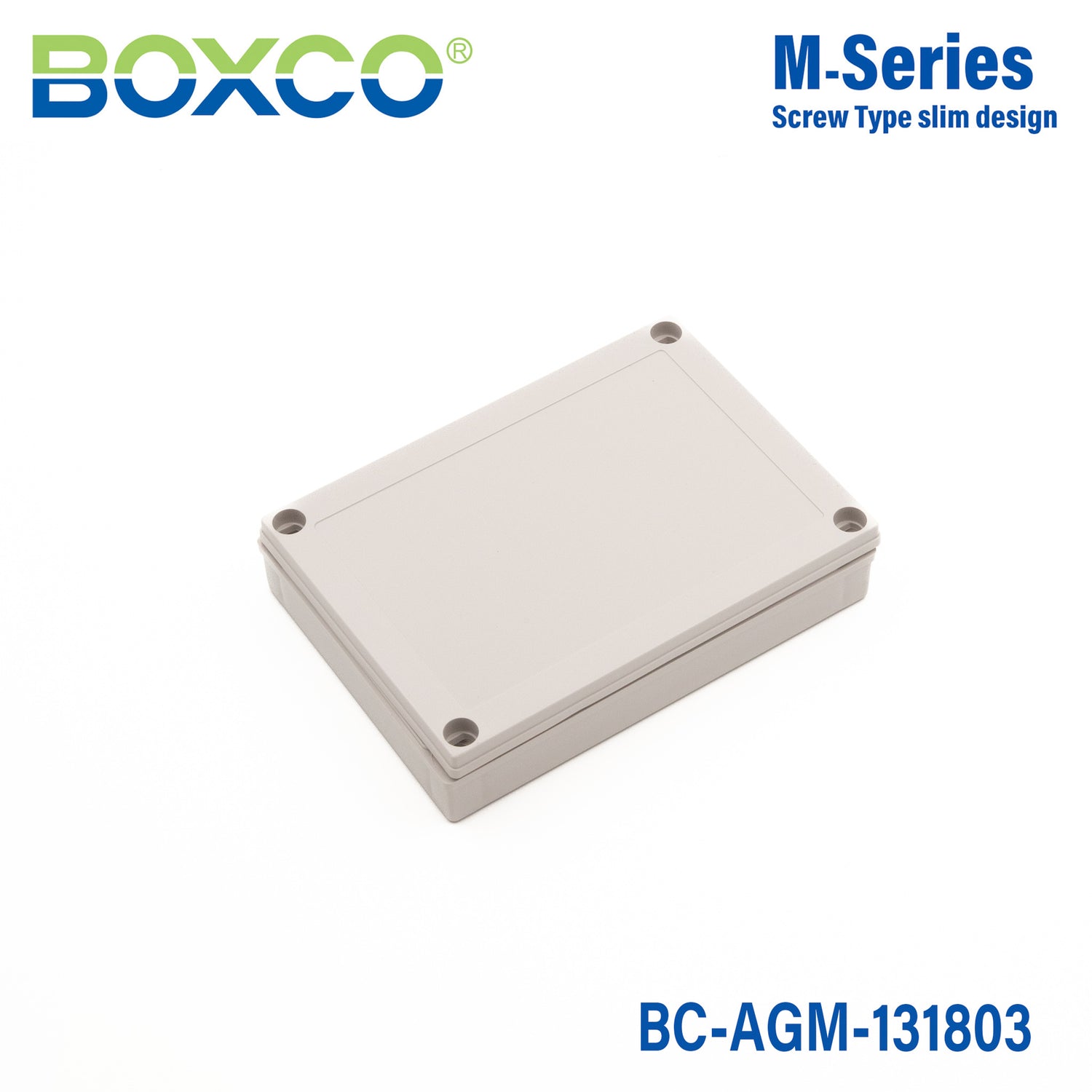

Boxco M-Series 130x180x35mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGM-131803
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGM-131803 is a 130×180×35 mm ABS enclosure with a grey cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-AGM-131803Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
130×180×35 mm (5.12×7.09×1.38 in)
Mounting plate dimension M1 × M2
100 × 160 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1318 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

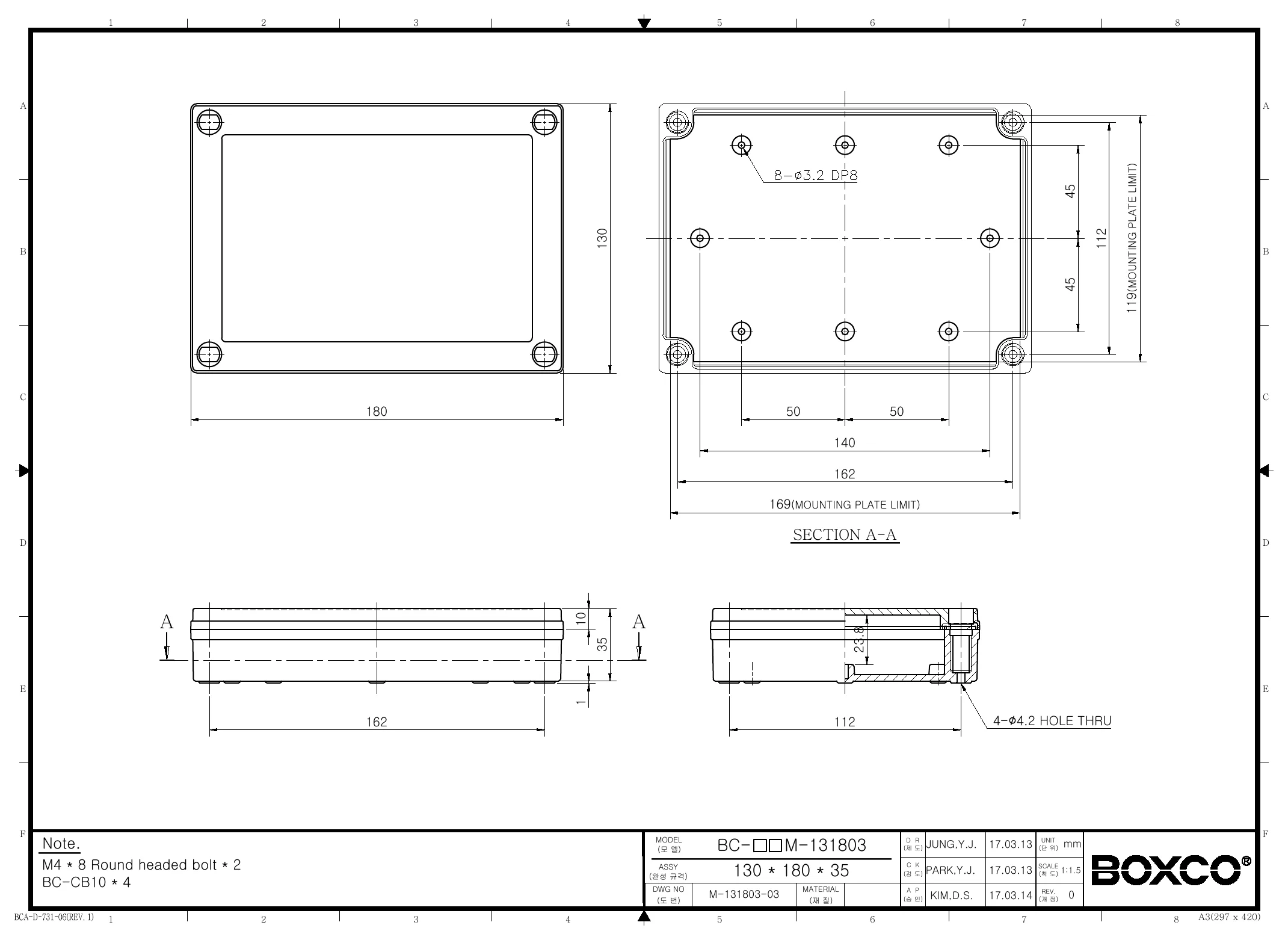

BC-AGM-131803 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco M-Series enclosure typically used for?

This model is a plastic enclosure box intended to protect electronic components and instruments in industrial or commercial applications. Its recessed screw-type cover is also suited for applications that use a membrane keypad on the enclosure surface.

What are the size and material of the BC-AGM-131803 enclosure?

The BC-AGM-131803 measures 5.12 x 7.09 x 1.38 inches, which corresponds to 130 x 180 x 35 mm. It is made from ABS plastic and has a grey cover.

Is this enclosure suitable for outdoor or demanding environments?

Yes. Boxco states that this M-Series enclosure includes an ultraviolet stabilizer for outdoor usage, helping reduce visible color change over long periods. It is also rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance.

What temperature range can this enclosure handle?

This enclosure is specified for use from -40°C to 70°C. That range makes it suitable for many indoor and outdoor industrial environments within those limits.

What makes this model a good choice for protecting sensitive electronics?

Boxco specifies anti-static material in this enclosure to help protect sensitive electronic instruments from static electricity. The housing is also described as high impact resistant, which helps reduce the risk of damage from external impact and during machining operations such as hole or press processing.

How does the screw-type recessed cover affect enclosure selection?

This model uses a screw-type cover with a recessed design, which is useful when the application calls for a more secure closed housing and a surface suited for membrane keypad mounting. If your project specifically requires that cover style, this model is a more appropriate choice than enclosures with a different lid configuration.
