Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco M-Series 130x180x35mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATM-131803
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATM-131803 is a 130×180×35 mm ABS enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-ATM-131803Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
130×180×35 mm (5.12×7.09×1.38 in)
Mounting plate dimension M1 × M2
100 × 160 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1318 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

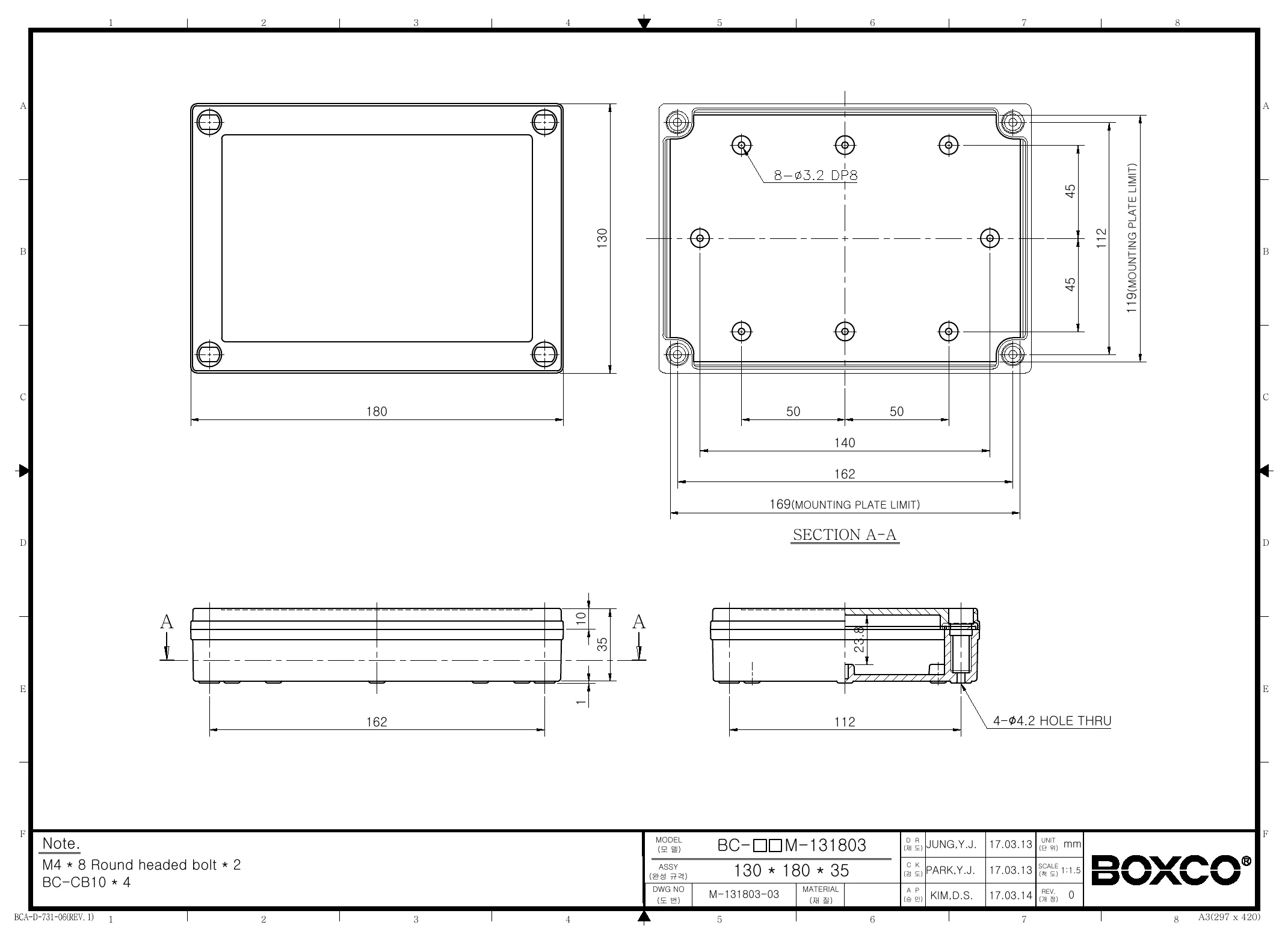

BC-ATM-131803 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco M-Series enclosure best suited for?

This enclosure is suited for protecting electronics and control components in indoor or outdoor industrial environments where dust and water resistance matter. Its recessed transparent cover also makes it a practical choice for applications that use a membrane keypad or need visual access to enclosed indicators.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce noticeable color change over long periods. Its IP67 rating also supports use in environments where strong protection against dust and water ingress is important.

What does the IP67 rating mean for this enclosure?

This model is rated IP67, indicating a high level of protection against dust ingress and exposure to water. For buyers comparing enclosure protection levels, IP67 makes this model a strong option when environmental sealing is a priority.

How durable is the Boxco M-Series plastic enclosure against impact?

This enclosure carries an IK08 impact rating and is described as being made from high impact resistant material. That makes it a good fit for applications where the housing may face routine handling or incidental external impact.

What are the material and cover style for this specific model?

This model uses an ABS body and comes with a transparent cover in a screw-type design. The cover is recessed, which the product description notes is useful for mounting a membrane keypad.

What temperature range can this enclosure handle?

The listed operating range for this model is -40 C to 70 C. That range makes it suitable for many industrial and outdoor applications that experience both low-temperature and moderately elevated-temperature conditions.

What are the dimensions and weight of this enclosure?

This Boxco M-Series enclosure measures 5.12 x 7.09 x 1.38 inches, which is 130 x 180 x 35 mm. The listed weight is 0.2520 kg, which can be useful when evaluating panel, cabinet, or equipment packaging requirements.
