Boxco M-Series 180x180x100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATM-181810
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATM-181810 is a 180×180×100 mm ABS enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-ATM-181810Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
180×180×100 mm (7.09×7.09×3.94 in)
Mounting plate dimension M1 × M2
148 × 148 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1818 G (Plastic, G type), 1818 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

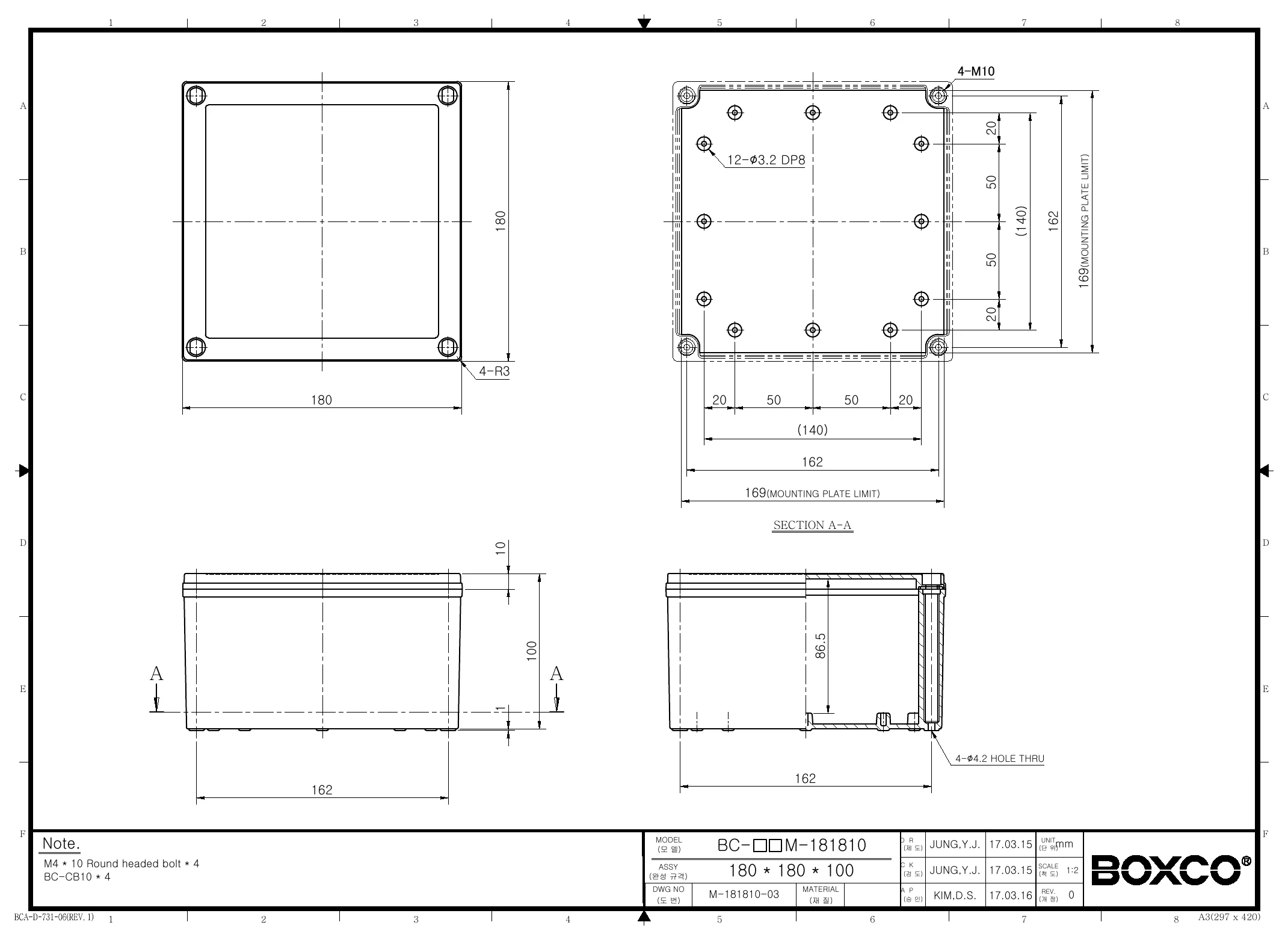

Technical drawings

BC-ATM-181810 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco M-Series enclosure suited for?

This model is intended for protecting electronic components and instruments in industrial or commercial environments. Its screw-type design with a recessed transparent cover also makes it suitable for applications that use a membrane keypad or require visual inspection without opening the enclosure.

Is this enclosure suitable for outdoor use?

Yes, the product description states that an ultraviolet stabilizer is added for outdoor usage. Boxco also notes that only minor color change is expected even after long-term use outdoors.

What are the key material and protection features of this enclosure?

This enclosure is made from ABS and includes a transparent cover in a screw-type format. It is rated IP67 for ingress protection and IK08 for impact resistance, and the description also notes anti-static material for protecting sensitive electronic instruments.

What size is this enclosure?

This Boxco M-Series enclosure measures 7.09 x 7.09 x 3.94 inches, which corresponds to 180 x 180 x 100 mm. That square format can be useful when you need extra internal room while keeping a relatively compact footprint.

What temperature range can this enclosure handle?

The listed operating temperature range is -40 degrees C to 70 degrees C. That makes it a practical option for applications exposed to both low-temperature and moderately high-temperature conditions.

How does the transparent cover compare with a standard opaque cover?

The transparent cover allows the contents or indicators inside the enclosure to be viewed without opening it. On this model, the recessed screw-type cover also supports use cases involving membrane keypads.
