Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco M-Series 180x180x60mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATM-181806
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATM-181806 is a 180×180×60 mm ABS enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-ATM-181806Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
180×180×60 mm (7.09×7.09×2.36 in)
Mounting plate dimension M1 × M2
148 × 148 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1818 G (Plastic, G type), 1818 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

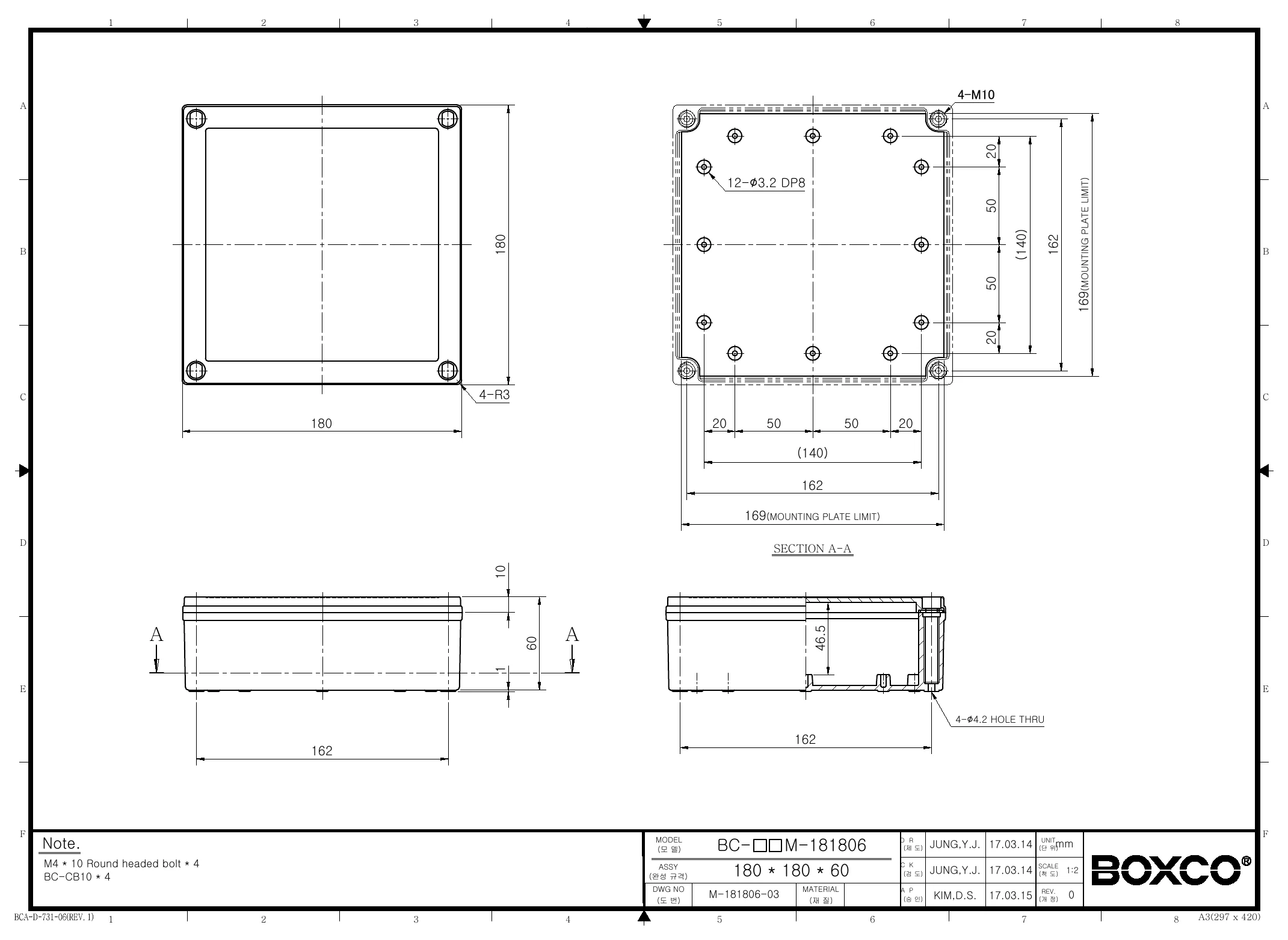

BC-ATM-181806 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco M-Series enclosure best suited for?

This enclosure is designed to protect electronic components and instruments in industrial or commercial environments where a sealed plastic housing is needed. Its recessed transparent cover also makes it suitable for applications that use a membrane keypad or need quick visual inspection without opening the enclosure.

Is this enclosure suitable for outdoor or washdown environments?

Yes, this model is built for demanding environments with an IP67 rating and IK08 impact resistance. The product description also states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time.

What are the key size and material specifications of this enclosure?

This model measures 7.09 x 7.09 x 2.36 inches, which corresponds to 180 x 180 x 60 mm. It is made from ABS plastic and includes a transparent screw-type cover.

What temperature range can this enclosure handle?

This enclosure is rated for use from -40 °C to 70 °C. That range makes it appropriate for many indoor and outdoor industrial environments where equipment may be exposed to low or elevated temperatures.

Does the transparent cover offer any practical advantage over a solid cover?

Yes, the transparent cover allows users to visually check indicators, displays, or internal labels without opening the enclosure. On this model, the recessed screw-type cover also supports applications involving a membrane keypad.

What is the weight and warranty period for this model?

This enclosure has a listed weight of 0.362 kg. The stated warranty period for this model is 1 year.
