Boxco M-Series 80x130x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGM-081310
Log in to see price Trade pricing & online ordering for account holders
Available to order
|

Overview

BC-AGM-081310 is a 80×130×100 mm ABS enclosure with a grey cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-AGM-081310Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×100 mm (3.15×5.12×3.94 in)
Mounting plate dimension M1 × M2
48 × 98 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0813 G (Plastic, G type), 0813 P (Plastic, P type), 0813 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

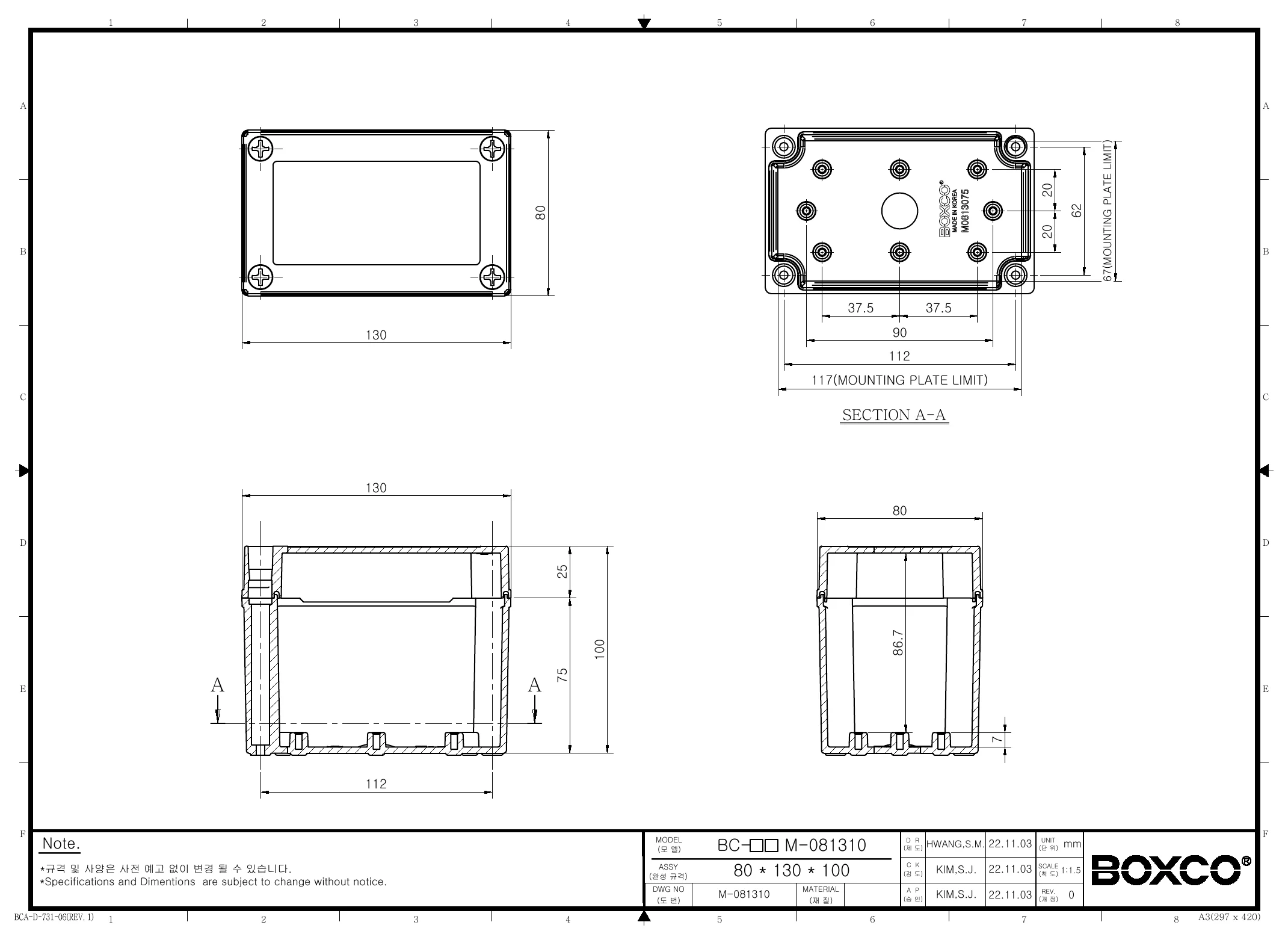

BC-AGM-081310 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco M-Series enclosure typically used for?

This model is commonly used as a protective housing for electronic components and control devices in industrial or commercial applications. Its recessed screw-type cover also makes it suitable for applications that use a membrane keypad on the enclosure face.

Is this enclosure suitable for outdoor environments?

Yes, this enclosure is designed for outdoor use. The material includes an ultraviolet stabilizer to help reduce visible color change over time, and the IP67 rating indicates strong protection against dust and temporary water immersion.

What are the dimensions of this enclosure?

This Boxco M-Series enclosure measures 3.15 x 5.12 x 3.94 inches, which is 80 x 130 x 100 mm. These dimensions make it a compact option for protecting internal components while still allowing room for a range of enclosure-based equipment.

What material is this enclosure made from?

This model is made from ABS plastic and has a grey cover. The product description also notes high impact resistance and anti-static material properties, which can help protect sensitive electronic instruments from static electricity.

How durable is this enclosure in demanding conditions?

This enclosure is rated IP67 for ingress protection and IK08 for impact resistance. It is also described as being made from high impact resistant material, which helps it stand up to external impact and reduces the risk of breakage during processing.

What temperature range can this enclosure handle?

This model is rated for use from -40 C to 70 C. That range makes it suitable for many indoor and outdoor industrial environments where equipment may be exposed to cold or moderately elevated temperatures.

Does this enclosure include a warranty?

Yes, this product includes a 1-year warranty. For warranty details or claim terms, it is best to confirm the seller's specific policy for this Boxco enclosure model.
