Boxco M-Series 80x130x125mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATM-081312
Log in to see price Trade pricing & online ordering for account holders
Available to order
|

Overview

BC-ATM-081312 is a 80×130×125 mm ABS enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-ATM-081312Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×125 mm (3.15×5.12×4.92 in)
Mounting plate dimension M1 × M2
48 × 98 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
0813 G (Plastic, G type), 0813 P (Plastic, P type), 0813 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

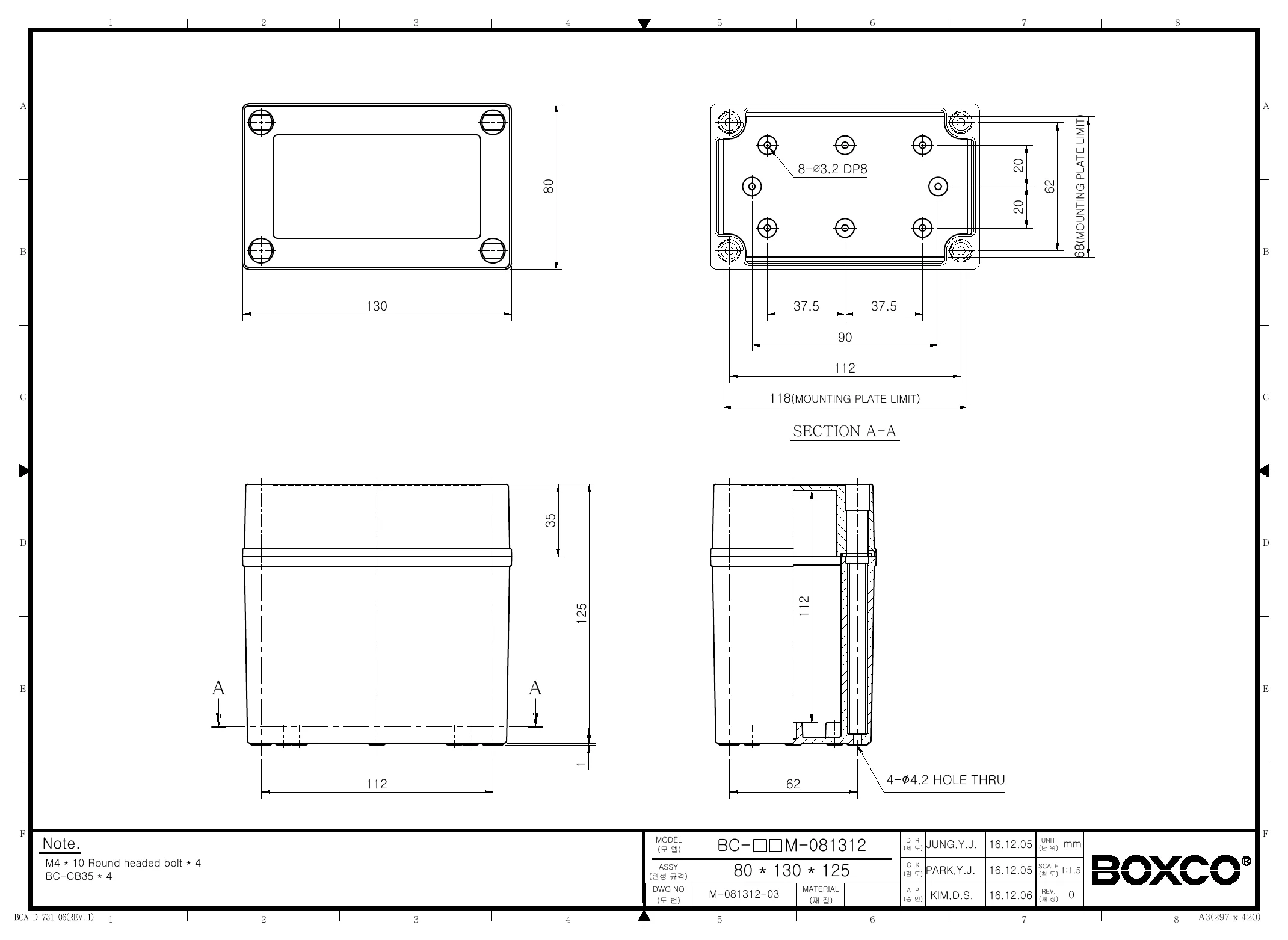

BC-ATM-081312 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco M-Series enclosure commonly used for?

This enclosure is suited for protecting electronic components and instruments in industrial or commercial environments. Its recessed transparent cover also makes it a practical choice where a membrane keypad or visible internal components are needed.

Is this enclosure suitable for outdoor use?

Yes, this model is described as having an ultraviolet stabilizer added for outdoor usage. That helps reduce color change over long periods of exposure compared with standard plastic enclosures.

What does the IP67 rating mean for this enclosure?

The IP67 rating indicates this enclosure is built for strong protection against dust ingress and temporary exposure to water. For buyers comparing enclosure options, that makes it appropriate for demanding environments where sealing performance matters.

How impact-resistant is this plastic enclosure?

This model is rated IK08, which indicates resistance to mechanical impact. The description also states it uses high impact resistant material designed to help prevent breakage during processing and in service.

What material is this enclosure made from?

This model is made from ABS and includes a transparent cover. The product description also notes the use of anti-static material to help protect sensitive electronic instruments from static electricity.

What size is this enclosure?

The listed size for this model is 3.15 x 5.12 x 4.92 inches, which is also given as 80 x 130 x 125 mm. This makes it a compact enclosure option for applications that need a sealed plastic housing without a large footprint.

What temperature range can this enclosure handle?

This enclosure is specified for use from -40 degrees C to 70 degrees C. That range supports use in both low-temperature and moderately high-temperature environments within its rated limits.
