Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco M-Series 80x130x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGM-081307
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGM-081307 is a 80×130×75 mm ABS enclosure with a grey cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-AGM-081307Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×75 mm (3.15×5.12×2.95 in)
Mounting plate dimension M1 × M2
48 × 98 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0813 G (Plastic, G type), 0813 P (Plastic, P type), 0813 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

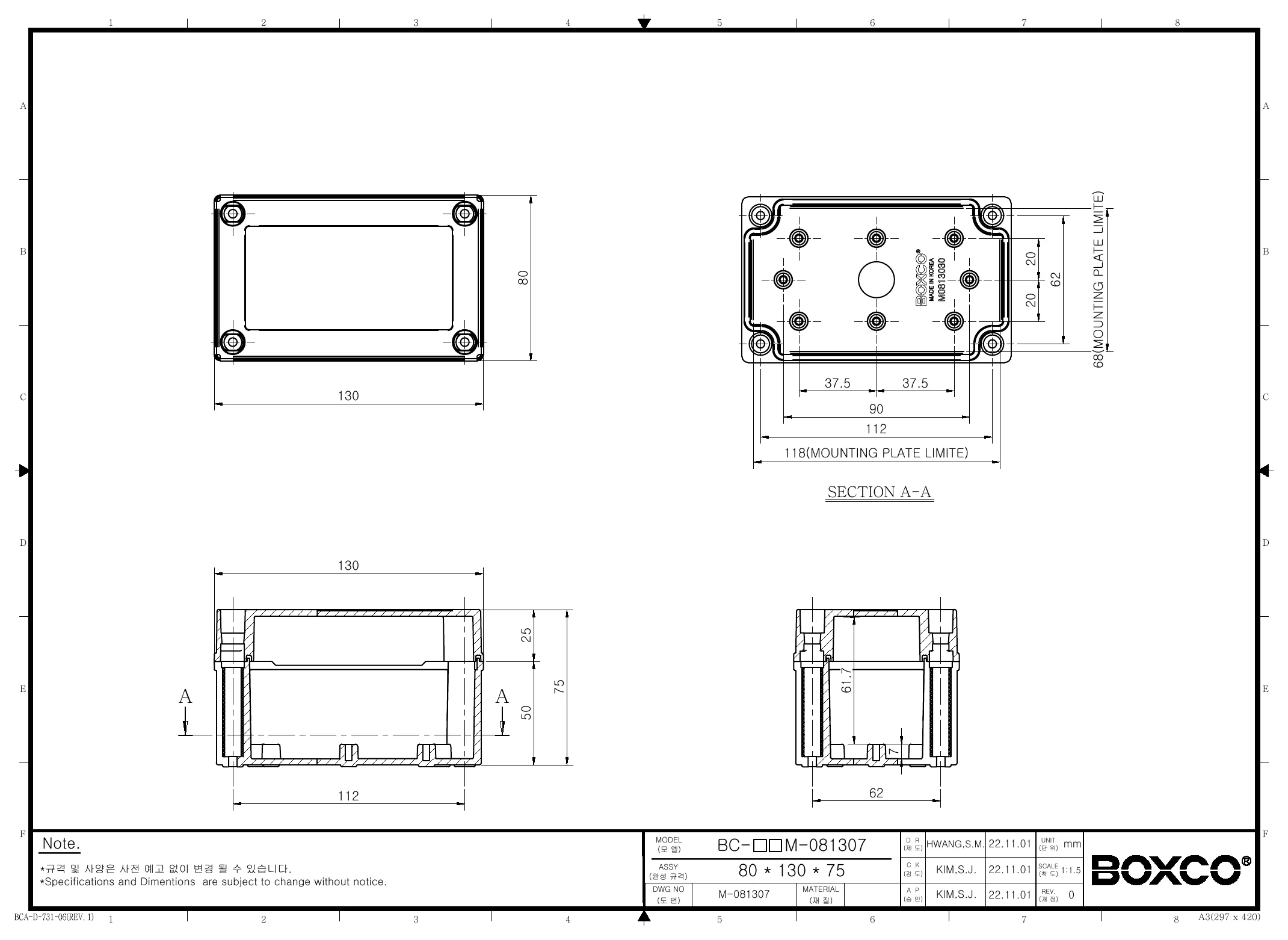

Technical drawings

BC-AGM-081307 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco M-Series 80 x 130 x 75 mm enclosure suited for?

This enclosure is intended for protecting sensitive electronic instruments in industrial or commercial environments where a durable plastic housing is needed. Its screw-type design with a recessed cover also makes it suitable for applications that use a membrane keypad.

Is this enclosure appropriate for outdoor use?

Yes, this model is described as having an ultraviolet stabilizer added for outdoor usage. The material is designed to resist noticeable color change over long-term exposure compared with standard untreated plastic enclosures.

How much environmental protection does this enclosure provide?

This model is rated IP67 and IK08. That means it is built for strong ingress protection and impact resistance, making it a good fit for demanding environments where dust, water exposure, and external impact are concerns.

What material is this enclosure made from?

This Boxco enclosure is made from ABS and has a grey cover. The product description also notes anti-static material is used to help protect sensitive electronic instruments from static electricity.

What are the size and weight of this enclosure?

The enclosure measures 3.15 x 5.12 x 2.95 inches, which corresponds to 80 x 130 x 75 mm. Its listed weight is 0.188 kg, which can be useful when comparing enclosure options for panel or equipment layouts.

What operating temperature range is this enclosure rated for?

This model is rated for temperatures from -40 °C to 70 °C. That range makes it suitable for many industrial and outdoor applications where equipment may face both low and elevated ambient temperatures.

Does this enclosure support membrane keypad applications?

Yes, the product features specifically state that the screw-type enclosure has a recessed cover used for mounting a membrane keypad. That makes this model a practical choice when the enclosure face needs to accommodate that style of interface.
