Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco M-Series 80x130x85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGM-081308
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGM-081308 is a 80×130×85 mm ABS enclosure with a grey cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-AGM-081308Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×85 mm (3.15×5.12×3.35 in)
Mounting plate dimension M1 × M2
48 × 98 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0813 G (Plastic, G type), 0813 P (Plastic, P type), 0813 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

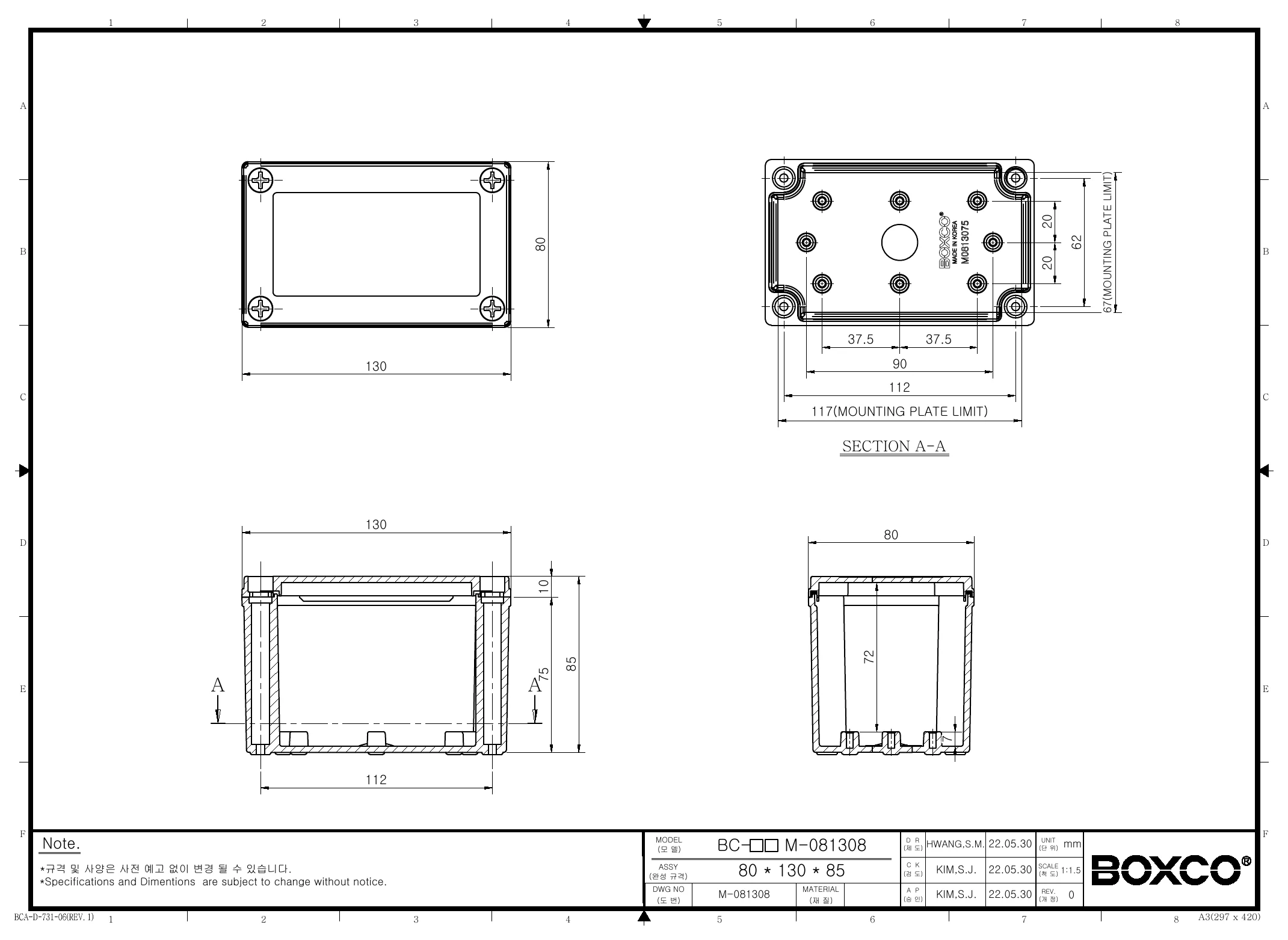

BC-AGM-081308 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco M-Series enclosure typically used for?

This enclosure is designed to protect electronic components and instruments in industrial or commercial applications. Its recessed screw-type cover also makes it suitable for applications that use a membrane keypad on the enclosure surface.

Is this enclosure suitable for outdoor environments?

Yes, this model is intended for outdoor use because the material includes an ultraviolet stabilizer. That helps reduce visible color change over long-term exposure compared with standard untreated plastic enclosures.

What material is this enclosure made from?

This model is made from ABS plastic and has a grey cover. The product description also notes anti-static material properties and high impact resistance for protecting sensitive electronic instruments and reducing breakage during processing.

How much protection does this enclosure provide against dust, water, and impact?

This enclosure is rated IP67 and IK08. That means it is built for strong protection in demanding environments where resistance to dust, temporary water exposure, and external impact matters.

What are the dimensions and weight of this enclosure?

This Boxco M-Series enclosure measures 3.15 x 5.12 x 3.35 inches, which is 80 x 130 x 85 mm. Its listed weight is 0.2200 kg.

What temperature range can this enclosure handle?

This model has a listed operating temperature range of -40 degrees C to 70 degrees C. That makes it a practical choice for applications exposed to both low and elevated ambient temperatures within that range.
