Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco M-Series 180x180x60mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGM-181806
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGM-181806 is a 180×180×60 mm ABS enclosure with a grey cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-AGM-181806Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
180×180×60 mm (7.09×7.09×2.36 in)
Mounting plate dimension M1 × M2
148 × 148 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1818 G (Plastic, G type), 1818 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

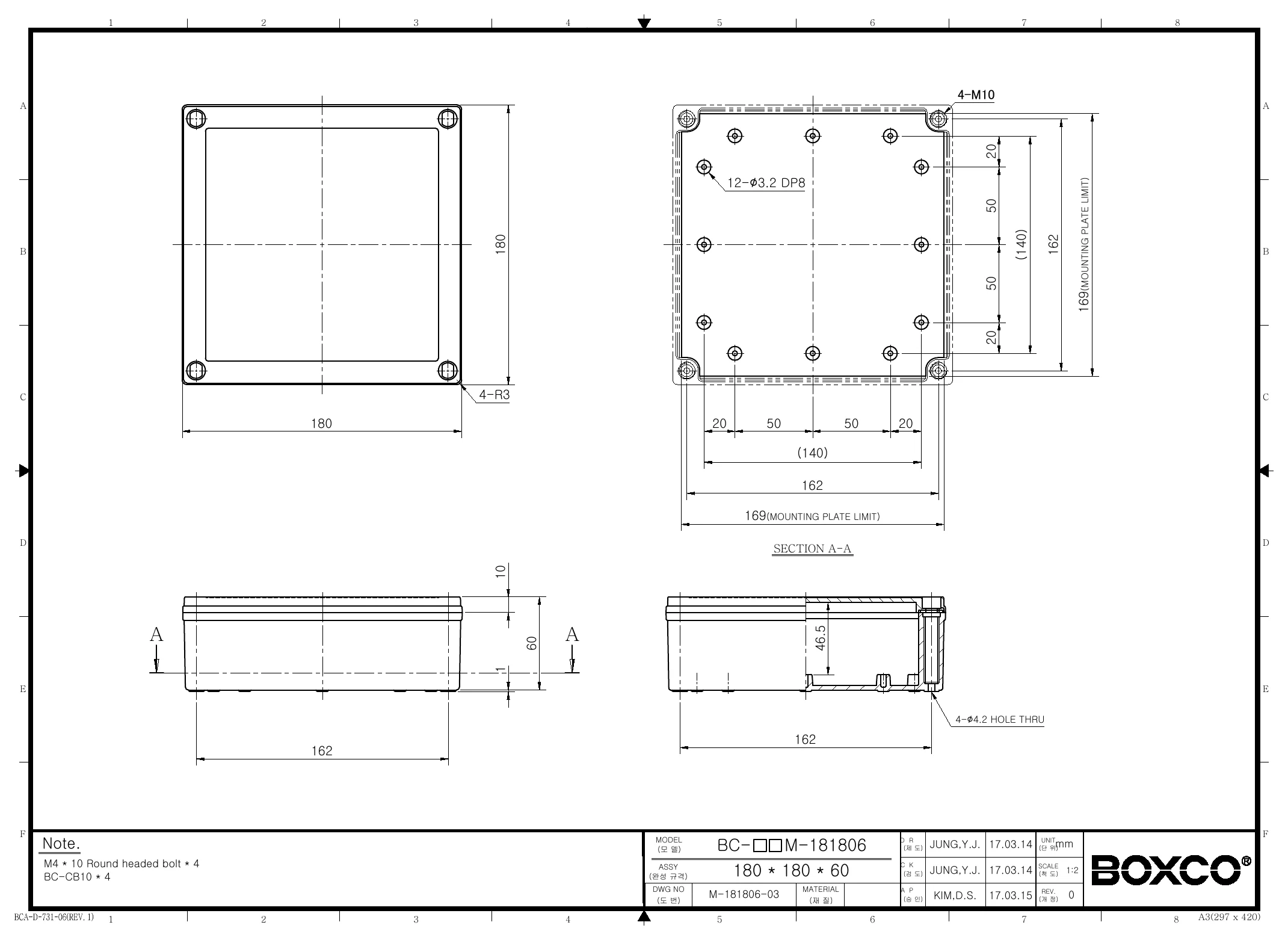

Technical drawings

BC-AGM-181806 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco M-Series BC-AGM-181806 enclosure best suited for?

This enclosure is suited for protecting electronic components in industrial and commercial environments where a durable non-metallic housing is needed. Its recessed screw-type cover is also noted as suitable for applications using a membrane keypad. The ABS construction and impact-resistant design make it a practical choice for general-purpose equipment enclosures.

Can this plastic enclosure be used outdoors?

Yes, this model is described as having an ultraviolet stabilizer added for outdoor usage. That helps reduce visible color change over long periods of exposure. Its IP67 rating also indicates strong protection against dust and temporary water ingress.

What protection ratings does this enclosure have?

The BC-AGM-181806 is rated IP67 and IK08. IP67 indicates a high level of protection against dust and water ingress, while IK08 refers to impact resistance. These ratings support use in demanding environments where enclosure durability matters.

What are the size, material, and weight of this enclosure?

This model measures 7.09 x 7.09 x 2.36 inches, which is 180 x 180 x 60 mm. It is made from ABS and has a grey cover. The listed weight is 0.3600 kg.

Is this enclosure appropriate for sensitive electronic instruments?

Yes, the product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes it a stronger fit for applications where electrostatic protection is a consideration. Buyers should still confirm overall application requirements against their full system needs.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 degrees C to 70 degrees C. That range supports use in both low-temperature and moderately high-temperature environments. Buyers should confirm that the rest of their system components are also rated for the same conditions.

How does this screw-type enclosure differ from more basic plastic boxes?

This model combines ABS construction with IP67 and IK08 ratings, a recessed screw-type cover, UV stabilization for outdoor use, and anti-static material. Those details make it more application-specific than a basic general-purpose plastic box. It is positioned for buyers who need environmental protection and better durability in a compact enclosure.
