Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco M-Series 180x255x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGM-182510
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGM-182510 is a 180×255×100 mm ABS enclosure with a grey cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-AGM-182510Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
180×255×100 mm (7.09×10.04×3.94 in)
Mounting plate dimension M1 × M2
148 × 223 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1825 G (Plastic, G type), 1825 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

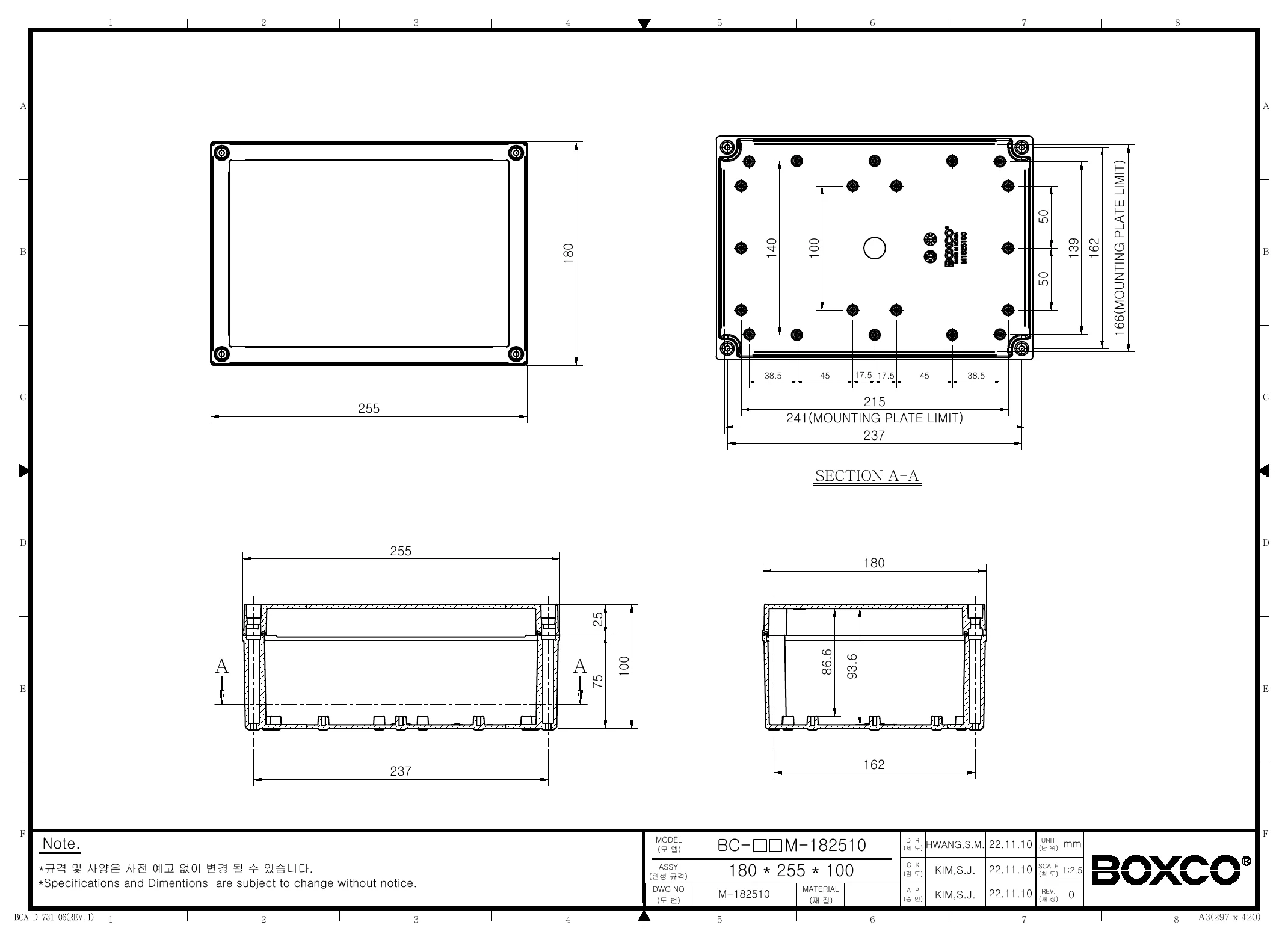

Technical drawings

BC-AGM-182510 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco M-Series BC-AGM-182510 plastic enclosure best suited for?

This enclosure is suited for protecting electronic components and instruments in industrial or commercial environments where a sealed non-metallic housing is needed. Its recessed screw-type cover also makes it a practical choice for applications using a membrane keypad on the enclosure surface.

Is the BC-AGM-182510 suitable for outdoor use?

Yes, this model is described as having an ultraviolet stabilizer added for outdoor usage. That helps reduce noticeable color change over long periods of exposure compared with non-stabilized plastic enclosures.

How durable is this Boxco enclosure in demanding environments?

This model is rated IP67 for protection against dust and water ingress and IK08 for impact resistance. It is also made from high-impact ABS material, which is intended to resist external impact and reduce breakage during machining or press processing.

What are the dimensions and material of the BC-AGM-182510 enclosure?

The enclosure measures 7.09 x 10.04 x 3.94 inches, which corresponds to 180 x 255 x 100 mm. It is made of ABS plastic and comes with a grey cover in a screw-type design.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 degrees C to 70 degrees C. That makes it suitable for use across a wide range of indoor and outdoor industrial conditions within that limit.

Does this enclosure help protect sensitive electronics from static electricity?

Yes, the product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. This can make it a better fit for applications where electrostatic protection is a consideration.
