Boxco

Boxco M-Series 180x255x100mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTM-182510
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTM-182510 is a 180×255×100 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco M Series.

Features

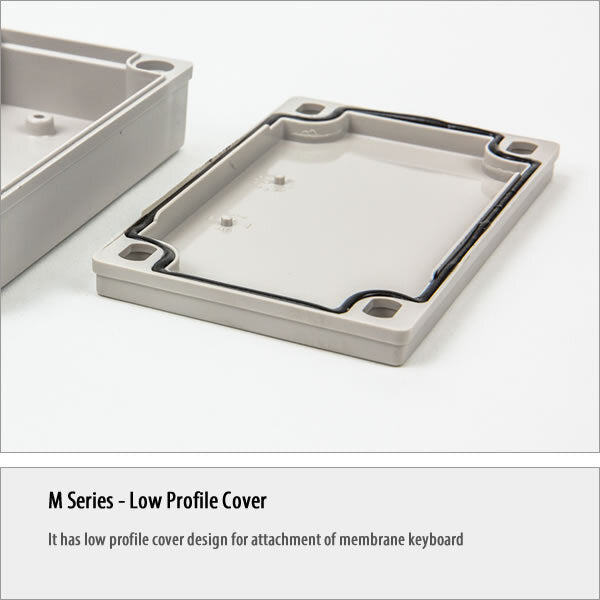

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CTM-182510Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
180×255×100 mm (7.09×10.04×3.94 in)
Mounting plate dimension M1 × M2
148 × 223 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1825 G (Plastic, G type), 1825 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

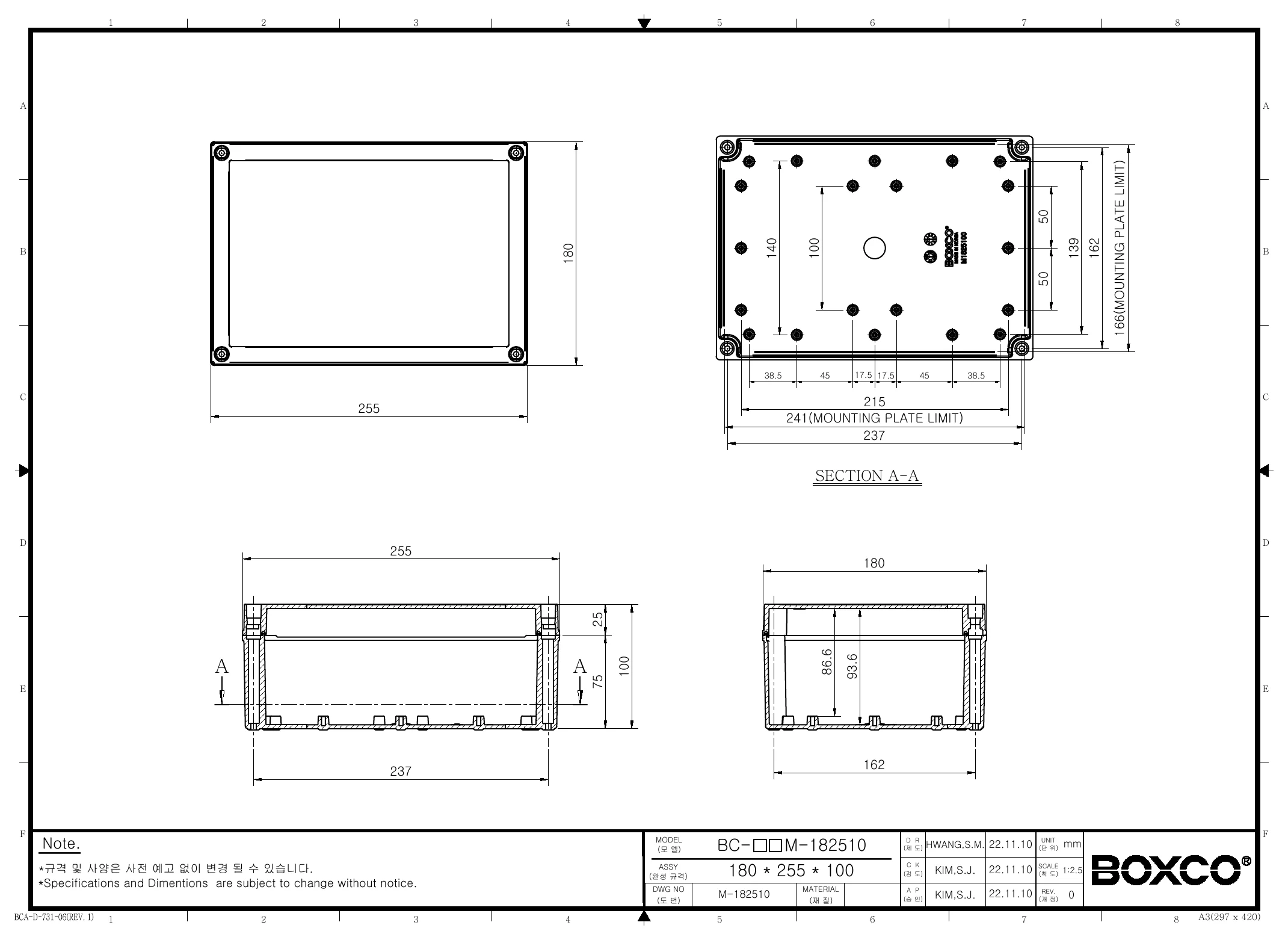

Technical drawings

BC-CTM-182510 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco M-Series enclosure best suited for?

This model is suited for protecting electronic components and control assemblies that need a durable plastic enclosure with a transparent cover. Its recessed screw-type cover is also noted as being used for mounting a membrane keypad, making it a practical choice for industrial and outdoor equipment housings.

What are the key specifications of this enclosure?

This Boxco M-Series enclosure measures 7.09 x 10.04 x 3.94 inches (180 x 255 x 100 mm) and weighs 0.714 kg. It is made from polycarbonate (PC), has a transparent cover, uses a screw-type closure, and carries IP67 and IK08 ratings.

Is this enclosure suitable for outdoor environments?

Yes, the product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use. It is also rated IP67, which supports use in demanding environments where dust protection and resistance to water ingress are important.

How durable is this plastic enclosure?

This model is described as using high impact resistant material designed to be strong against external impact and to help prevent breakage during hole and press processing. Its IK08 impact rating also indicates added resistance for tougher commercial and industrial applications.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40 °C to 110 °C. That wide range makes it suitable for applications exposed to both low and high temperatures within that specification.

Does this enclosure support sensitive electronic equipment?

Yes, the description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a relevant option when static protection is a consideration alongside physical enclosure protection.
