Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco M-Series 180x255x75mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTM-182507
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTM-182507 is a 180×255×75 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CTM-182507Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
180×255×75 mm (7.09×10.04×2.95 in)
Mounting plate dimension M1 × M2
148 × 223 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1825 G (Plastic, G type), 1825 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

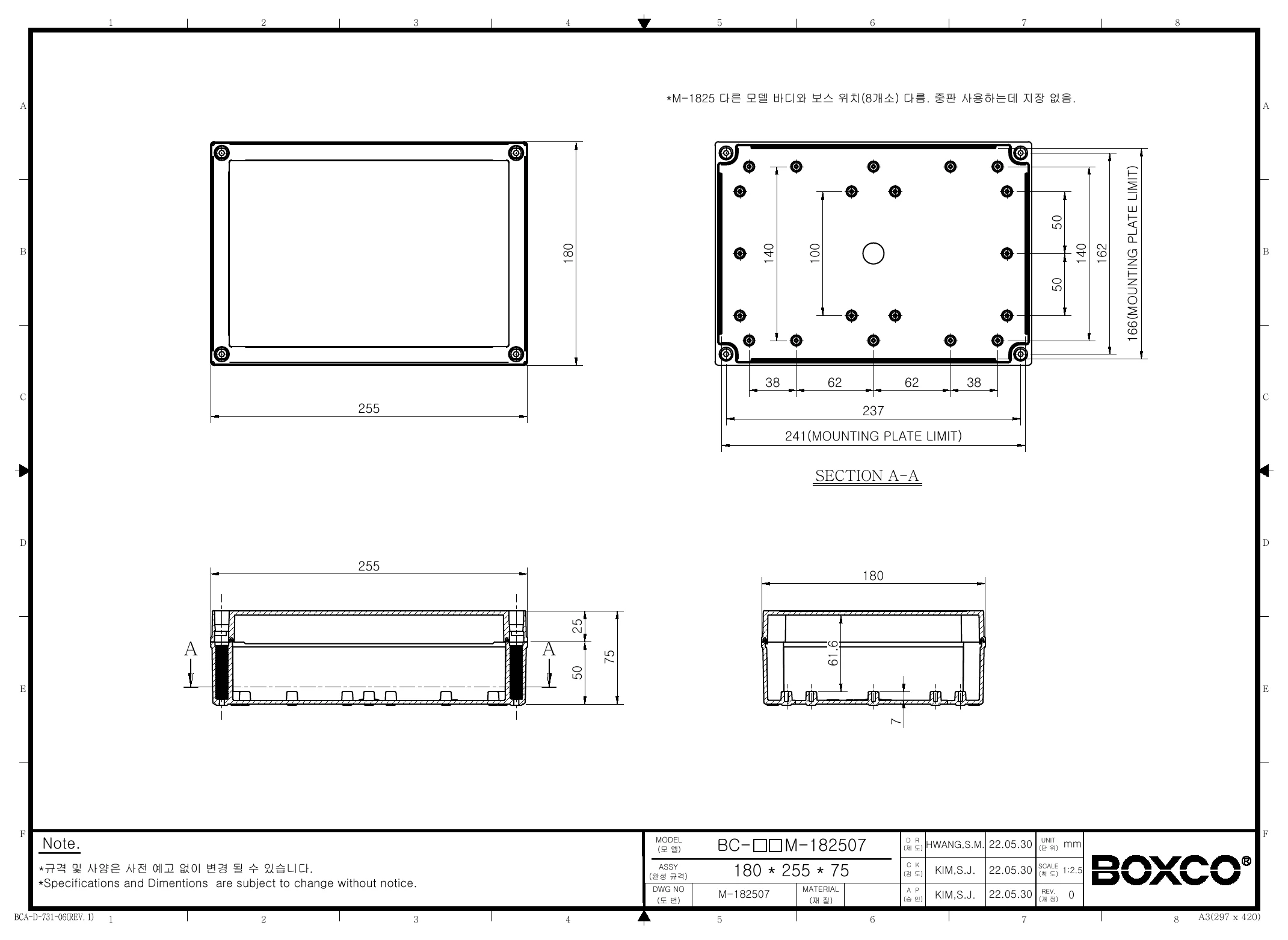

Technical drawings

BC-CTM-182507 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco M-Series BC-CTM-182507 enclosure?

This model measures 7.09 x 10.04 x 2.95 inches (180 x 255 x 75 mm) and is made from polycarbonate (PC). It has a transparent cover, a screw-type recessed lid, an IP67 ingress rating, and an IK08 impact rating. The enclosure weight is 1.36 kg.

Is the BC-CTM-182507 suitable for outdoor environments?

Yes. Boxco adds an ultraviolet stabilizer to the M-Series to help protect the enclosure in outdoor use and reduce visible color change over time. Its IP67 rating also supports use in environments where dust protection and resistance to temporary water exposure are important.

What temperature range can this enclosure handle?

The stated operating temperature range for this model is -40 °C to 110 °C. That makes it suitable for applications exposed to both low and high temperatures within that specified range. Buyers should match their operating environment to those limits.

Is this enclosure a good choice for sensitive electronic equipment?

Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. It is also made from high impact resistant material for added protection against external impact and breakage during processing.

What is the benefit of the transparent screw-type cover on this model?

This enclosure uses a screw-type recessed transparent cover, which helps provide secure closure while allowing visual inspection of internal components without opening the box. The recessed cover design is also noted as suitable for mounting a membrane keypad. That combination can be useful when visibility and protected external interface space are both needed.

What kind of applications is this Boxco M-Series enclosure designed for?

This model is intended for enclosure applications where environmental protection, impact resistance, and material stability matter. The recessed screw-type cover is specifically noted for use with membrane keypad mounting. Its anti-static material and outdoor-focused UV stabilizer also make it relevant for demanding industrial and electronic equipment housings.

What warranty is listed for the BC-CTM-182507?

The listed warranty period for this model is 1 year. That warranty term applies specifically to SKU BC-CTM-182507 as provided in the product data. Buyers needing policy details should confirm the seller's warranty terms at time of purchase.
