Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco M-Series 180x180x125mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGM-181812
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGM-181812 is a 180×180×125 mm ABS enclosure with a grey cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-AGM-181812Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
180×180×125 mm (7.09×7.09×4.92 in)
Mounting plate dimension M1 × M2
148 × 148 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1818 G (Plastic, G type), 1818 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

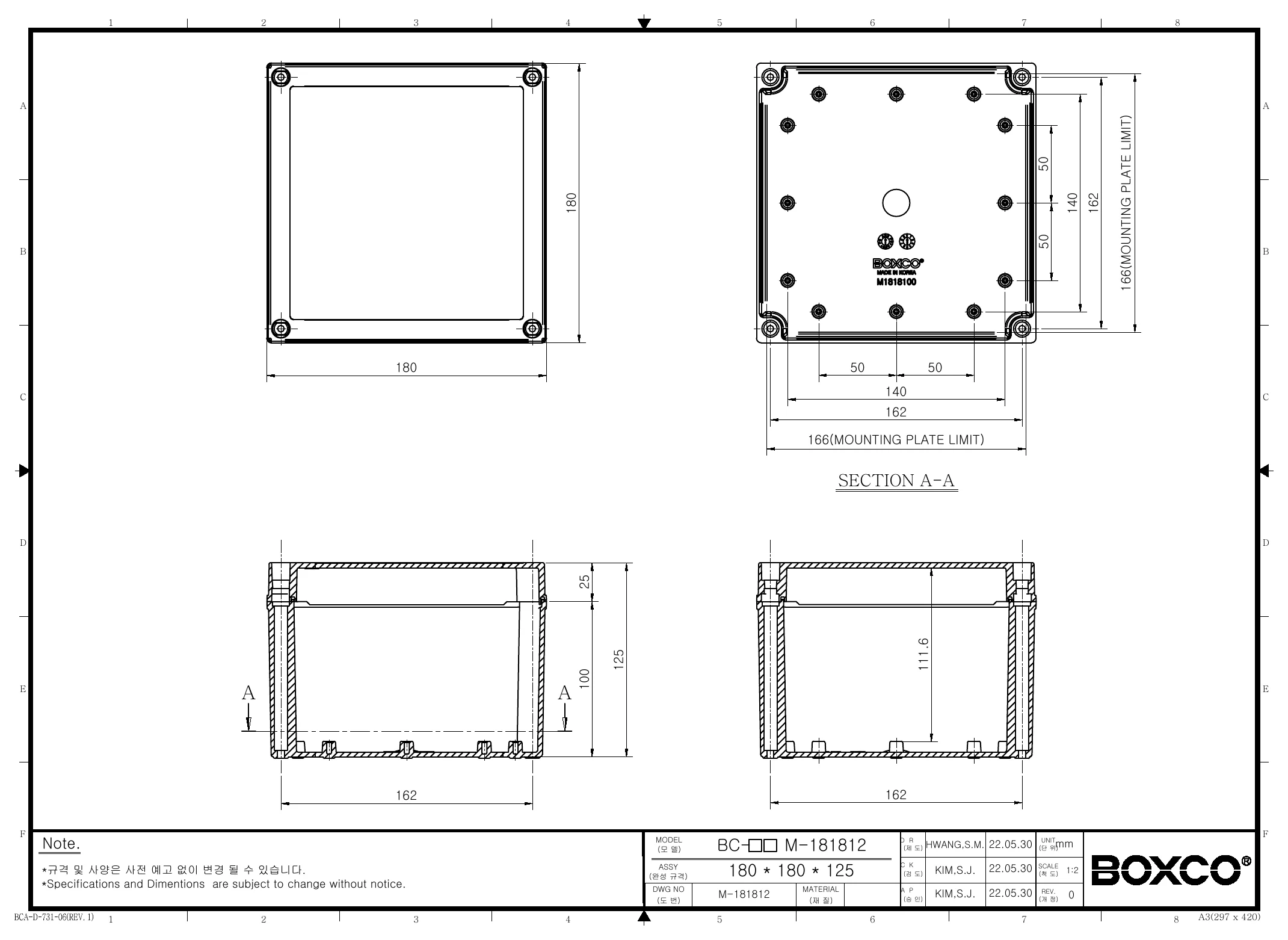

Technical drawings

BC-AGM-181812 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco BC-AGM-181812 enclosure?

This model is a Boxco M-Series plastic enclosure with overall dimensions of 7.09 x 7.09 x 4.92 inches (180 x 180 x 125 mm). It is made from ABS, uses a screw-type recessed cover, and comes in a grey color. The enclosure is rated IP67 and IK08.

Is the BC-AGM-181812 suitable for outdoor use?

Yes, this enclosure is designed for outdoor-capable use. The Boxco M-Series includes an ultraviolet stabilizer to help reduce visible color change over long periods of exposure. Its IP67 rating also supports use in demanding environments where dust and water resistance are important.

What types of applications is this enclosure commonly used for?

This enclosure is intended for protecting electronic equipment and sensitive instruments in industrial or commercial applications. The product description also notes anti-static material for sensitive electronics and a recessed cover design used for mounting a membrane keypad. It is a practical choice where environmental protection and impact resistance matter.

How durable is this Boxco enclosure in demanding environments?

The BC-AGM-181812 is built from high impact resistant ABS and carries an IK08 impact rating. According to the product description, the material is designed to resist external impact and help prevent breakage during hole and press processing. This makes it a strong option for applications that need a rugged non-metallic enclosure.

What temperature range can the BC-AGM-181812 handle?

This enclosure is specified for operation from -40 degrees C to 70 degrees C. That range makes it suitable for many indoor and outdoor industrial environments. Buyers should confirm the full system's components are also rated for the same temperatures.

What distinguishes this model from a standard plastic project box?

Compared with a basic plastic box, this model adds defined protection ratings, including IP67 for dust and water resistance and IK08 for impact resistance. It also features a screw-type recessed cover and UV-stabilized Boxco M-Series construction for longer-term outdoor appearance retention. Those details make it better suited for more demanding commercial and industrial use.
