Boxco

Boxco M-Series 180x180x125mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATM-181812
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATM-181812 is a 180×180×125 mm ABS enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-ATM-181812Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
180×180×125 mm (7.09×7.09×4.92 in)
Mounting plate dimension M1 × M2
148 × 148 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1818 G (Plastic, G type), 1818 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

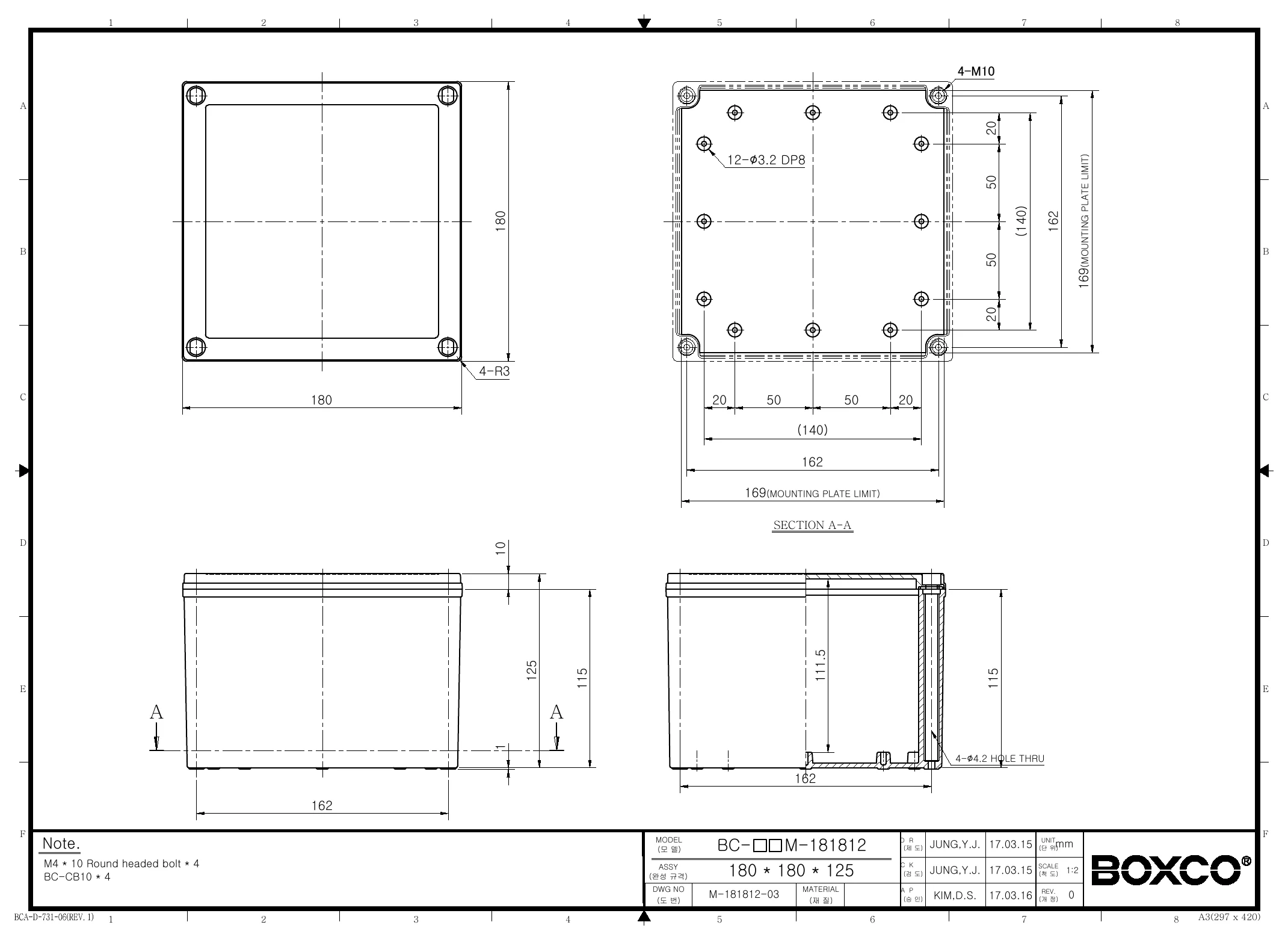

Technical drawings

BC-ATM-181812 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key specifications of the Boxco M-Series BC-ATM-181812 enclosure?

This model is a Boxco M-Series plastic enclosure with overall dimensions of 7.09 x 7.09 x 4.92 inches (180 x 180 x 125 mm). It is made from ABS, uses a transparent screw-type cover, and is rated IP67 for ingress protection and IK08 for impact resistance. The listed product weight is 0.534 kg.

Is this enclosure suitable for outdoor or harsh-environment use?

Yes. Boxco states that the M-Series uses an ultraviolet stabilizer to help protect the enclosure in outdoor use, with only limited color change over long periods. This model is also rated IP67 and IK08, and it is specified for operation from -40°C to 70°C.

What types of applications is this enclosure intended for?

This enclosure is intended for protecting housed components where a durable plastic box with strong sealing is needed. The product description specifically notes use with sensitive electronic instruments because the material is anti-static. Its recessed screw-type cover is also identified as suitable for mounting a membrane keypad.

Is this enclosure a good fit for applications that need a membrane keypad?

Yes. The product description specifically says this screw-type enclosure has a recessed cover and is used for mounting a membrane keypad. That makes this model a practical choice when the enclosure face needs to accommodate a keypad-style interface.

Why would a buyer choose this screw-type transparent-cover version?

This version combines a screw-fixed cover with a transparent lid, which is useful when the housed equipment needs visual checking without changing the enclosure type. It also keeps the recessed-cover format noted for membrane keypad use. For buyers comparing M-Series options, those are the clearest differentiators called out for this model.
