Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco M-Series 180x180x75mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATM-181807
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATM-181807 is a 180×180×75 mm ABS enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-ATM-181807Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
180×180×75 mm (7.09×7.09×2.95 in)
Mounting plate dimension M1 × M2
148 × 148 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1818 G (Plastic, G type), 1818 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

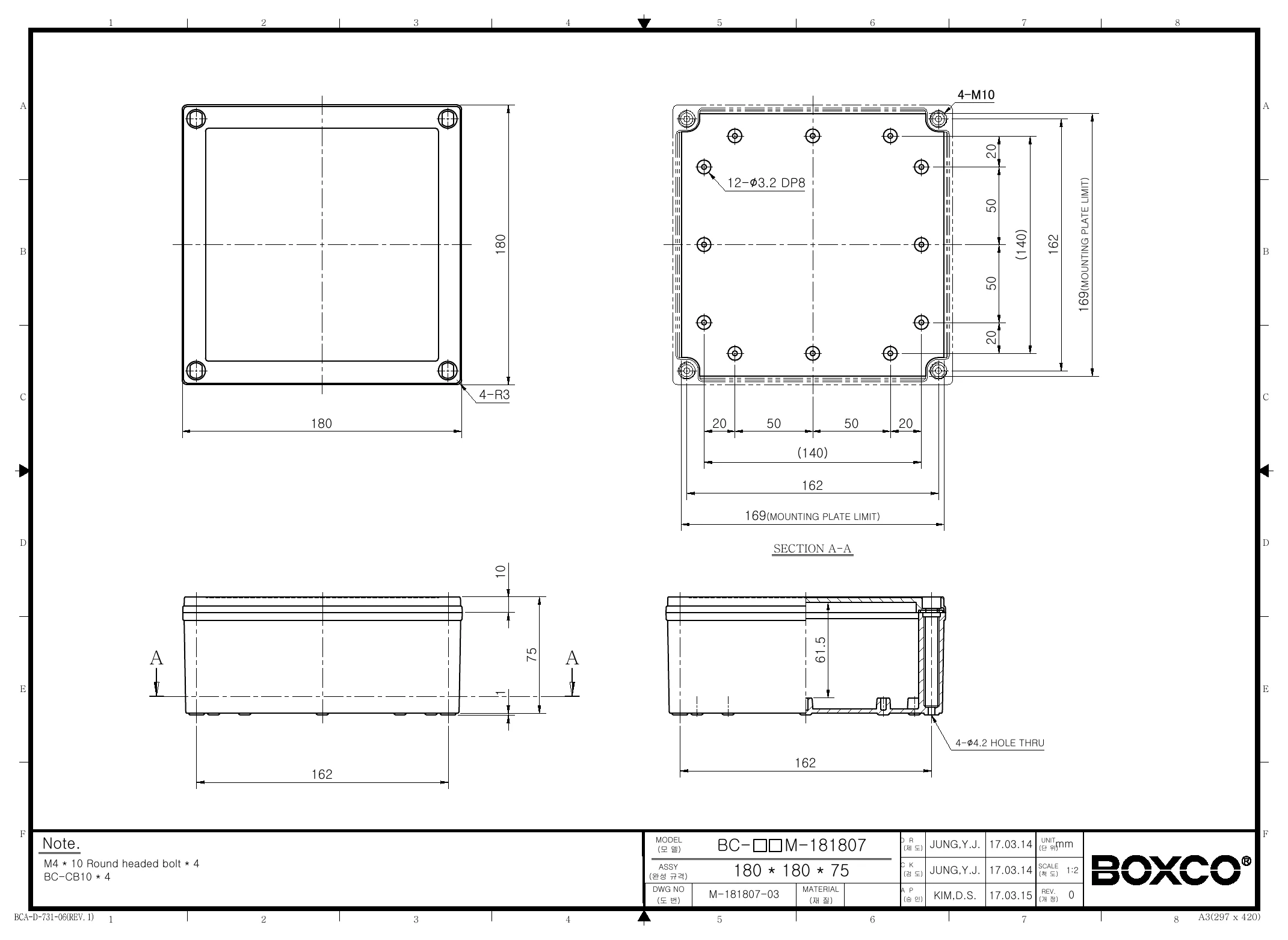

Technical drawings

BC-ATM-181807 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco M-Series enclosure best suited for?

This enclosure is designed for protecting electronics and control components in industrial and commercial environments where a sealed plastic housing is needed. Its recessed transparent cover also makes it suitable for applications that use a membrane keypad or require visual access to indicators without opening the box.

What are the key specifications of the BC-ATM-181807 enclosure?

This model measures 7.09 x 7.09 x 2.95 inches (180 x 180 x 75 mm) and is made from ABS plastic with a transparent screw-type cover. It carries IP67 ingress protection and IK08 impact resistance, weighs 0.422 kg, and is rated for use from -40 C to 70 C.

Is this enclosure suitable for outdoor or harsh environments?

Yes, this Boxco M-Series enclosure is intended for demanding environments thanks to its IP67 rating and high-impact ABS construction. The product description also notes an ultraviolet stabilizer for outdoor use, which helps reduce visible color change over time.

How does the transparent cover affect product selection?

The transparent cover allows users to view displays, status lights, or internal labels without opening the enclosure. That makes this version a practical choice when visibility matters, compared with opaque-cover options in the same general enclosure category.

Is this enclosure compatible with membrane keypad designs?

Yes, the product features specifically state that the screw-type enclosure with recessed cover is used for mounting a membrane keypad. Buyers looking for a housing that supports keypad-based interfaces should consider this model for that reason.

What kind of material performance does this ABS enclosure offer?

The enclosure is made from high-impact-resistant ABS, which is intended to resist external impact and reduce the chance of breakage during machining or press processing. The description also mentions anti-static material use for protecting sensitive electronic instruments from static electricity.
