Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco M-Series 80x130x100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATM-081310
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATM-081310 is a 80×130×100 mm ABS enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-ATM-081310Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×100 mm (3.15×5.12×3.94 in)
Mounting plate dimension M1 × M2
48 × 98 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
0813 G (Plastic, G type), 0813 P (Plastic, P type), 0813 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

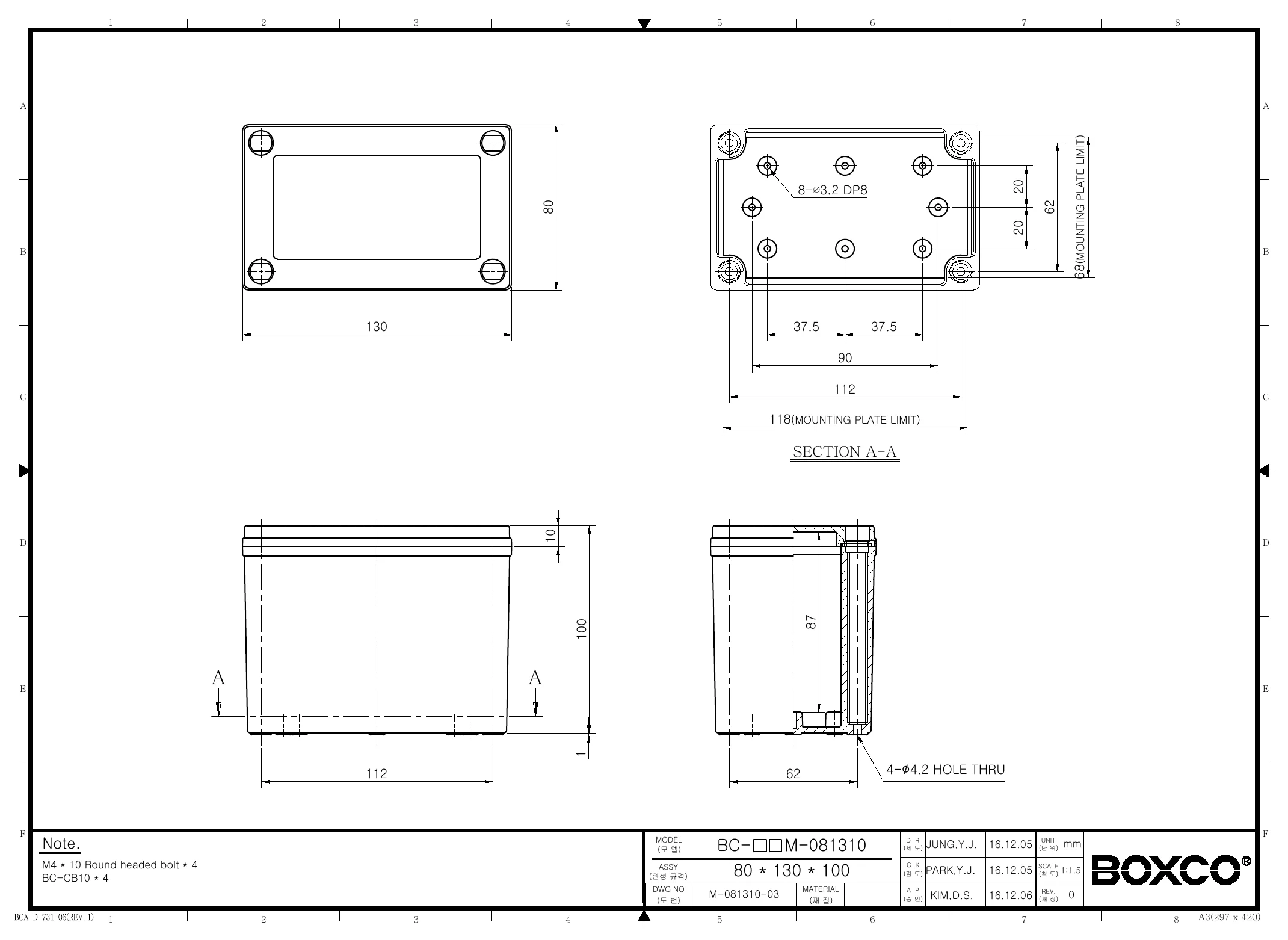

Technical drawings

BC-ATM-081310 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco M-Series enclosure typically used for?

This model is suited to protecting electronic components and control assemblies that need a sealed plastic housing. Its recessed transparent cover also makes it a practical choice where the contents need to remain visible while keeping the enclosure closed.

Is this enclosure suitable for outdoor environments?

Yes, this enclosure is described as having an ultraviolet stabilizer added for outdoor usage. The product description also notes that only minor color change is expected over long-term use.

What do the IP67 and IK08 ratings mean for this enclosure?

IP67 indicates this enclosure is built for strong protection against dust and temporary water exposure. IK08 indicates good impact resistance, which aligns with the product's high-impact ABS construction.

What material is this enclosure made from?

This model is made from ABS plastic and includes a transparent cover. The description also states that anti-static material is used to help protect sensitive electronic instruments from static electricity.

What are the dimensions and operating temperature range of this enclosure?

This Boxco M-Series enclosure measures 3.15 x 5.12 x 3.94 inches, which corresponds to 80 x 130 x 100 mm. Its stated operating temperature range is -40°C to 70°C.

How does the transparent cover version compare with a solid-cover enclosure?

The transparent cover version allows internal components or indicators to be viewed without opening the box. For buyers who want visibility together with a recessed screw-type cover, this model offers that combination in the Boxco M-Series format.
