Boxco

Boxco M-Series 80x130x60mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGM-081306
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGM-081306 is a 80×130×60 mm ABS enclosure with a grey cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-AGM-081306Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×60 mm (3.15×5.12×2.36 in)
Mounting plate dimension M1 × M2
48 × 98 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0813 G (Plastic, G type), 0813 P (Plastic, P type), 0813 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

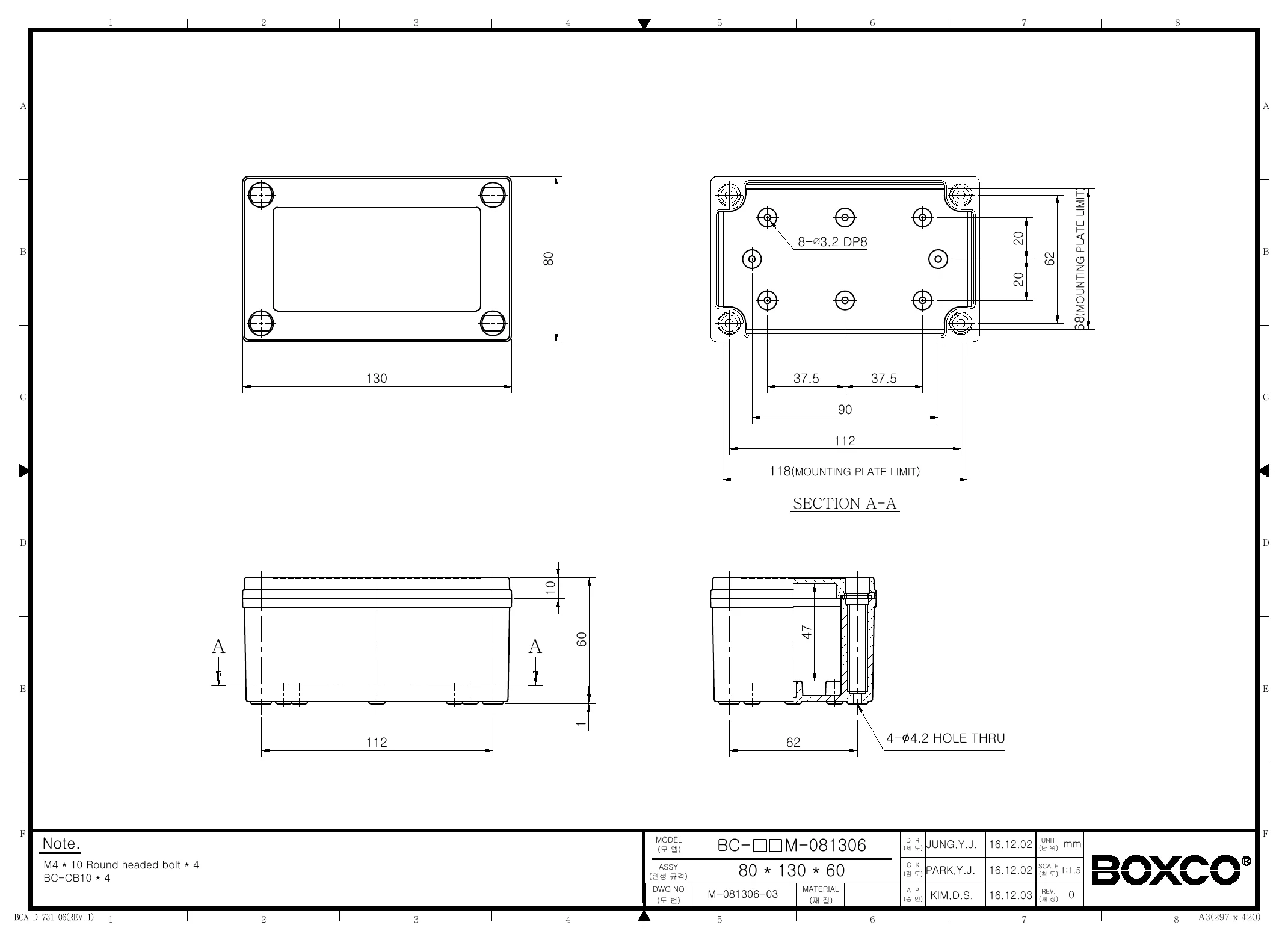

BC-AGM-081306 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco M-Series 80 x 130 x 60mm enclosure best suited for?

This enclosure is suited for protecting electronic components and sensitive instruments in industrial or commercial environments where a sealed plastic housing is needed. Its recessed screw-type cover also makes it appropriate for applications that use a membrane keypad on the enclosure surface.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure for outdoor usage and reduce noticeable color change over time. Its IP67 rating also indicates strong protection against dust and water ingress.

What are the key specifications of this Boxco enclosure?

This model measures 3.15 x 5.12 x 2.36 inches, which corresponds to 80 x 130 x 60 mm. It is made of ABS, has a grey cover, carries IP67 and IK08 ratings, weighs 0.164 kg, and is rated for use from -40 °C to 70 °C.

Does this enclosure offer protection for sensitive electronic equipment?

Yes. The description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. It is also made from high impact resistant material to improve durability against external impact.

How does the screw-type recessed cover benefit this enclosure?

The screw-type recessed cover helps provide a secure closure while supporting applications that need a membrane keypad mounted on the cover area. This design is a practical fit for enclosed control or interface devices that need environmental protection.

What warranty is offered for this model?

This Boxco enclosure includes a 1-year warranty based on the provided product data. That can be useful for buyers evaluating it for commercial or industrial purchasing requirements.
