Boxco

Boxco M-Series 130x130x60mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATM-131306
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATM-131306 is a 130×130×60 mm ABS enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-ATM-131306Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
130×130×60 mm (5.12×5.12×2.36 in)
Mounting plate dimension M1 × M2
98 × 98 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1212 G (Plastic, G type), 1313 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

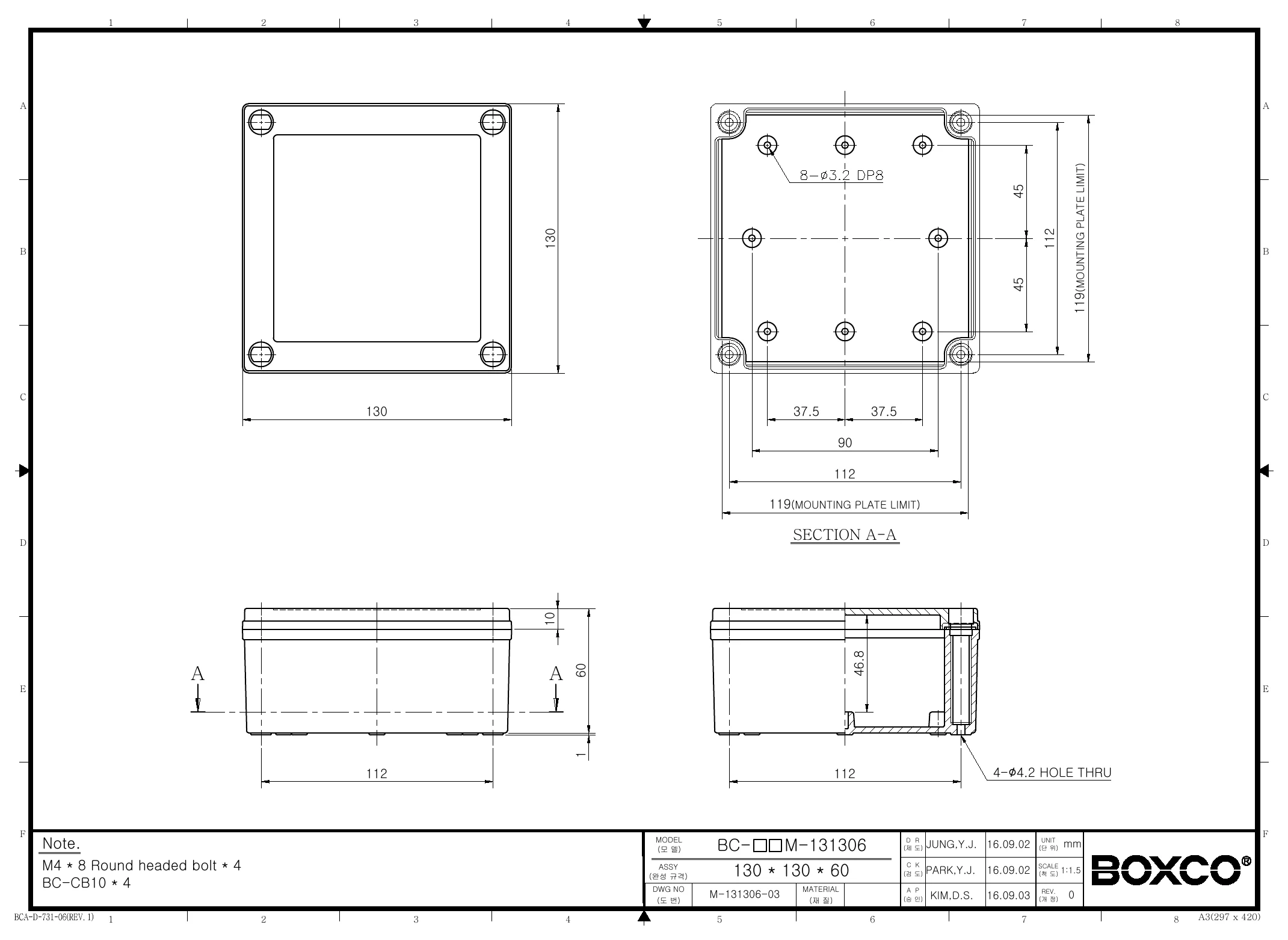

BC-ATM-131306 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco M-Series enclosure typically used for?

This model is a general-purpose plastic enclosure for protecting electronics and control components in industrial or commercial builds. Its recessed transparent screw-type cover also makes it suitable for applications that need a visible interior or a membrane keypad on the cover.

What are the size and material details for this enclosure?

The enclosure measures 5.12 x 5.12 x 2.36 inches, which is 130 x 130 x 60 mm. It is made from ABS plastic and includes a transparent cover, giving you impact-resistant housing with visibility through the lid.

Is this enclosure suitable for outdoor or harsh environments?

This model is designed for demanding environments, with an IP67 rating for dust-tight and water-resistant protection and an IK08 impact rating. Boxco also states that the M-Series uses an ultraviolet stabilizer to help reduce color change over long outdoor use.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 degrees C to 70 degrees C. That range makes it suitable for many indoor and outdoor industrial environments where standard plastic housings may be exposed to cold or elevated ambient temperatures.

How does the transparent screw cover compare with a solid cover enclosure?

A transparent cover allows visual inspection of indicators, labels, or internal components without opening the enclosure. This model also uses a recessed screw-type cover, which is useful when a membrane keypad needs to be mounted on the cover surface.

Does this enclosure offer protection for sensitive electronic equipment?

Boxco states that anti-static material is used in the M-Series to help protect sensitive electronic instruments from static electricity. The enclosure is also described as high impact resistant, which helps reduce breakage during machining or press processing.
