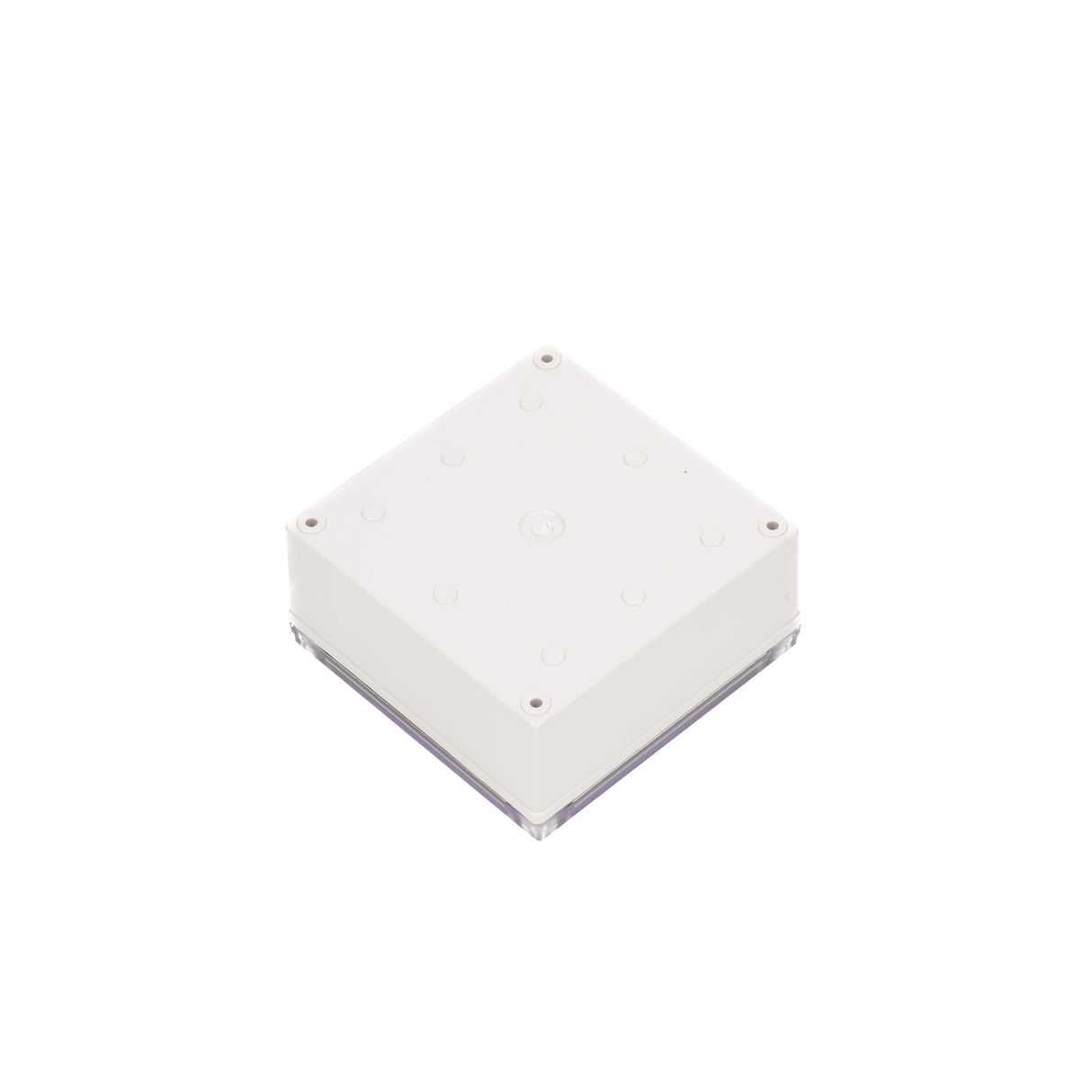

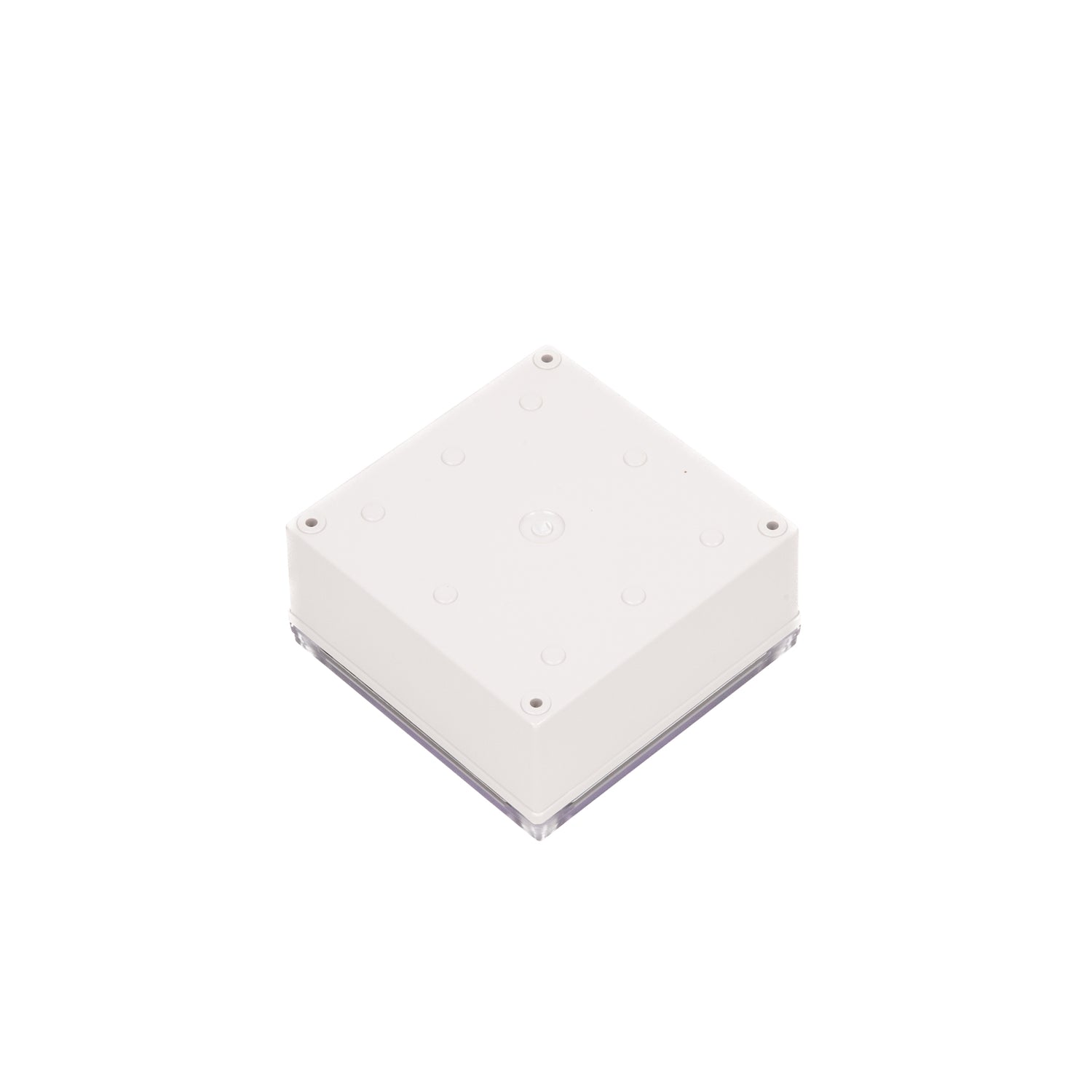

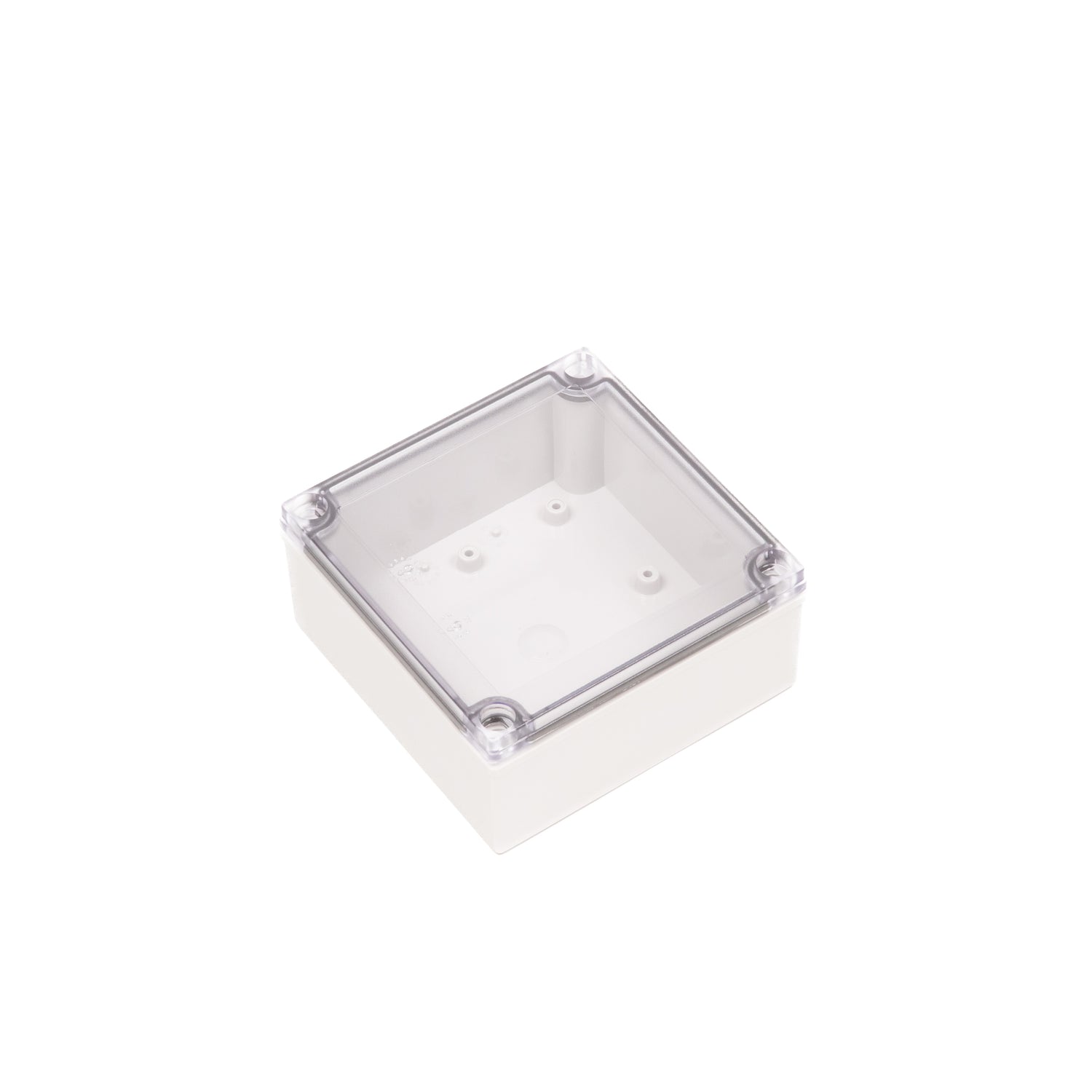

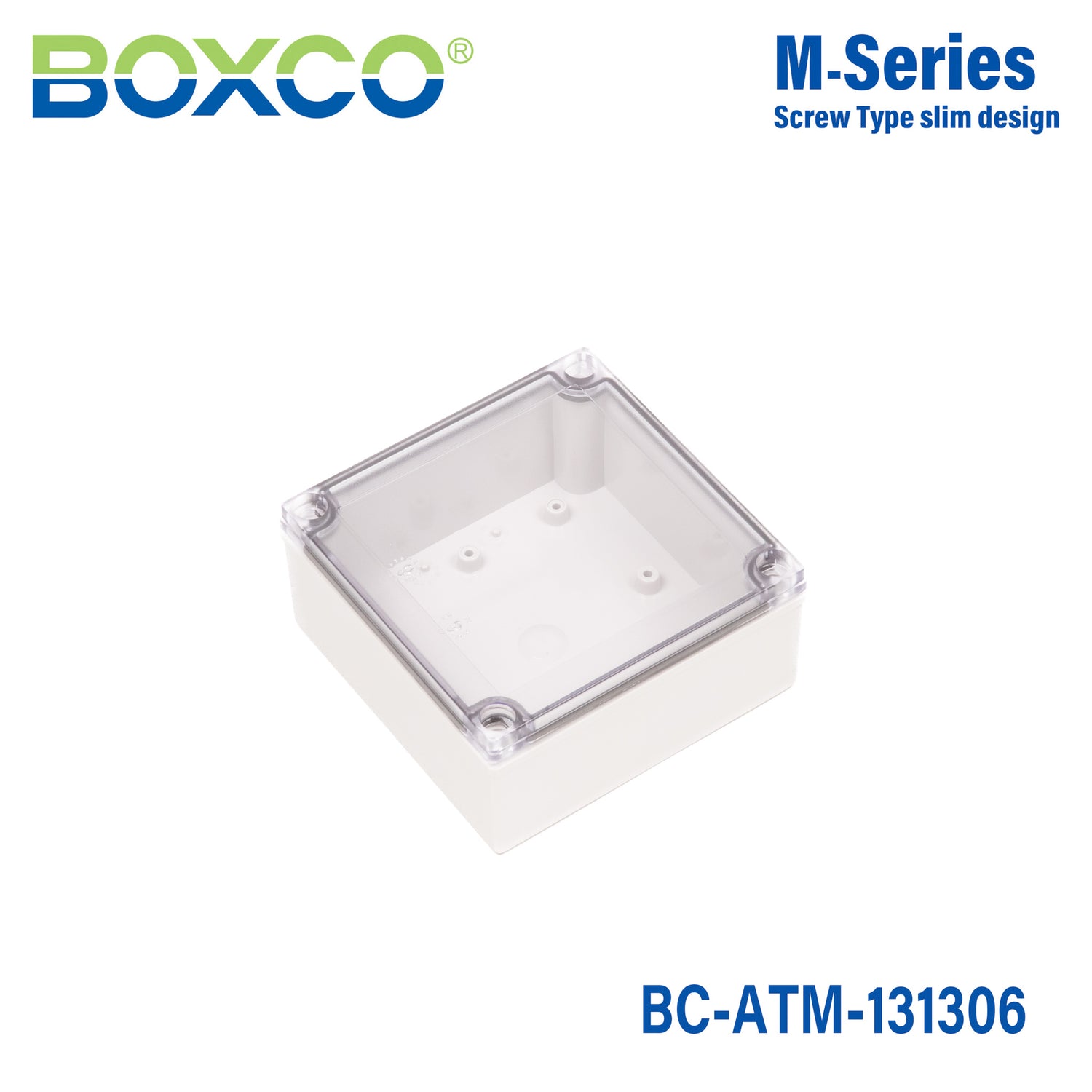

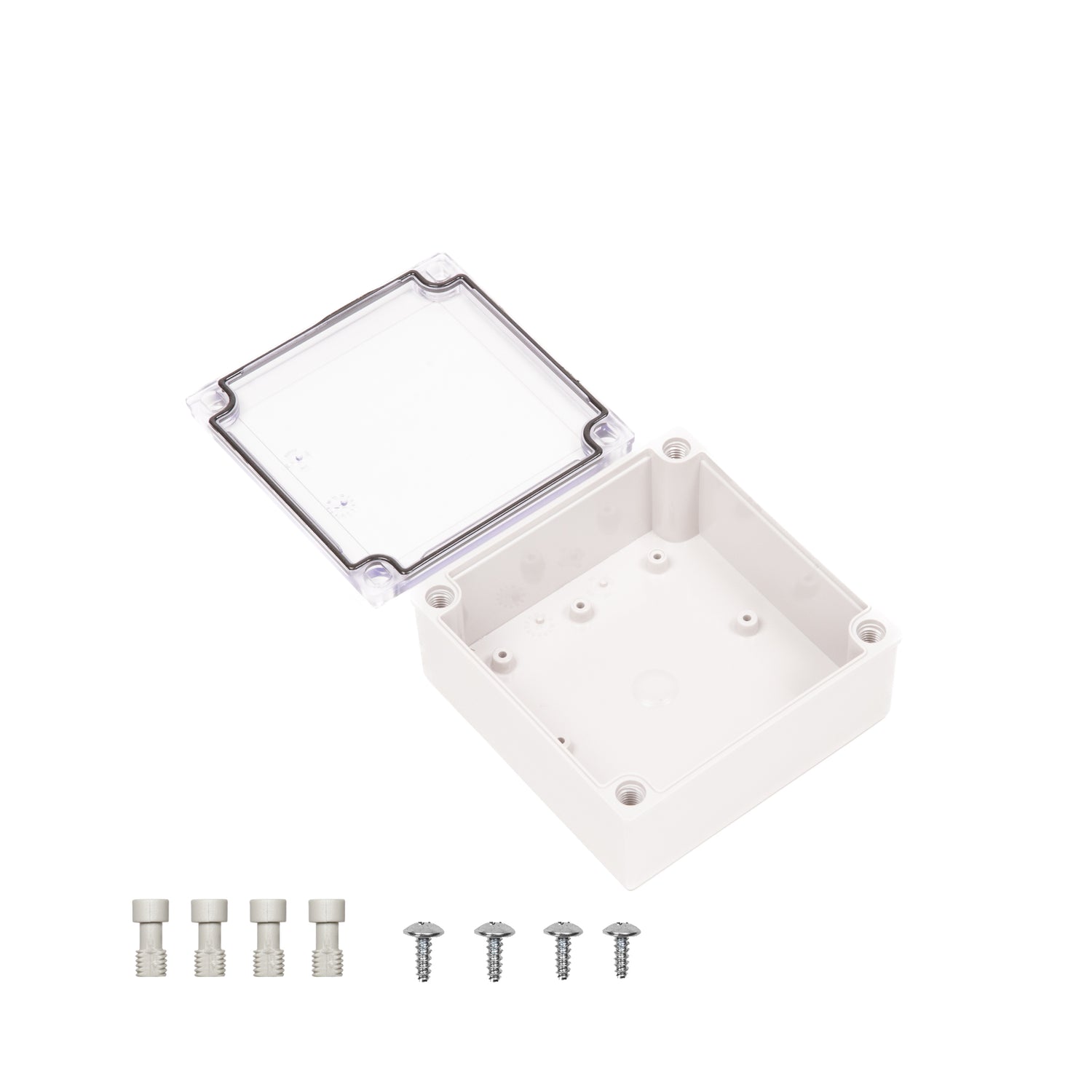

Boxco M-Series 130x130x60mm Plastic Enclosure, IP67, IK08, ABS, Tra...
Please Login for Pricing
Description
Description
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Screw type with recessed cover
- Used for mounting membrane keypad
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco M Series
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length13 cm
-
Width13 cm
-
Height6 cm
-
Weight0.24 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is this Boxco M-Series enclosure typically used for?
This model is a general-purpose plastic enclosure for protecting electronics and control components in industrial or commercial builds. Its recessed transparent screw-type cover also makes it suitable for applications that need a visible interior or a membrane keypad on the cover.
What are the size and material details for this enclosure?
The enclosure measures 5.12 x 5.12 x 2.36 inches, which is 130 x 130 x 60 mm. It is made from ABS plastic and includes a transparent cover, giving you impact-resistant housing with visibility through the lid.
Is this enclosure suitable for outdoor or harsh environments?
This model is designed for demanding environments, with an IP67 rating for dust-tight and water-resistant protection and an IK08 impact rating. Boxco also states that the M-Series uses an ultraviolet stabilizer to help reduce color change over long outdoor use.
What temperature range can this enclosure handle?
The specified operating temperature range is -40 degrees C to 70 degrees C. That range makes it suitable for many indoor and outdoor industrial environments where standard plastic housings may be exposed to cold or elevated ambient temperatures.
How does the transparent screw cover compare with a solid cover enclosure?
A transparent cover allows visual inspection of indicators, labels, or internal components without opening the enclosure. This model also uses a recessed screw-type cover, which is useful when a membrane keypad needs to be mounted on the cover surface.
Does this enclosure offer protection for sensitive electronic equipment?
Boxco states that anti-static material is used in the M-Series to help protect sensitive electronic instruments from static electricity. The enclosure is also described as high impact resistant, which helps reduce breakage during machining or press processing.
