Boxco

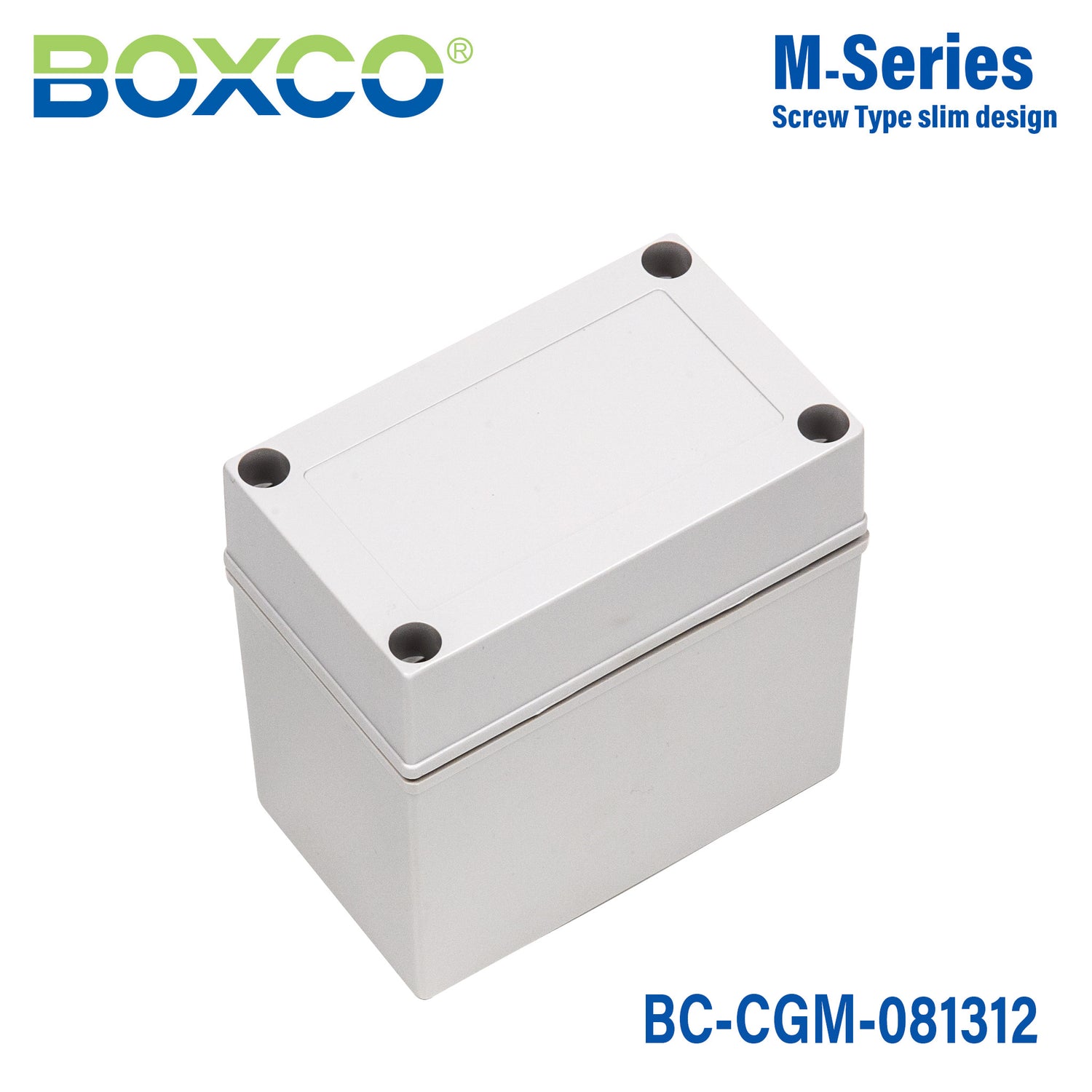

Boxco M-Series 80x130x125mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGM-081312
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGM-081312 is a 80×130×125 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CGM-081312Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×125 mm (3.15×5.12×4.92 in)
Mounting plate dimension M1 × M2
48 × 98 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
0813 G (Plastic, G type), 0813 P (Plastic, P type), 0813 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

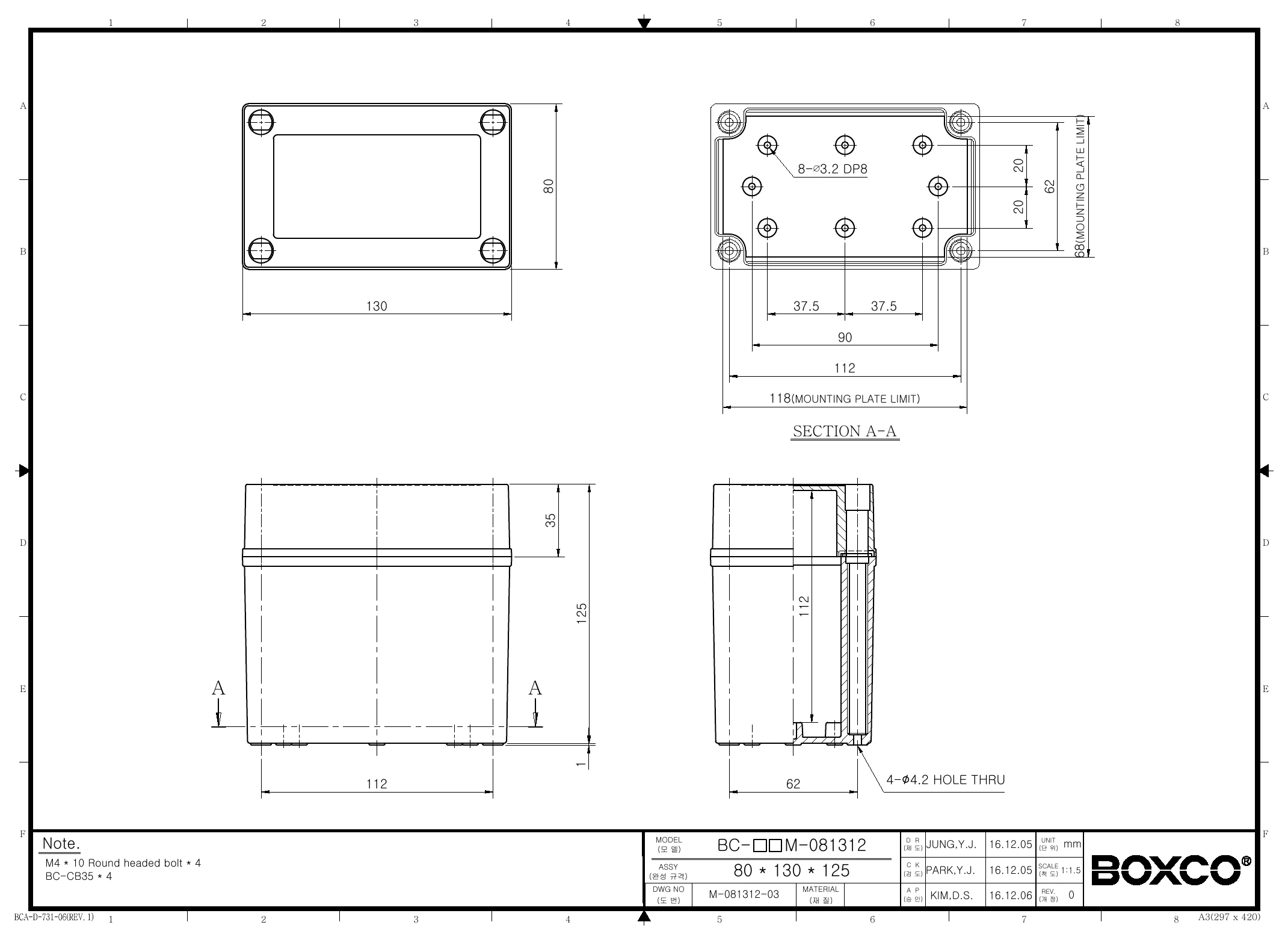

Technical drawings

BC-CGM-081312 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco M-Series BC-CGM-081312 enclosure?

This model measures 3.15 x 5.12 x 4.92 inches (80 x 130 x 125 mm) and is made from polycarbonate (PC). It is rated IP67 for dust and water protection, IK08 for impact resistance, and has a grey screw-type cover. The enclosure weighs 0.45 kg.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that an ultraviolet stabilizer is added to the M-Series to help protect the enclosure in outdoor applications. The material is designed to limit visible color change over long-term exposure.

What kind of environments can this enclosure handle?

This enclosure is specified for temperatures from -40 degrees C to 110 degrees C. Its IP67 rating supports use in dusty or wet environments, and the IK08 impact rating adds protection in tougher industrial settings. Those characteristics make it suitable for demanding indoor or outdoor use cases.

What applications is the screw-type recessed cover designed for?

The product description identifies this screw-type enclosure with recessed cover as being used for mounting a membrane keypad. That makes it a practical choice for control housings or equipment interfaces that need a protected front surface. Buyers looking for that enclosure style can use this model where a recessed cover is preferred.

Does this enclosure help protect sensitive electronics from static electricity?

Yes. Boxco states that anti-static material is used in this enclosure to help protect sensitive electronic instruments from static electricity. That can be useful in applications where electrostatic discharge is a concern.

How durable is the BC-CGM-081312 enclosure for industrial use?

According to the product description, it is made of high impact resistant material designed to resist external impact and reduce breakage during hole and press processing. The IK08 impact rating also supports its use in environments where mechanical durability matters. This model is built for more demanding enclosure applications than basic indoor housings.

What warranty is offered for this enclosure?

The listed warranty period for this model is 1 year. That warranty applies specifically to the BC-CGM-081312 enclosure as provided in the product data.
