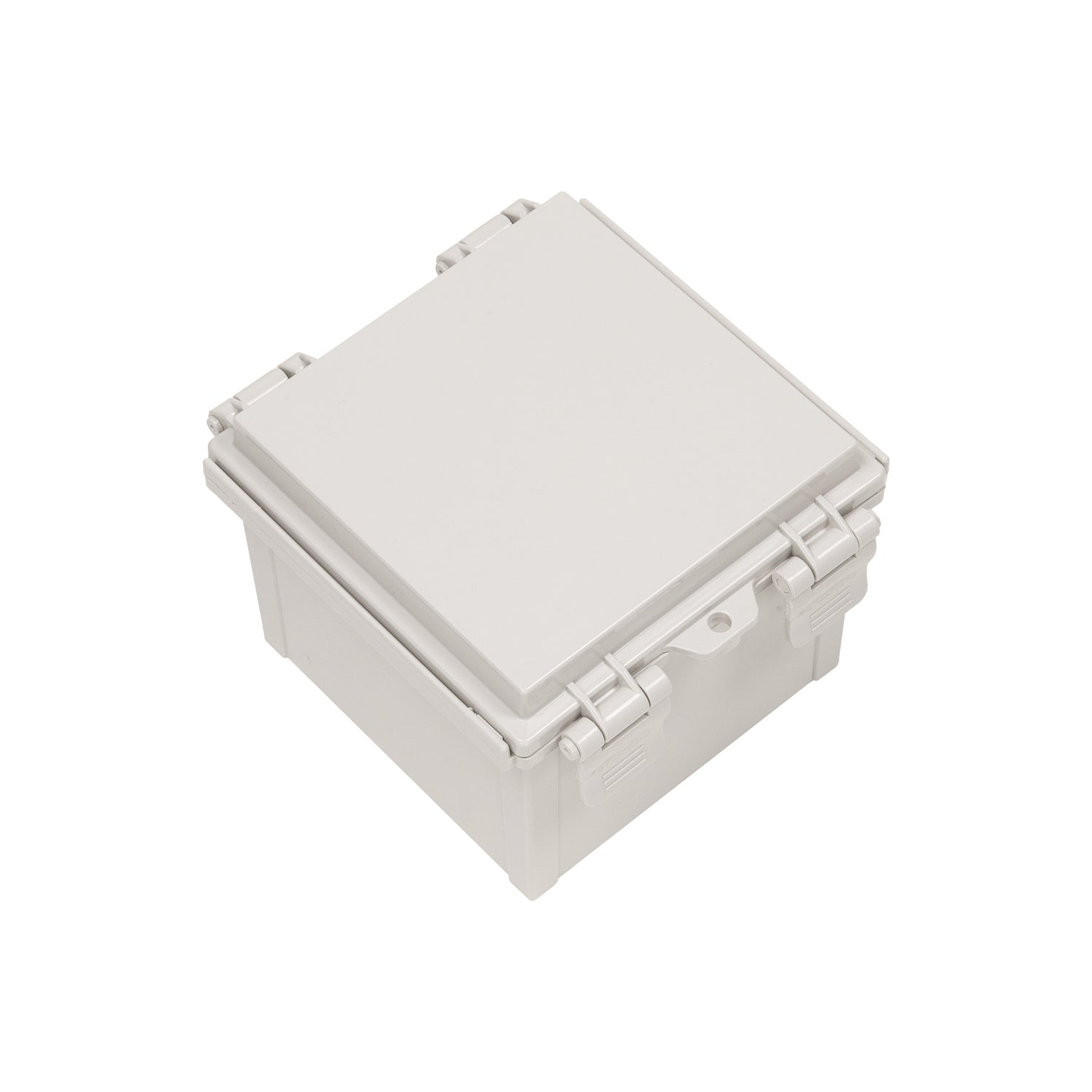

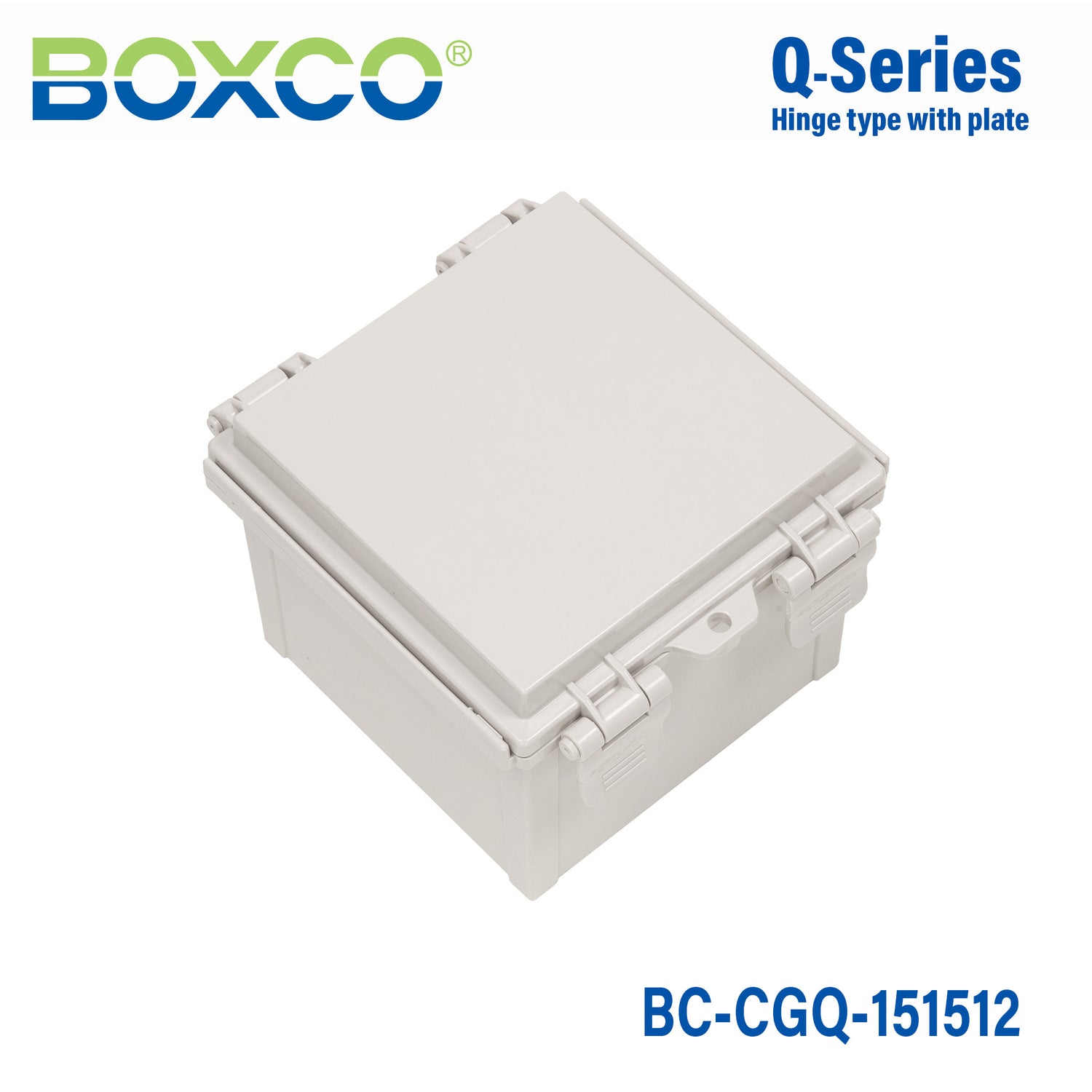

Boxco Q-Series 150×150×120mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Plastic Hinge and Latch Type

SKU:
BC-CGQ-151512
Please for Pricing
|

Description

For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

  • Latch - Main part of the draw latch is made of plastic so to prevent erosion.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

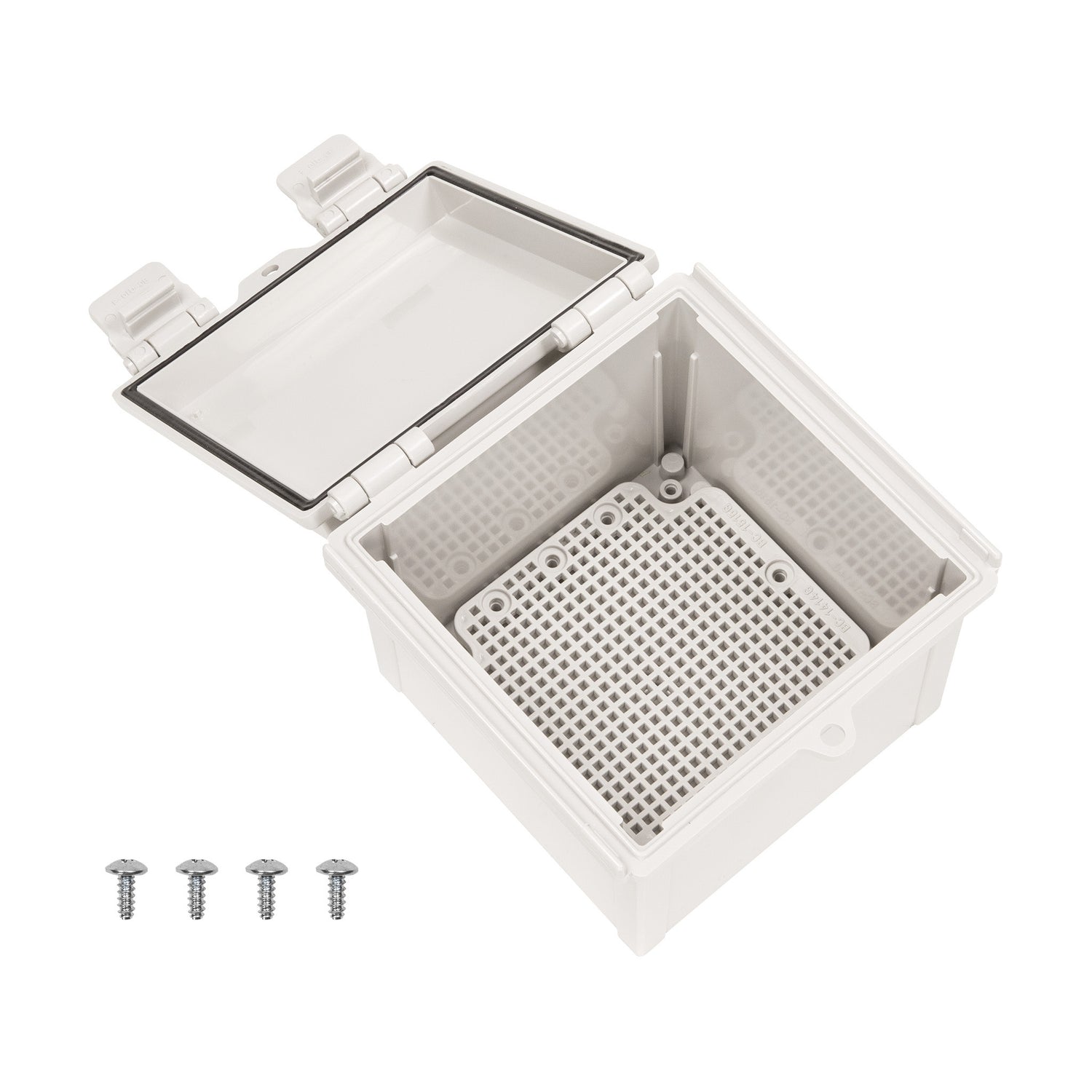

  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure

Specifications
  • Brand
    Boxco
  • Series
    Boxco Q Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    15 cm
  • Width
    15 cm
  • Height
    12 cm
  • Weight
    0.91 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco Q-Series BC-CGQ-151512 best suited for?

This enclosure is suited for protecting electrical or electronic components in industrial and outdoor environments where dust, water, and physical impact are concerns. Its anti-static material also makes it a practical choice for sensitive electronic instruments. The 150 x 150 x 120 mm size works well when a compact but not ultra-small enclosure is needed.

What environmental protection does this enclosure provide?

This model is rated IP67, which means it is designed to resist dust ingress and temporary water exposure. It also has an IK08 impact rating for protection against external mechanical impact. The Q-Series design includes roof protection features and a precision-injected gasket to support waterproof and dust-proof performance.

Is this enclosure suitable for outdoor use?

Yes, this model is intended for outdoor use. The material includes an ultraviolet stabilizer to help reduce visible color change over long-term exposure, and the enclosure is described as high impact resistant. Its operating temperature range is -40°C to 70°C, which supports use in a wide range of climates.

What are the main material and cover details for this model?

The BC-CGQ-151512 is a polycarbonate enclosure with a grey cover. It uses a plastic hinge and latch design, and the latch body is plastic to help prevent erosion. The enclosure is also made with anti-static, high-impact-resistant material.

What size is the Boxco Q-Series BC-CGQ-151512?

This enclosure measures 5.91 x 5.91 x 4.72 inches, which corresponds to 150 x 150 x 120 mm. That gives buyers a clear idea of its external footprint for product selection and panel space planning. The listed product weight is 0.91 kg.

Does this enclosure support internal accessories or equipment mounting?

Yes, the product description states that it includes pre-molded mounting screw nuts, which can be used to secure DIN rail or other equipment inside the enclosure. It also includes internal mounting plate attachment points with brass-inserted injection molding for more secure support of heavier internal components. These features make it more versatile than a plain empty box.
