Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

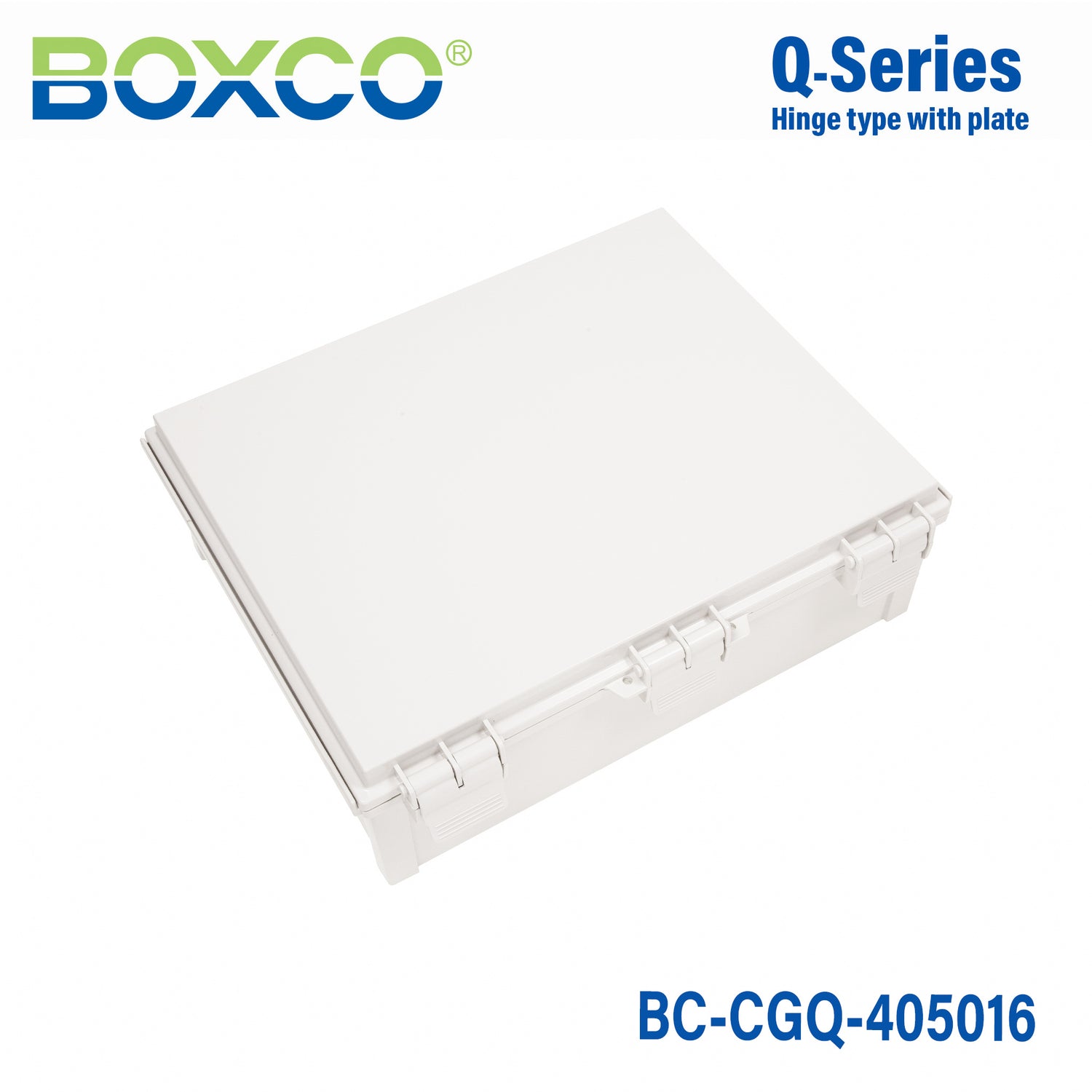

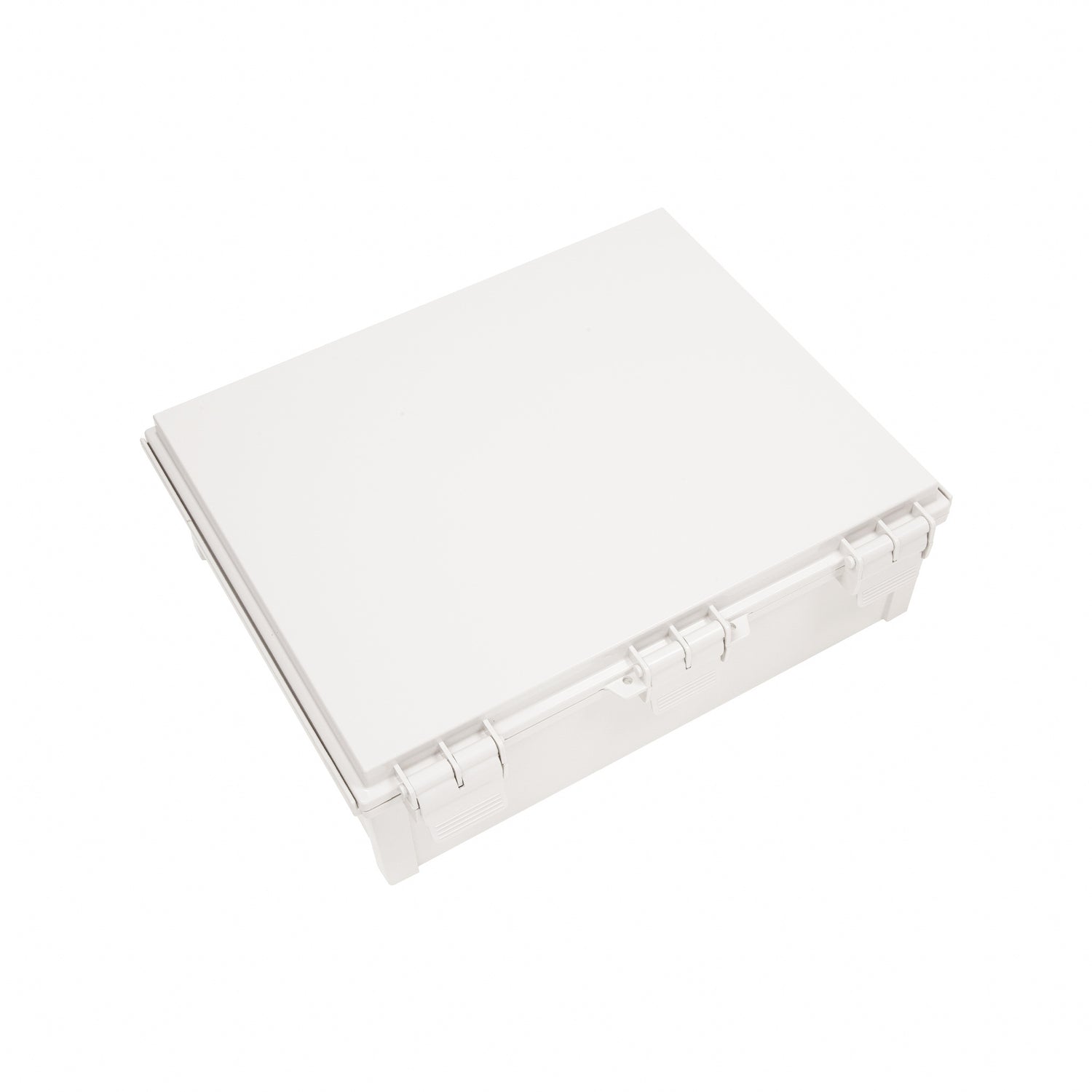

Boxco Q-Series 400×500×160mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Plastic Hinge and Latch Type

SKU:
BC-CGQ-405016
Please for Pricing
|

Description

For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

  • Latch - Main part of the draw latch is made of plastic so to prevent erosion.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

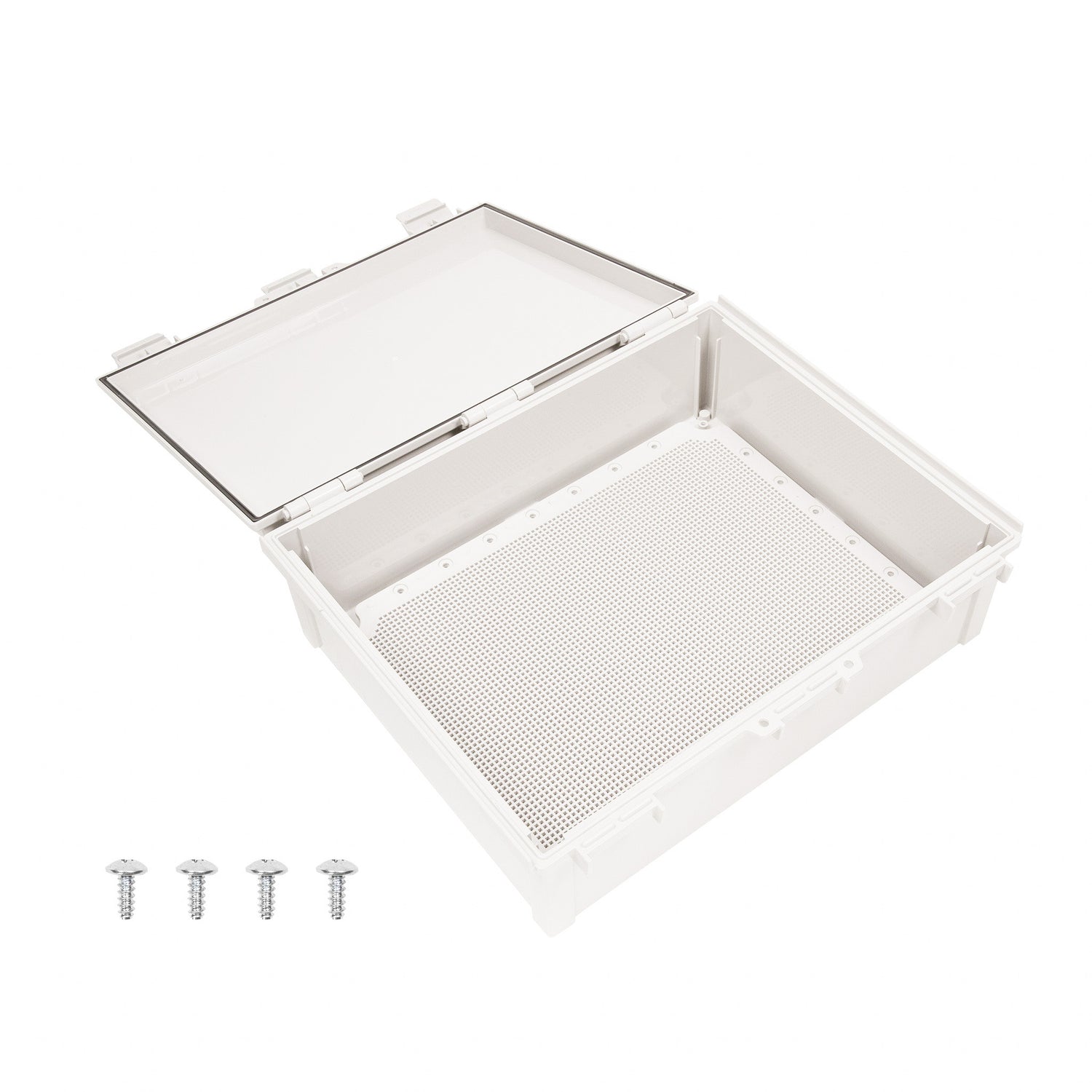

  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure

Specifications
  • Brand
    Boxco
  • Series
    Boxco Q Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    40 cm
  • Width
    50 cm
  • Height
    16 cm
  • Weight
    9.54 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is this Boxco Q-Series enclosure typically used for?

This enclosure is intended for protecting electrical or electronic equipment in industrial and commercial settings where a durable non-metallic housing is needed. Its large internal size and impact-resistant polycarbonate construction make it a practical choice for control, monitoring, or protection applications that need a sealed enclosure body.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, and the enclosure is designed to resist color change over long-term exposure. Its IP67 rating and roof-protection design also support protection against water and dust in outdoor environments.

What do the IP67 and IK08 ratings mean for this model?

IP67 indicates this enclosure is built for strong protection against dust ingress and temporary water exposure. IK08 indicates resistance to external impact, which fits the product's high-impact polycarbonate construction for more demanding environments.

What material is this enclosure made from?

This model is made from polycarbonate (PC) and includes a grey cover with plastic hinges and latch hardware. The description also notes anti-static material use and high impact resistance, which helps protect sensitive equipment and reduce breakage during machining or modification.

What size is this enclosure?

This Boxco Q-Series enclosure is listed at 15.75 x 19.69 x 6.30 inches, which corresponds to 400 x 500 x 160 mm. That makes it a relatively large enclosure option for applications that need more internal space than compact junction-style boxes.

What temperature range can this enclosure handle?

The stated operating temperature range for this model is -40°C to 70°C. That range supports use in both cold and warm industrial environments, provided the full application conditions stay within the enclosure's published limits.

Does this enclosure support internal mounting hardware or plates?

Yes. The description states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also includes mounting plate attachment points with brass-inserted injection molding. Those features are intended to help secure heavier internal components more firmly inside the enclosure.
