Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

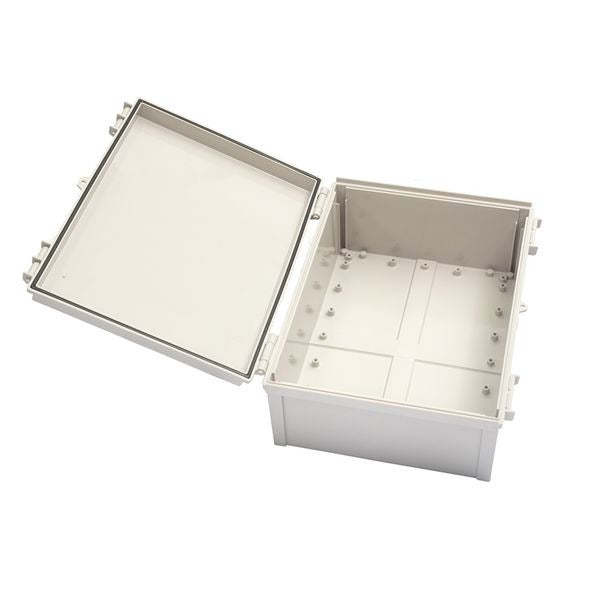

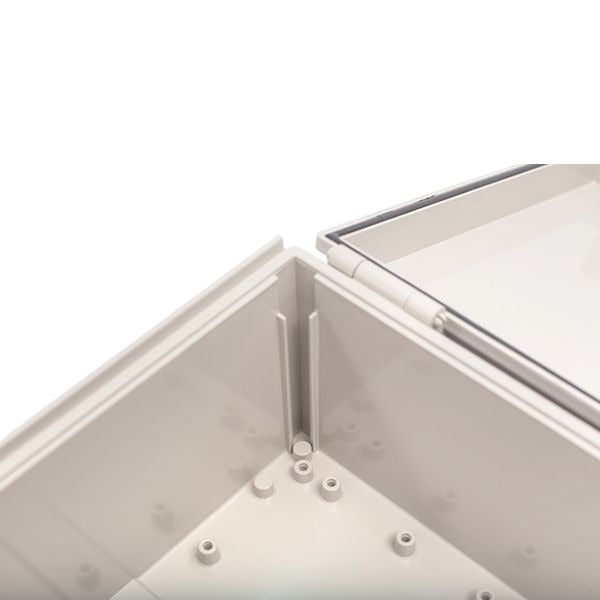

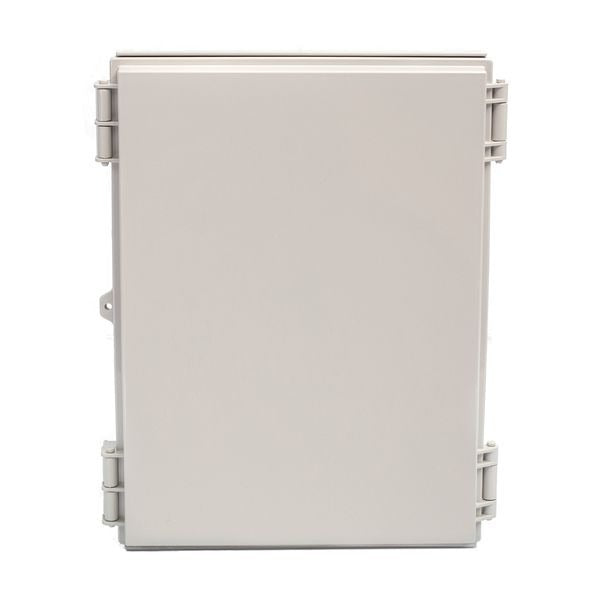

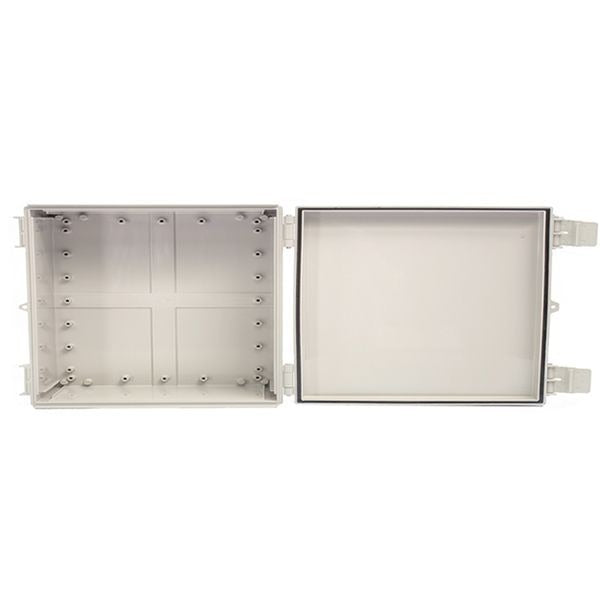

Boxco Q-Series 250×350×160mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Plastic Hinge and Latch Type

SKU:
BC-CGQ-253516
Please for Pricing
|

Description

For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

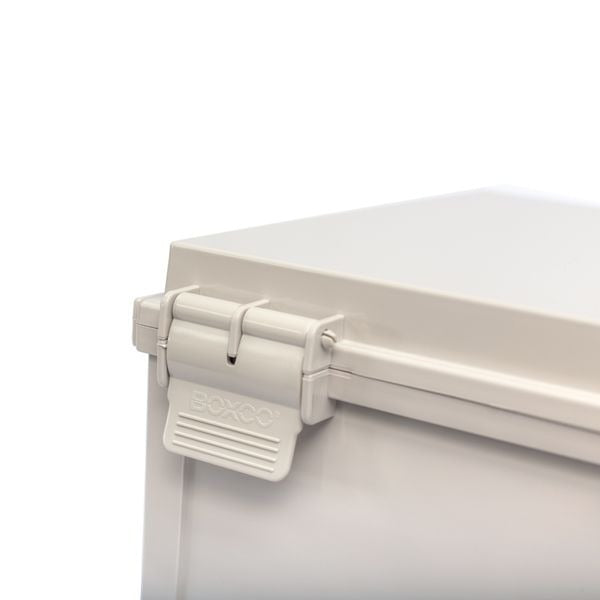

  • Latch - Main part of the draw latch is made of plastic so to prevent erosion.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

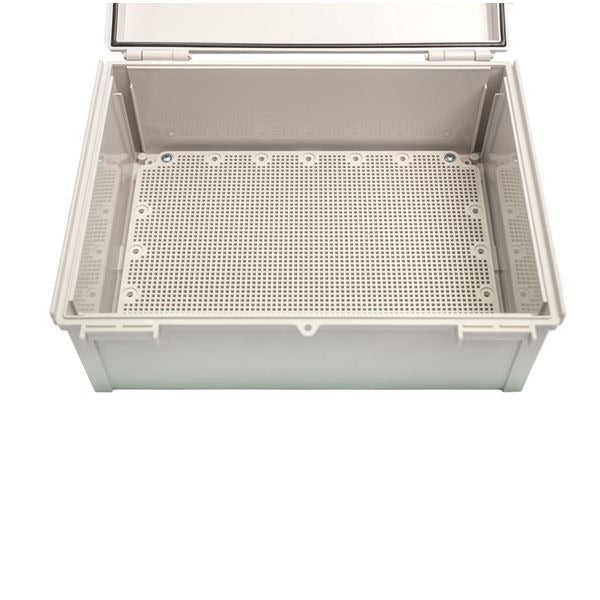

  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure

Specifications
  • Brand
    Boxco
  • Series
    Boxco Q Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    20 cm
  • Width
    30 cm
  • Height
    18 cm
  • Weight
    2.27 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco Q-Series BC-CGQ-253516 plastic enclosure best suited for?

This model is suited to protecting control, monitoring, and other sensitive electronic equipment that needs a sealed non-metallic enclosure. Its anti-static material, impact-resistant PC construction, and IP67 sealing make it a practical choice for industrial and outdoor equipment housings where dust and water resistance matter.

Is this enclosure suitable for outdoor use?

Yes. The Q-Series description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time. It also includes roof protection details and an injected gasket design intended to improve water and dust resistance in outdoor conditions.

What are the key specifications of the BC-CGQ-253516 enclosure?

This enclosure measures 7.87 x 11.81 x 7.09 inches, which corresponds to 200 x 300 x 180 mm. It is made from polycarbonate (PC), has a grey cover, uses a plastic hinge and latch design, carries IP67 and IK08 ratings, weighs 2.27 kg, and is rated for use from -40 C to 70 C.

How durable is this Boxco Q-Series enclosure for demanding environments?

The BC-CGQ-253516 is built from high impact-resistant polycarbonate and carries an IK08 impact rating. Boxco also notes the material is designed to resist breakage during hole and press processing, which supports use in tougher industrial enclosure applications.

What internal mounting support does this enclosure provide?

This model includes pre-molded mounting screw nuts for securing DIN rail or other equipment inside the enclosure. It also has mounting plate attachment points with brass-inserted molding so an internal mounting plate can be fixed more securely for heavier installed components.

Why choose this plastic hinged-latch enclosure instead of a basic general-purpose box?

This Boxco Q-Series model combines several features that go beyond a basic box enclosure, including UV stabilization for outdoor use, anti-static material for sensitive electronics, IP67 sealing, and IK08 impact resistance. The hinged cover, plastic latch system, roof protection geometry, and built-in mounting support make it a more application-ready option for industrial and field equipment housings.

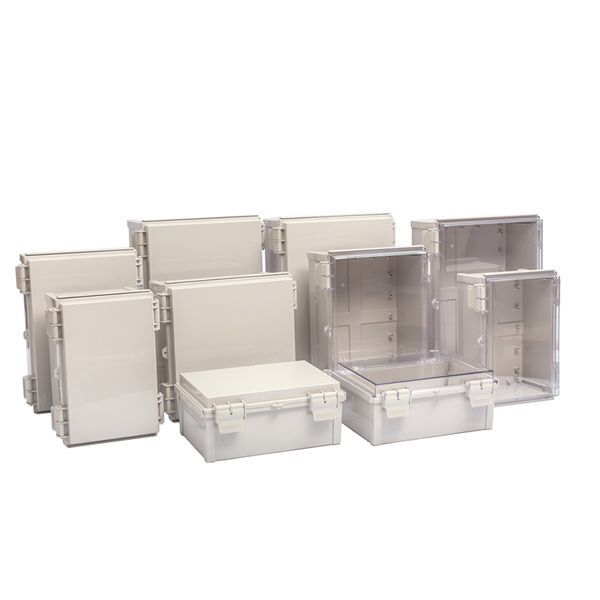

Other Boxco Q Series Models (10 closest sizes)
