Boxco

Boxco S-Series 100x100x100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-101010
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATS-101010 is a 100×100×100 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-101010Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×100×100 mm (3.94×3.94×3.94 in)
Mounting plate dimension M1 × M2
82 × 82 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1010 P (Plastic, P type), 1010 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

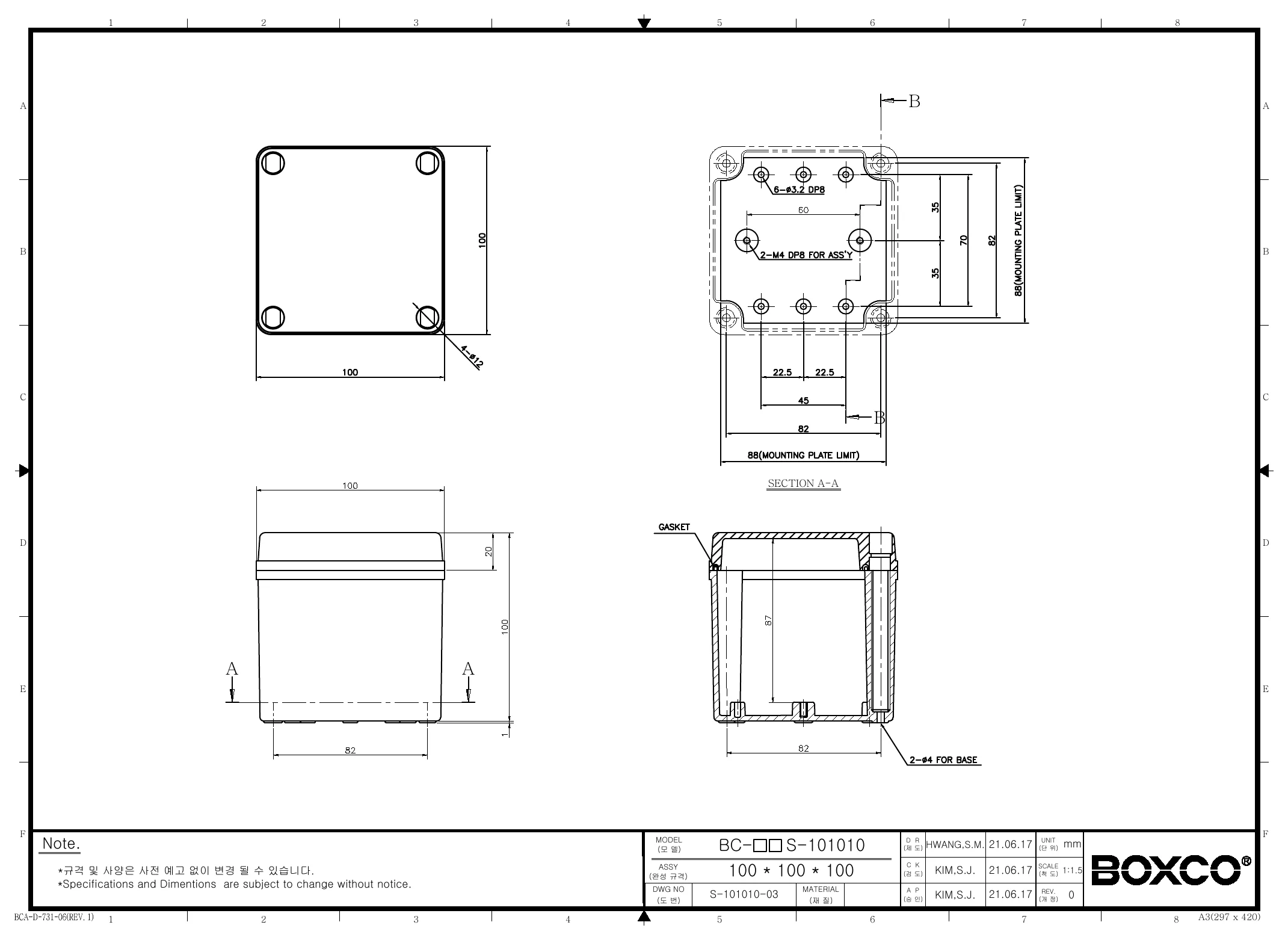

Technical drawings

BC-ATS-101010 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

Is the Boxco S-Series 100 x 100 x 100 mm enclosure suitable for outdoor use?

Yes. This model uses ultraviolet-stabilized material to help the enclosure maintain its appearance over long-term outdoor exposure, and it is rated IP67 for strong protection against dust and water ingress. That combination makes it a practical choice for outdoor control, monitoring, and instrumentation housings.

What protection level does this enclosure provide?

This enclosure is rated IP67 and IK08. IP67 indicates strong sealing against dust and temporary water exposure, while IK08 reflects resistance to external mechanical impact. The ABS body is also described as high impact resistant for added durability in demanding environments.

What are the main material and construction features of this model?

This version is made from ABS and includes a transparent screw-type cover. It also uses anti-static material to help protect sensitive electronic instruments from static electricity. Boxco also notes molded brass insert mounting points, pre-molded screw nuts, and precision-injected gasketing as part of the enclosure design.

When would I choose the transparent-cover version instead of an opaque enclosure?

The transparent cover is useful when internal indicators, displays, or status lights need to remain visible without opening the box. That can be helpful for inspection and monitoring while keeping the enclosure closed. If visibility is not needed, an opaque-cover option may be preferred for a more concealed appearance.

What kinds of applications is this 100 x 100 x 100 mm enclosure best suited for?

This size is well suited to compact industrial, commercial, and OEM electronics that need sealed protection in a relatively small footprint. Typical uses include sensor housings, control electronics, junction protection, and instrumentation enclosures. It is especially relevant where dust resistance, water resistance, and impact durability matter.

What operating temperature range does this enclosure support?

The stated operating temperature range for this model is -40 °C to 70 °C. That makes it suitable for a wide range of indoor and outdoor conditions. Buyers with applications near either temperature extreme should still confirm the full system, including internal components, is rated for the same range.

Will this enclosure work for mounting internal components or plates?

Yes, this model is designed with internal mounting support features. The description specifies mounting plate attachment points with brass-inserted injection molding and pre-molded screw nuts for securing DIN rail or other internal equipment. Exact fit depends on the size and layout of the components being housed.
