Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 190x280x180mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-192818
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGS-192818 is a 190×280×180 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CGS-192818Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×280×180 mm (7.48×11.02×7.09 in)
Mounting plate dimension M1 × M2
159 × 249 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1928 PG (Plastic, PG type), 1928 P (Plastic, P type), 1928 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

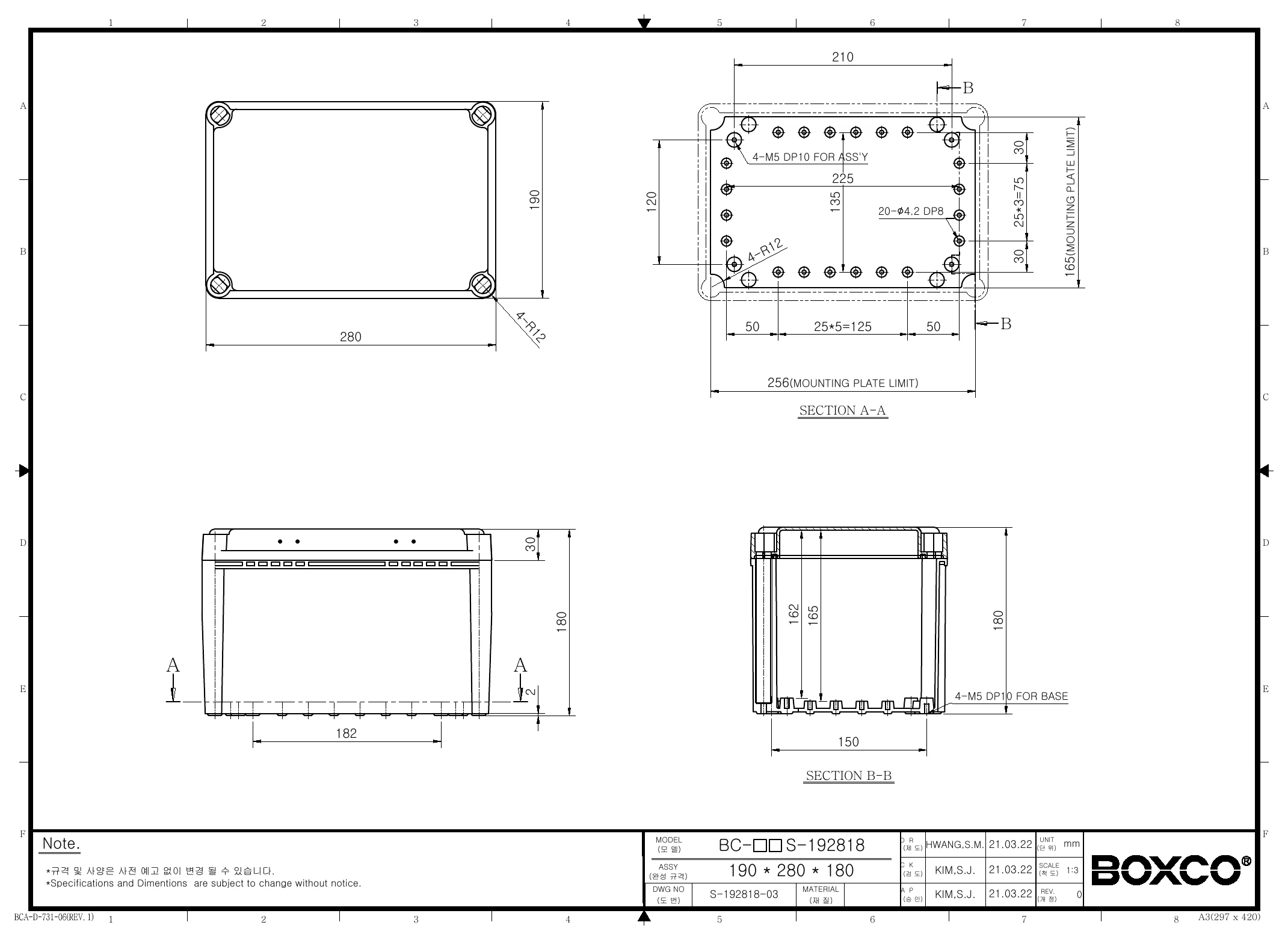

Technical drawings

BC-CGS-192818 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 190x280x180 mm plastic enclosure suited for?

This enclosure is suited for protecting industrial and commercial components that need a sealed non-metallic housing in indoor or outdoor environments. Its IP67 rating, IK08 impact resistance, and anti-static PC construction make it a practical choice for control, instrumentation, and equipment protection where dust, water, and incidental impact are concerns.

Is this enclosure appropriate for outdoor use?

Yes. Boxco states that the S-Series includes an ultraviolet stabilizer to help protect the enclosure during outdoor use and reduce noticeable color change over time. The IP67 rating also supports use in environments where strong protection against dust and water ingress is required.

What are the key specifications of this specific enclosure model?

This model measures 7.48 x 11.02 x 7.09 inches, which corresponds to 190 x 280 x 180 mm. It is a polycarbonate (PC) screw-type enclosure with a grey cover, IP67 ingress protection, IK08 impact resistance, a 1-year warranty, and a listed weight of 1.236 kg.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40 °C to 110 °C. That range makes it suitable for demanding environments with both low and high ambient temperatures, provided the rest of the application is designed within those limits.

How does this model support mounting internal components?

Boxco specifies internal mounting plate attachment points that can secure a mounting plate tightly to brass-inserted injection-molded points. It also includes pre-molded mounting screw nuts intended to support DIN rail or other internal equipment mounting within the enclosure.

What makes this enclosure different from a basic plastic project box?

This model is built for harsher service conditions than a basic general-purpose box, with IP67 sealing, IK08 impact protection, UV stabilization for outdoor exposure, and anti-static material for sensitive electronic instruments. It also includes molded features for stronger cover fastening and more robust internal equipment support.

Does this enclosure offer protection against dust and water?

Yes. This enclosure is rated IP67, and Boxco notes that the gasket is injected by a precision CNC robot process to support strong waterproof and dust-proof performance. That makes this specific model appropriate where reliable sealing is an important requirement.
