Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

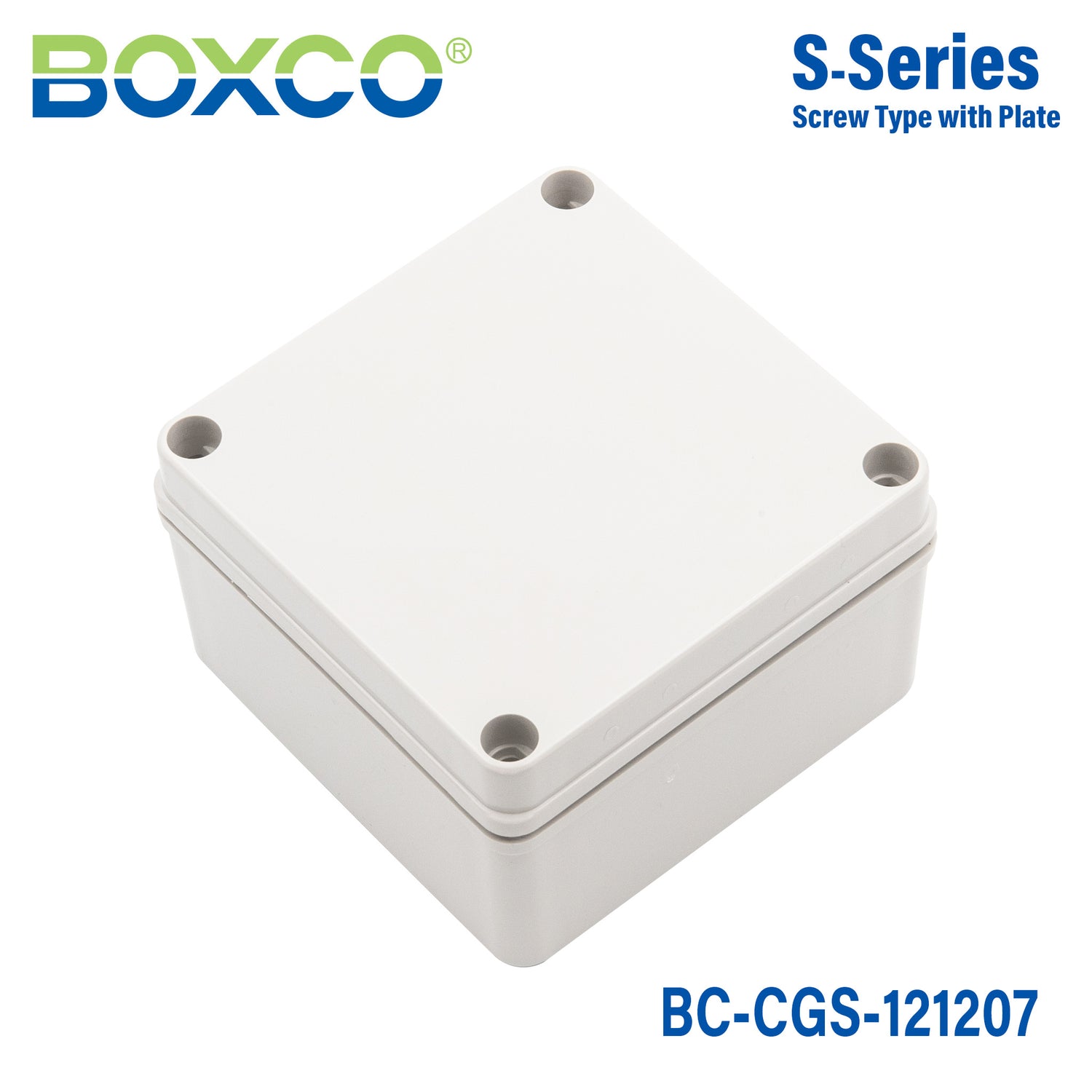

Boxco S-Series 125x125x75mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-121207
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGS-121207 is a 125×125×75 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-121207Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
125×125×75 mm (4.92×4.92×2.95 in)
Mounting plate dimension M1 × M2
107 × 107 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1212 P (Plastic, P type), 1212 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

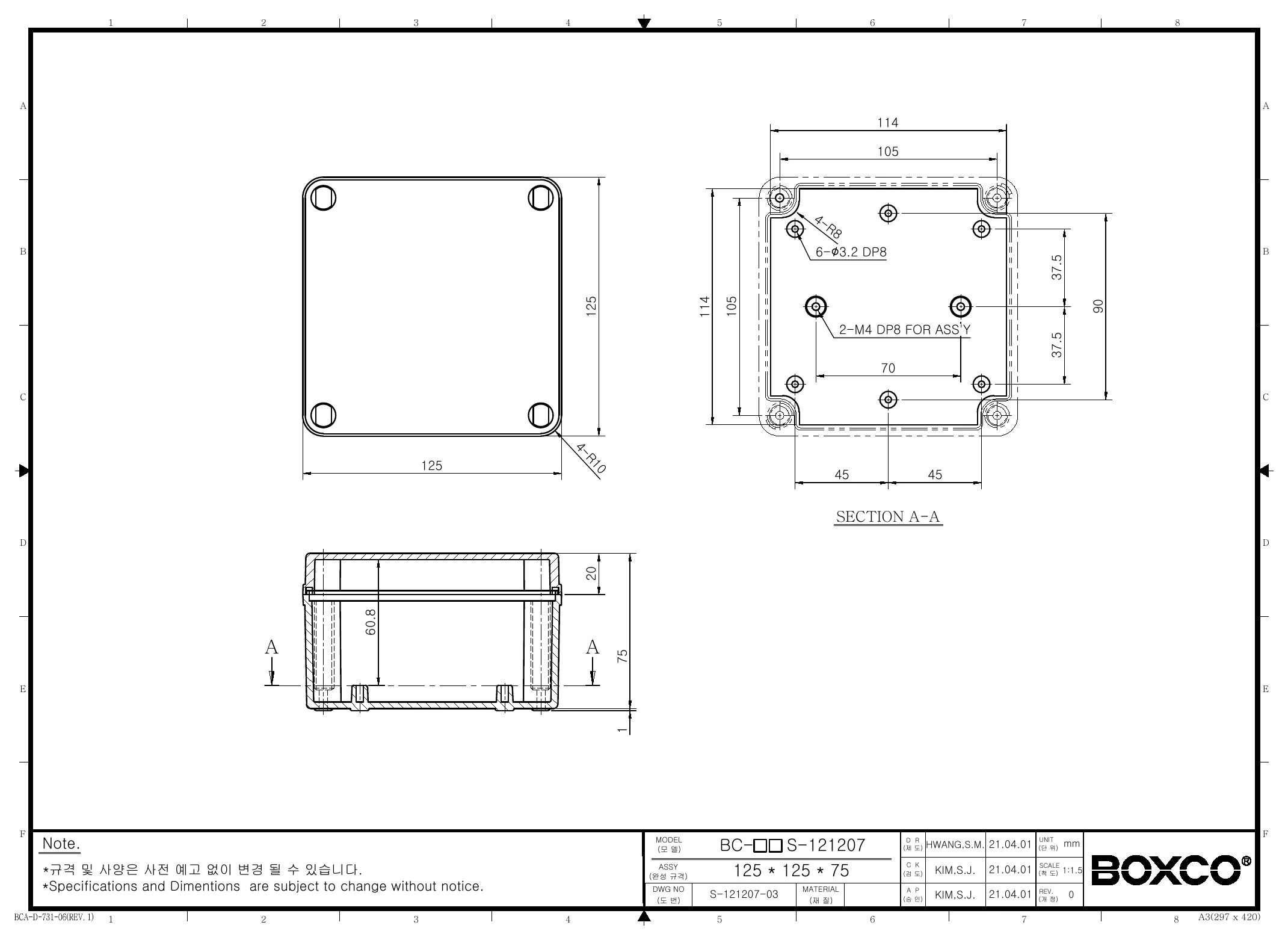

BC-CGS-121207 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco S-Series BC-CGS-121207 enclosure?

This model measures 4.92 x 4.92 x 2.95 inches, which is 125 x 125 x 75 mm. It is a plastic enclosure with a grey cover, screw-type closure, IP67 protection, and IK08 impact resistance. The housing uses PC material and weighs 0.292 kg.

Is this enclosure suitable for outdoor or harsh environments?

Yes, this Boxco S-Series enclosure is designed for demanding environments. Its IP67 rating supports strong protection against dust and water ingress, and the material includes an ultraviolet stabilizer to help reduce visible color change during long-term outdoor use. It is also rated IK08 for impact resistance.

What temperature range can this enclosure handle?

This model is specified for use from -40 °C to 110 °C. That wide operating range makes it suitable for both cold and high-heat environments where standard general-purpose housings may be more limited. Buyers should still confirm the full assembly meets the same temperature requirements.

What kinds of applications is this enclosure commonly used for?

This enclosure is intended for protecting electronics and control components that need a durable sealed housing. The anti-static material makes it relevant for sensitive electronic instruments, and the high-impact body helps where mechanical durability matters. Its internal mounting features also support builds that need securely mounted internal hardware.

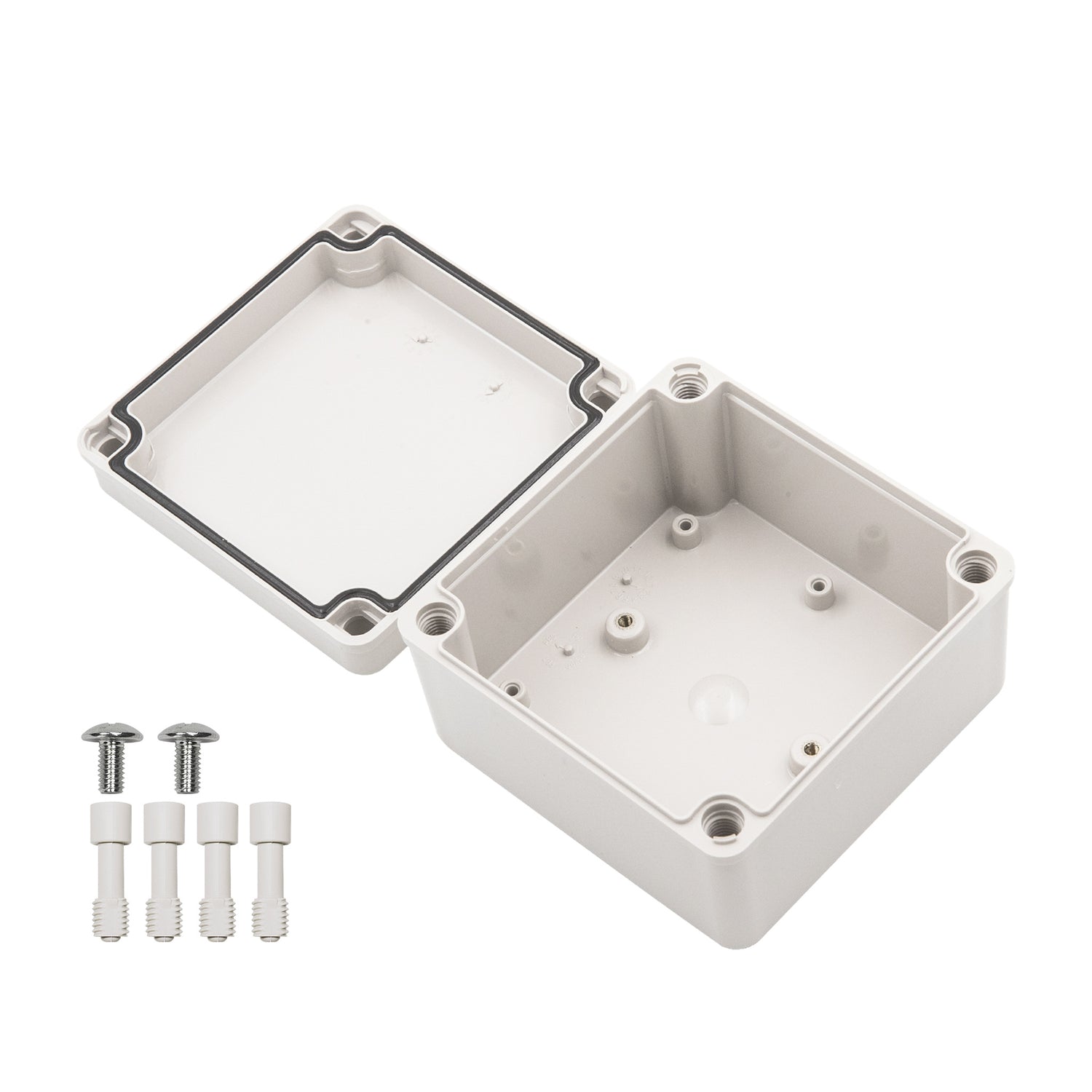

What internal mounting and hardware features does this model include?

The enclosure includes internal mounting plate attachment points with brass inserted injection molding for tighter support of heavier internal equipment. It also has pre-molded mounting screw nuts for securing DIN rail or other components inside the housing. The cover bolt attachment points are molded for added thread strength.

How does this model differ from a basic plastic enclosure?

This model combines several higher-end protective features in one enclosure, including IP67 sealing, IK08 impact resistance, UV stabilization, and anti-static material. It also adds molded mounting and fastening details that support more demanding industrial or commercial use. That makes it more specialized than a basic indoor plastic box.

What warranty is provided for this enclosure?

The listed warranty period for this model is 1 year. For procurement or project documentation, this gives a defined baseline warranty term tied to this specific enclosure. Buyers with larger-volume or custom-spec needs may still want to confirm any additional commercial terms separately.
