Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

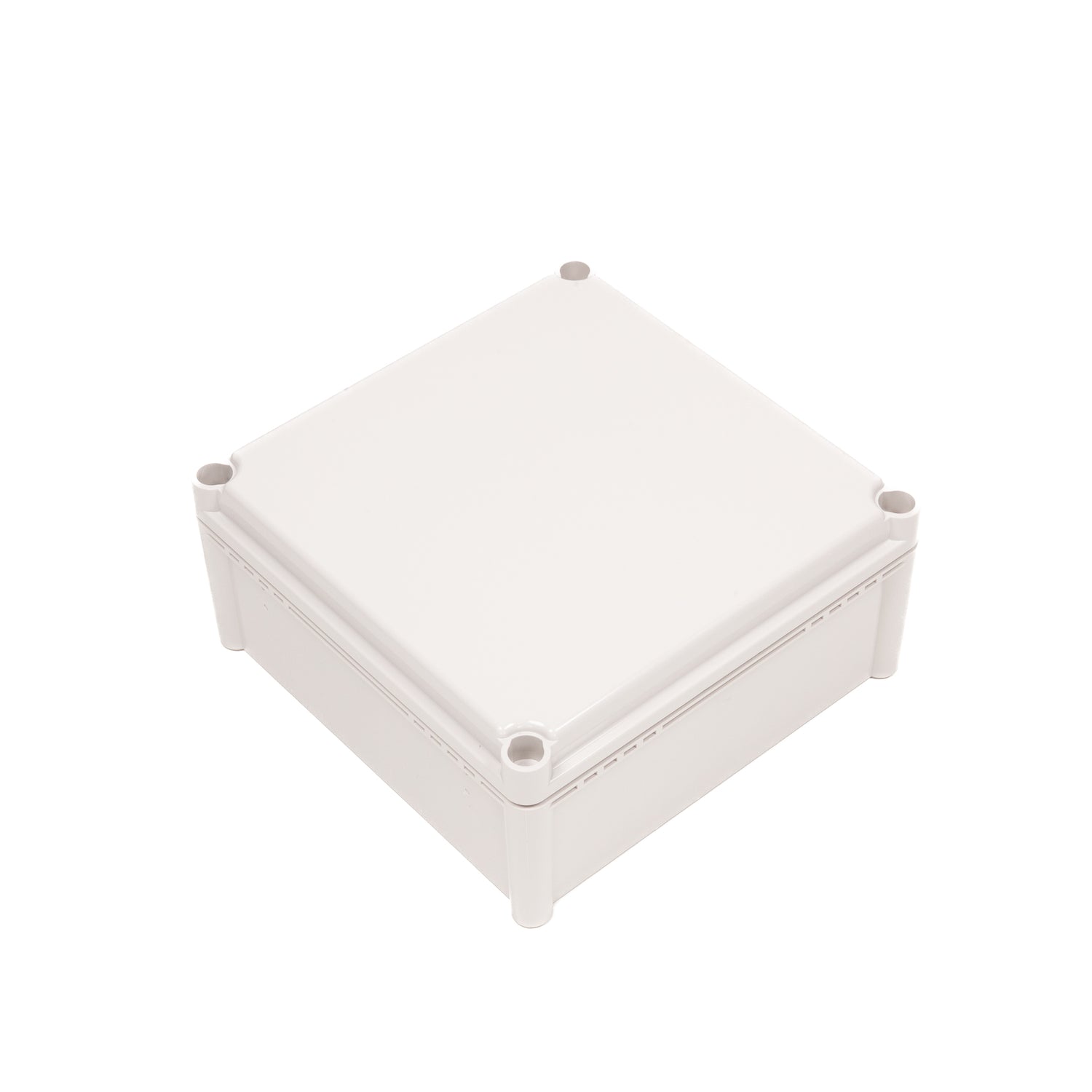

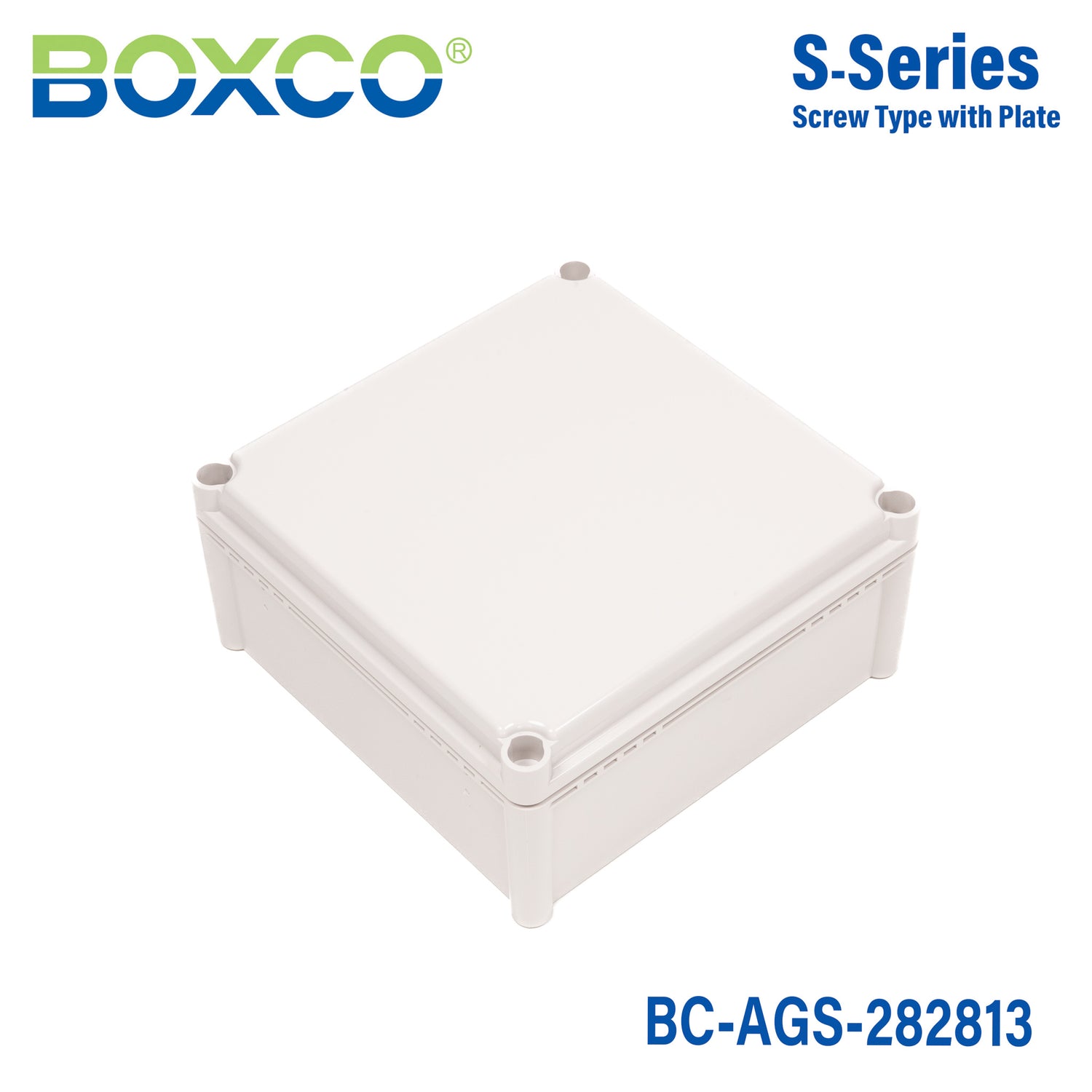

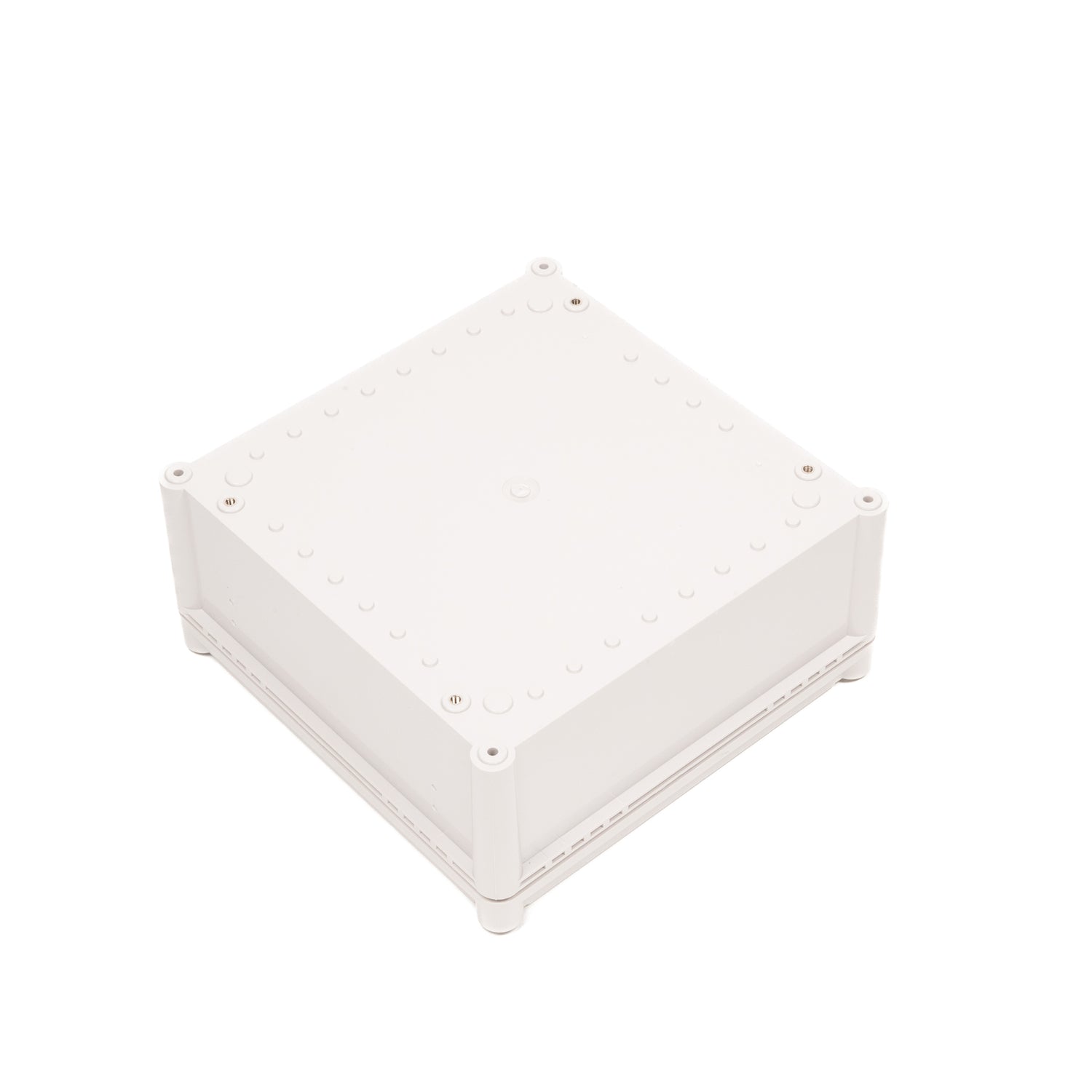

Boxco S-Series 280x280x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU:

BC-AGS-282813

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

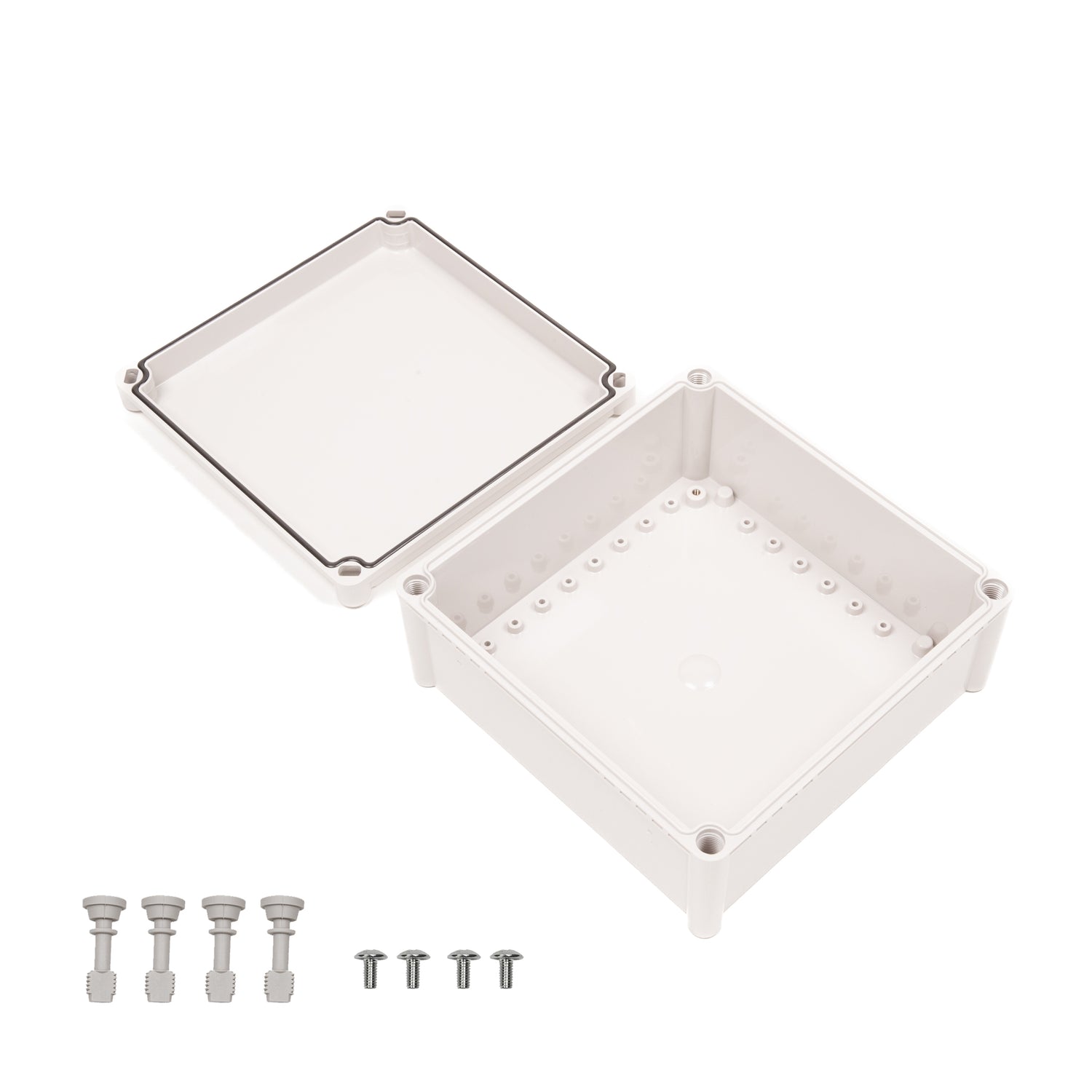

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

28 cm
Width

28 cm
Height

13 cm
Weight

1.19 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is this Boxco S-Series enclosure typically used for?

This enclosure is used to protect electrical or electronic components in industrial and commercial equipment housings. Its 280 x 280 x 130 mm size makes it suitable when you need room for larger control, monitoring, or protection assemblies inside a durable plastic box.

Is this enclosure suitable for outdoor or washdown environments?

Yes, this model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The product description also states that UV stabilizer is added for outdoor use, helping reduce visible color change over long-term exposure.

What material is this enclosure made from?

This model is made from ABS and has a grey cover. The description also notes high impact resistant construction and anti-static material, which can help protect sensitive electronic instruments from static electricity.

How impact-resistant is this plastic enclosure?

This enclosure carries an IK08 impact rating, indicating added resistance to external mechanical impact compared with non-rated general-purpose boxes. The product description also emphasizes high impact resistant material designed to reduce breakage during machining such as hole or press processing.

What temperature range can this enclosure handle?

This model is specified for use from -40 °C to 70 °C. That range makes it a practical option for many indoor and outdoor industrial environments where temperature swings are a consideration.

Does this enclosure support internal mounting hardware or accessories?

Yes, the description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to support secure mounting of internal equipment and accessories such as DIN rail hardware or mounting plates.

Model	Material	Cover
Boxco S-Series 330x430x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 190x280x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 280x380x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x250x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x110x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 190x380x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 280x380x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 65x95x55mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x200x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 190x280x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 150x250x100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 190x280x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x180x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 280x280x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 280x560x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 200x200x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 125x125x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 100x230x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x130x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 190x280x180mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 125x125x75mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 190x190x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 200x200x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 125x125x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x250x85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 50x65x55mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x180x85mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 80x130x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 190x280x180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 200x200x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x200x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x200x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 100x200x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x130x85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x110x45mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x200x75mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 100x200x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 80x80x60mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 190x380x180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 190x380x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 150x200x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x150x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 140x170x95mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x160x85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 190x280x180mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type	PC	Transparent	View
Boxco S-Series 190x380x180mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 140x170x95mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 80x250x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 80×180×70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
