Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

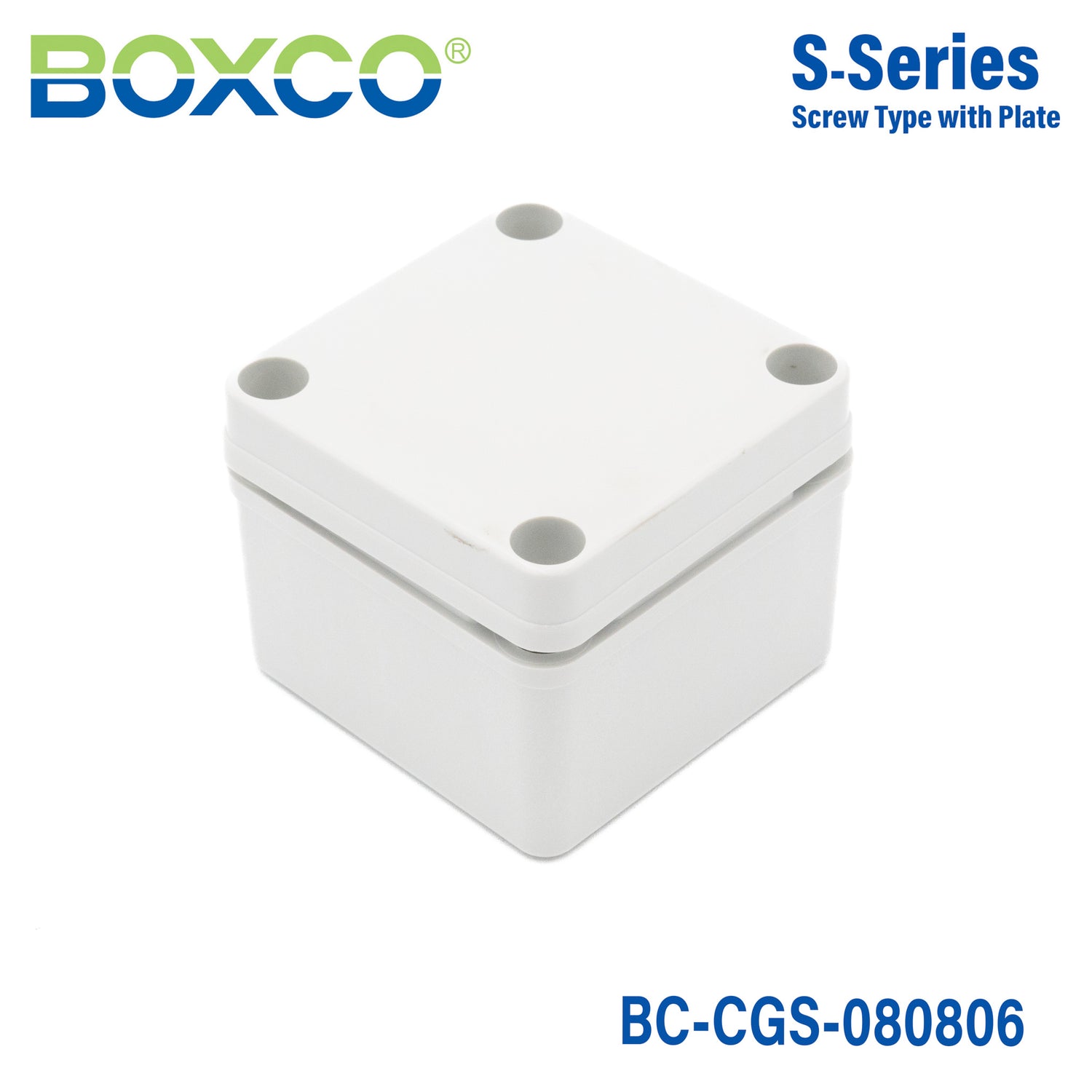

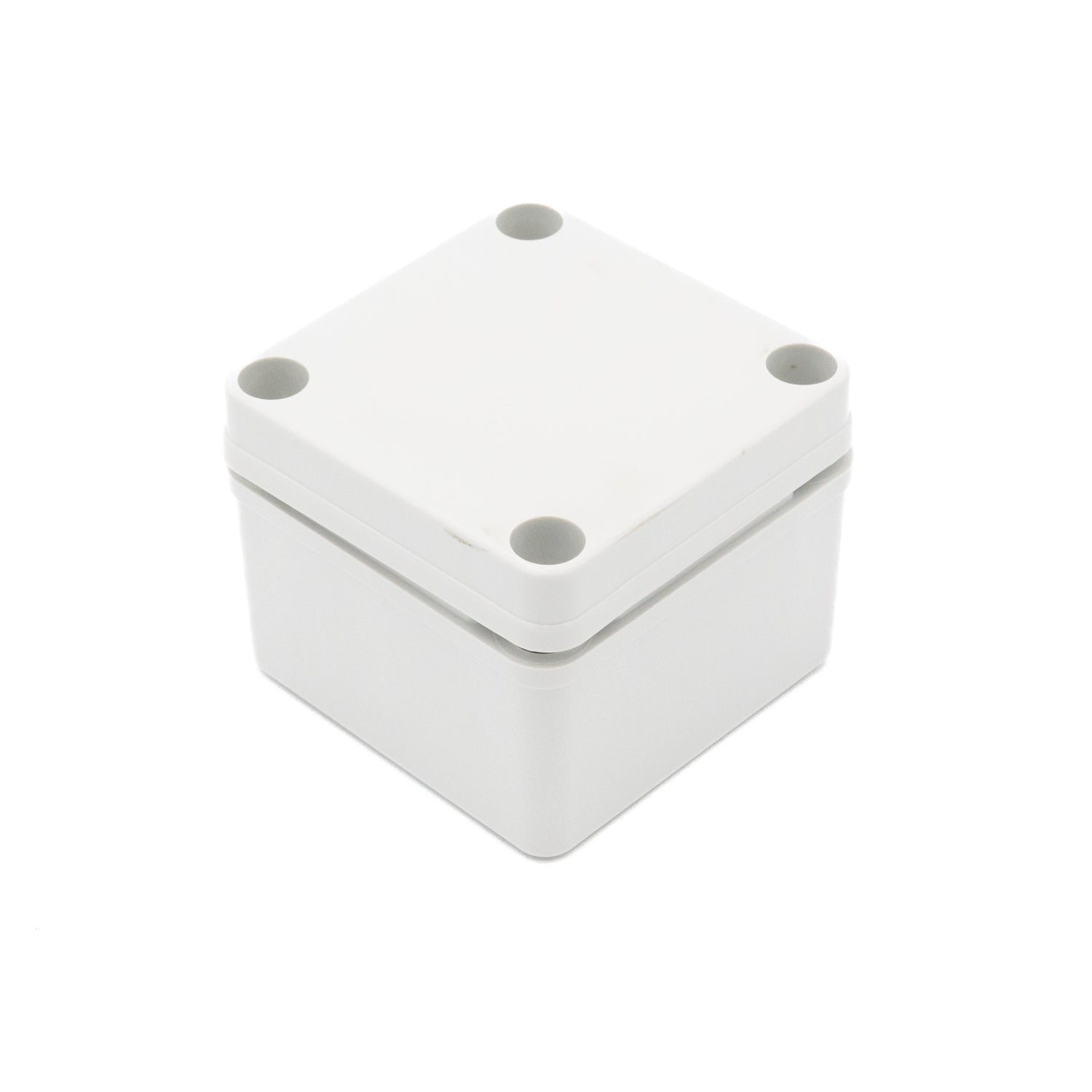

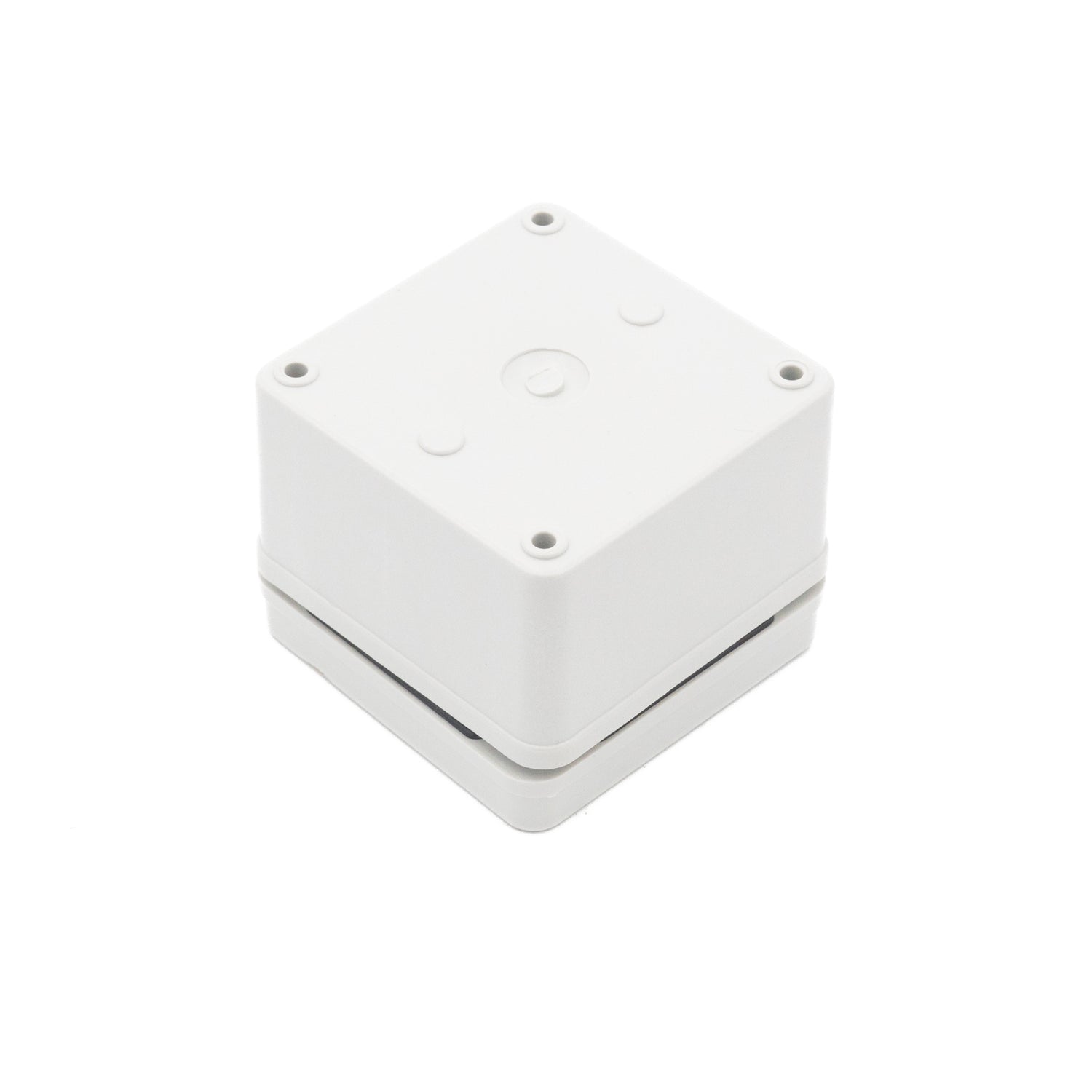

Boxco S-Series 80x80x60mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-080806
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGS-080806 is a 80×80×60 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-080806Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×80×60 mm (3.15×3.15×2.36 in)
Mounting plate dimension M1 × M2
68 × 68 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
0808 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

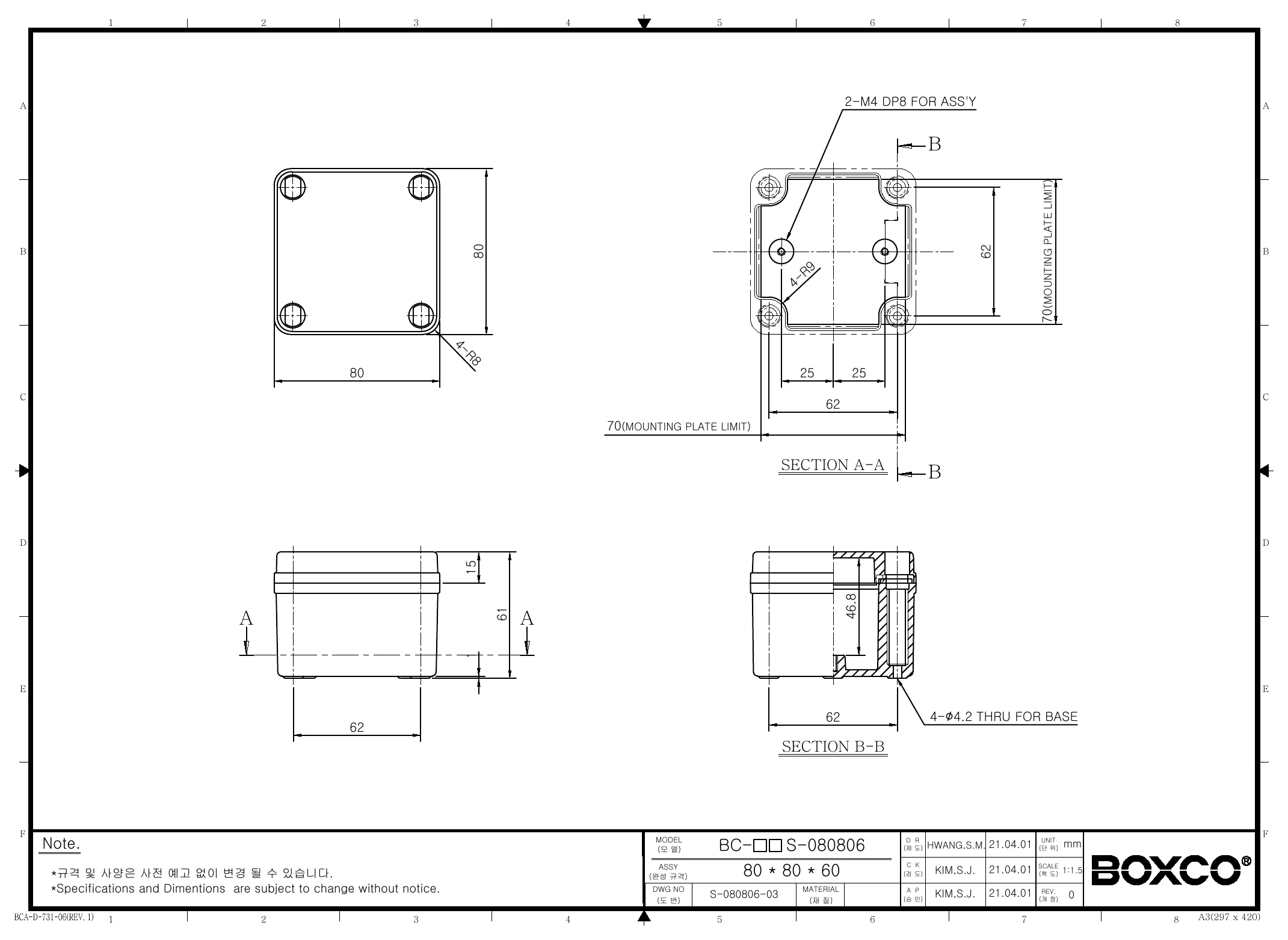

Technical drawings

BC-CGS-080806 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 80x80x60mm plastic enclosure suitable for?

This enclosure is suited for protecting compact electronic components and control assemblies in industrial or commercial environments. Its anti-static material and durable polycarbonate construction make it a practical choice for sensitive electronic instruments that need a sealed housing.

What protection ratings does this enclosure have?

This model is rated IP67 for protection against dust ingress and temporary water exposure, and IK08 for impact resistance. Those ratings make it a strong option for applications where the enclosure may face dust, moisture, and incidental mechanical impact.

Can this enclosure be used outdoors?

Yes, this S-Series enclosure is designed for outdoor use. The material includes an ultraviolet stabilizer to help reduce visible color change over long-term exposure, while the gasket system supports waterproof and dust-proof performance.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C up to 110 degrees C. That range supports use in both low-temperature and elevated-temperature environments where a general-purpose enclosure might not be sufficient.

What are the key physical specifications of this enclosure?

The enclosure measures 3.15 x 3.15 x 2.36 inches, which corresponds to 80 x 80 x 60 mm. It weighs 0.157 kg and uses a screw-type cover with a grey polycarbonate cover.

Does this enclosure support internal mounting hardware or accessories?

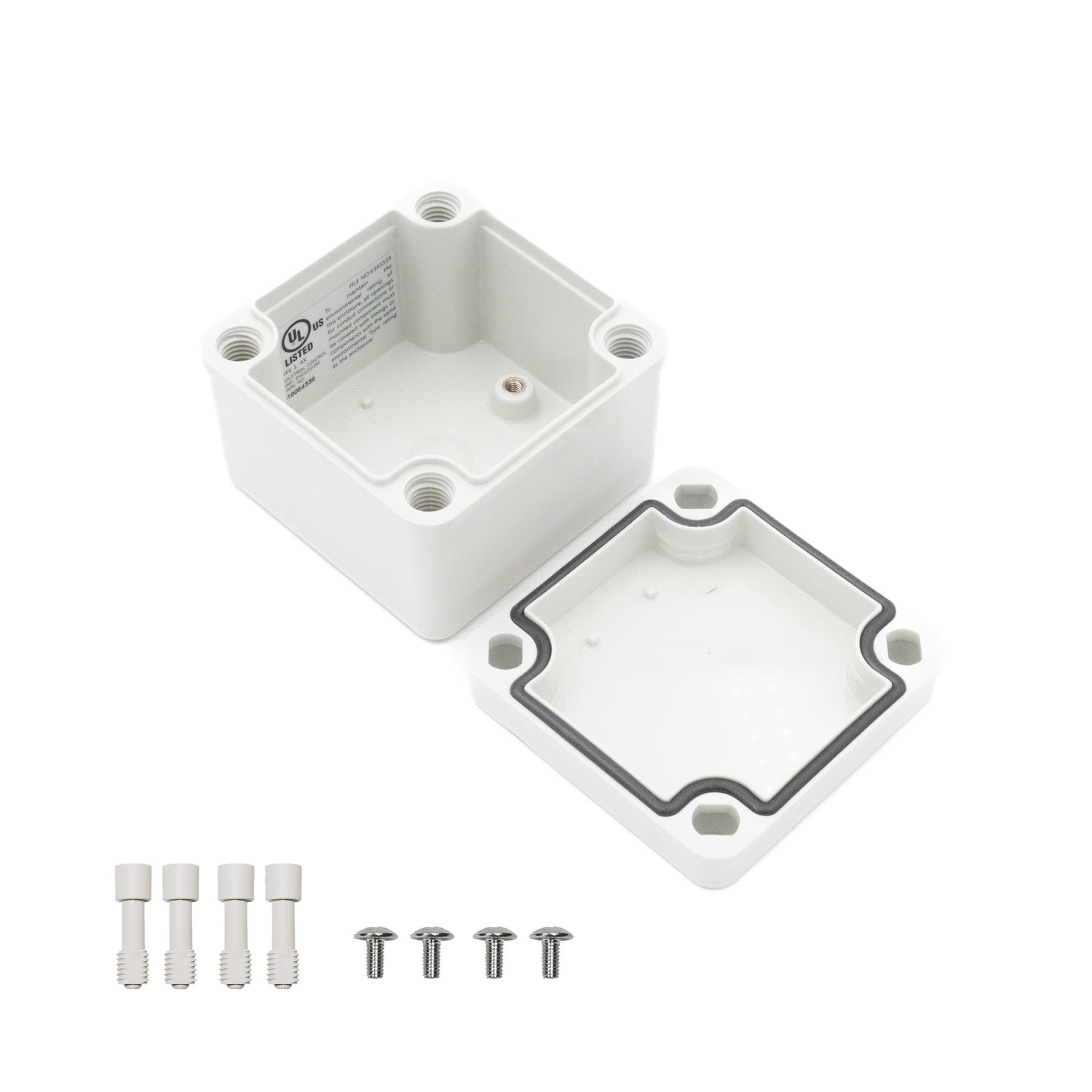

Yes, the enclosure includes internal mounting plate attachment points and pre-molded screw nut features for securing compatible internal hardware. These built-in features are intended to support organized component mounting inside the enclosure body.
