Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

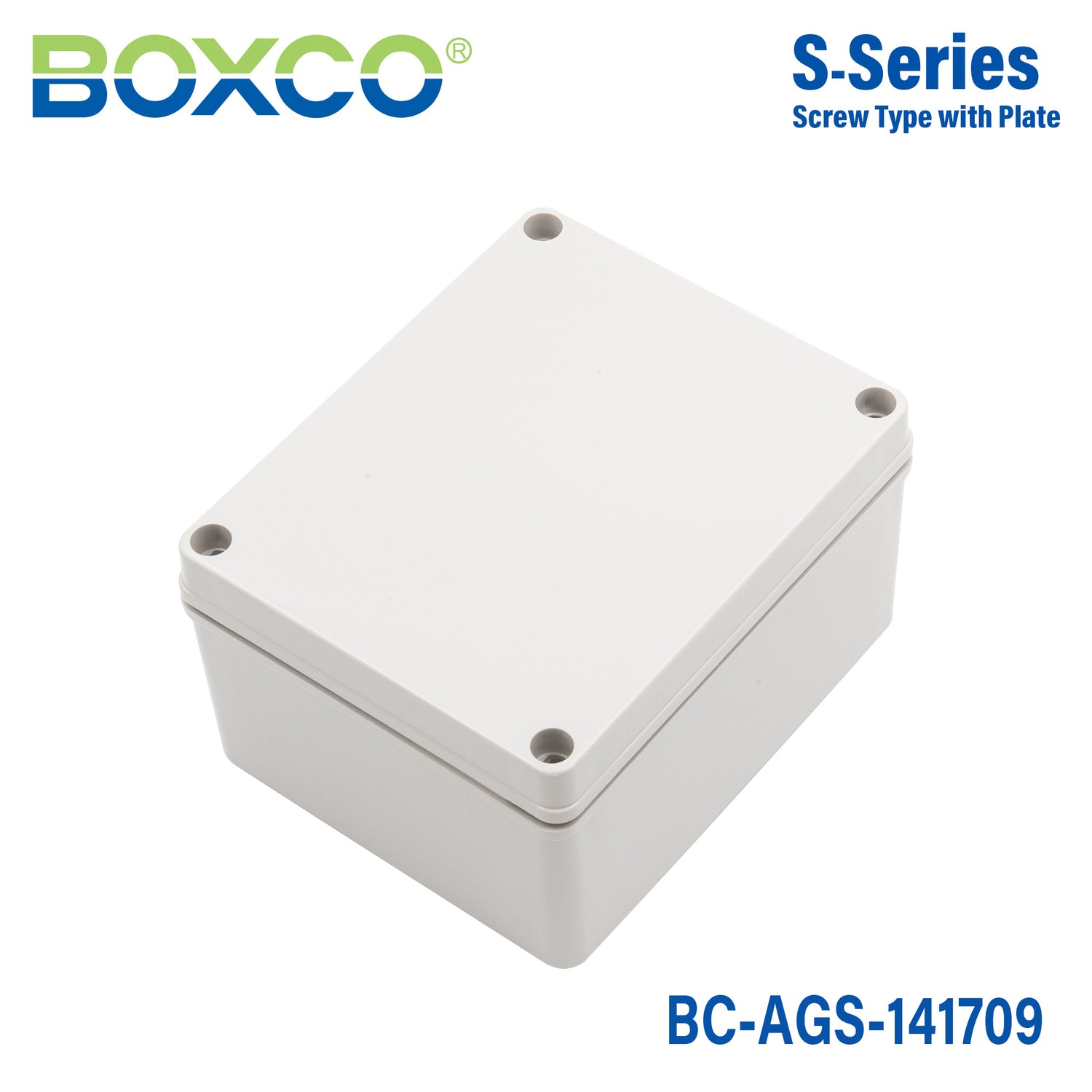

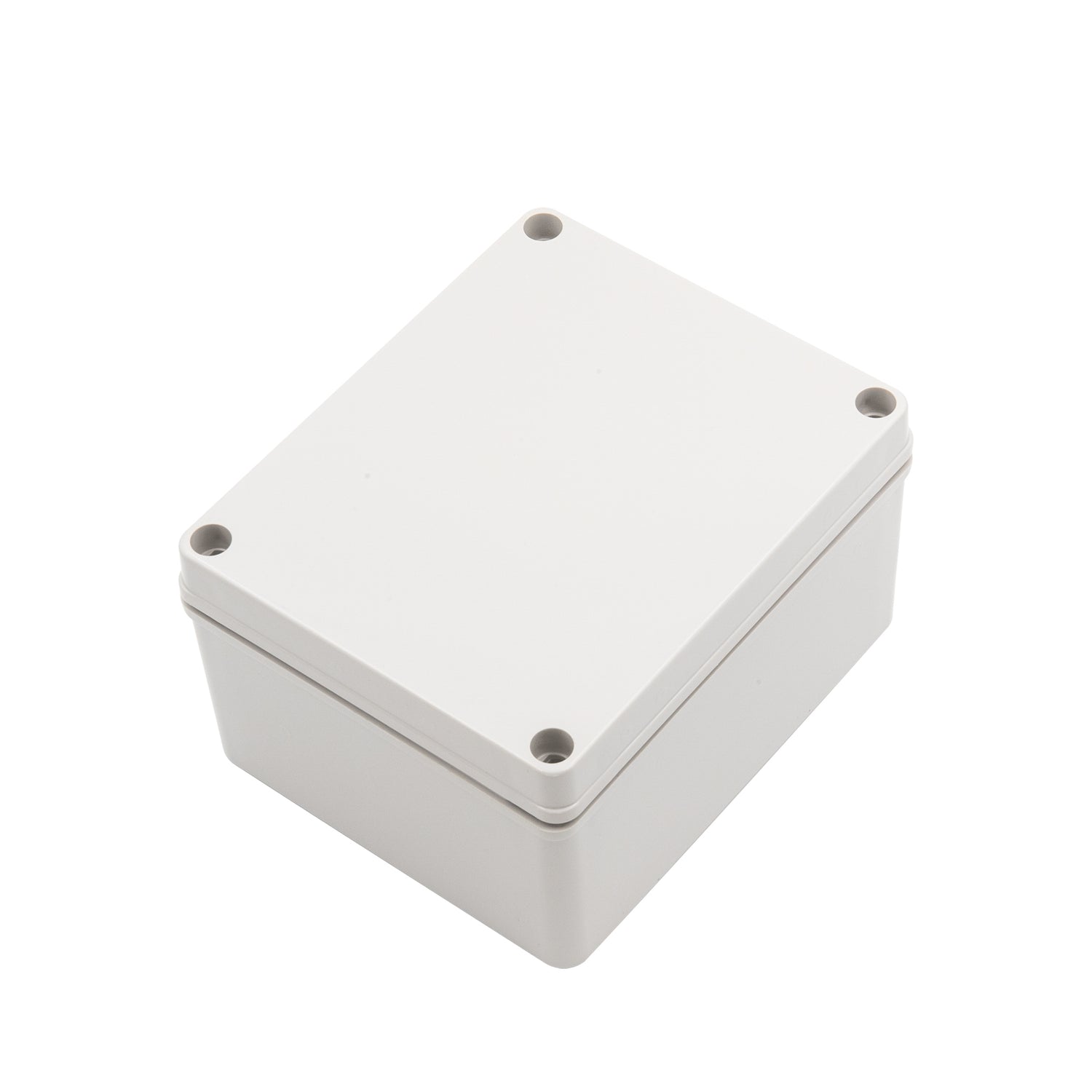

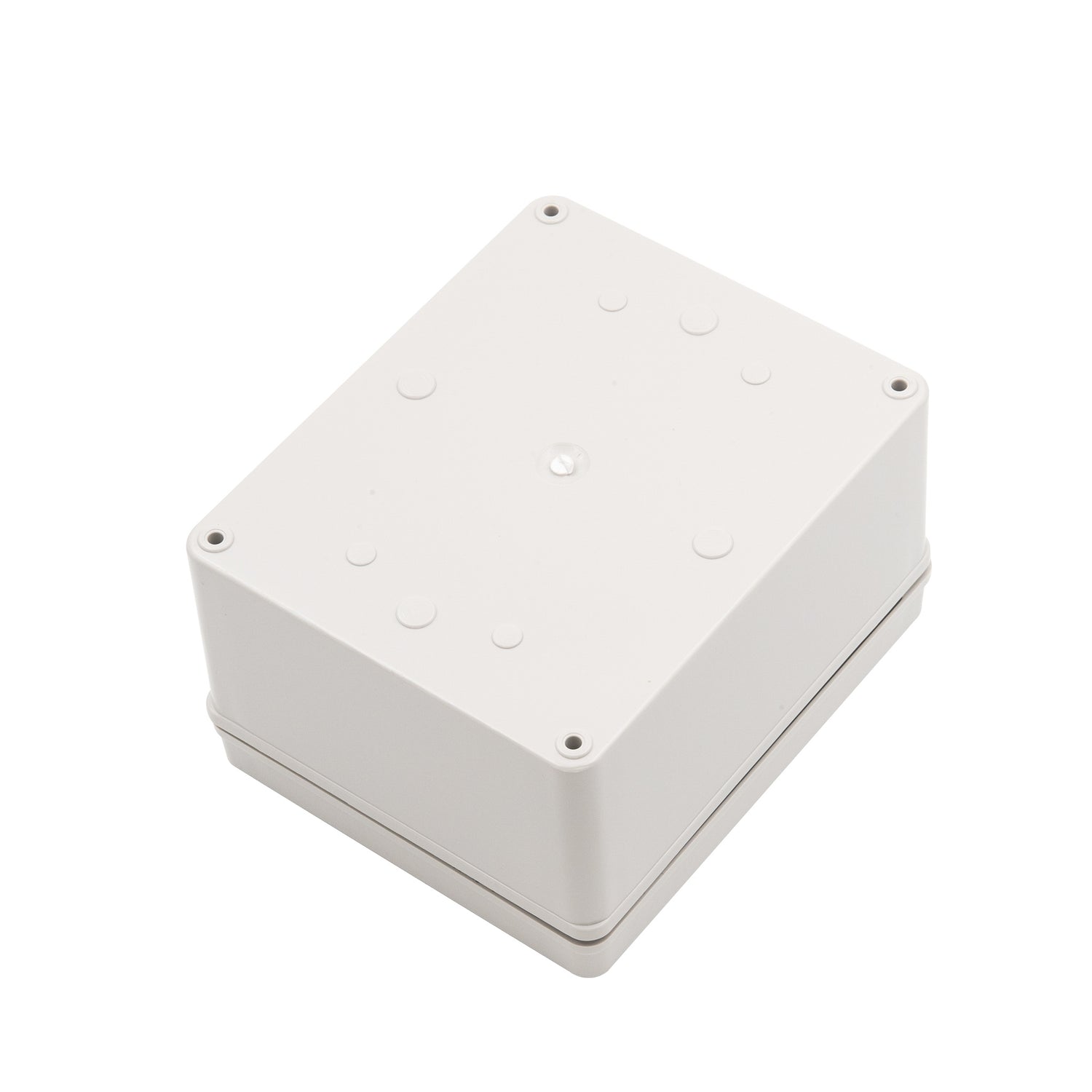

Boxco S-Series 140x170x95mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU:
BC-AGS-141709
Please for Pricing
|

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

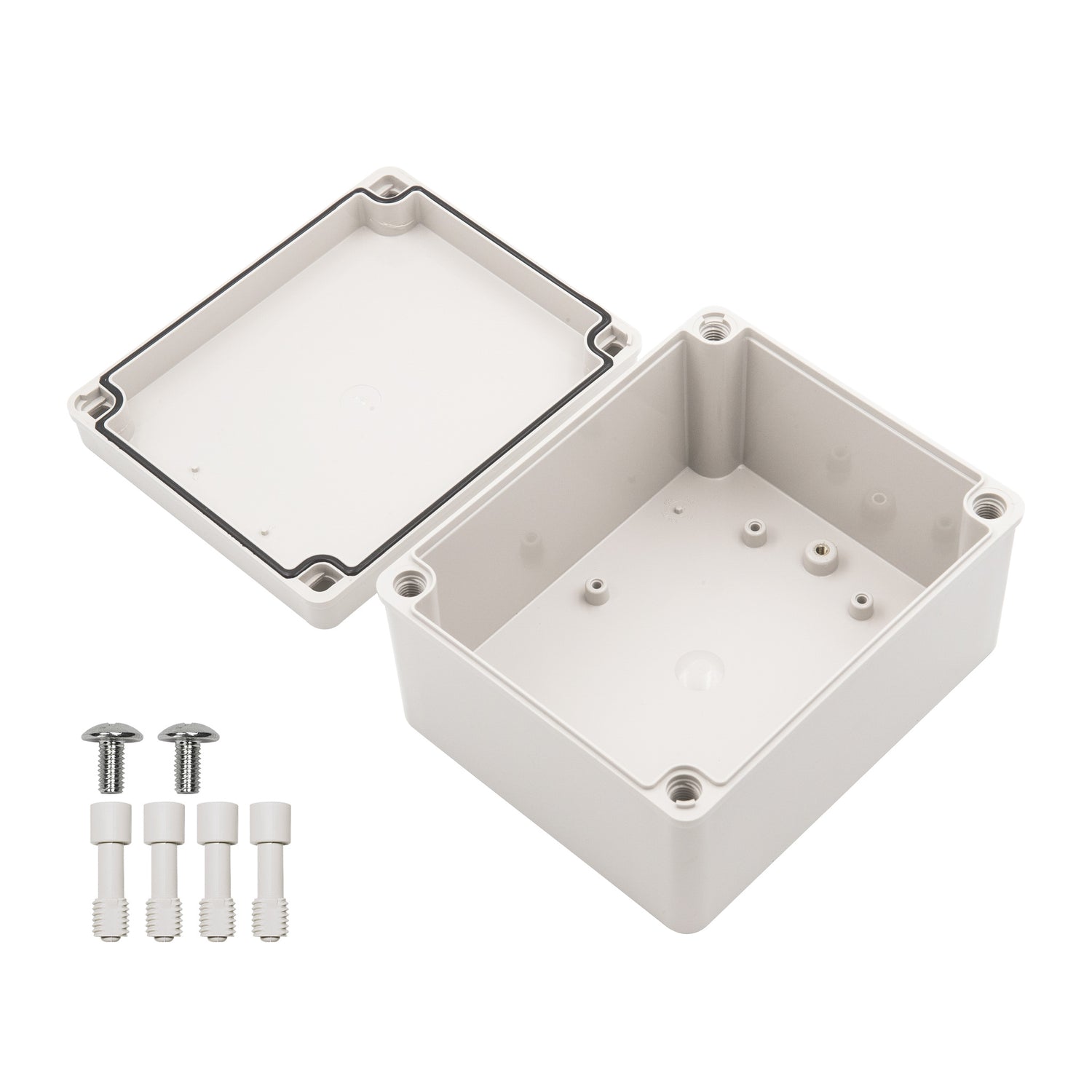

  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
  • Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications
  • Brand
    Boxco
  • Series
    Boxco S Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    14 cm
  • Width
    17 cm
  • Height
    9.5 cm
  • Weight
    0.43 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What kind of applications is the Boxco S-Series BC-AGS-141709 enclosure suited for?

This model is suited for protecting electronic controls and instruments that need a sealed plastic enclosure in industrial or outdoor environments. Its IP67 sealing, IK08 impact rating, UV-stabilized material, and anti-static construction make it a practical option for control, monitoring, and protection applications where dust, water, and physical impact are concerns.

Is the BC-AGS-141709 suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time. It is also rated IP67, which supports strong resistance to dust ingress and temporary water exposure.

What are the main specifications of this enclosure?

The Boxco BC-AGS-141709 measures 5.51 x 6.69 x 3.74 inches, or 140 x 170 x 95 mm, and weighs 0.428 kg. It is an ABS plastic enclosure with a grey cover, screw-type closure, IP67 protection, IK08 impact resistance, and a 1-year warranty.

What temperature range can this enclosure handle?

This enclosure is specified for use from -40 C to 70 C. That range makes it suitable for many indoor and outdoor industrial environments where the housing may face low-temperature starts or elevated ambient heat.

Does this model support mounting hardware or internal equipment securely?

Yes. The description highlights internal mounting plate attachment points with brass inserted injection molding, designed to hold heavier internal equipment more securely. It also includes pre-molded mounting screw nuts so DIN rail or other internal hardware can be fixed inside the enclosure.

What differentiates this enclosure from a basic plastic box?

This model combines several protective and durability features beyond a basic utility box, including IP67 sealing, IK08 impact resistance, UV stabilization, anti-static material, and reinforced molded attachment points. It is also described as using high-impact-resistant material and a precision-injected gasket for strong waterproof and dust-proof performance.
