Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

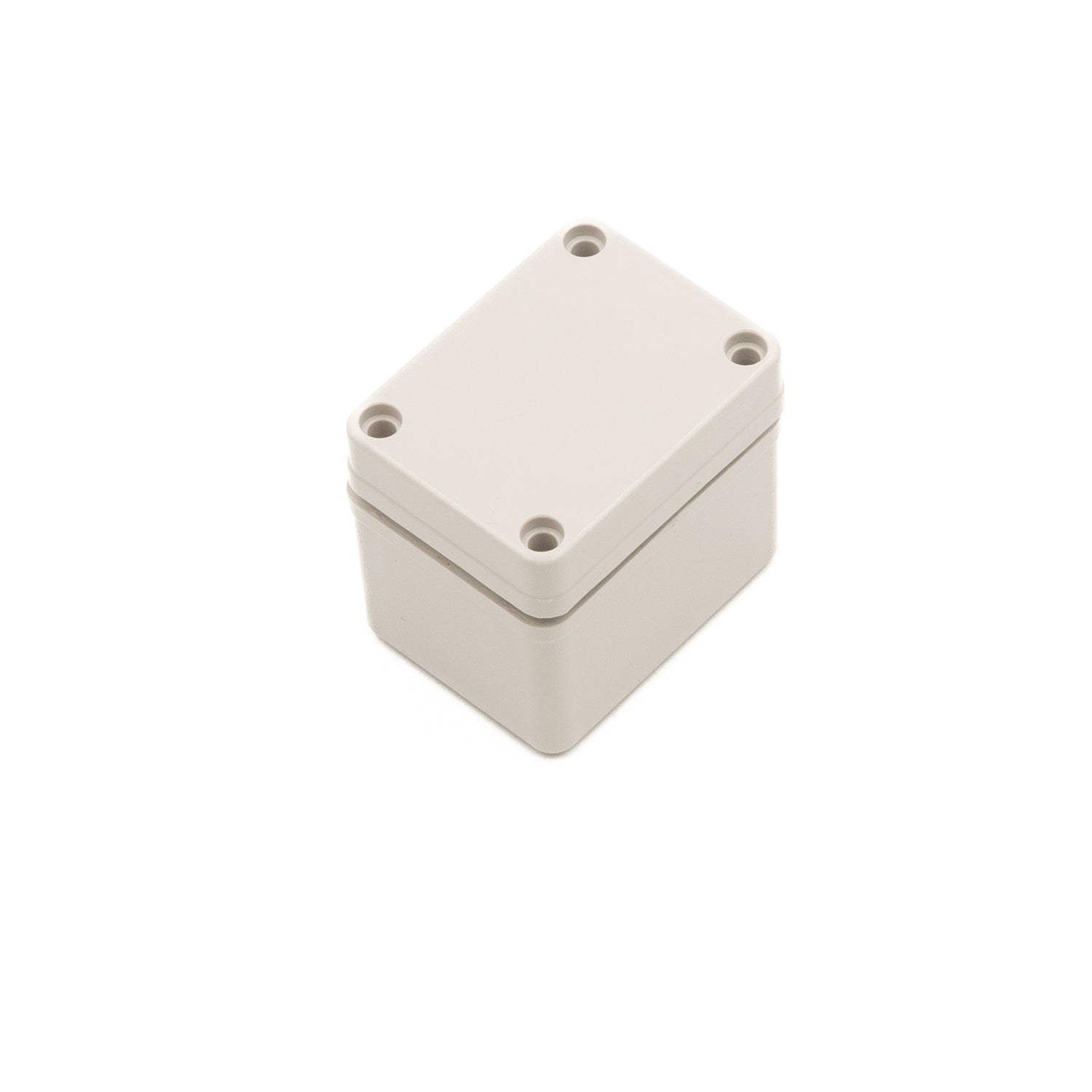

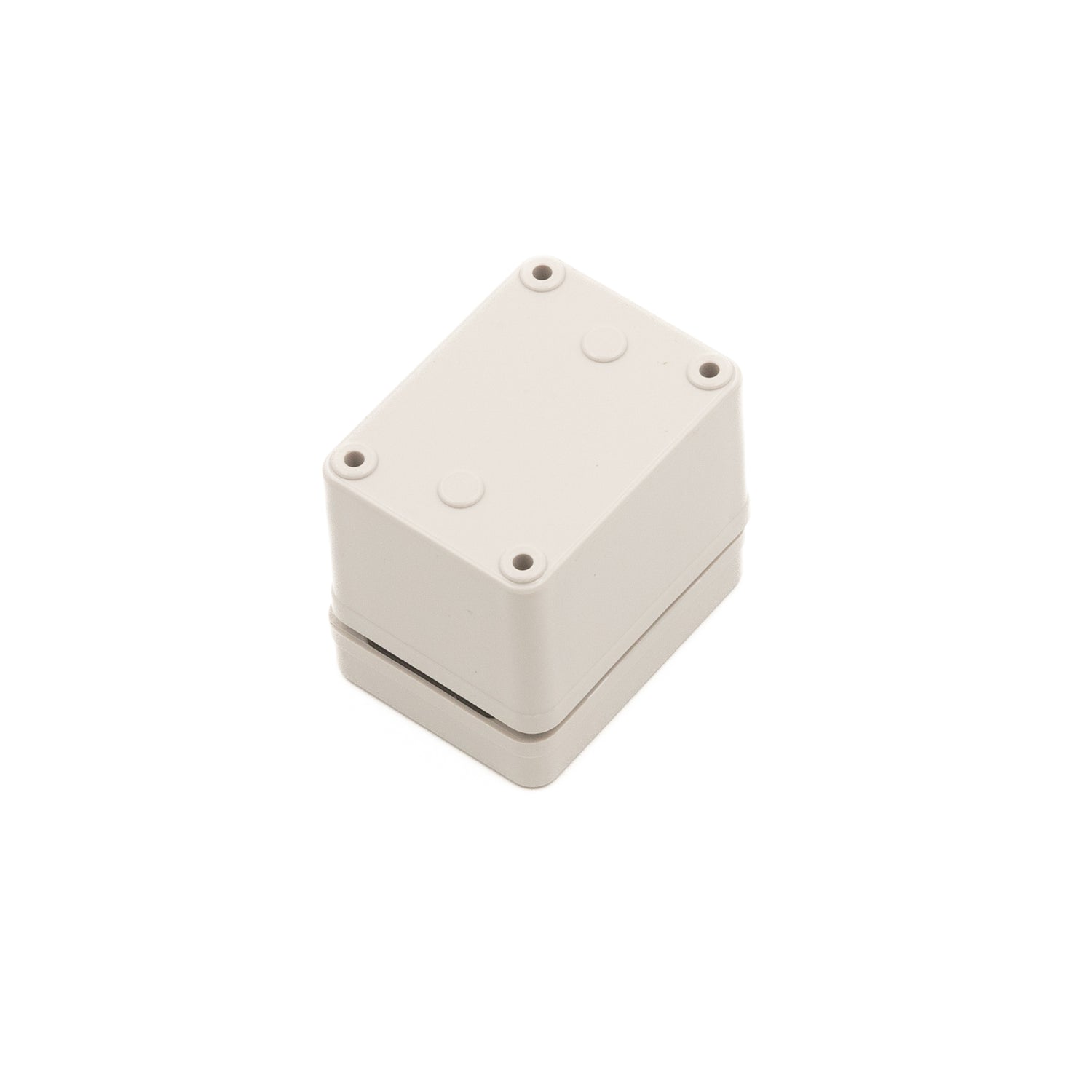

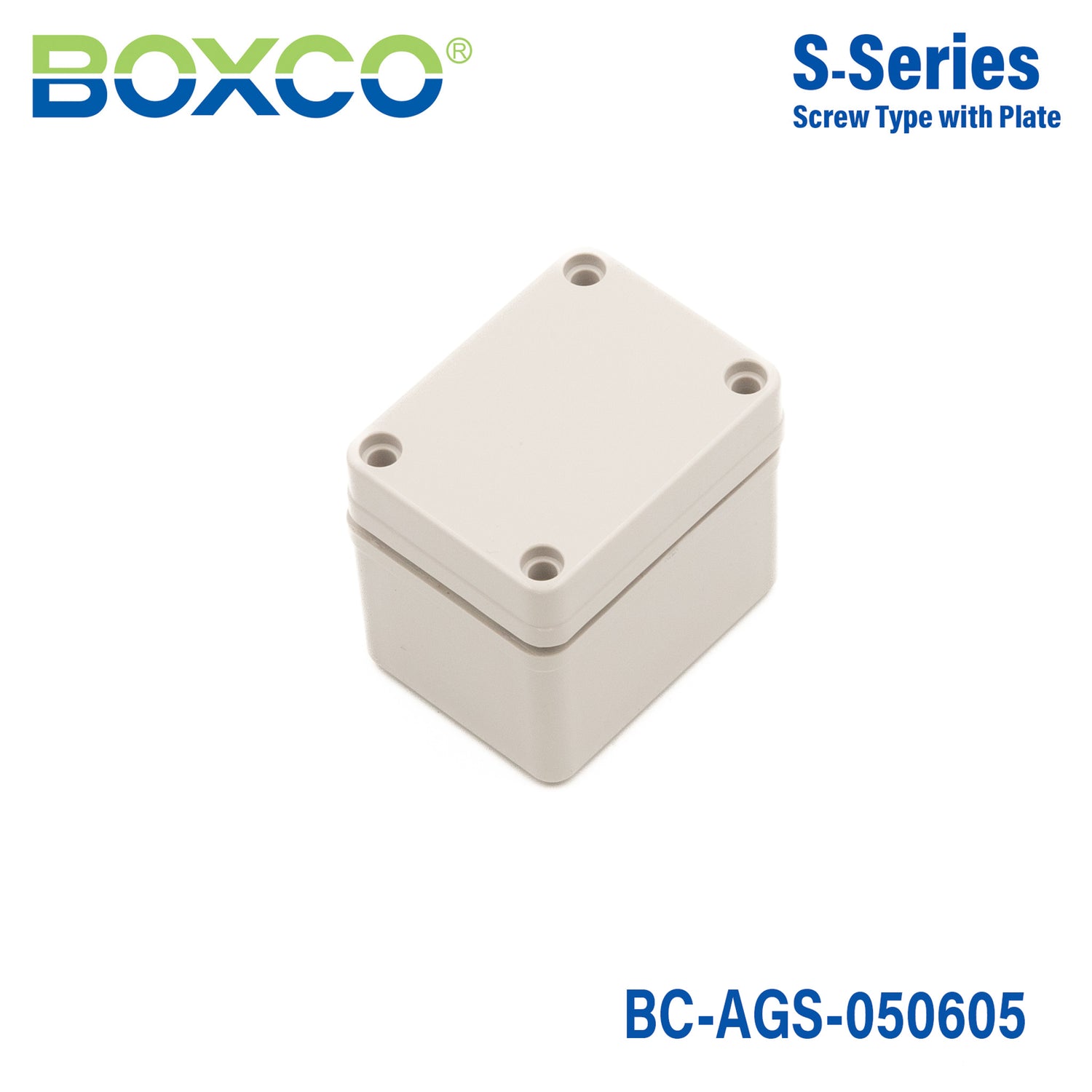

Boxco S-Series 50x65x55mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-050605
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-050605 is a 50×65×55 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-050605Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
50×65×55 mm (1.97×2.56×2.17 in)
Mounting plate dimension M1 × M2
40 × 55 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0506 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

BC-AGS-050605 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure typically used for?

This plastic enclosure is used to protect compact electronic components and control assemblies in industrial and commercial equipment. Its small 50 x 65 x 55 mm size makes it a fit for space-constrained applications where a sealed housing is needed.

What are the exact dimensions of this enclosure?

This model measures 1.97 x 2.56 x 2.17 inches, which corresponds to 50 x 65 x 55 mm. Buyers typically use these dimensions to confirm fit for internal components and available mounting space.

How well does this enclosure resist dust, water, and impact?

This enclosure is rated IP67 and IK08. That means it is built for strong dust and water protection and also offers solid mechanical impact resistance for demanding environments.

Is this enclosure suitable for outdoor or harsh-environment use?

Yes, the product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use. It is also designed with a gasket for waterproof and dust-proof performance, and it operates in temperatures from -40 °C to 70 °C.

What material is this enclosure made from?

This model is made from ABS plastic and has a grey cover. The description also notes high impact resistance and anti-static material use to help protect sensitive electronic instruments from static electricity.

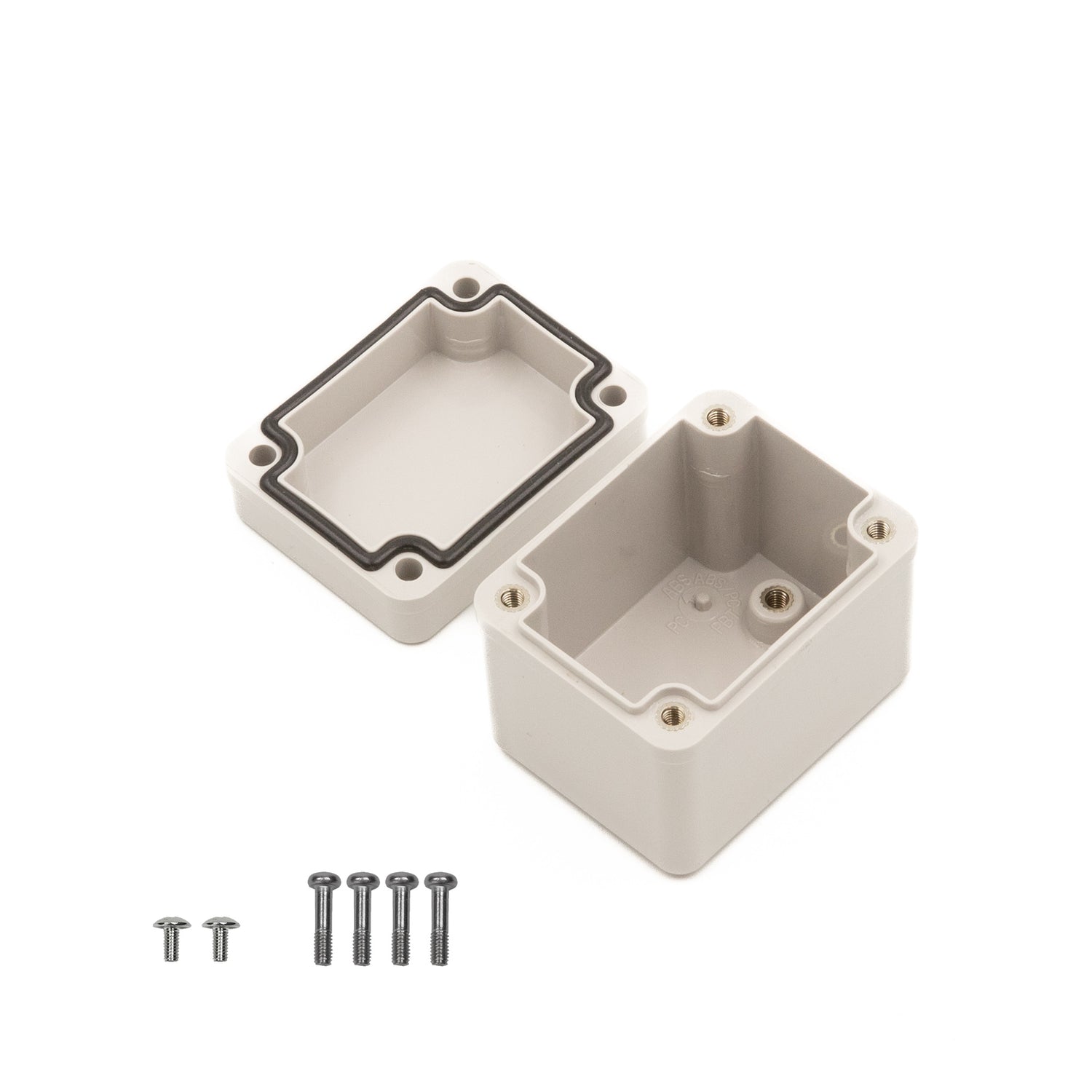

What internal mounting features does this enclosure include?

The enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features support secure mounting of internal hardware such as mounting plates or DIN rail-compatible equipment.

What distinguishes this screw-type enclosure from other enclosure styles?

This model uses a screw-type cover design, and the cover bolt attachment points are formed in injection molding for strength. Buyers who want a more secured cover style often choose screw-type enclosures for applications that need a tight, durable closure.
