Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

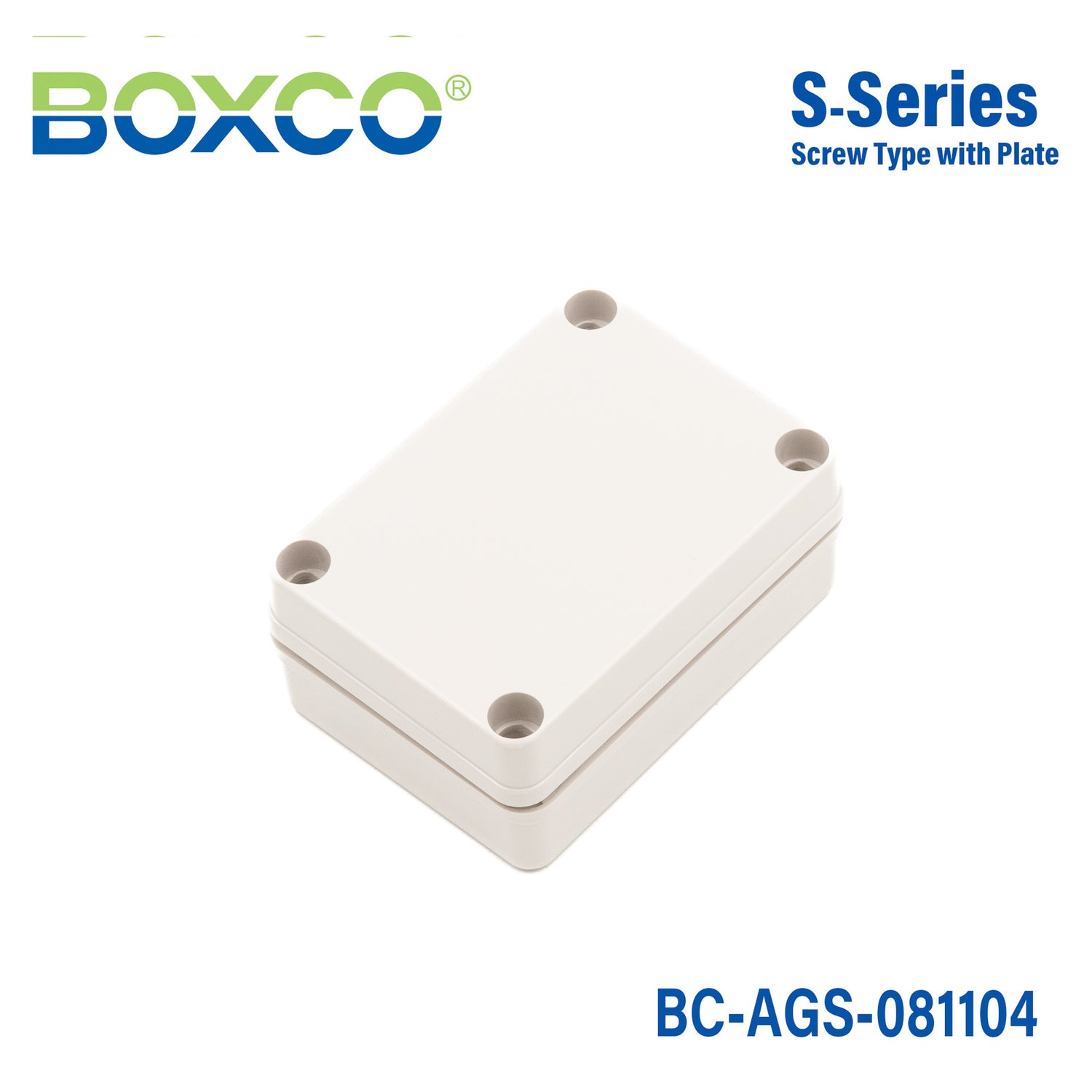

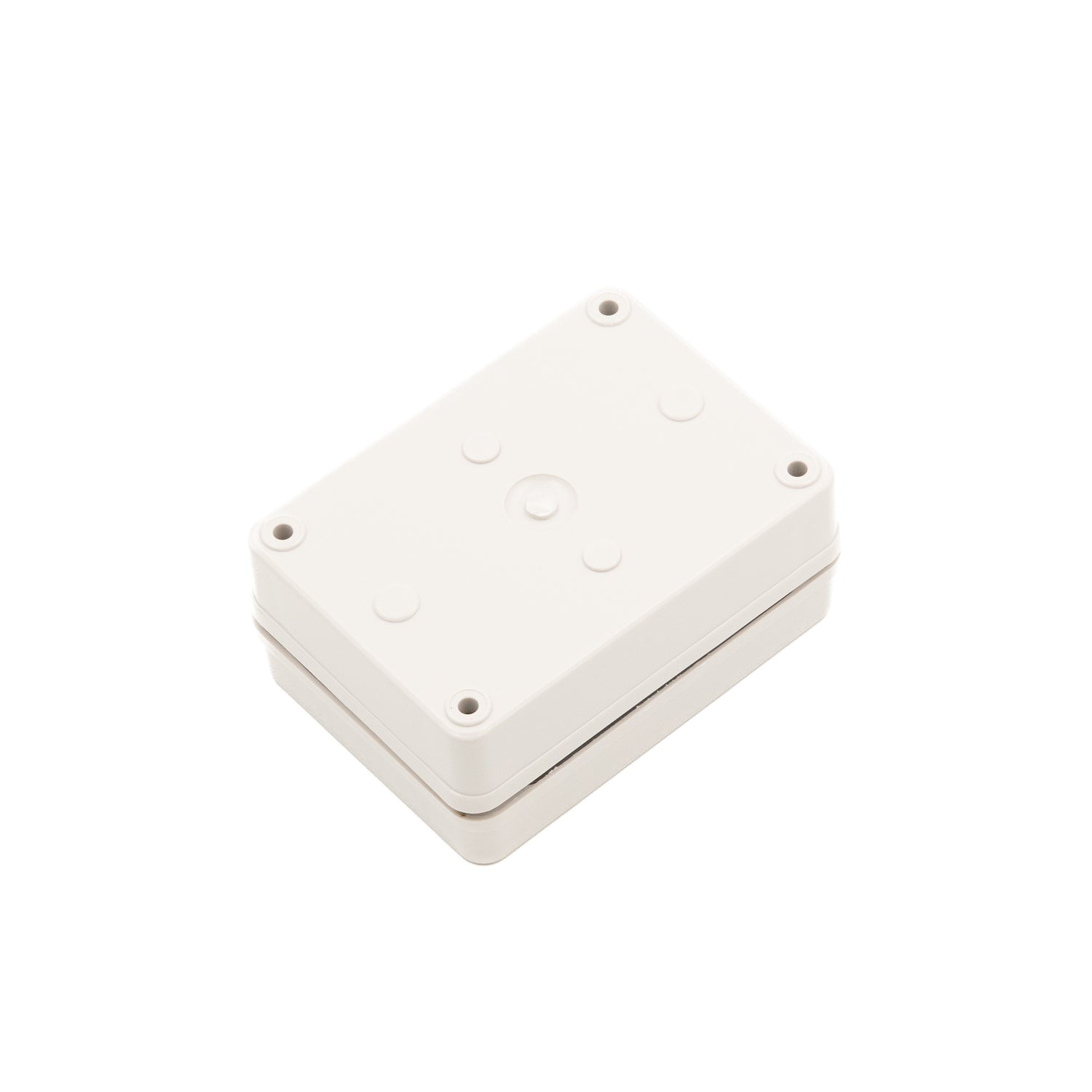

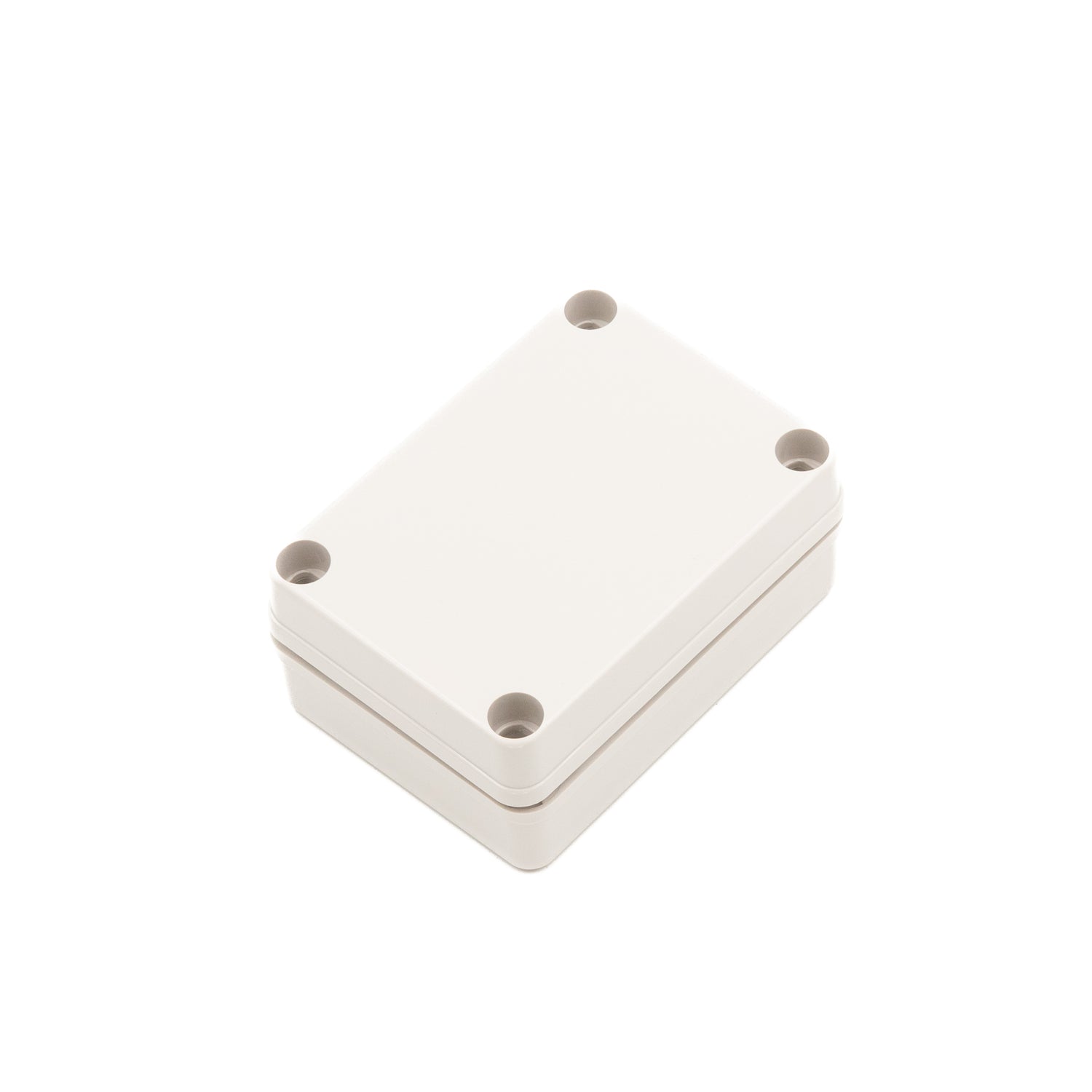

Boxco S-Series 80x110x45mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU:

BC-AGS-081104

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

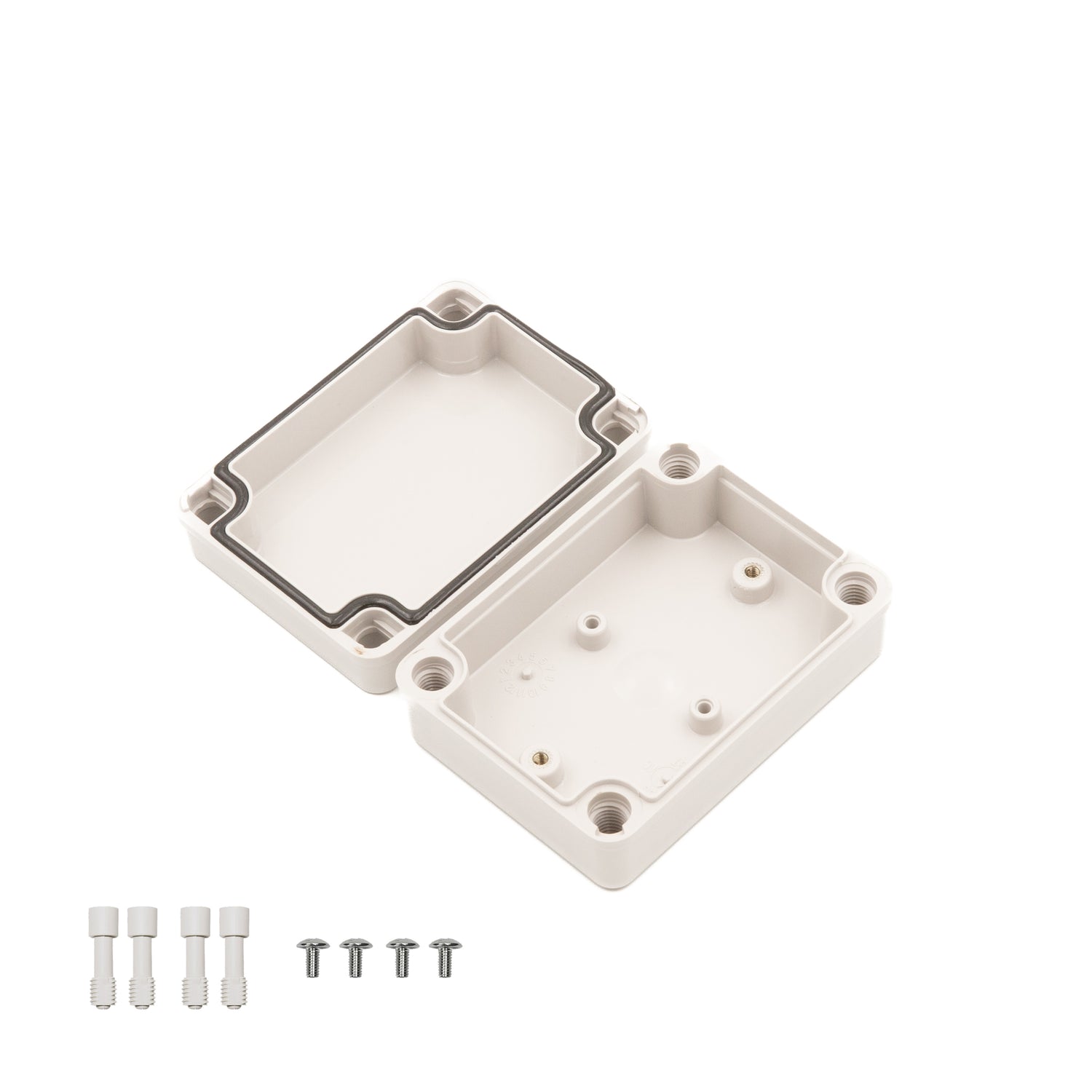

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

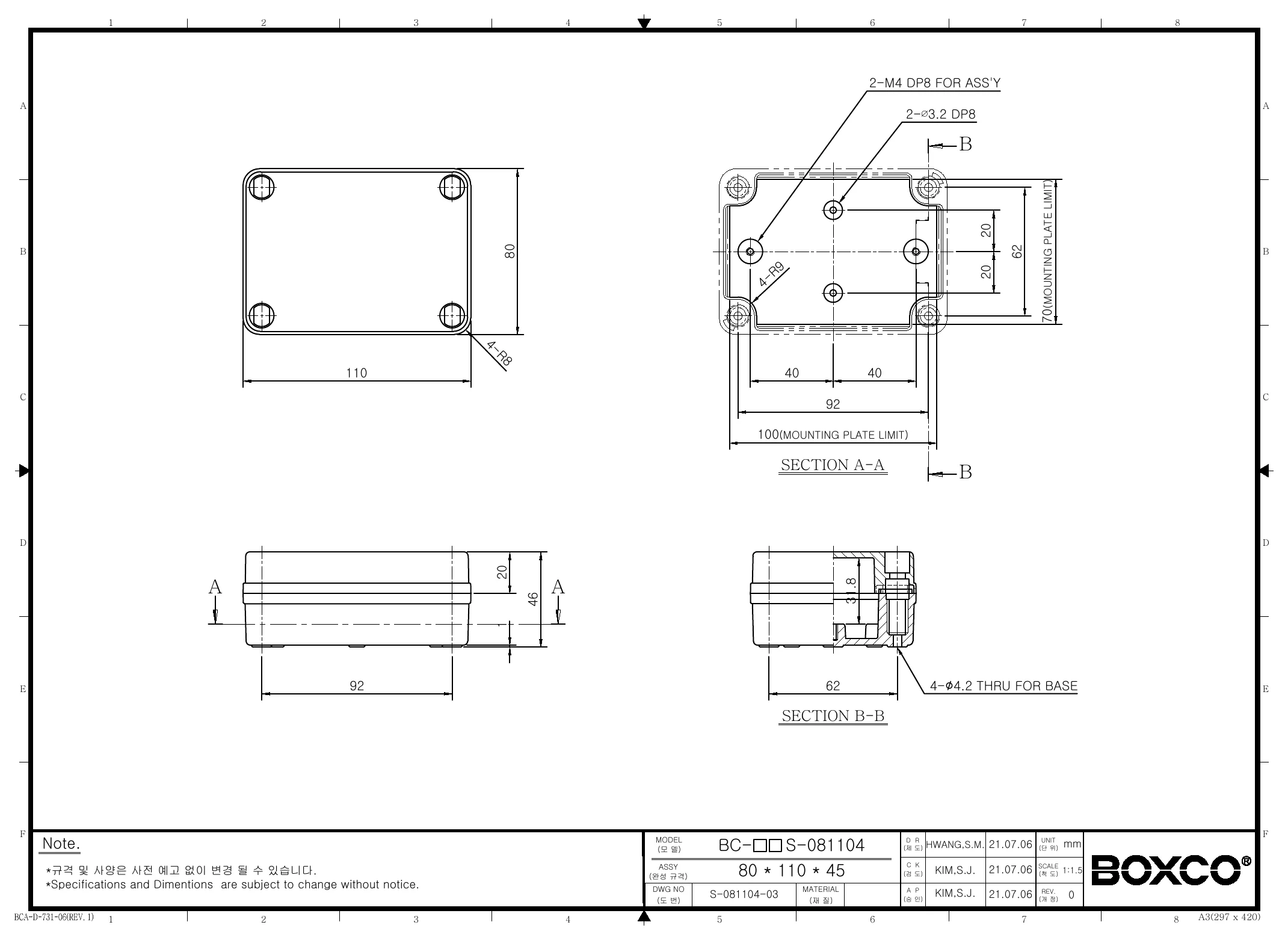

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

8 cm
Width

11 cm
Height

4.5 cm
Weight

0.14 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco S-Series 80x110x45mm ABS enclosure suited for?

This enclosure is suited for protecting compact industrial or commercial electronics that need a sealed non-metallic housing. Its internal size class and screw-cover design make it a practical choice for control, monitoring, or sensor-related assemblies where a small, durable box is needed.

Is this plastic enclosure suitable for outdoor or washdown environments?

This model is rated IP67, which means it is built for strong protection against dust ingress and temporary water exposure. The S-Series description also notes ultraviolet stabilizer material for outdoor use, helping the enclosure maintain its appearance better over time.

How durable is this enclosure against physical impact?

This model carries an IK08 impact rating and is made from high-impact-resistant ABS. That combination makes it a solid option where the enclosure may face routine knocks or handling in industrial and field environments.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40 C to 70 C. That gives it flexibility for both cold and warm environments, as long as the rest of the installed equipment is also rated for the same conditions.

What mounting or internal hardware features does this enclosure include?

The product description states that the enclosure includes mounting plate attachment points, pre-molded mounting screw nuts, and cover bolt attachment points formed during injection molding. These features help support secure internal hardware mounting and maintain enclosure strength without relying on improvised modifications.

Why would a buyer choose this screw-type ABS enclosure instead of a lighter-duty general-purpose box?

This model stands out by combining an IP67 sealing level, IK08 impact resistance, and high-impact ABS construction in a compact 80x110x45 mm format. For buyers who need more environmental protection and durability than a basic utility box provides, this enclosure offers a stronger specification set.
