Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

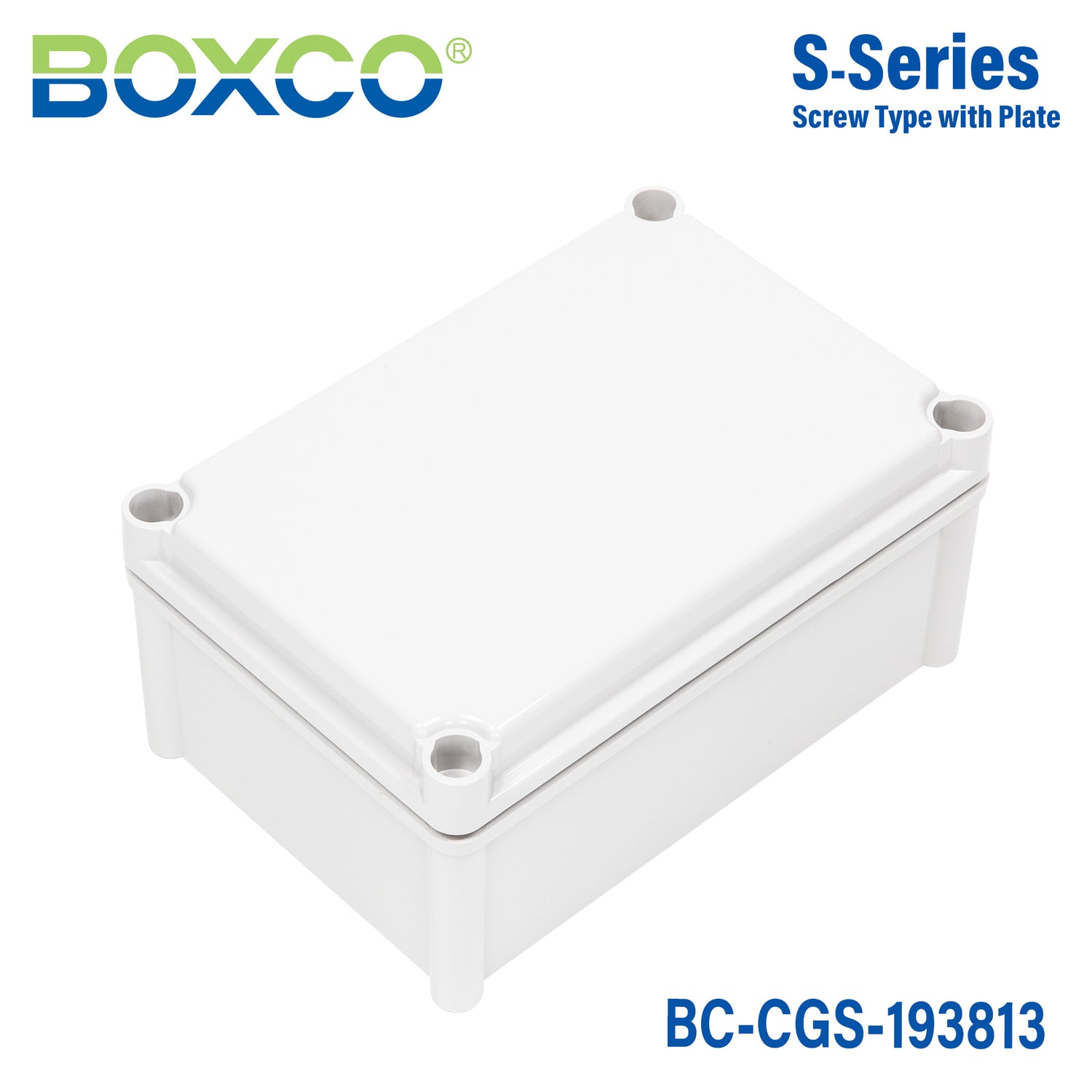

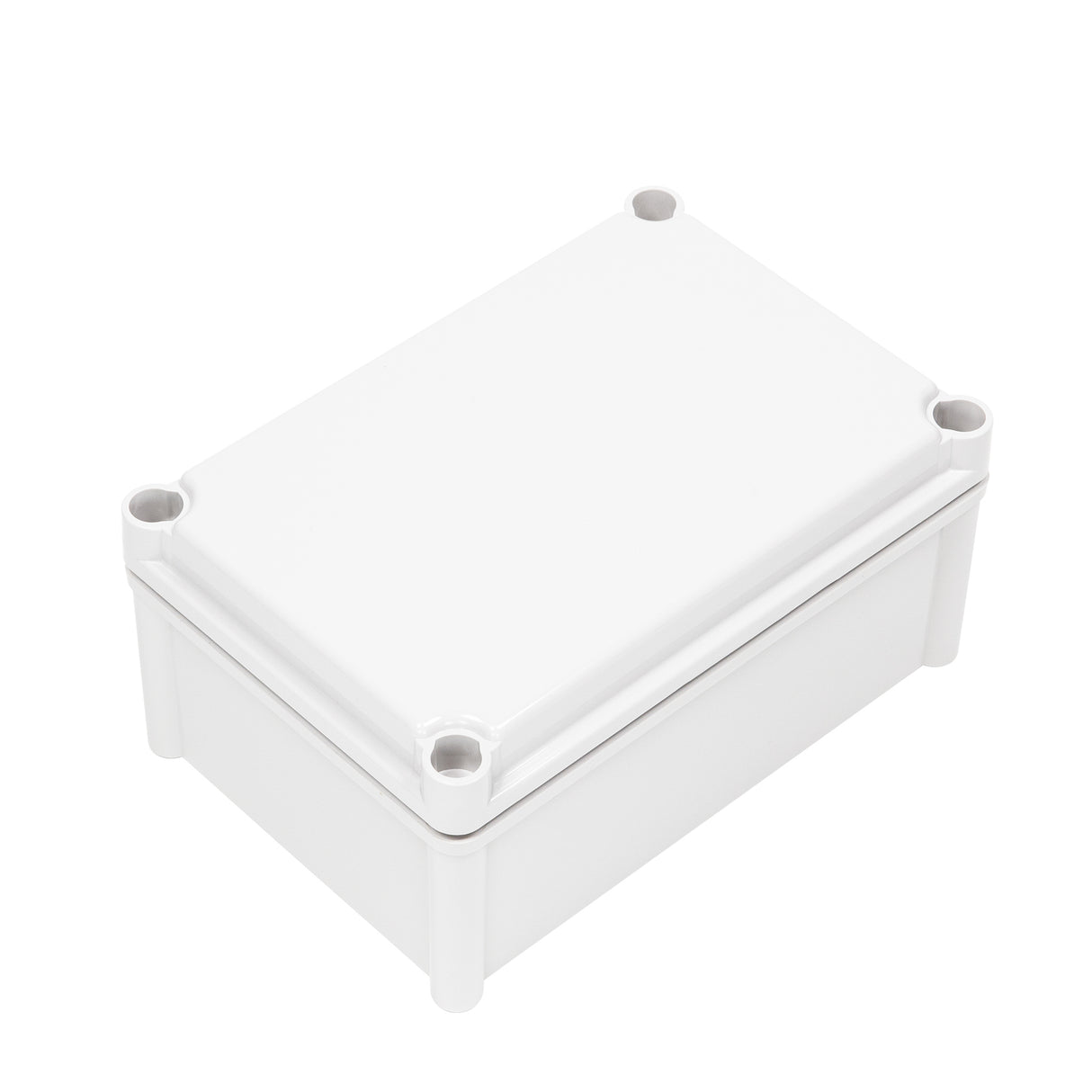

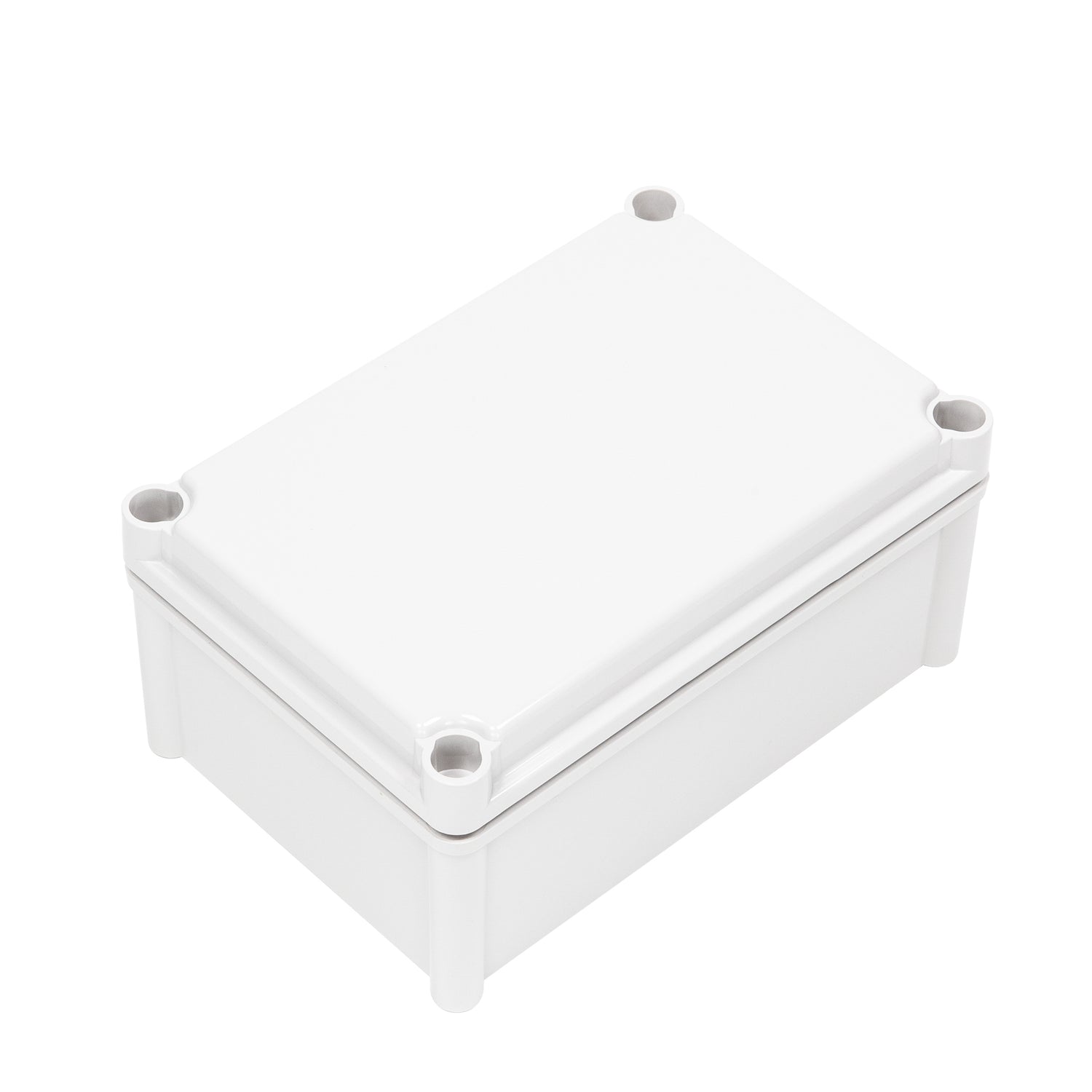

Boxco S-Series 190x380x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU:

BC-CGS-193813

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

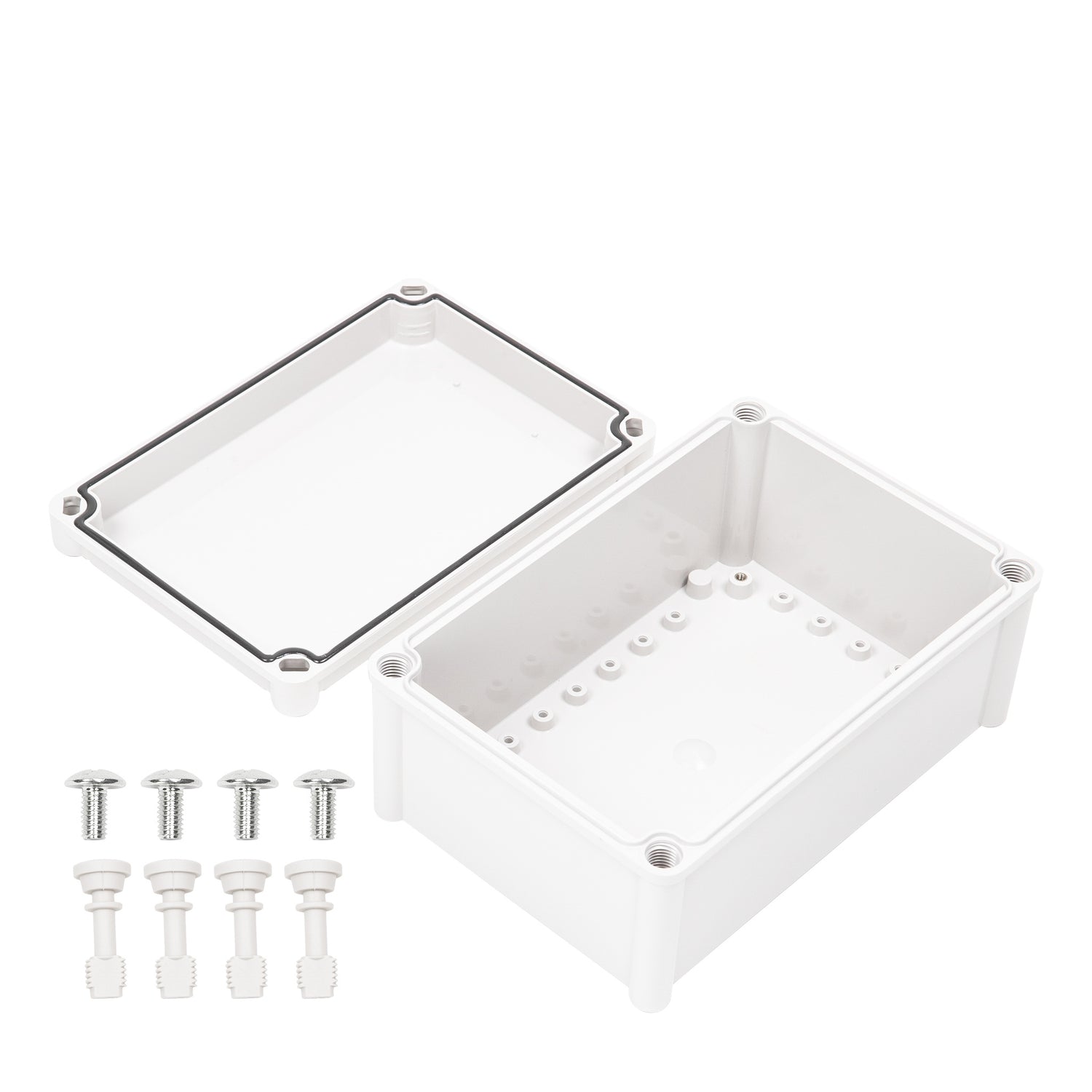

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~110°C
Warranty

1 Year
Length

19 cm
Width

38 cm
Height

13 cm
Weight

1.33 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is this enclosure best suited for?

This Boxco S-Series enclosure is suited for protecting industrial and commercial electronics that need a durable non-metallic housing. Its anti-static polycarbonate construction, impact resistance, and internal mounting support make it a practical choice for control, monitoring, and instrumentation applications.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that this S-Series model includes an ultraviolet stabilizer to support outdoor use and help reduce visible color change over time. Its IP67 rating also indicates strong protection against dust and water ingress in demanding environments.

How durable is this plastic enclosure?

This model is made from polycarbonate and is described as high impact resistant material designed to resist external impact and reduce breakage during hole and press processing. It also carries an IK08 impact rating, which supports its use where mechanical durability matters.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40 degrees C to 110 degrees C. That makes it suitable for both low-temperature and elevated-temperature environments within that specified range.

What are the main features that support internal equipment mounting?

This enclosure includes internal mounting plate attachment points with brass inserted injection molding for securing heavier equipment inside. It also has pre-molded mounting screw nuts that allow DIN rail or other internal components to be fixed more easily.

What distinguishes this specific Boxco S-Series model from a basic enclosure box?

This model combines a large 190 x 380 x 130 mm form factor with IP67 ingress protection, IK08 impact resistance, UV-stabilized polycarbonate, and anti-static material properties. It is also a screw-type enclosure with a grey cover and gasket system designed for strong waterproof and dust-proof performance.

Model	Material	Cover
Boxco S-Series 330x430x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 280x380x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 190x280x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 150x250x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x110x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 280x380x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 65x95x55mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x200x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 190x280x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 150x250x100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 80x180x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 280x280x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 280x560x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 280x280x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 200x200x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 125x125x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 100x230x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x130x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 190x280x180mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 125x125x75mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 190x190x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 200x200x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 190x280x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 125x125x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x250x85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 50x65x55mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x180x85mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 80x130x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 190x280x180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 200x200x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x200x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x200x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 100x200x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x130x85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x110x45mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x200x75mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 100x200x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 80x80x60mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 190x380x180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 190x380x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 150x200x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x150x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 140x170x95mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x160x85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 190x280x180mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type	PC	Transparent	View
Boxco S-Series 140x170x95mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 80x250x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 80×180×70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 50x65x45mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
