Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

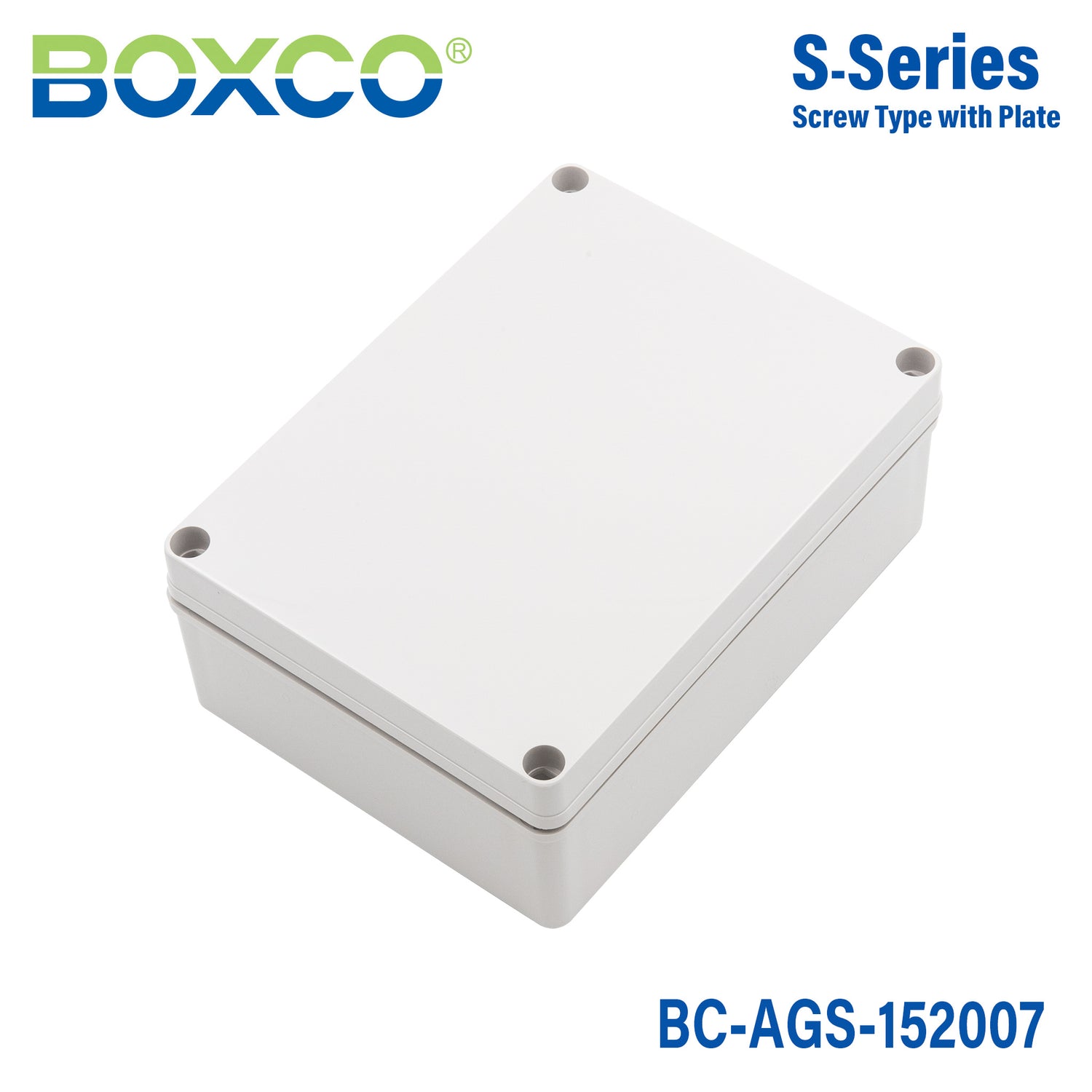

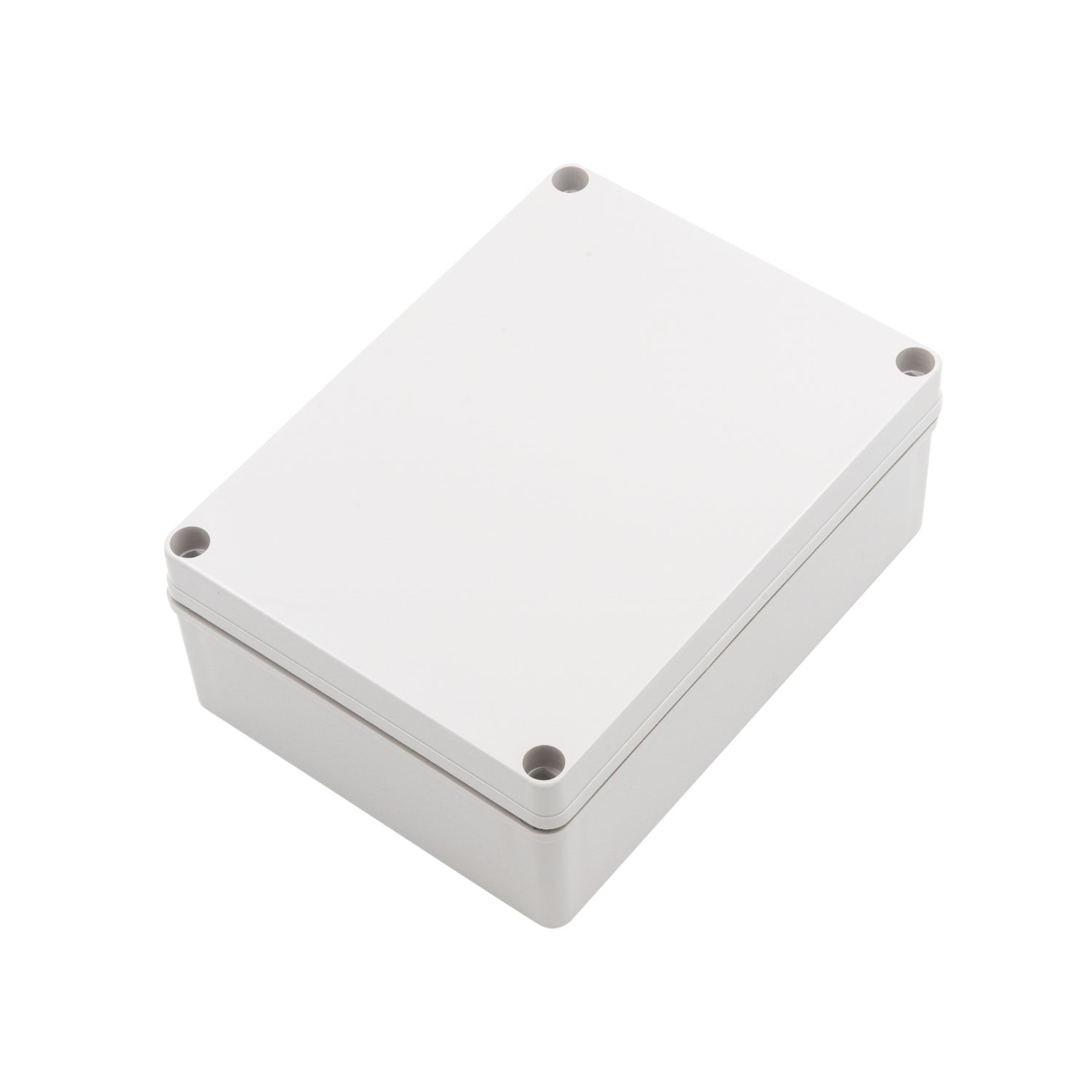

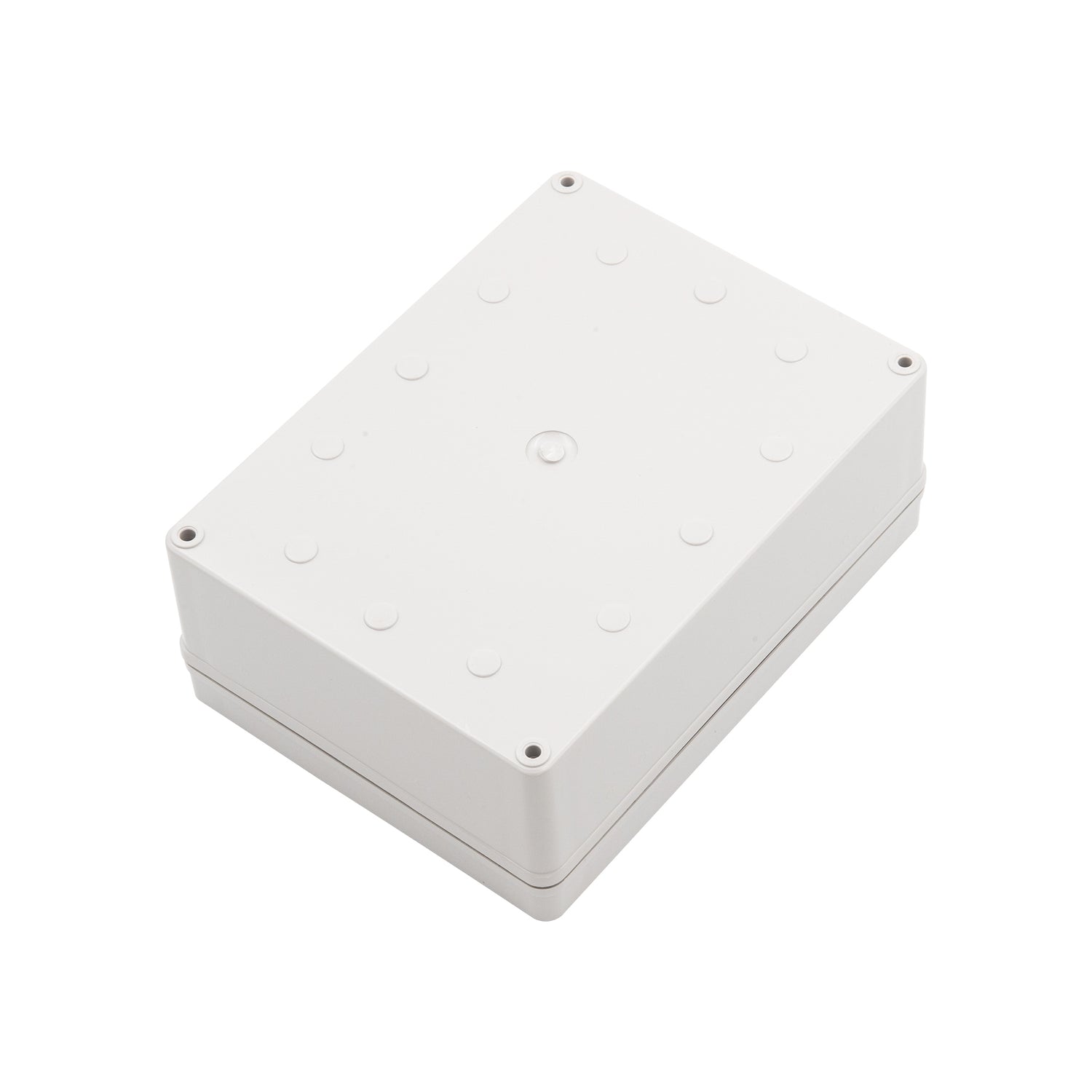

Boxco S-Series 150x200x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-152007
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-152007 is a 150×200×75 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-152007Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×200×75 mm (5.91×7.87×2.95 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

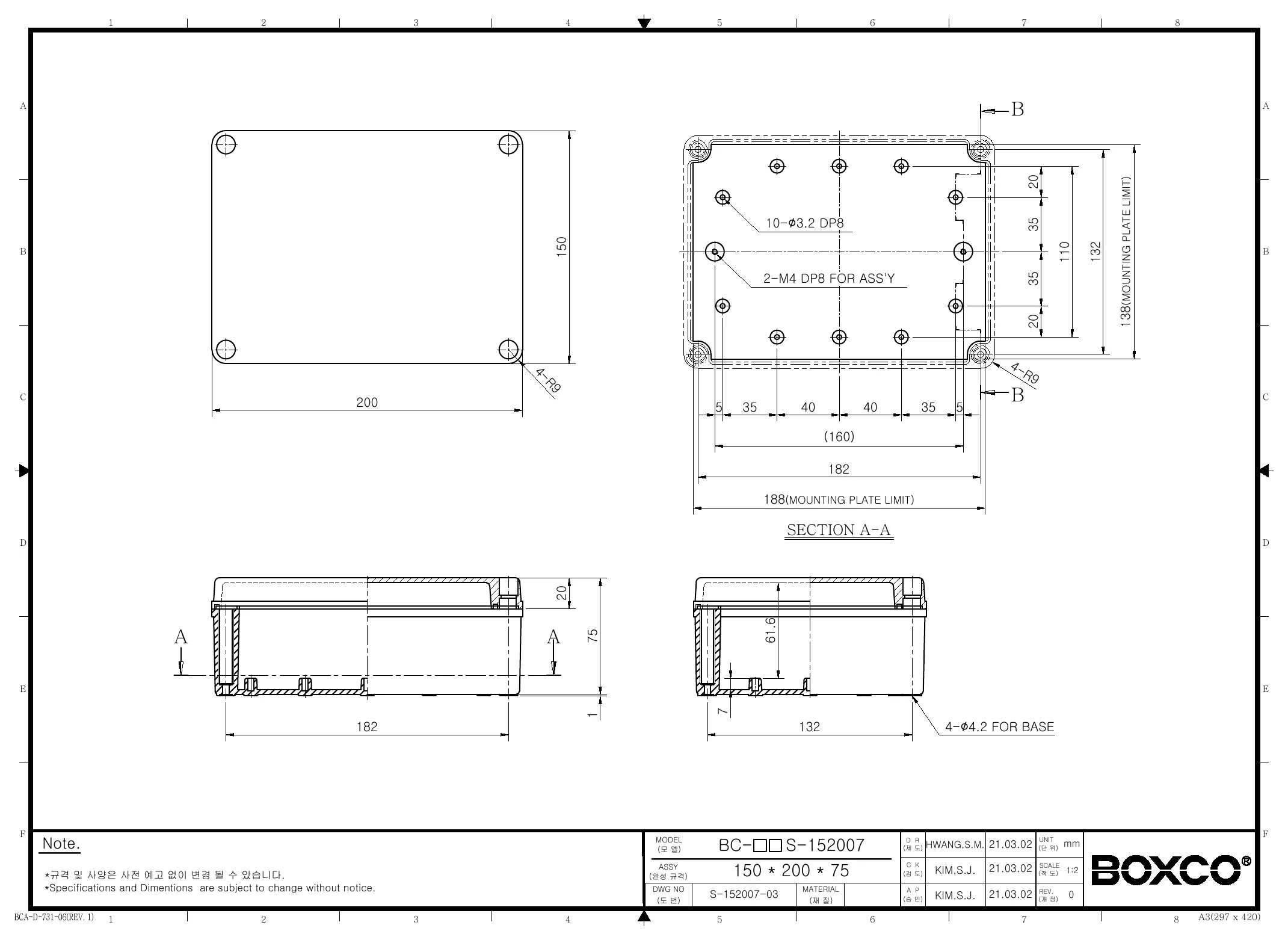

BC-AGS-152007 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure typically used for?

This enclosure is intended for protecting electronic and control components in industrial and commercial applications. Its ABS construction, IP67 sealing, and IK08 impact rating make it a practical choice for housed equipment that needs protection from dust, water ingress, and physical impact.

Is this enclosure suitable for outdoor environments?

Yes, this model is designed for outdoor use. The Boxco S-Series includes an ultraviolet stabilizer to help reduce color change over time, and its IP67 rating supports strong protection against dust and water exposure in demanding environments.

What are the key specifications of this enclosure?

This model measures 5.91 x 7.87 x 2.95 inches (150 x 200 x 75 mm) and weighs 0.43 kg. It is made of ABS, has a grey cover, uses a screw-type closure, and is rated for operation from -40 degrees C to 70 degrees C.

How durable is the Boxco S-Series plastic enclosure?

This enclosure is made from high impact resistant ABS and carries an IK08 impact rating. It is designed to resist external impact and reduce the risk of breakage during machining or panel modification processes.

Does this enclosure support mounting internal components?

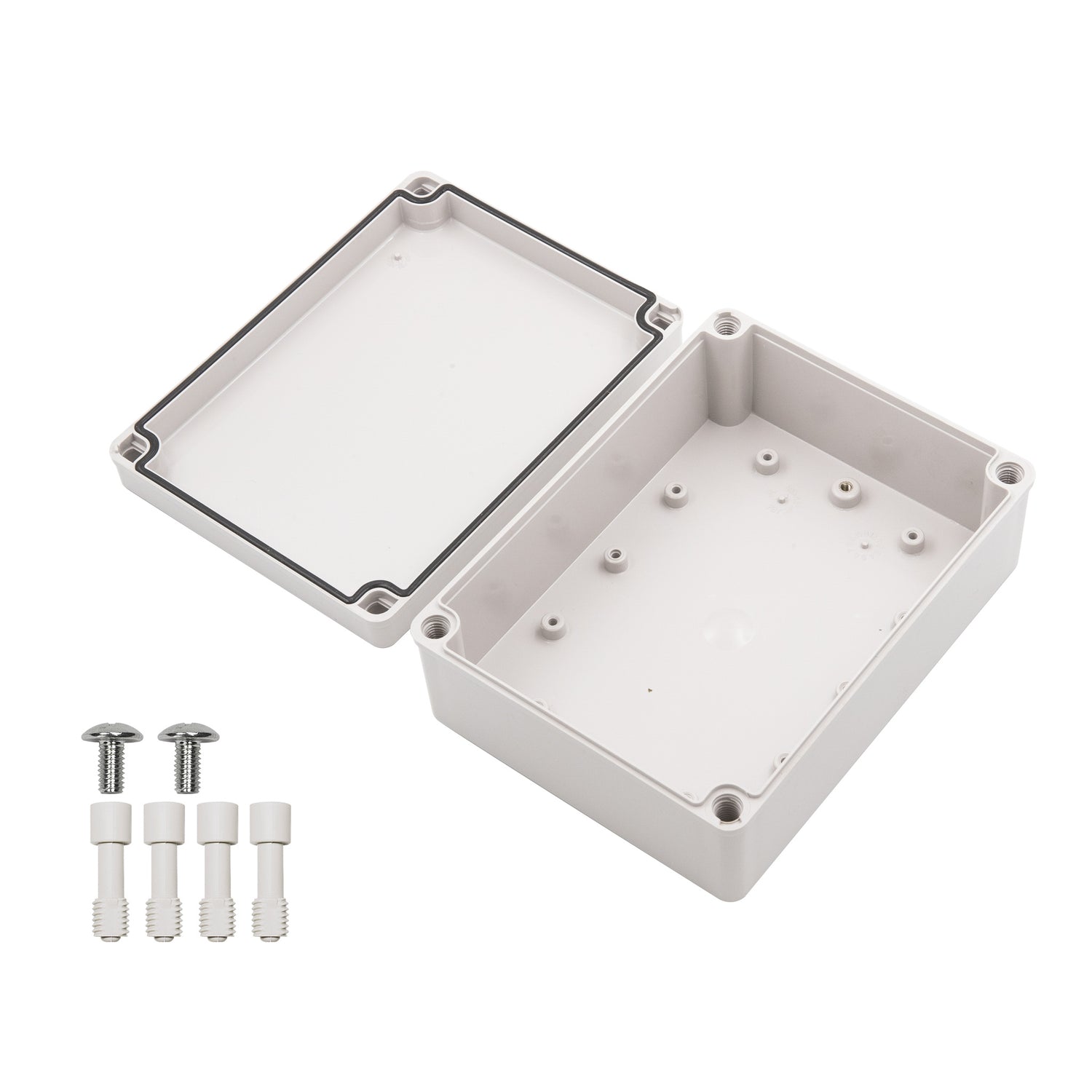

Yes, the enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features support secure placement of internal hardware such as mounting plates or DIN rail-based equipment.

How well does this enclosure protect against dust and water?

This model is rated IP67, indicating a high level of protection against dust ingress and temporary water exposure. Its gasket is precision-injected to help maintain strong waterproof and dust-proof performance.
