Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

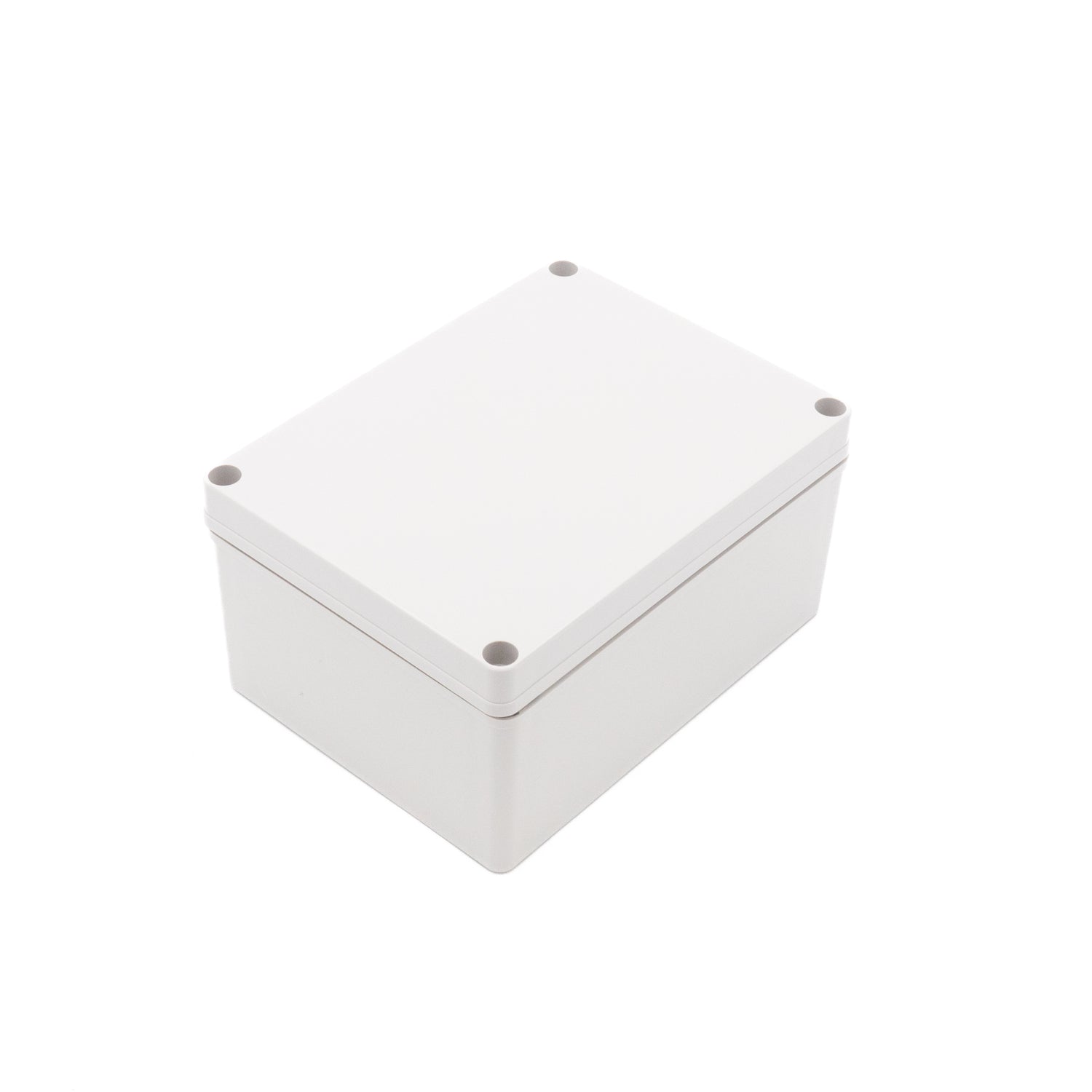

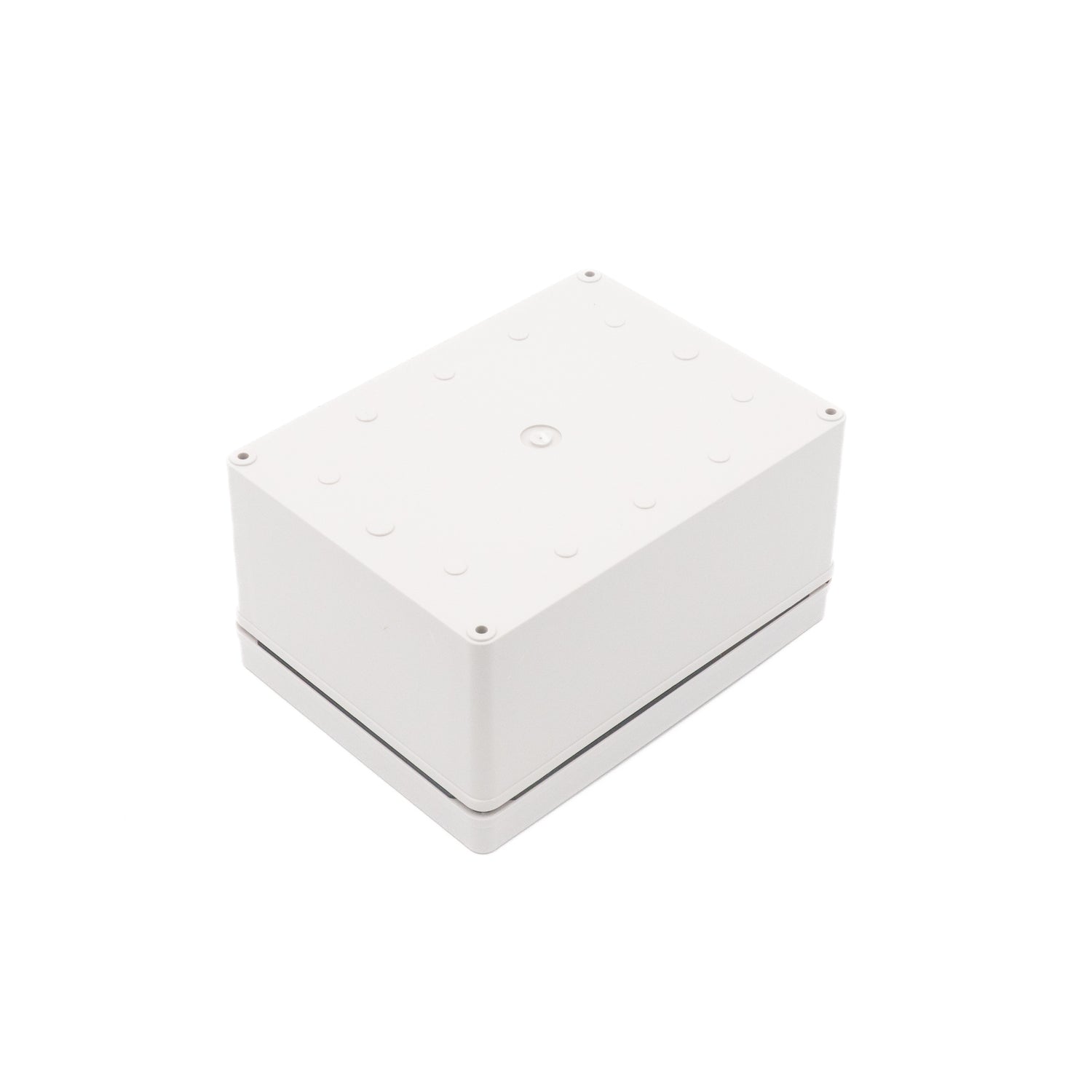

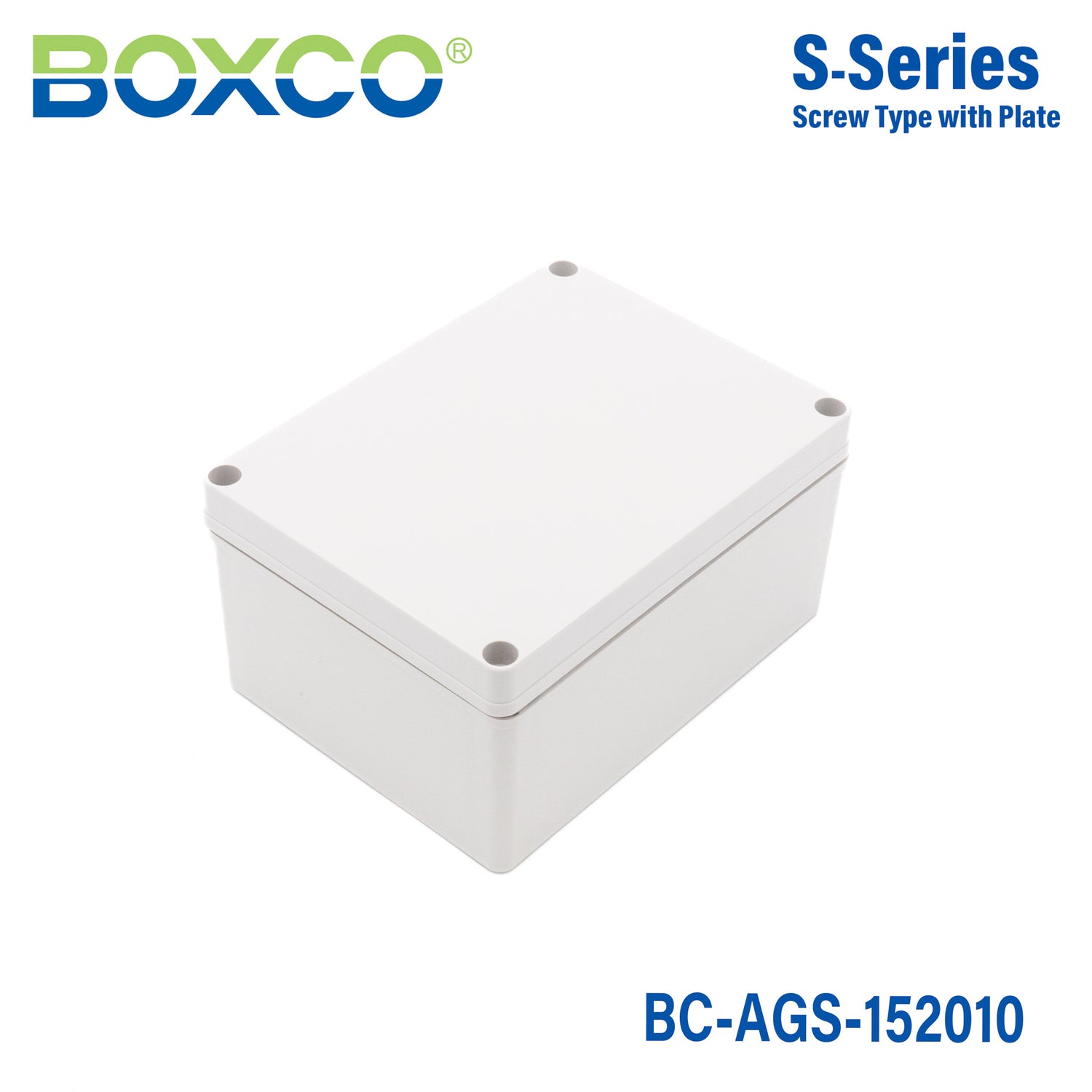

Boxco S-Series 150x200x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-152010
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-152010 is a 150×200×100 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-152010Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×200×100 mm (5.91×7.87×3.94 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

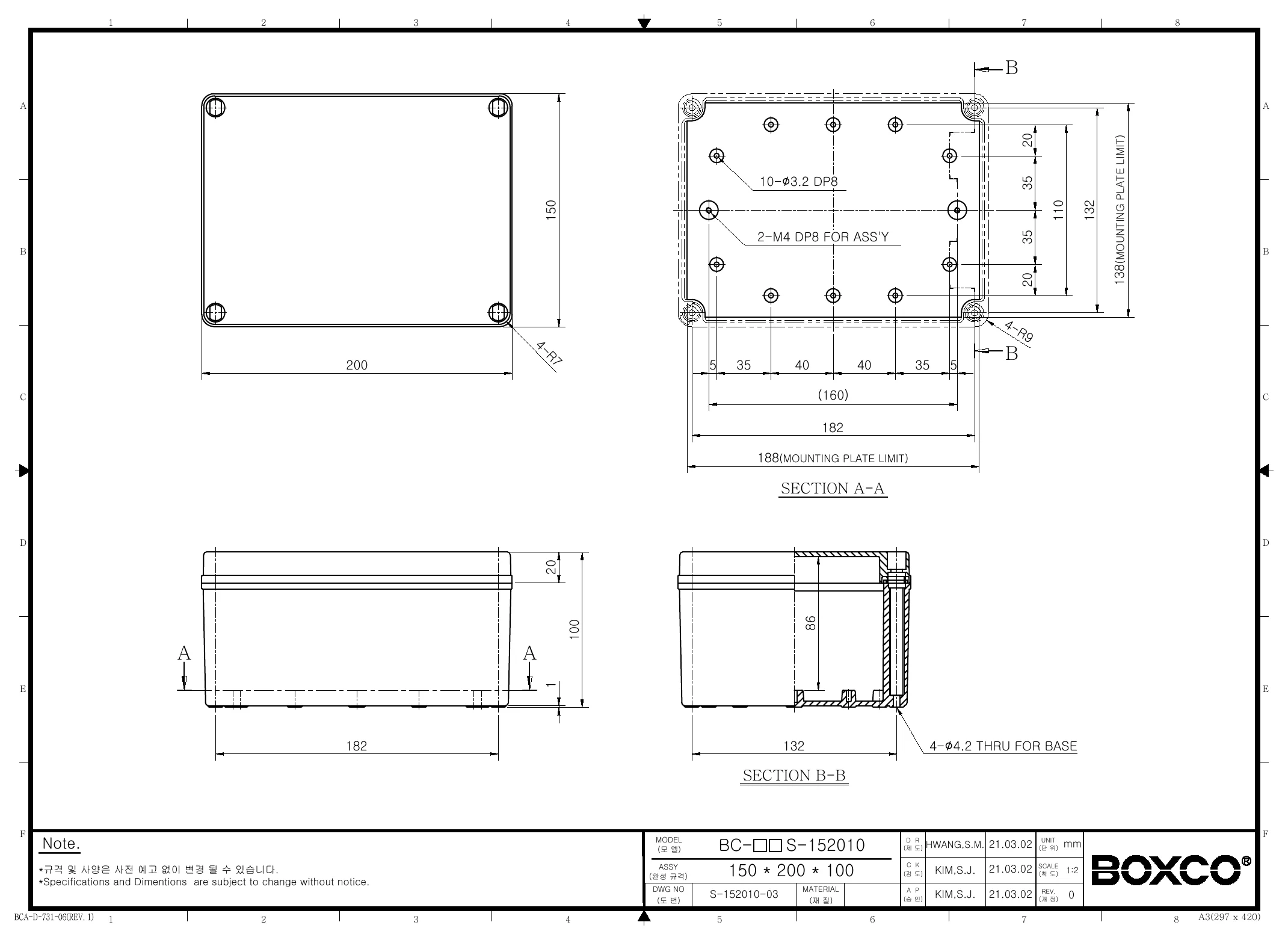

Technical drawings

BC-AGS-152010 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure typically used for?

This enclosure is designed to protect electrical and electronic components in industrial and commercial environments. Its 150 x 200 x 100 mm size makes it suitable for control, monitoring, and instrumentation applications that need a durable non-metallic housing.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time. The enclosure also has an IP67 rating for strong protection against dust and water ingress.

What are the main material and durability features of this model?

This model is made from ABS and is described as high impact resistant, with an IK08 impact rating. It also uses anti-static material to help protect sensitive electronic instruments from static electricity.

What level of water and dust protection does this enclosure provide?

This enclosure is rated IP67, which indicates a high level of protection against dust and water ingress. Boxco also notes that the gasket is robot-injected for consistent waterproof and dust-proof performance.

What internal mounting options does this enclosure support?

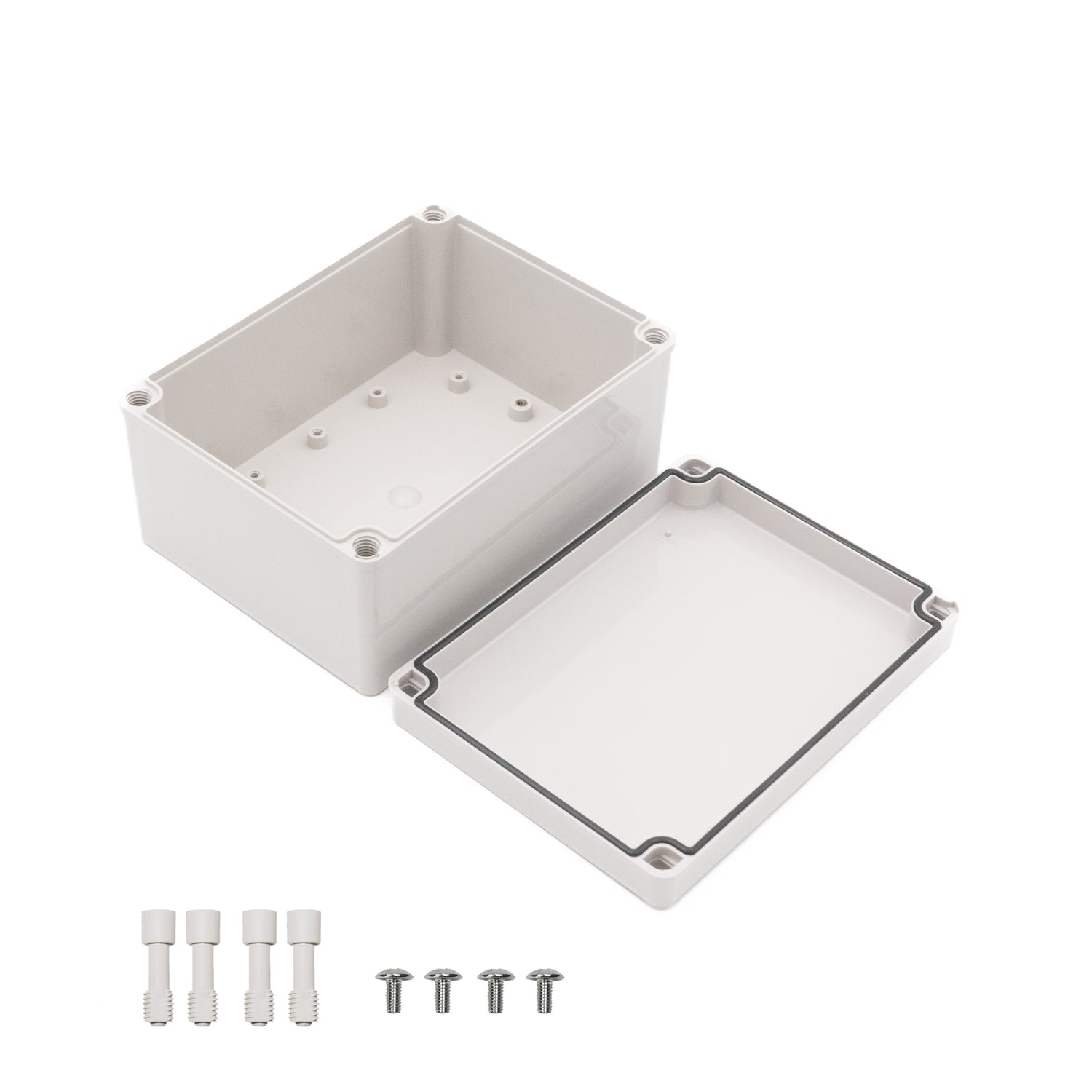

The enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to support secure installation of internal hardware such as mounting plates or DIN rail-related components.

What are the exact dimensions of this enclosure?

This Boxco S-Series model measures 5.91 x 7.87 x 3.94 inches, which corresponds to 150 x 200 x 100 mm. That size can help buyers evaluate fit for internal components and available panel space.

What temperature range is this enclosure rated for?

The stated operating temperature range for this model is -40 °C to 70 °C. That makes it appropriate for applications exposed to both low and moderately high ambient temperatures.

How does this screw-type enclosure differ from other enclosure cover styles?

This model uses a screw-type cover with molded cover bolt attachment points for strength. Buyers who want a more securely fastened cover for harsher environments often prefer screw-type enclosures over quicker-access alternatives.
