Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

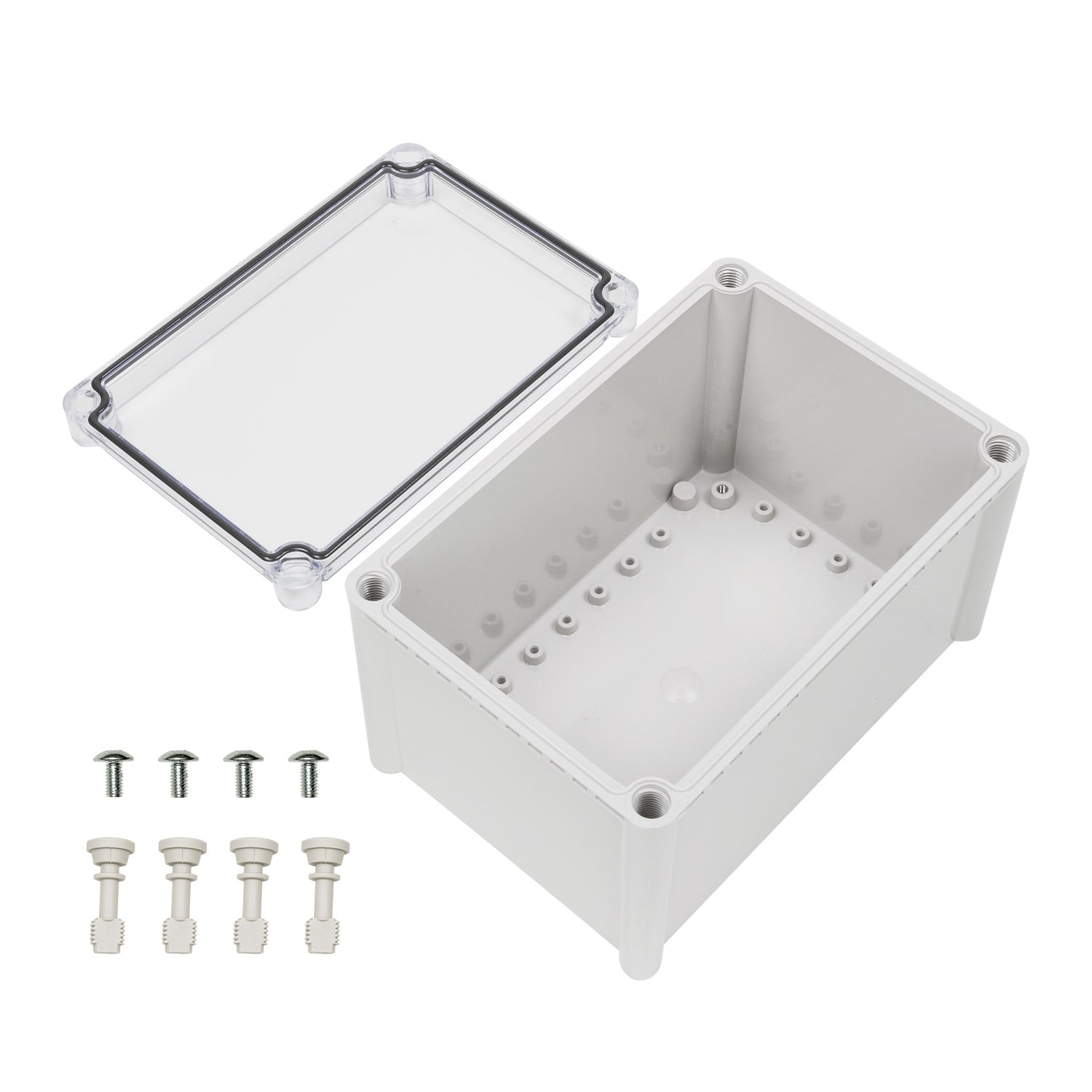

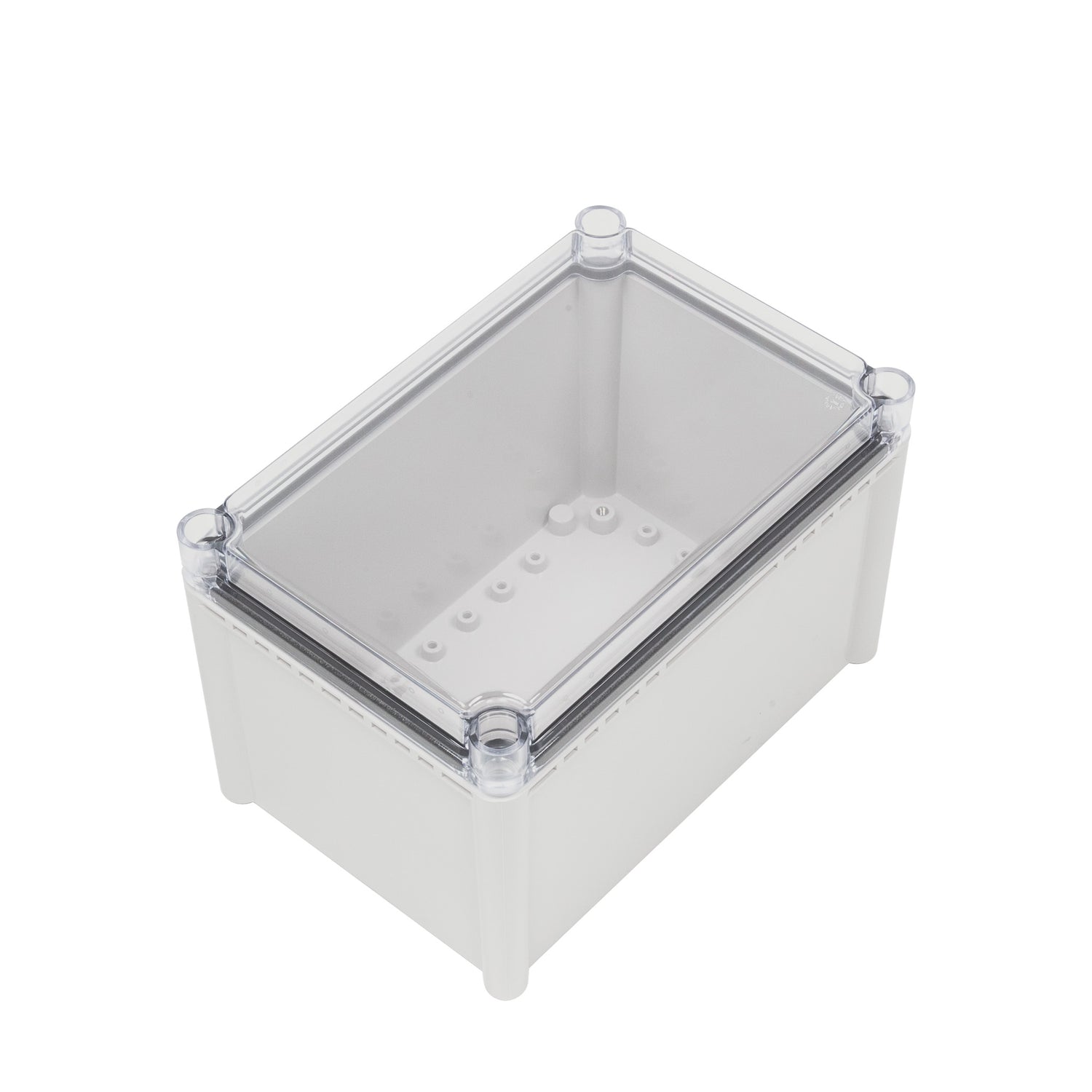

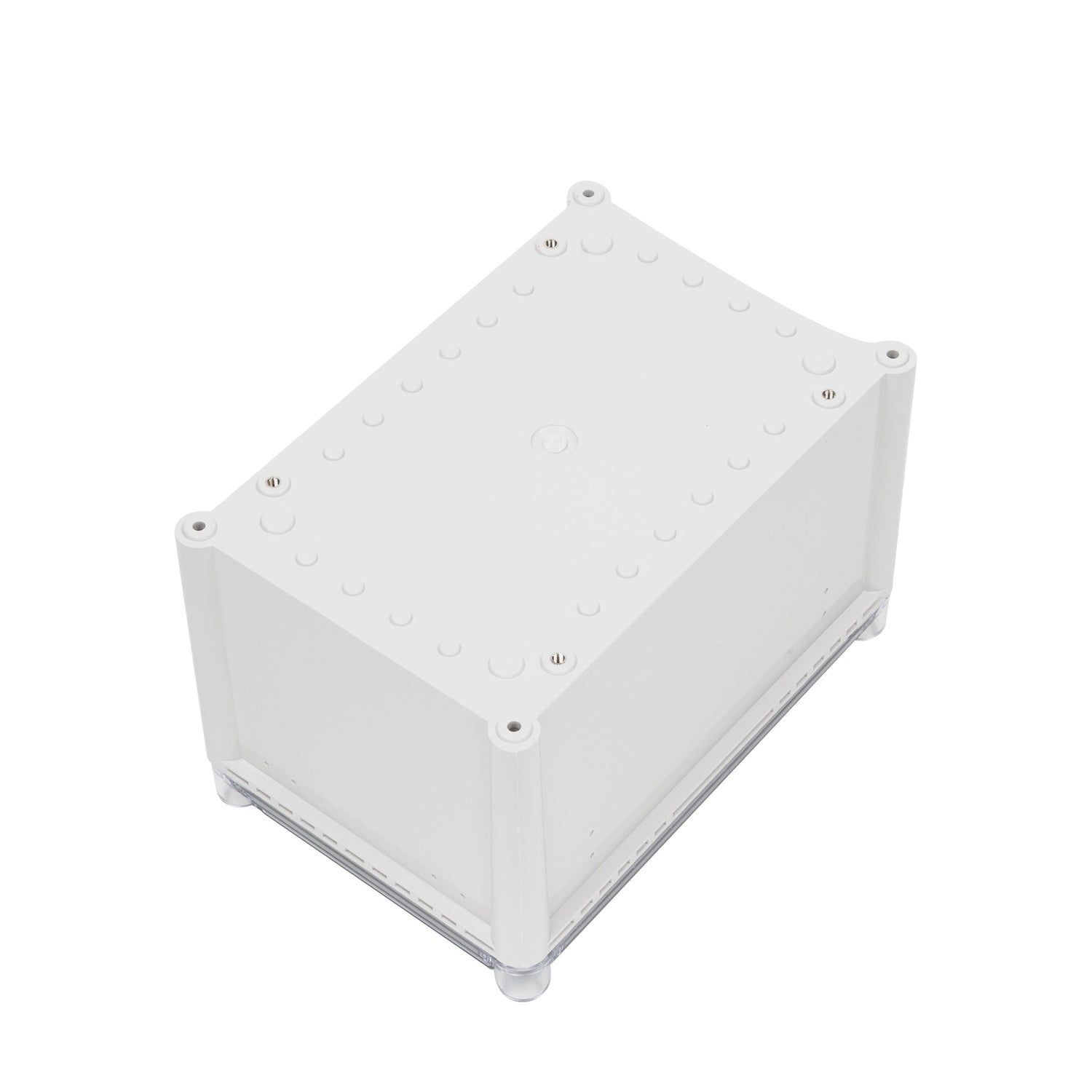

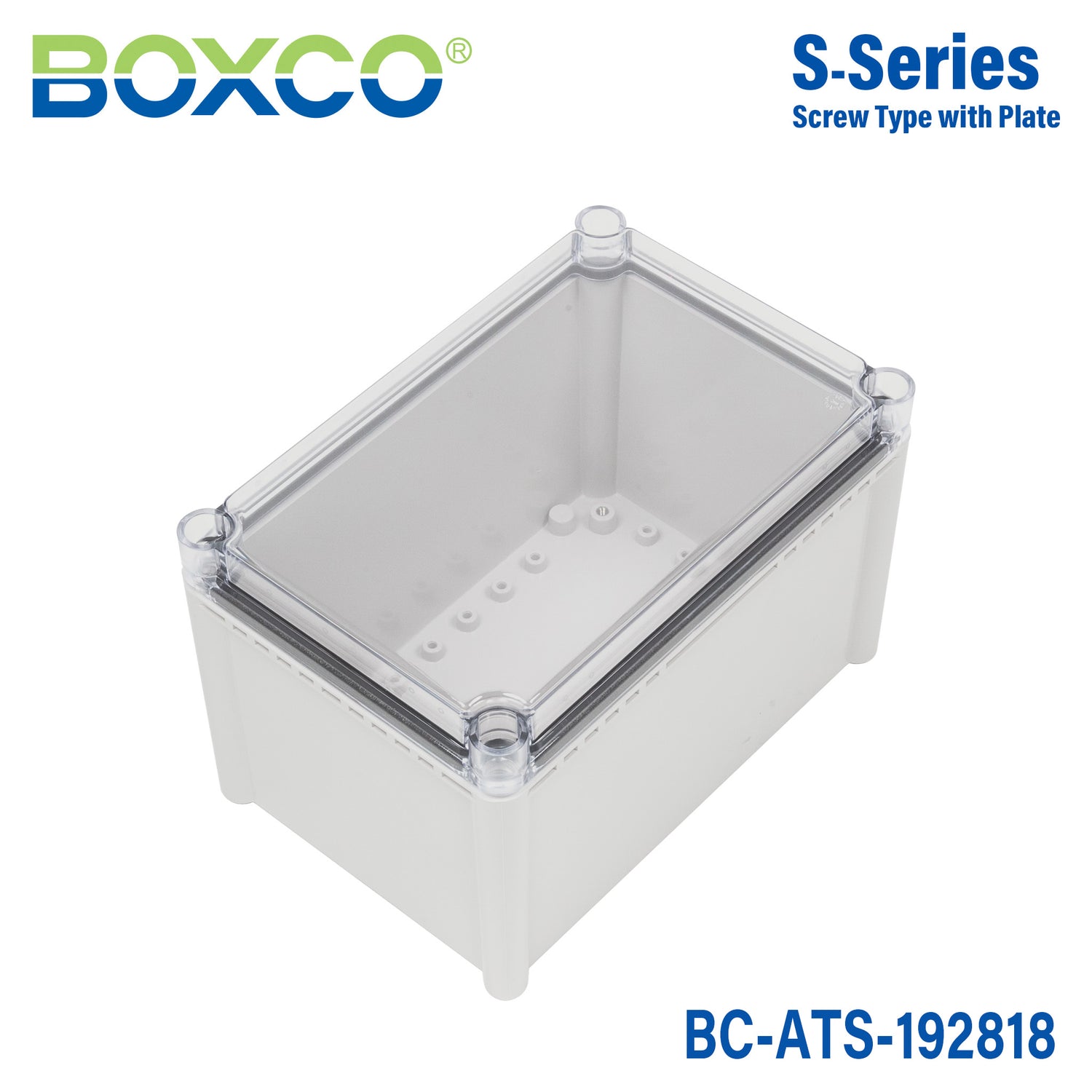

Boxco S-Series 190x280x180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU:

BC-ATS-192818

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

19 cm
Width

28 cm
Height

18 cm
Weight

1.15 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco S-Series 190x280x180mm plastic enclosure best suited for?

This model is suited to protecting industrial or commercial electronics that need a sealed non-metallic enclosure with a transparent cover for inspection. Its larger 190x280x180 mm size, IP67 sealing, and IK08 impact rating make it a practical option for control, monitoring, or instrumentation housings in demanding environments.

Is this enclosure suitable for outdoor use?

Yes. Boxco specifies that the S-Series includes an ultraviolet stabilizer to support outdoor usage and reduce visible color change over long periods. The IP67 rating also indicates strong protection against dust and water ingress when the enclosure is properly closed.

What are the key specifications of this enclosure?

This enclosure measures 7.48 x 11.02 x 7.09 inches (190 x 280 x 180 mm) and is made from ABS with a transparent cover and screw-type closure. It is rated IP67 and IK08, weighs 1.145 kg, and has an operating temperature range of -40 °C to 70 °C.

Does the transparent cover make this model better for inspection than a solid-cover enclosure?

Yes, if visual access matters. The transparent cover allows quick status checks of indicators, displays, or internal components without opening the box, while keeping the same published IP67 and IK08 ratings for this model. A solid-cover version may be preferred only when visibility is unnecessary.

What internal hardware support features does this Boxco enclosure include?

Boxco lists several built-in support features for this model, including internal mounting plate attachment points, pre-molded mounting screw nuts, and cover bolt attachment points formed during injection molding for strength. These features help support heavier internal equipment and make the enclosure more suitable for organized component mounting.

How durable is this enclosure in harsh industrial environments?

This model is designed for demanding use with high-impact-resistant ABS construction, an IK08 impact rating, and a gasket produced for strong waterproof and dust-proof performance. Boxco also notes anti-static material use to help protect sensitive electronic instruments from static electricity.

Model	Material	Cover
Boxco S-Series 330x430x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 190x280x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 280x380x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x250x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x110x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 190x380x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 280x380x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 65x95x55mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x200x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 190x280x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 150x250x100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 190x280x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x180x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 280x280x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 280x560x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 280x280x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 200x200x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 125x125x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 100x230x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x130x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 190x280x180mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 125x125x75mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 190x190x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 200x200x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 125x125x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x250x85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 50x65x55mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x180x85mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 80x130x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 200x200x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x200x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x200x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 100x200x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x130x85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x110x45mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x200x75mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 100x200x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 80x80x60mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 190x380x180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 190x380x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 150x200x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x150x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 140x170x95mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x160x85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 190x280x180mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type	PC	Transparent	View
Boxco S-Series 190x380x180mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 140x170x95mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 80x250x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 80×180×70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
