Boxco

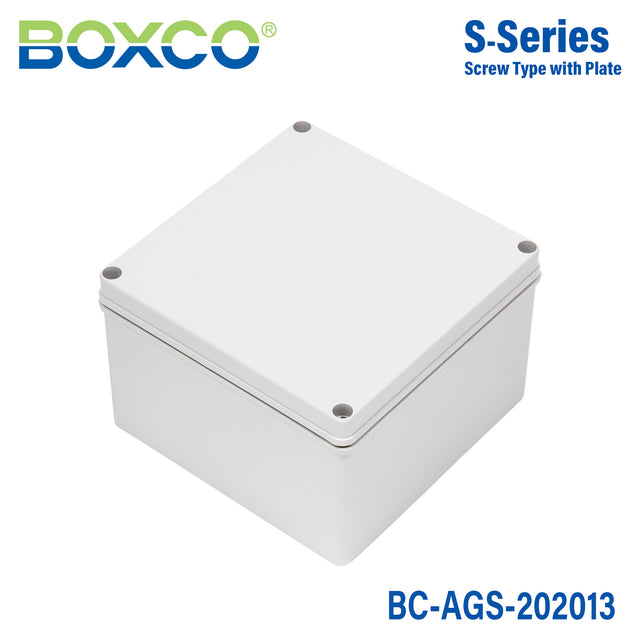

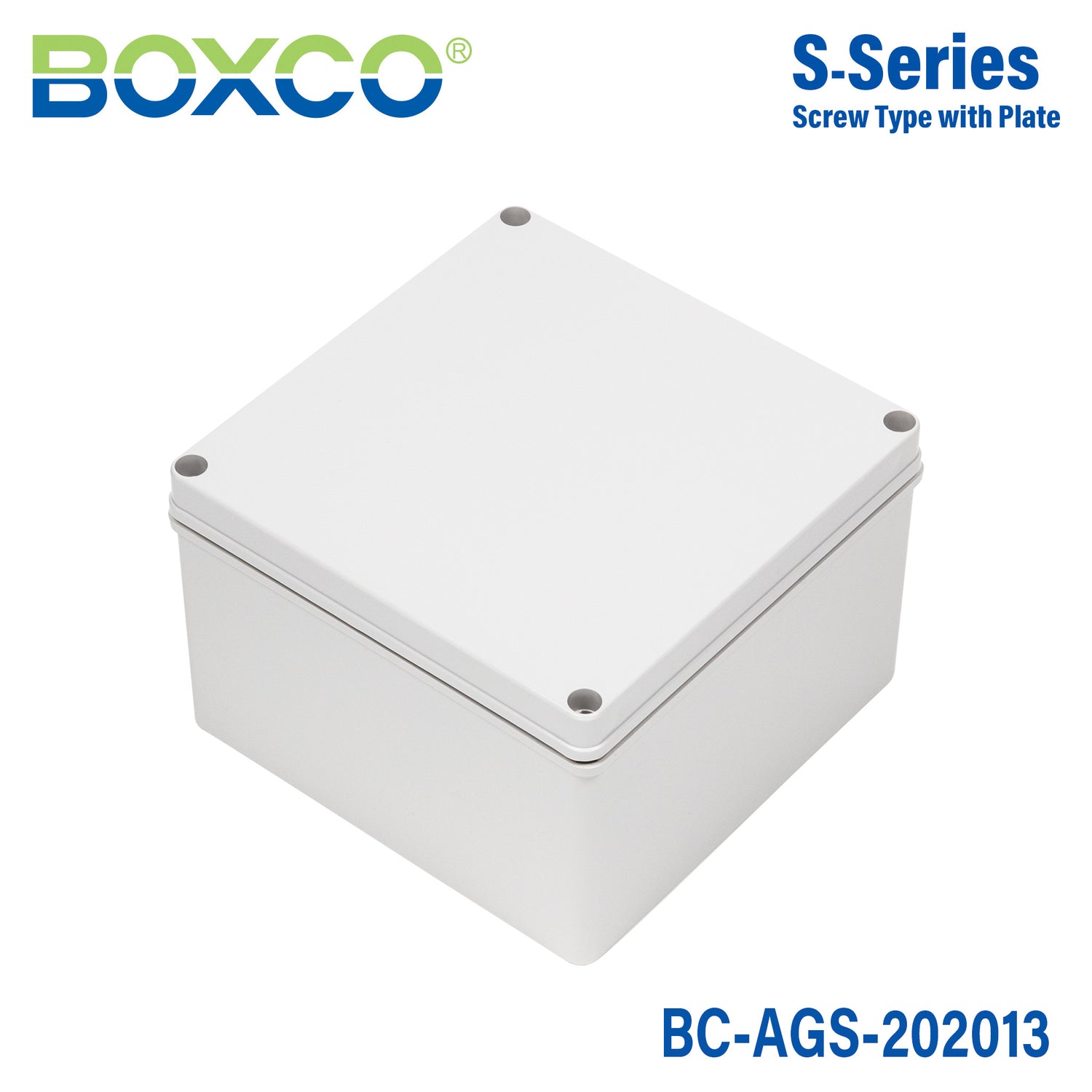

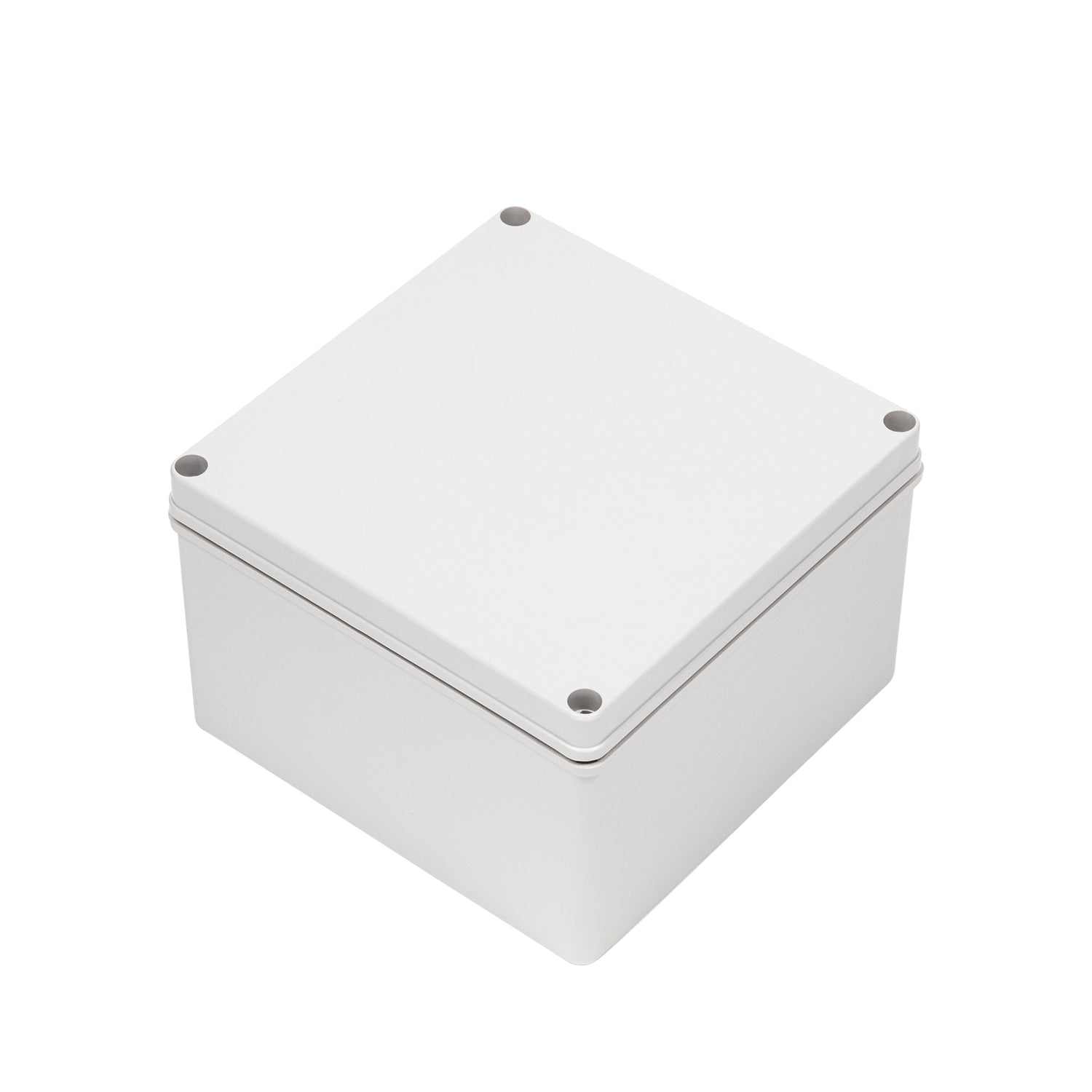

Boxco S-Series 200x200x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU:
BC-AGS-202013
Please for Pricing
|

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

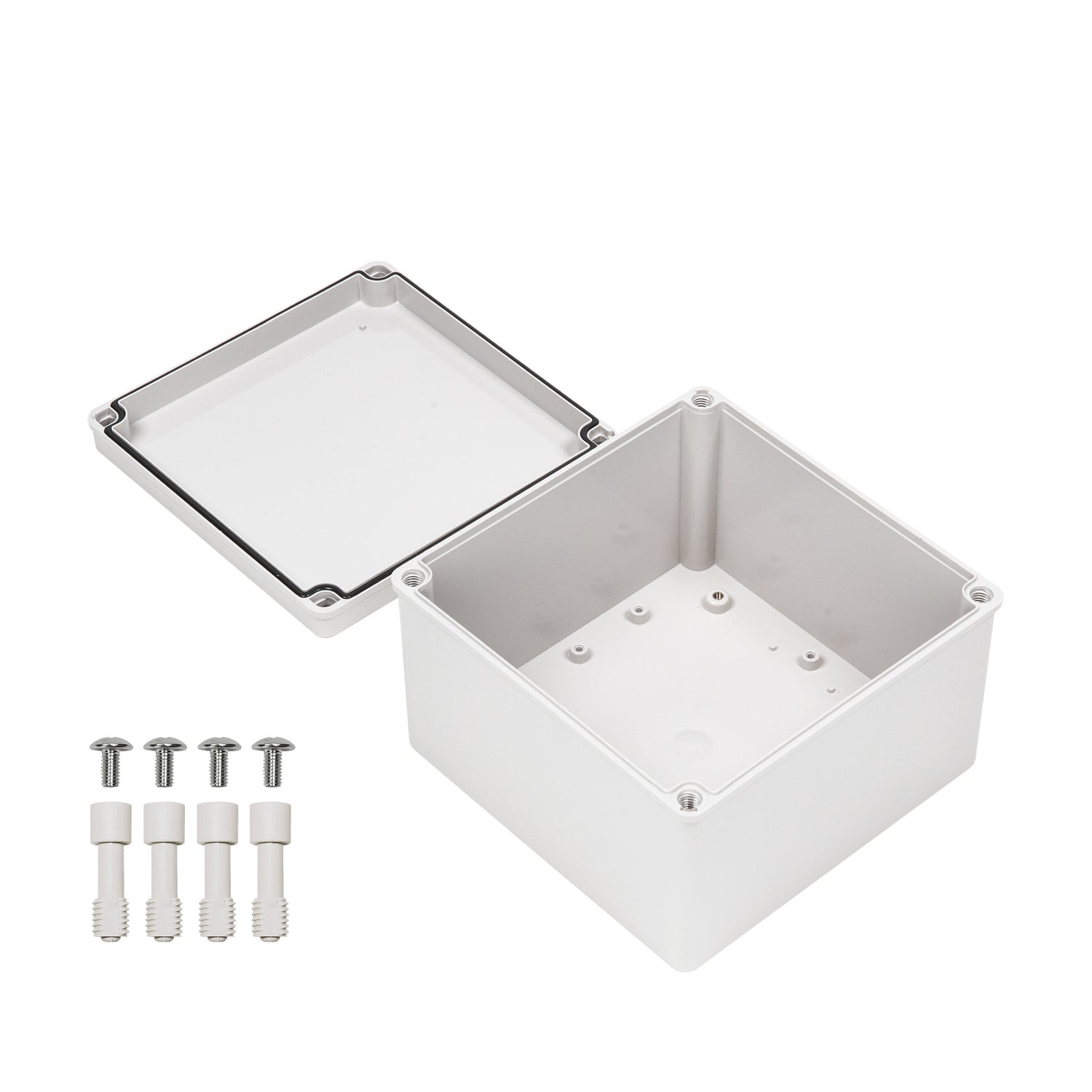

  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
  • Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications
  • Brand
    Boxco
  • Series
    Boxco S Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    20 cm
  • Width
    20 cm
  • Height
    13 cm
  • Weight
    0.71 kg

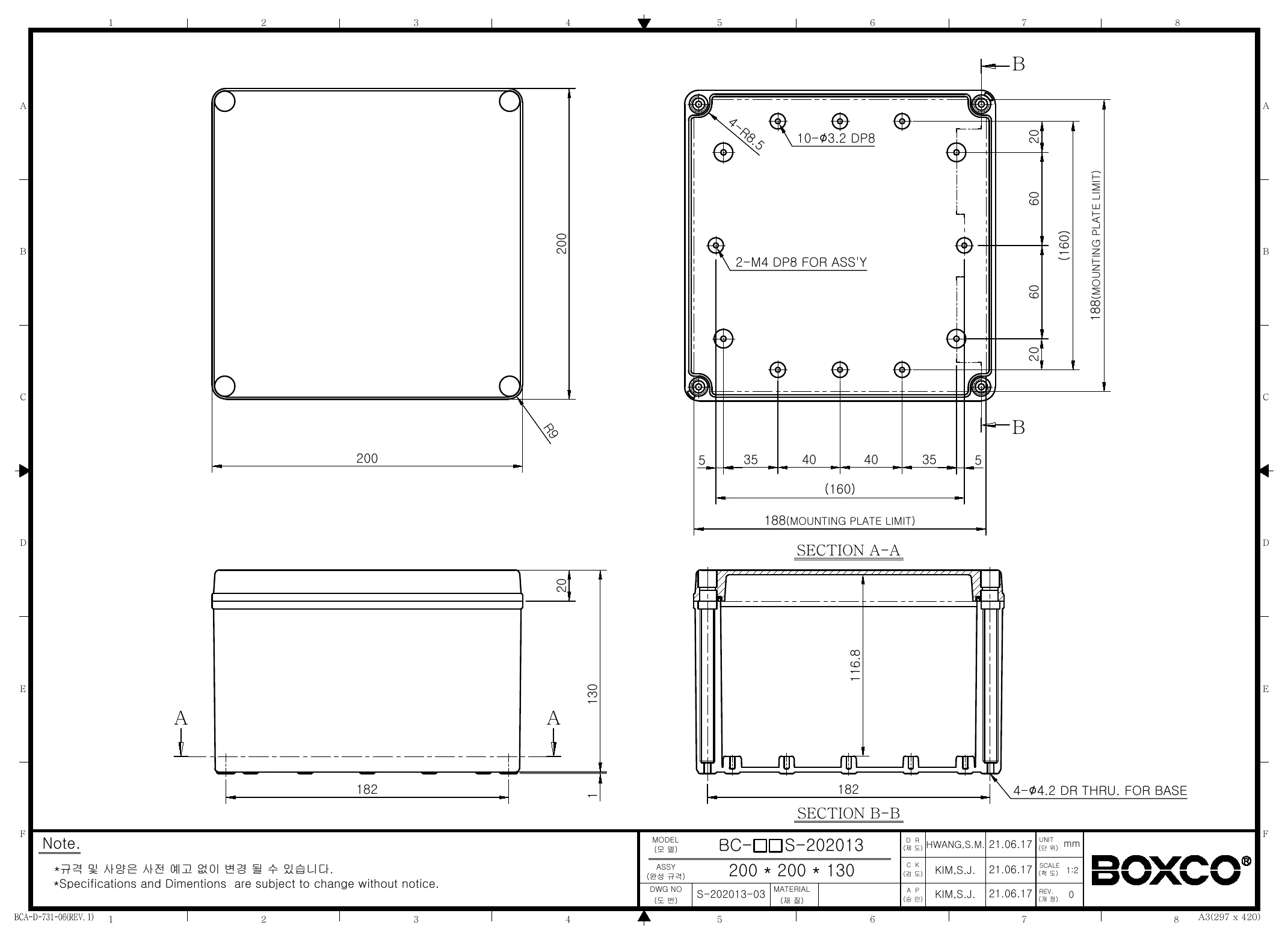

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco S-Series BC-AGS-202013 enclosure best suited for?

This enclosure is suited for protecting electronic components in industrial and commercial environments where dust, moisture, and impact resistance matter. Its 200 x 200 x 130 mm size also makes it practical for housing controls or instrumentation that need a durable non-metallic enclosure.

Is this plastic enclosure suitable for outdoor use?

Yes. Boxco states that this S-Series model includes an ultraviolet stabilizer to help protect the enclosure during outdoor use and reduce noticeable color change over time. Its IP67 rating also supports use in demanding environments where water and dust protection are important.

What protection ratings does this enclosure have?

This model is rated IP67 for dust-tight sealing and protection against temporary water immersion under rated conditions. It also carries an IK08 impact rating, indicating strong resistance to external mechanical impact for a plastic enclosure.

What material is this enclosure made from, and why does that matter?

The BC-AGS-202013 is made from ABS and includes anti-static material to help protect sensitive electronic instruments from static electricity. Boxco also describes the material as high-impact resistant, which helps reduce breakage during machining or processing.

What is the usable temperature range for this enclosure?

This model is specified for operation from -40 °C to 70 °C. That range makes it suitable for many indoor and outdoor industrial environments within those temperature limits.

What are the physical size and weight of this enclosure?

The enclosure measures 7.87 x 7.87 x 5.12 inches, which corresponds to 200 x 200 x 130 mm. Its listed weight is 0.714 kg, giving buyers a clear sense of its footprint and handling size.
