Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

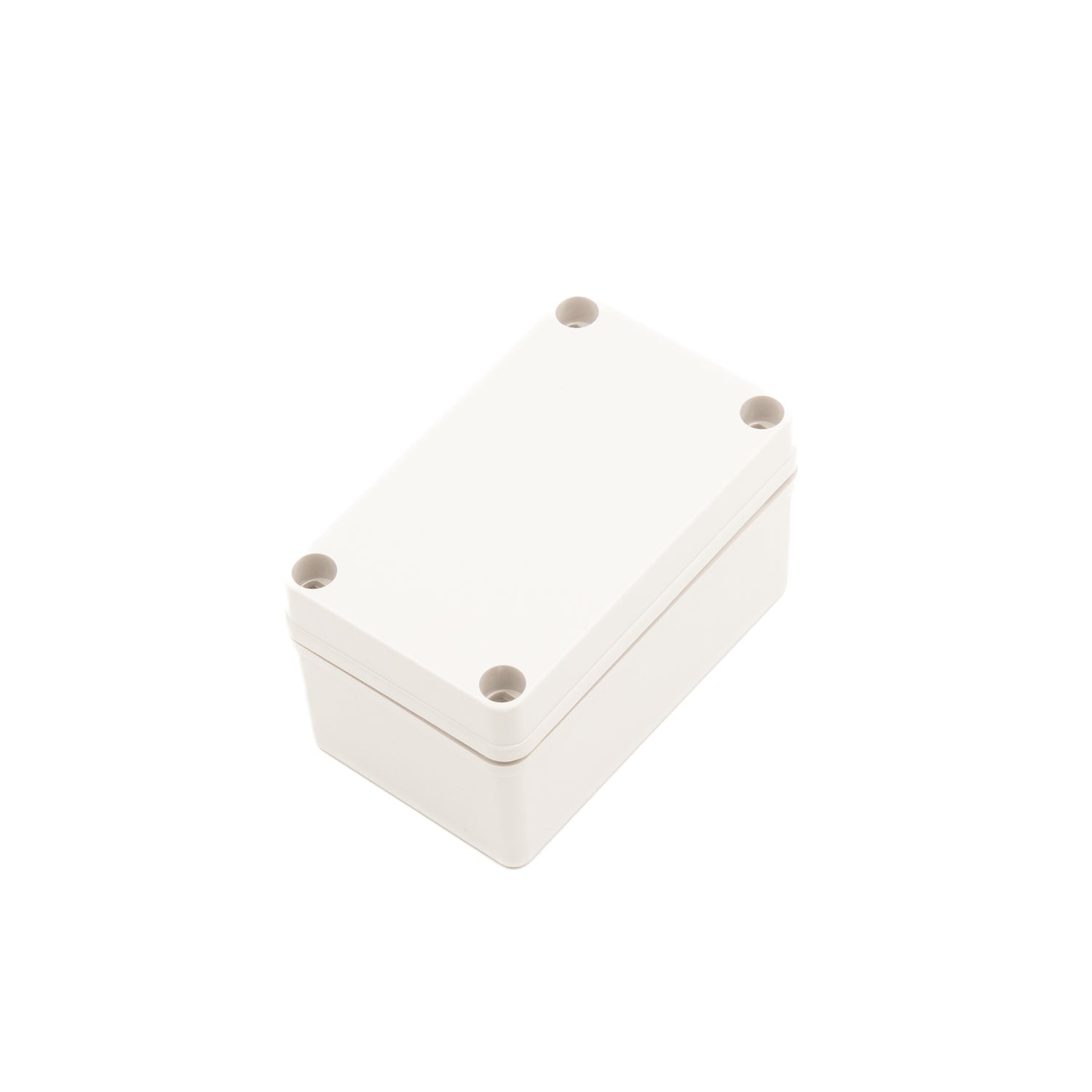

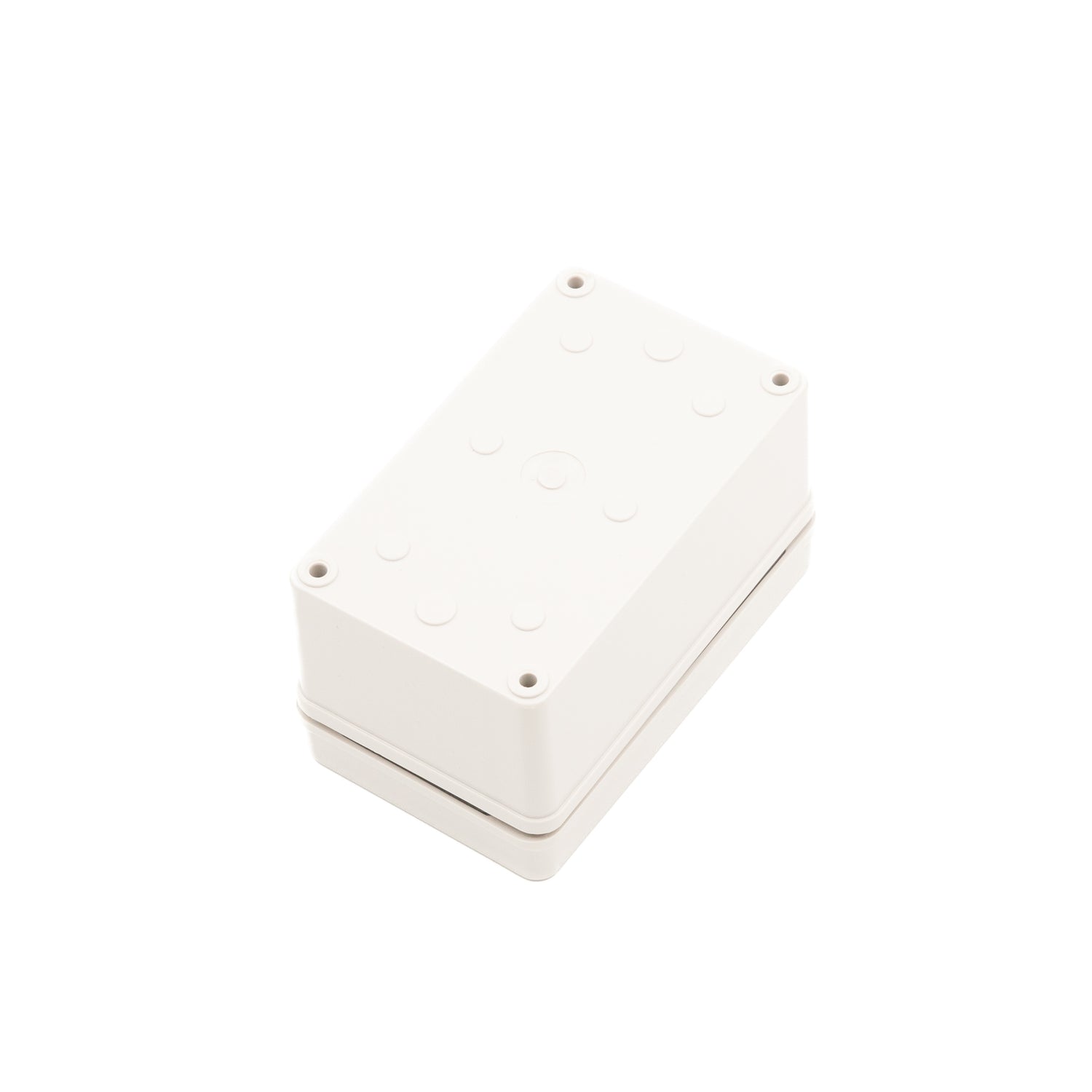

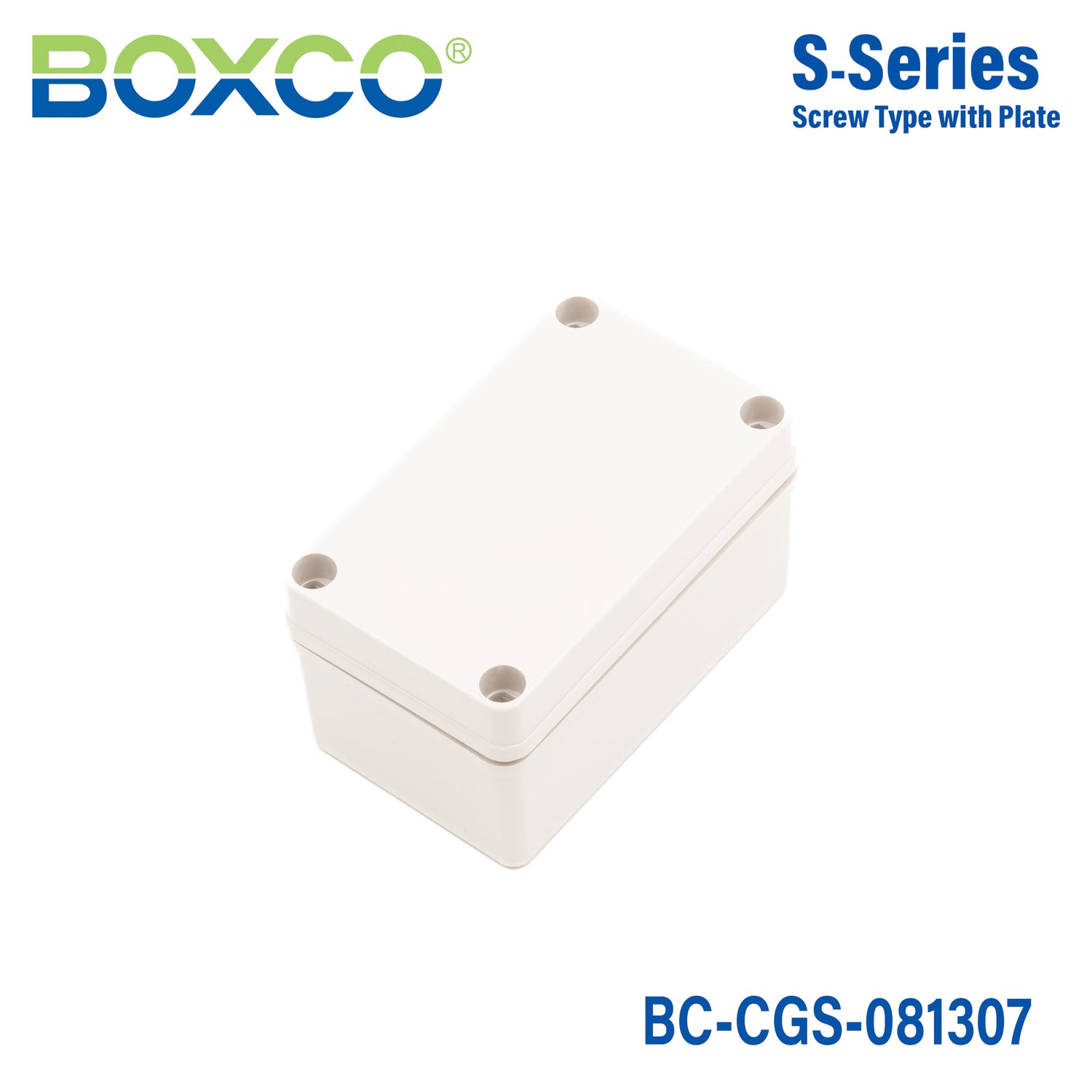

Boxco S-Series 80x130x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-081307
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGS-081307 is a 80×130×70 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-081307Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×70 mm (3.15×5.12×2.76 in)
Mounting plate dimension M1 × M2
65 × 115 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
0813 P (Plastic, P type), 0813 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

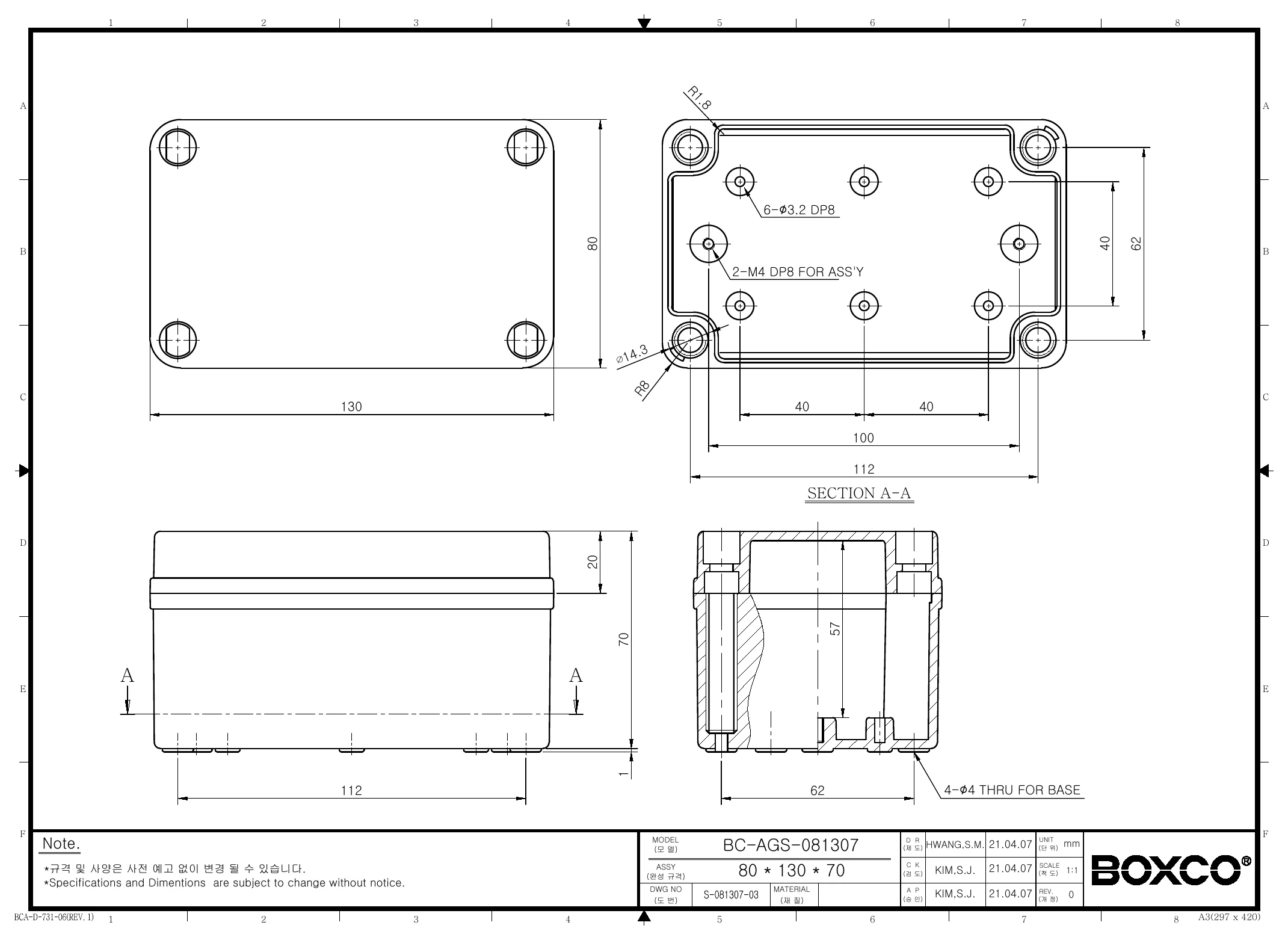

Technical drawings

BC-CGS-081307 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco S-Series BC-CGS-081307 enclosure?

This model is a plastic screw-type enclosure with external dimensions of 3.15 x 5.12 x 2.76 inches (80 x 130 x 70 mm). It is rated IP67 for dust and water resistance, IK08 for impact resistance, uses polycarbonate (PC), and has a grey cover. The listed operating temperature range is -40 °C to 110 °C, and the product weight is 0.2200 kg.

Is this enclosure suitable for outdoor or washdown environments?

This Boxco S-Series enclosure is built for demanding environments because it carries an IP67 rating and includes an ultraviolet stabilizer for outdoor use. The product description also notes that color change is minimal over long-term exposure. As with any enclosure selection, overall field suitability still depends on the full system design and exposure conditions.

What kind of applications is this enclosure typically used for?

This enclosure is intended for protecting electronic instruments and other components that need a sealed, impact-resistant housing. The anti-static material makes it relevant for applications involving sensitive electronic equipment. Its compact 80 x 130 x 70 mm size is best suited to assemblies that need a smaller enclosed footprint.

Does this model support internal mounting hardware or accessory mounting points?

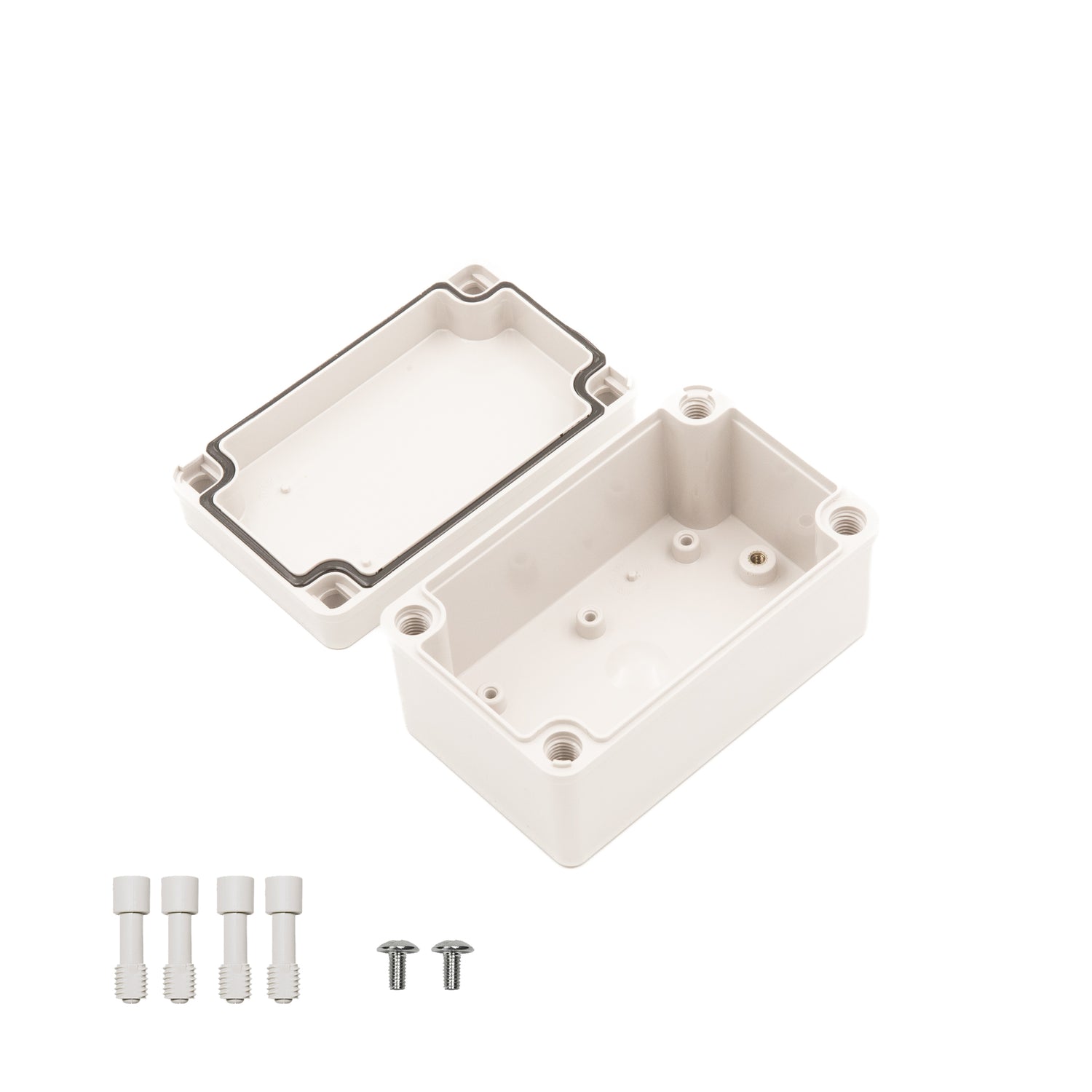

Yes. The enclosure includes internal mounting plate attachment points with brass-inserted injection molding, which are designed to hold heavier installed equipment more securely. It also has pre-molded mounting screw nuts so DIN rail or other internal equipment can be fixed inside the enclosure, subject to your component size and layout requirements.

How does the screw-type cover benefit this enclosure compared with lighter-duty boxes?

This model uses a screw-type cover with molded cover bolt attachment points, which helps provide a more secure closure. The product description also states that the screw threads are formed during injection molding to maximize strength. Combined with the injected gasket, that supports the enclosure's waterproof and dust-proof performance.

What material and durability features distinguish this enclosure?

The BC-CGS-081307 is made from polycarbonate and is described as using high impact resistant material to reduce breakage during hole and press processing. It also includes anti-static material for protecting sensitive electronics from static electricity. The IK08 rating further indicates that the enclosure is designed to handle meaningful external impact.
