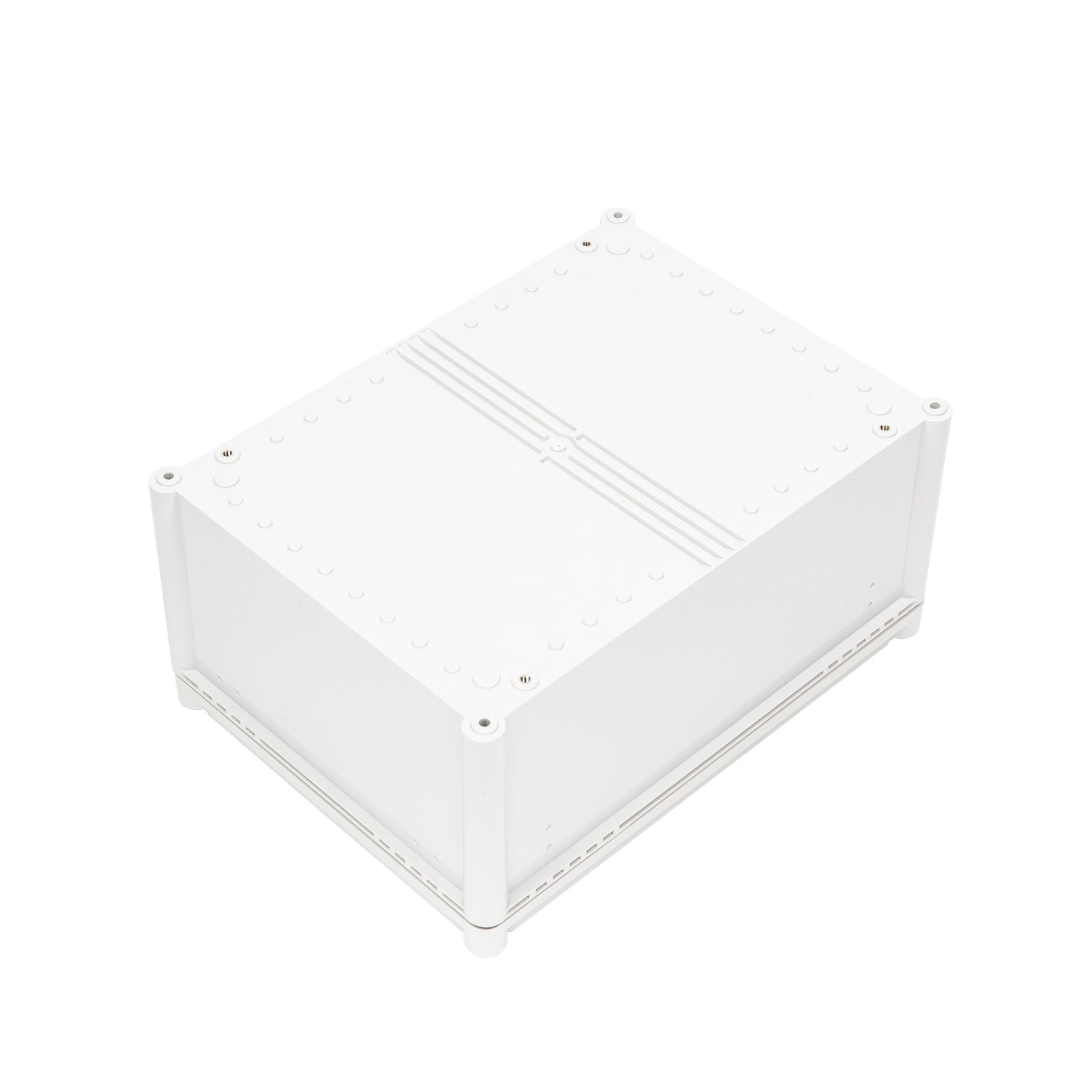

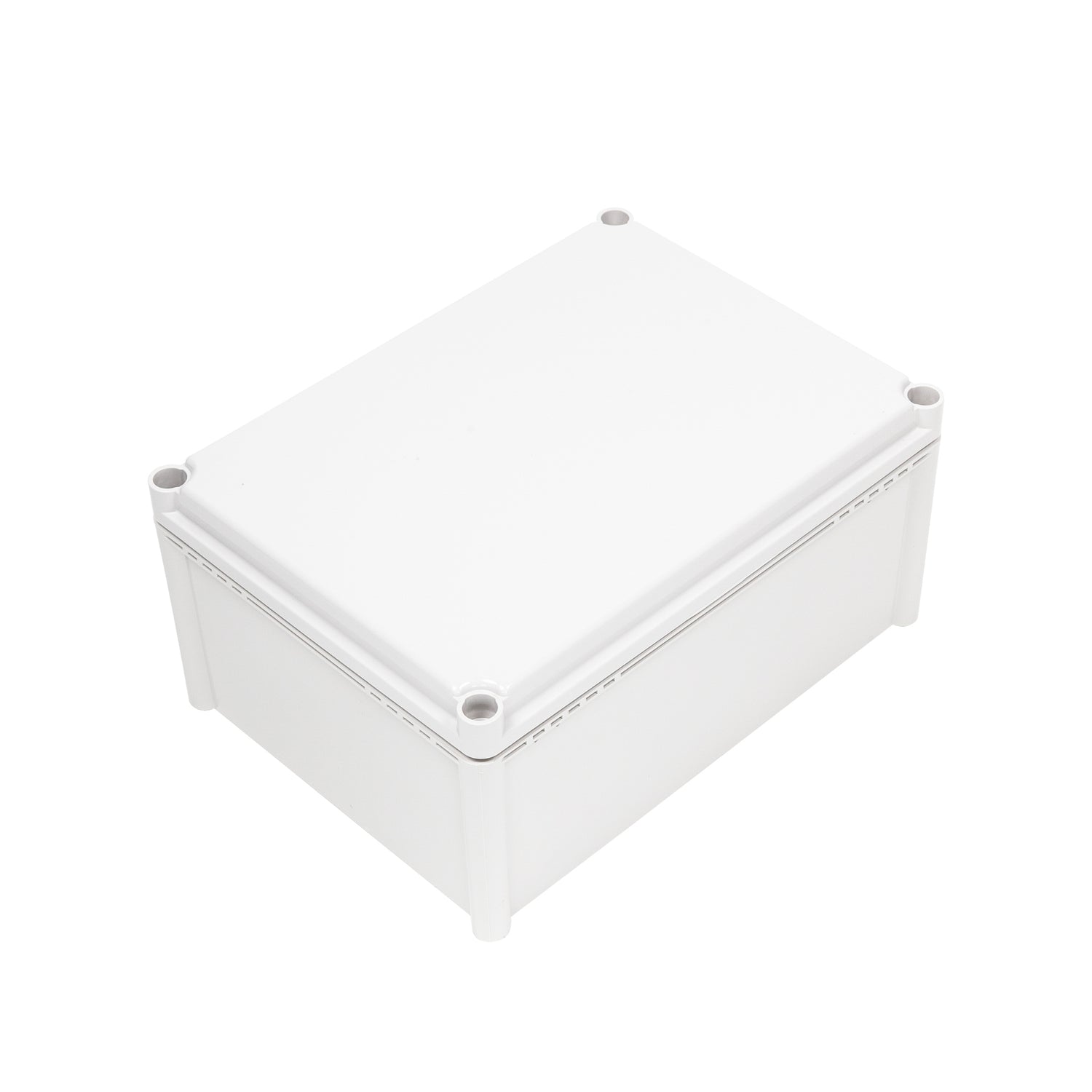

Boxco S-Series 280x380x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU:

BC-AGS-283818

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

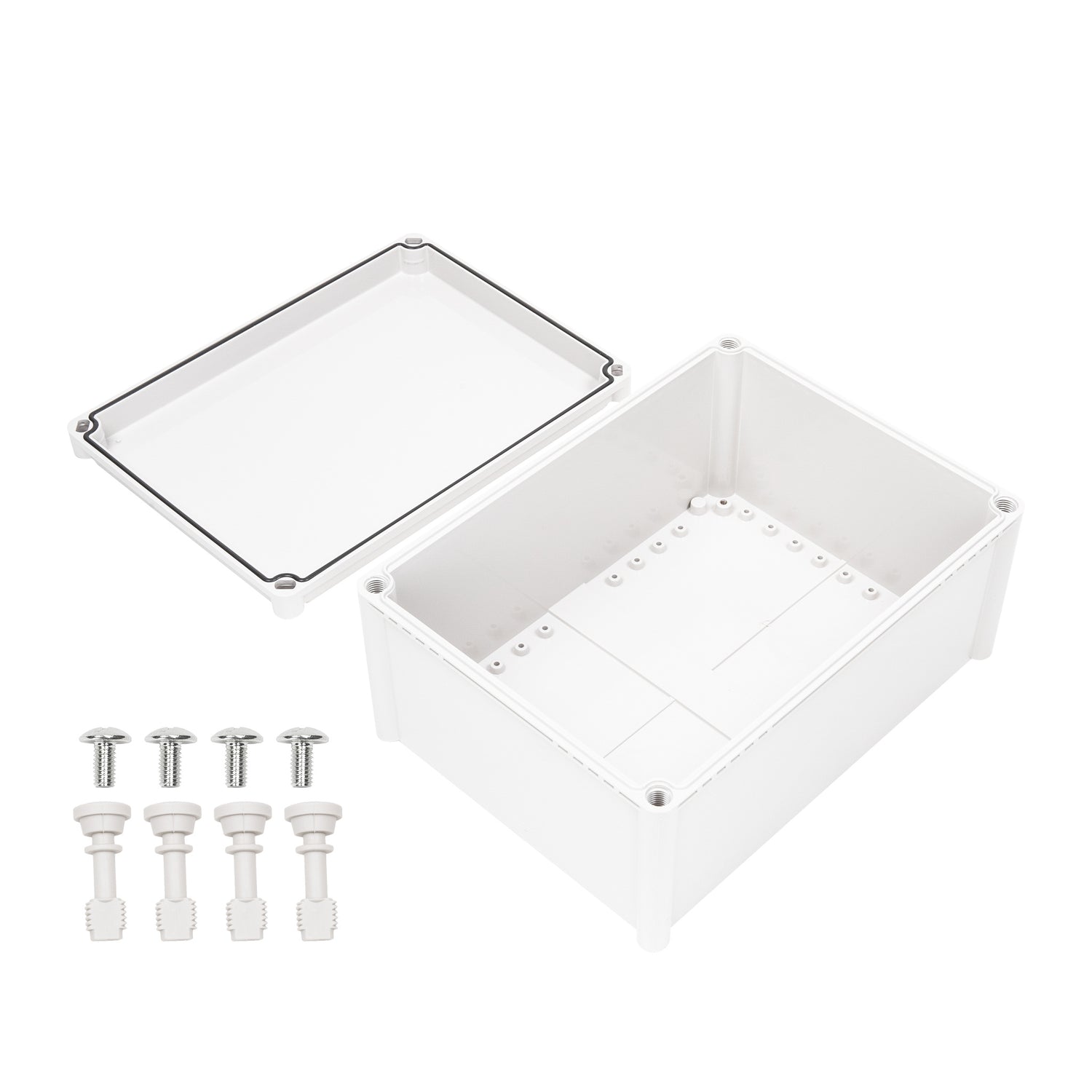

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

28 cm
Width

38 cm
Height

18 cm
Weight

1.7 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is this Boxco S-Series enclosure suited for?

This enclosure is designed for protecting electrical or electronic equipment in industrial and commercial environments where a sealed non-metallic housing is needed. Its ABS construction, IP67 sealing, and IK08 impact rating make it a practical choice for control, instrumentation, and general-purpose protective enclosure use.

Can this enclosure be used outdoors?

Yes. The product description states that Boxco S-Series enclosures include an ultraviolet stabilizer for outdoor usage, helping reduce visible color change over long periods. It is also rated IP67 for strong protection against dust and water ingress.

What are the main specifications of this enclosure?

This model measures 11.02 x 14.96 x 7.09 inches (280 x 380 x 180 mm) and is made from ABS with a grey cover. It carries IP67 and IK08 ratings, weighs 1.696 kg, and has an operating temperature range of -40 C to 70 C.

How does this model support internal equipment mounting?

This enclosure includes internal mounting plate attachment points with brass inserted injection molding for securely supporting heavier installed equipment. It also has pre-molded mounting screw nuts that can be used to fix DIN rail or other hardware inside the enclosure.

How does this enclosure compare with a basic plastic enclosure?

Compared with a basic plastic box, this Boxco S-Series model adds stronger environmental and durability features such as IP67 sealing, IK08 impact resistance, UV stabilization, and anti-static material. It also includes molded mounting features and a precision-injected gasket for better dust-proof and waterproof performance.

Is this enclosure suitable for sensitive electronic equipment?

Yes. The description specifies that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a better fit for applications where electrostatic protection is a consideration.

What environmental conditions can this enclosure handle?

This model is rated for operation from -40 C to 70 C, which supports use in both low-temperature and elevated-temperature environments within that range. Its IP67 rating also helps protect the enclosure contents from dust and water ingress in demanding conditions.
