Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

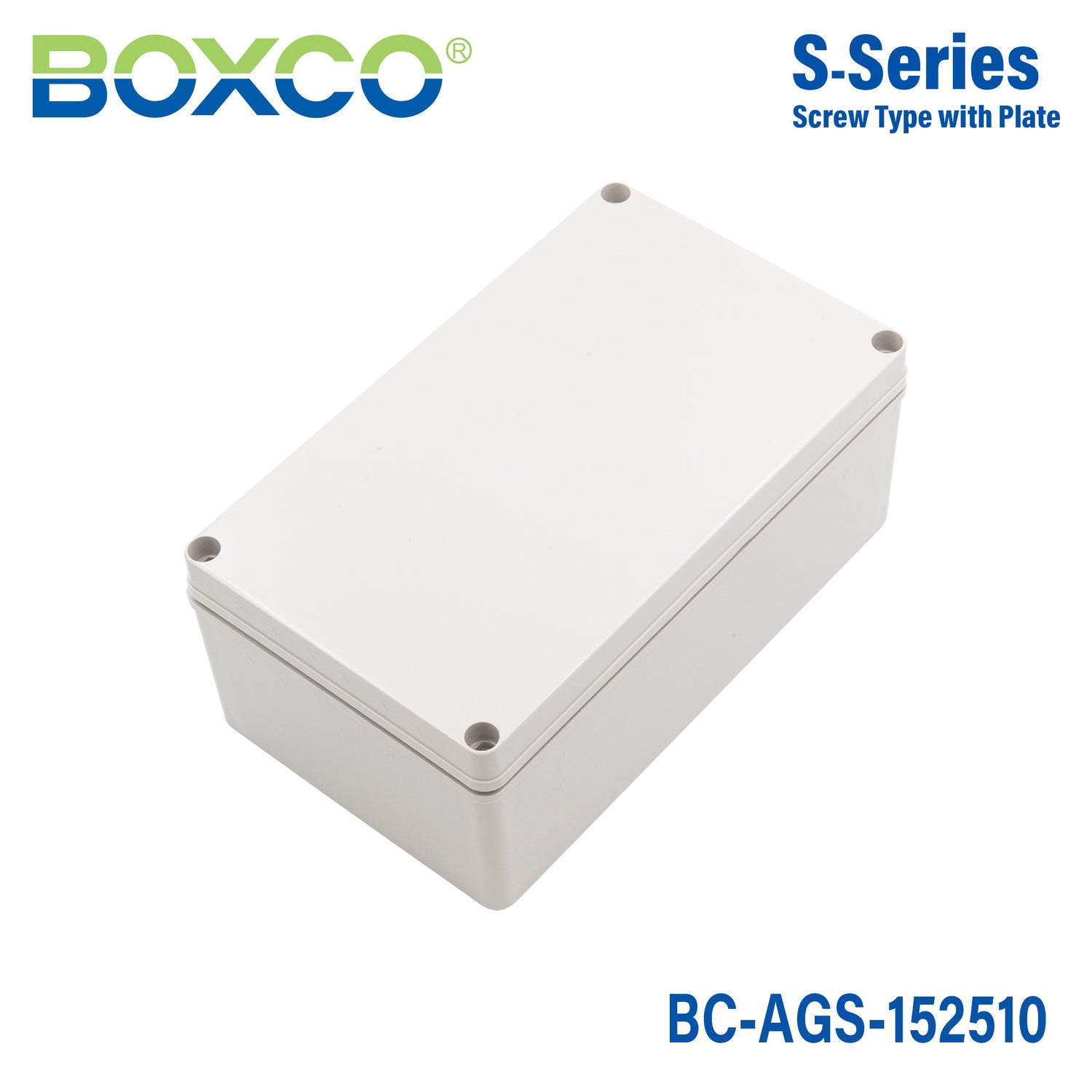

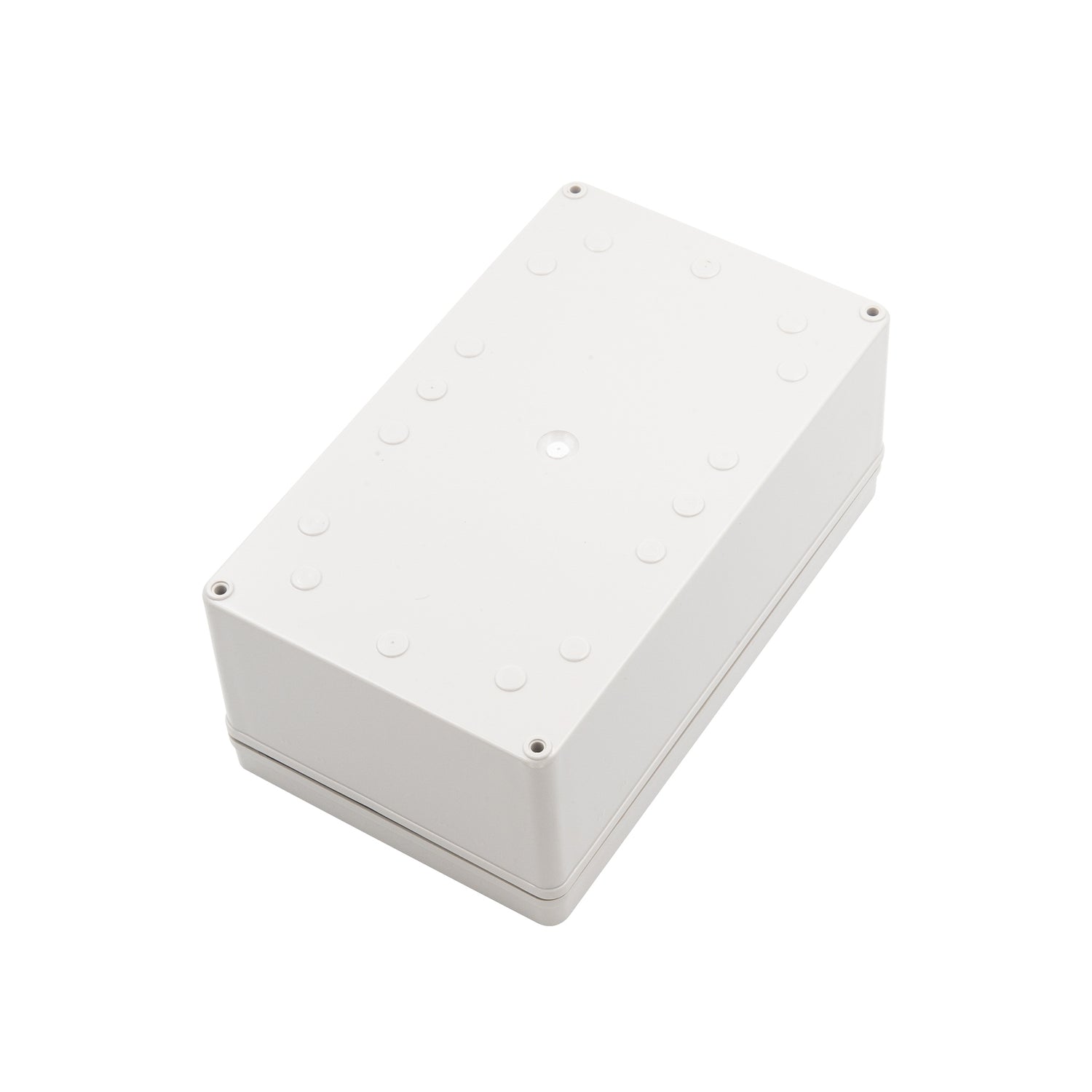

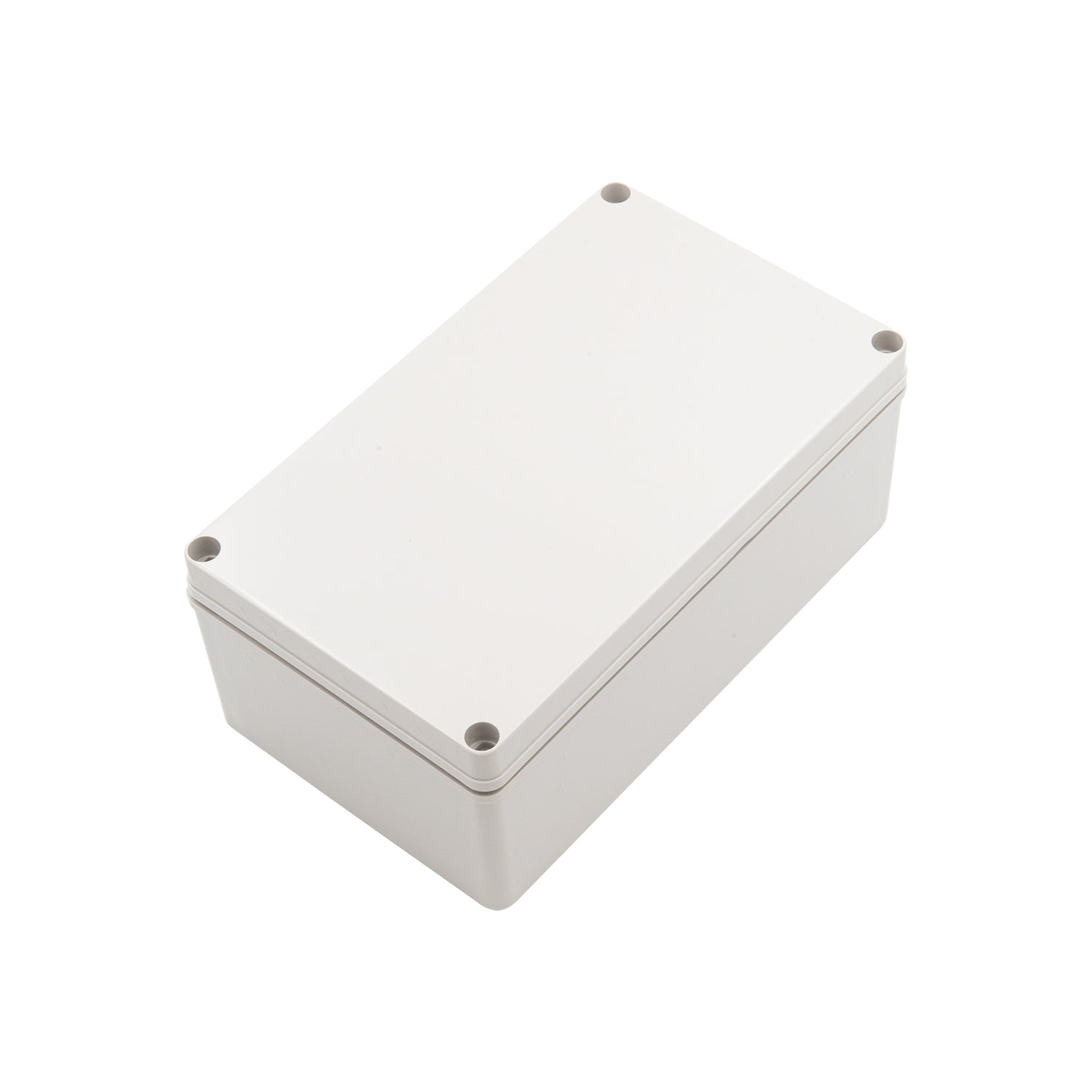

Boxco S-Series 150x250x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-152510
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-152510 is a 150×250×100 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-152510Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×250×100 mm (5.91×9.84×3.94 in)
Mounting plate dimension M1 × M2
129 × 229 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1525 G (Plastic, G type), 1525 P (Plastic, P type), 1525 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

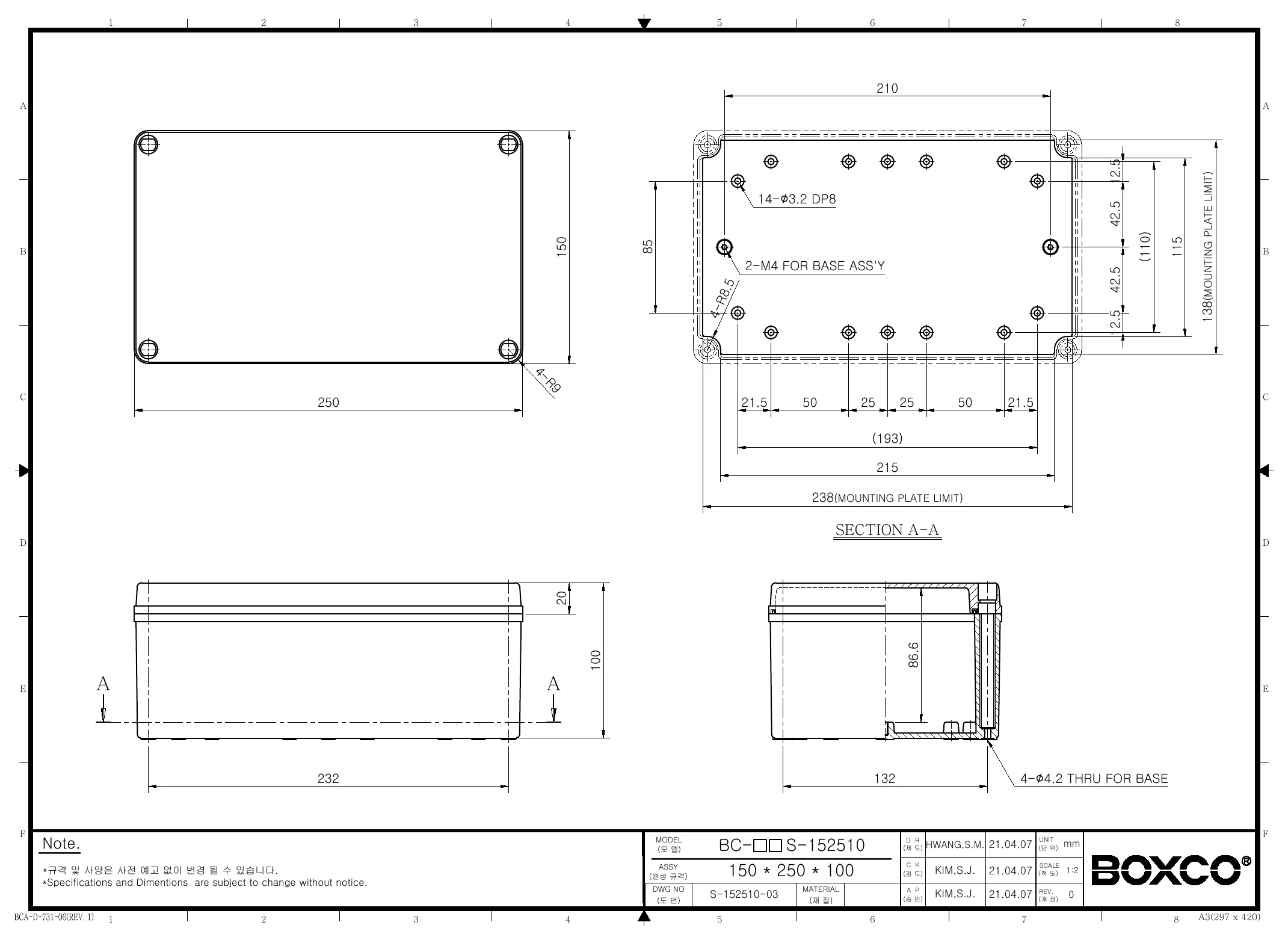

Technical drawings

BC-AGS-152510 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco S-Series BC-AGS-152510 enclosure?

This model is a plastic screw-type enclosure made from ABS with a grey cover. Its external size is 5.91 x 9.84 x 3.94 inches (150 x 250 x 100 mm), and it is rated IP67 and IK08. The listed product weight is 0.586 kg.

Is the BC-AGS-152510 suitable for outdoor or washdown environments?

This enclosure is designed for demanding environments because it carries an IP67 rating for protection against dust and water ingress. The product description also notes an ultraviolet stabilizer for outdoor use, helping reduce visible color change over time. Buyers still need to confirm overall suitability for their specific exposure conditions and application requirements.

What kinds of applications is this enclosure commonly used for?

The BC-AGS-152510 is suited for protecting industrial and commercial electrical or electronic components that need a sealed non-metallic housing. Its impact-resistant ABS construction, internal mounting features, and sealed gasket design make it a practical choice for control, protection, and equipment housing applications. It is especially relevant where dust resistance, water resistance, and outdoor durability matter.

Does this enclosure support internal mounting hardware or equipment plates?

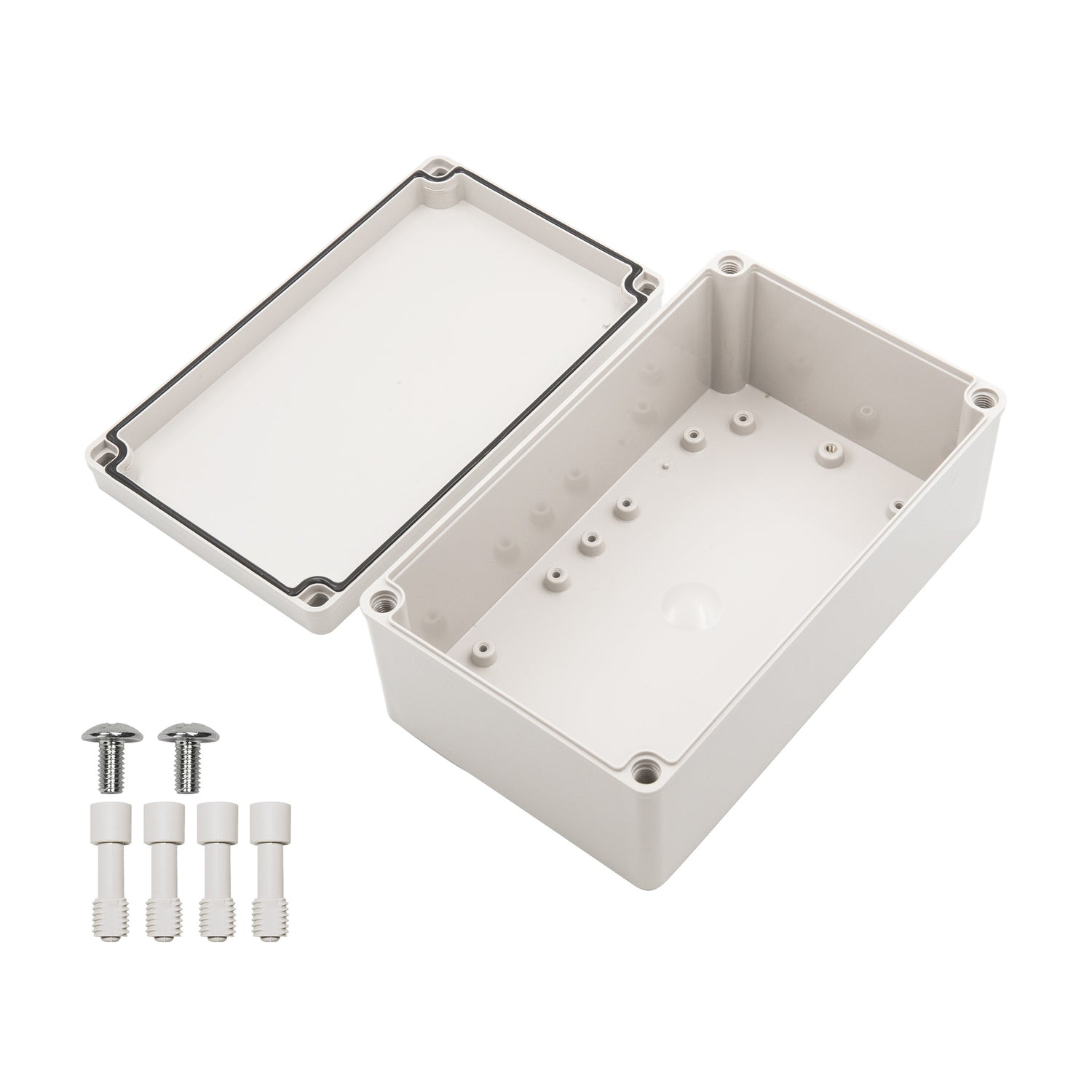

Yes. The product description states that it includes internal mounting plate attachment points with brass inserted injection molding to support heavier equipment installed inside the enclosure. It also includes pre-molded mounting screw nuts for securing DIN rail or similar internal hardware.

What operating temperature range is listed for this enclosure?

The stated temperature range for this model is -40 degrees C to 70 degrees C. That range makes it suitable for many industrial and outdoor applications where the enclosure may face both low and elevated ambient temperatures. Final suitability should be checked against the temperature limits of the components placed inside it.

How does this ABS enclosure differ from a basic general-purpose plastic box?

This model stands out with a defined IP67 ingress protection rating, IK08 impact rating, ultraviolet-stabilized material for outdoor use, and anti-static material for sensitive electronic instruments. The description also highlights molded attachment points, pre-molded screw nuts, and a precision-injected gasket system. Those features make it more specialized than a simple undifferentiated plastic enclosure.
