Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

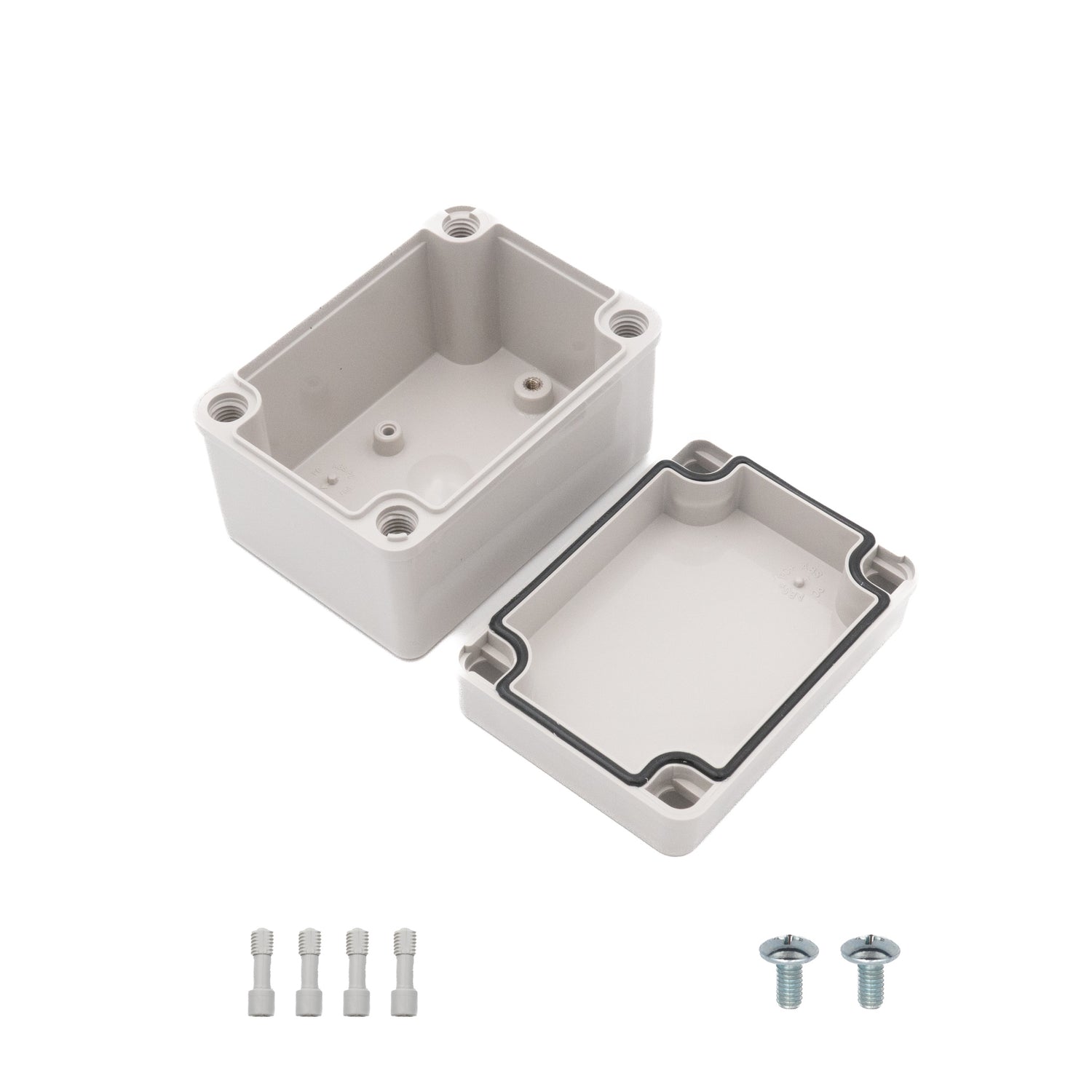

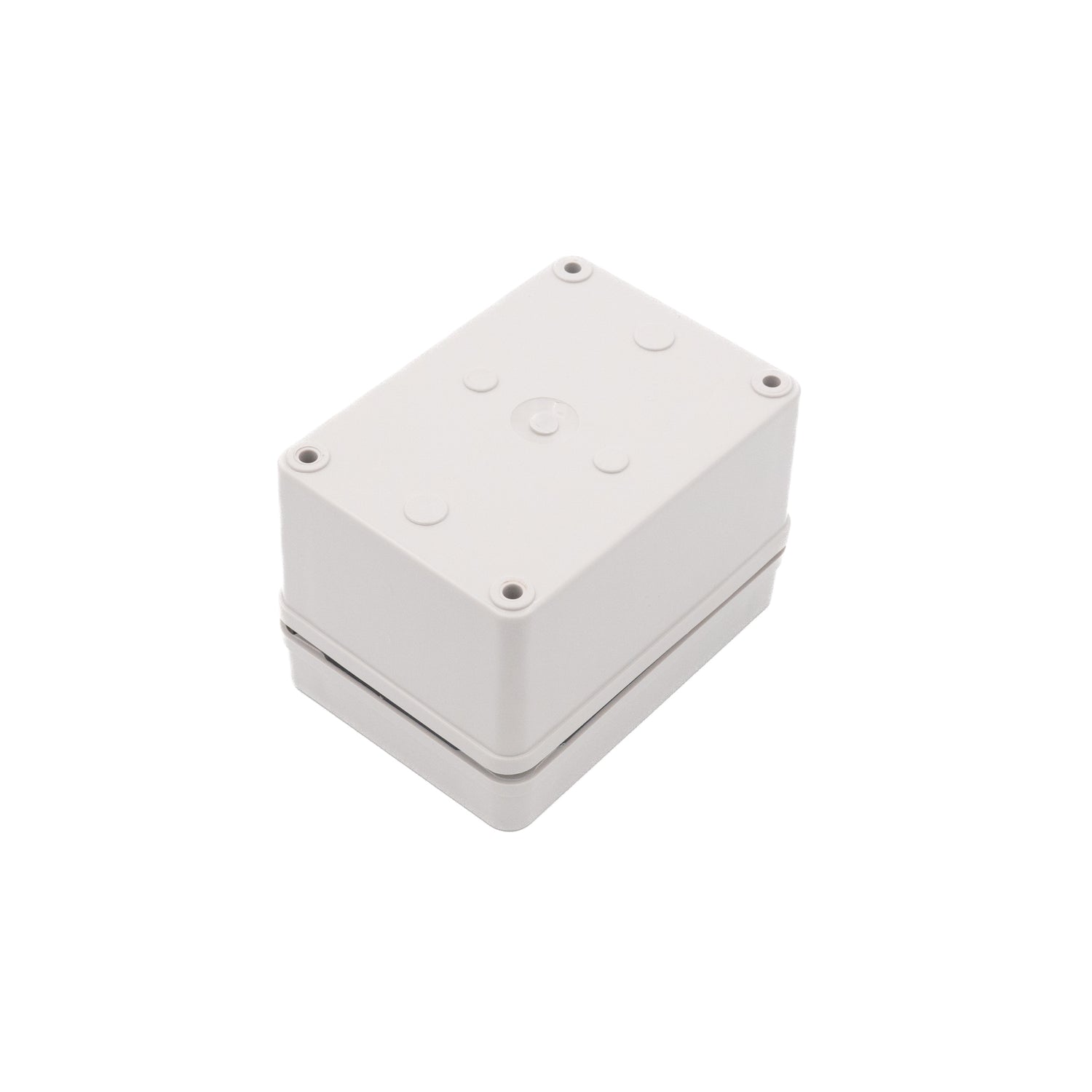

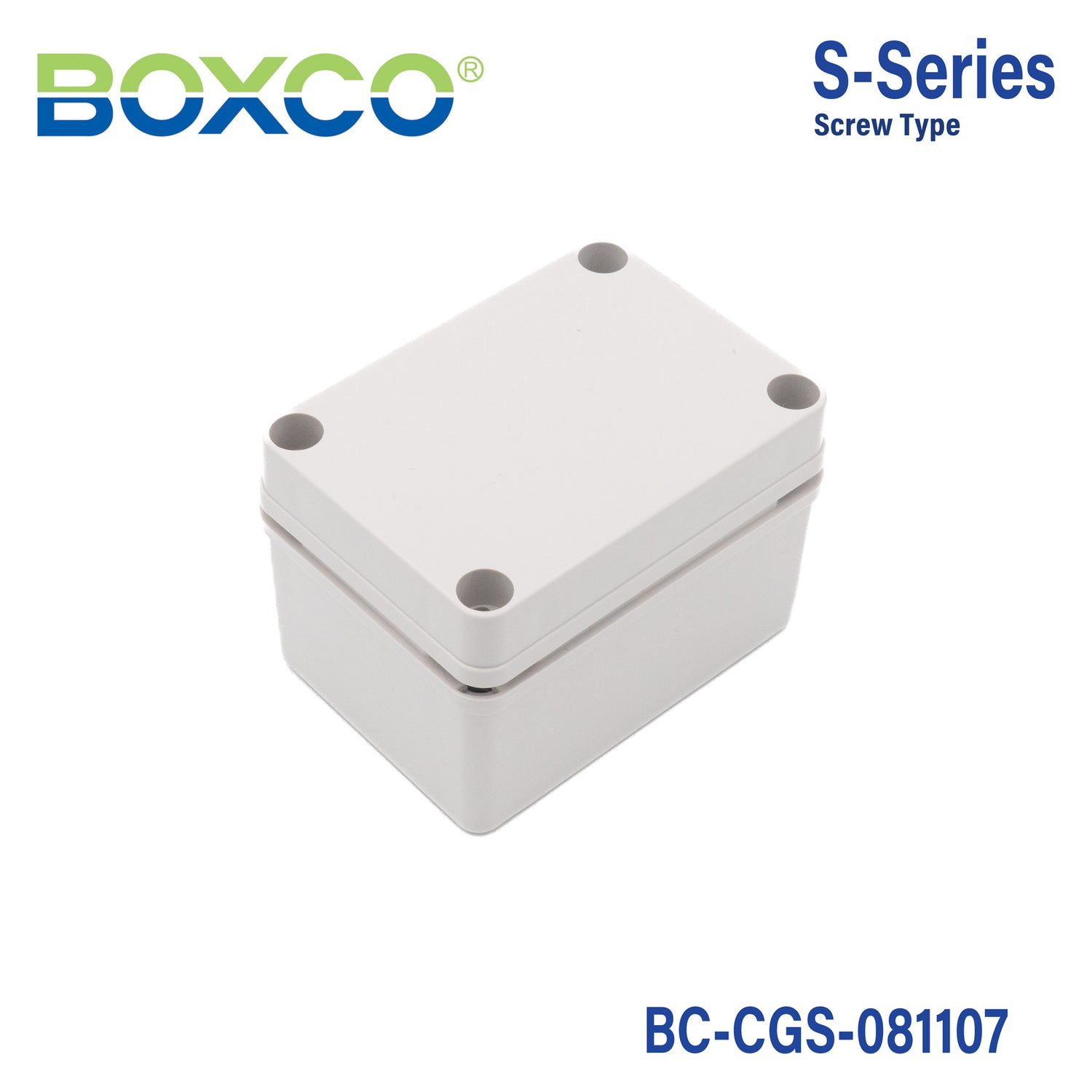

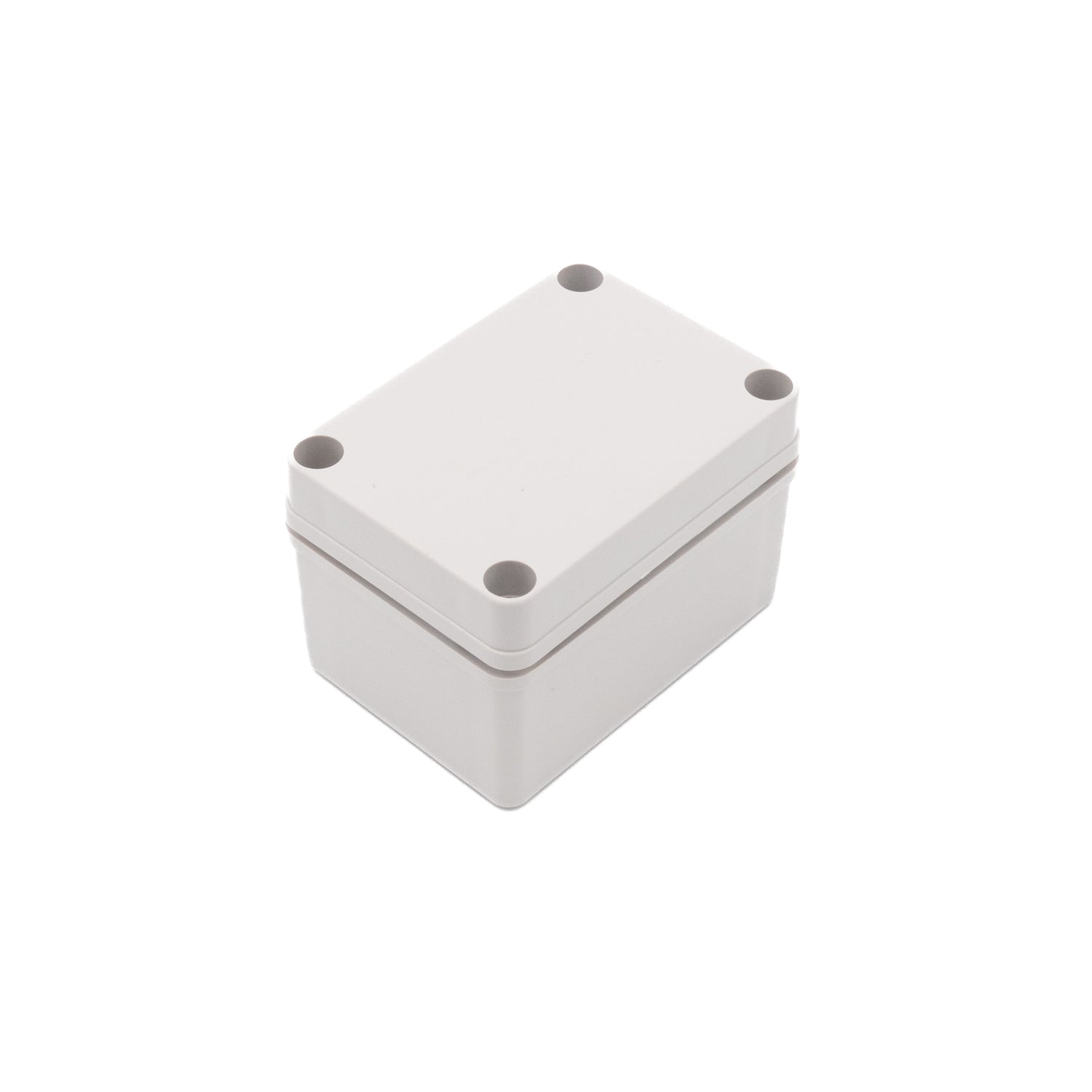

Boxco S-Series 80x110x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU:

BC-CGS-081107

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~110°C
Warranty

1 Year
Length

8 cm
Width

11 cm
Height

7 cm
Weight

0.19 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco S-Series 80x110x70mm plastic enclosure suited for?

This enclosure is suited for protecting compact electronic components and sensitive instruments in industrial and commercial environments. Its anti-static material, impact-resistant construction, and sealed screw-type design make it a practical choice for control, monitoring, and protection applications where durability matters.

Is this enclosure appropriate for outdoor or washdown environments?

Yes, this model is built for demanding environments with an IP67 rating for dust-tight and water-resistant protection. It also includes an ultraviolet stabilizer to help maintain performance and reduce visible color change during long-term outdoor use.

How durable is this enclosure against impact and harsh conditions?

This enclosure is rated IK08 for impact resistance and is made from high impact resistant polycarbonate. It is designed to withstand external impact and reduce the risk of breakage during machining or press processing.

What temperature range can this Boxco enclosure handle?

This model is specified for use from -40 degrees C up to 110 degrees C. That range makes it suitable for both cold and hot operating environments where standard plastic housings may be limited.

Does this enclosure support internal mounting hardware or accessory components?

Yes, the enclosure includes internal mounting plate attachment points with brass inserted injection molding for secure fastening. It also has pre-molded mounting screw nuts that support adding compatible internal hardware such as DIN rail or other mounted equipment.

What distinguishes this screw-type Boxco S-Series enclosure from a basic plastic box?

This model combines IP67 sealing, IK08 impact resistance, UV-stabilized material, and anti-static construction in one enclosure. It also includes molded attachment features and a precision-injected gasket, giving it stronger environmental protection and equipment support than a basic general-purpose housing.
