Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

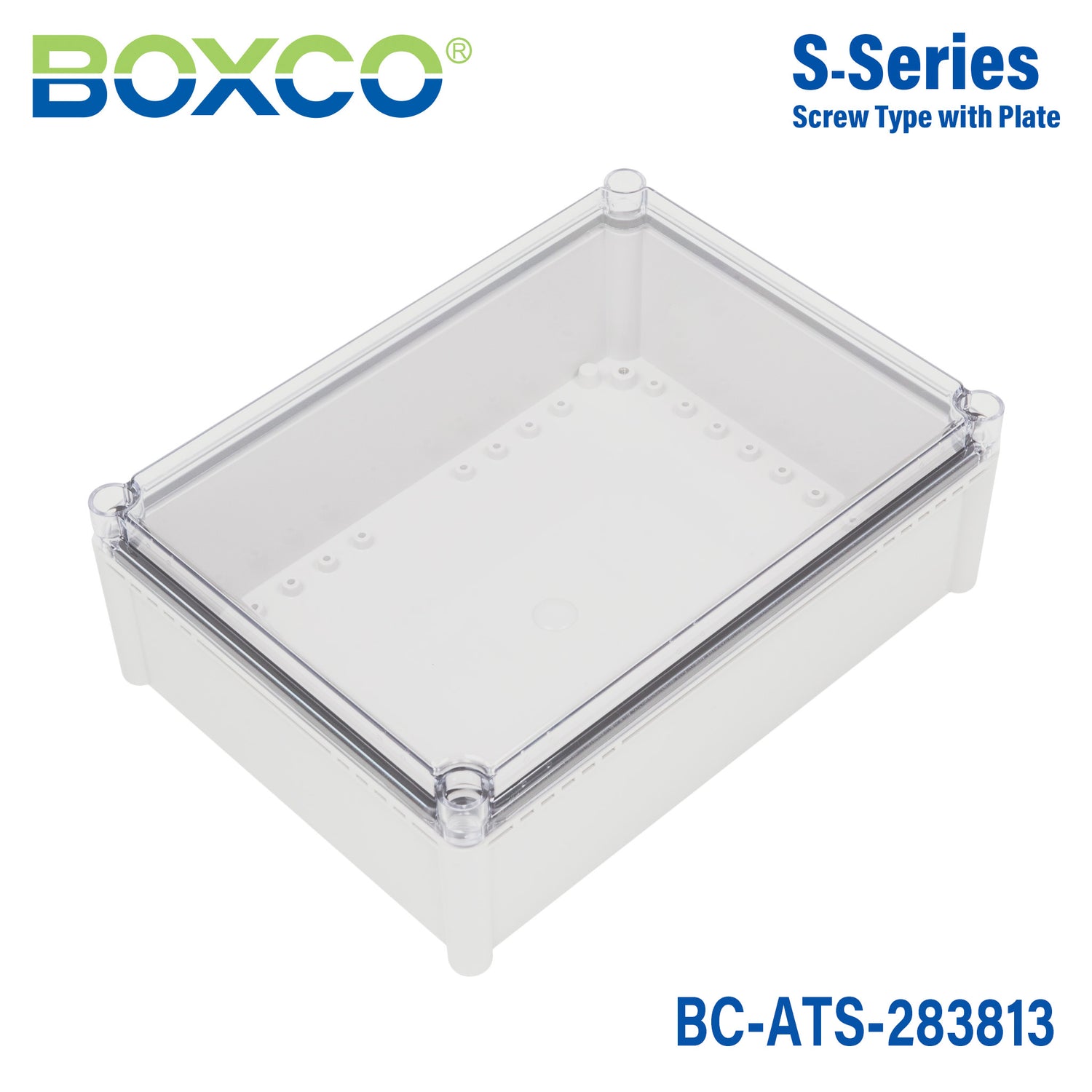

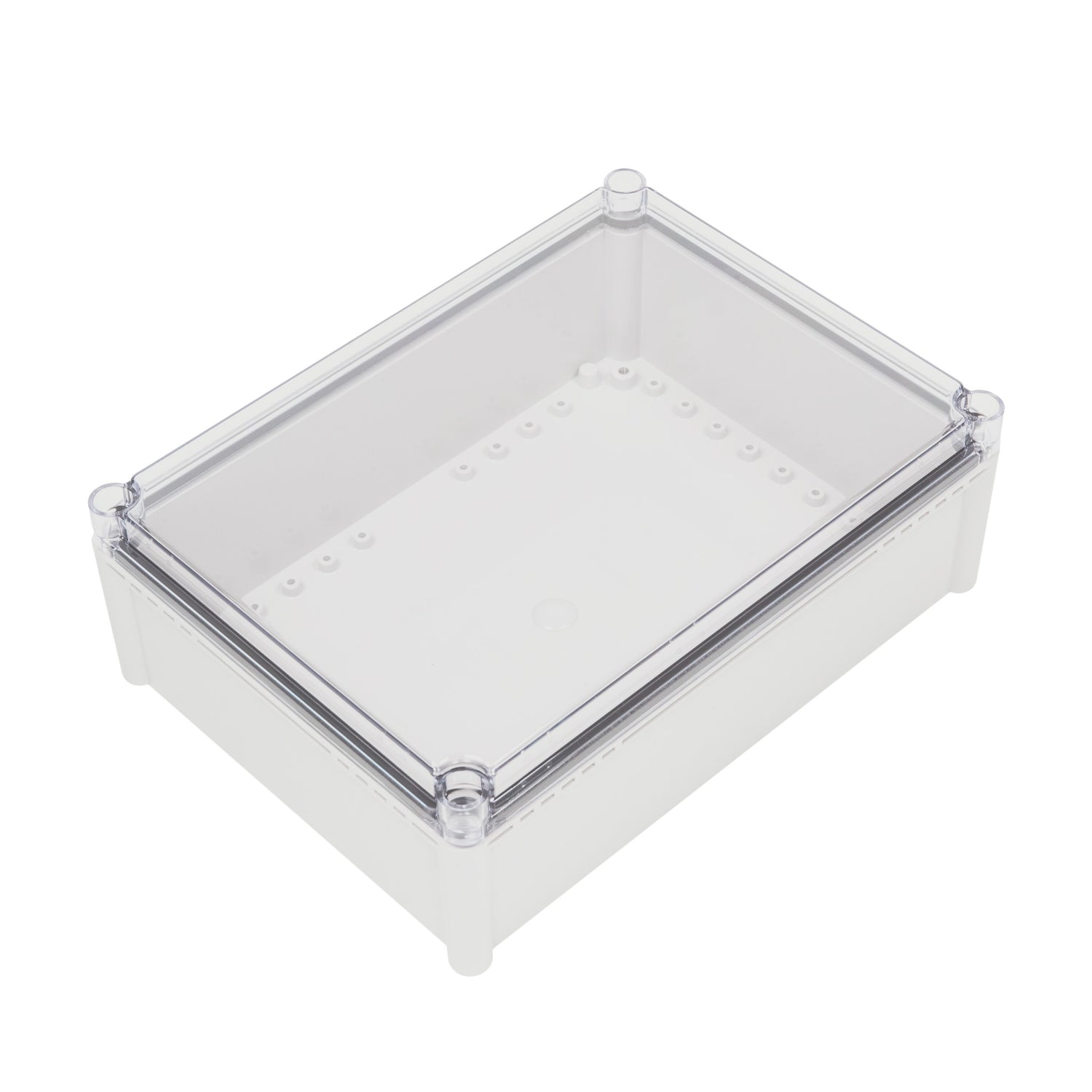

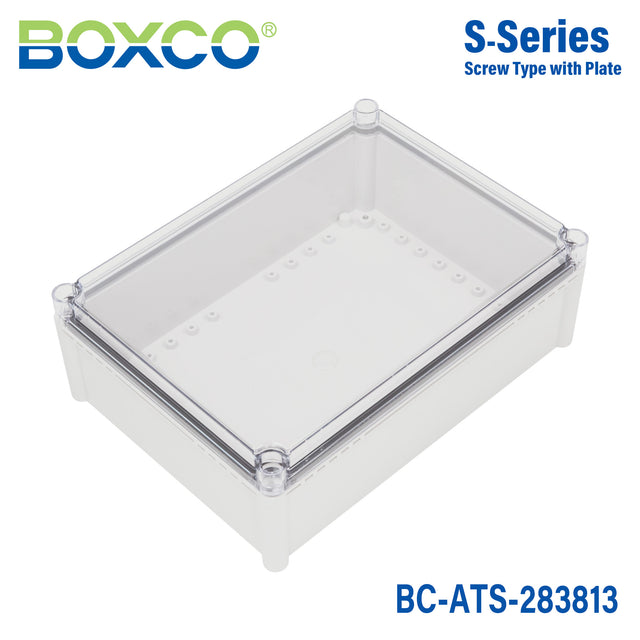

Boxco S-Series 280x380x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU:

BC-ATS-283813

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

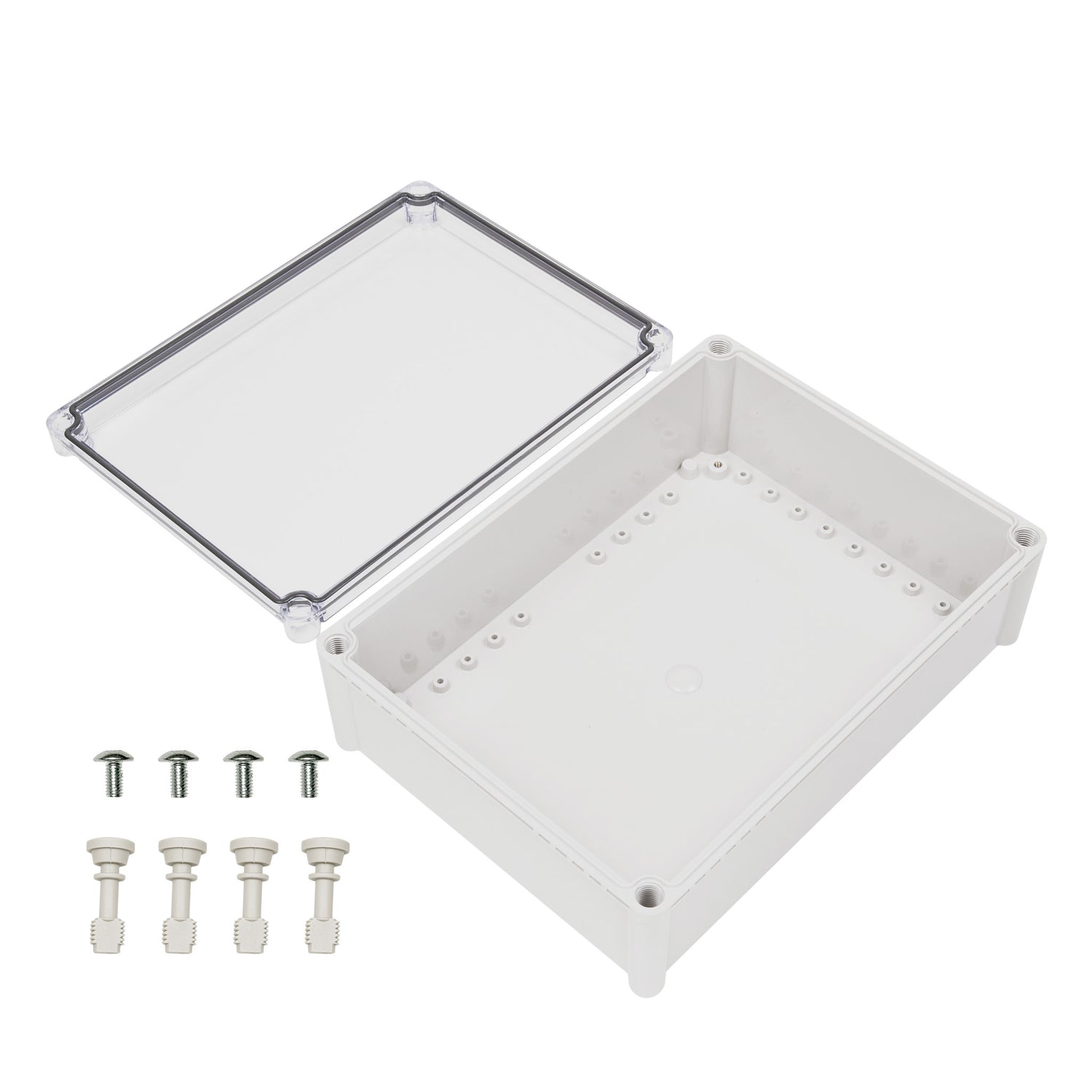

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

28 cm
Width

38 cm
Height

13 cm
Weight

1.51 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is this Boxco S-Series enclosure best suited for?

This model is designed for protecting electronics and control components in industrial and commercial environments where a sealed plastic enclosure is needed. Its anti-static material and high-impact ABS construction make it a practical choice for housing sensitive instruments and equipment that may be exposed to dust, moisture, or physical contact.

What are the key specifications of this enclosure?

The enclosure measures 11.02 x 14.96 x 5.12 inches (280 x 380 x 130 mm) and weighs 1.508 kg. It is made from ABS, uses a transparent screw-type cover, carries IP67 and IK08 ratings, and is backed by a 1-year warranty.

Is this enclosure suitable for outdoor or harsh environments?

Yes, this Boxco S-Series model includes an ultraviolet stabilizer to support outdoor use and help reduce visible color change over time. It is also rated IP67 for dust-tight and water-resistant protection, with an operating temperature range of -40 C to 70 C.

How does this model compare with a standard non-transparent enclosure?

This version includes a transparent cover, which makes it easier to visually check internal components without opening the box. It also combines that visibility with the same sealed screw-type construction, ABS body, and impact resistance expected from the S-Series.

What internal mounting features does this enclosure include?

This model includes mounting plate attachment points with brass inserted injection molding so an internal mounting plate can be secured tightly. It also has pre-molded mounting screw nuts that support mounting hardware such as DIN rail or other internal equipment.

What helps this enclosure maintain its sealing performance?

The enclosure uses a gasket formed by a precision CNC robot process to support strong waterproof and dust-proof performance. The cover bolt attachment points are also formed during injection molding to improve thread strength and overall durability.
