Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

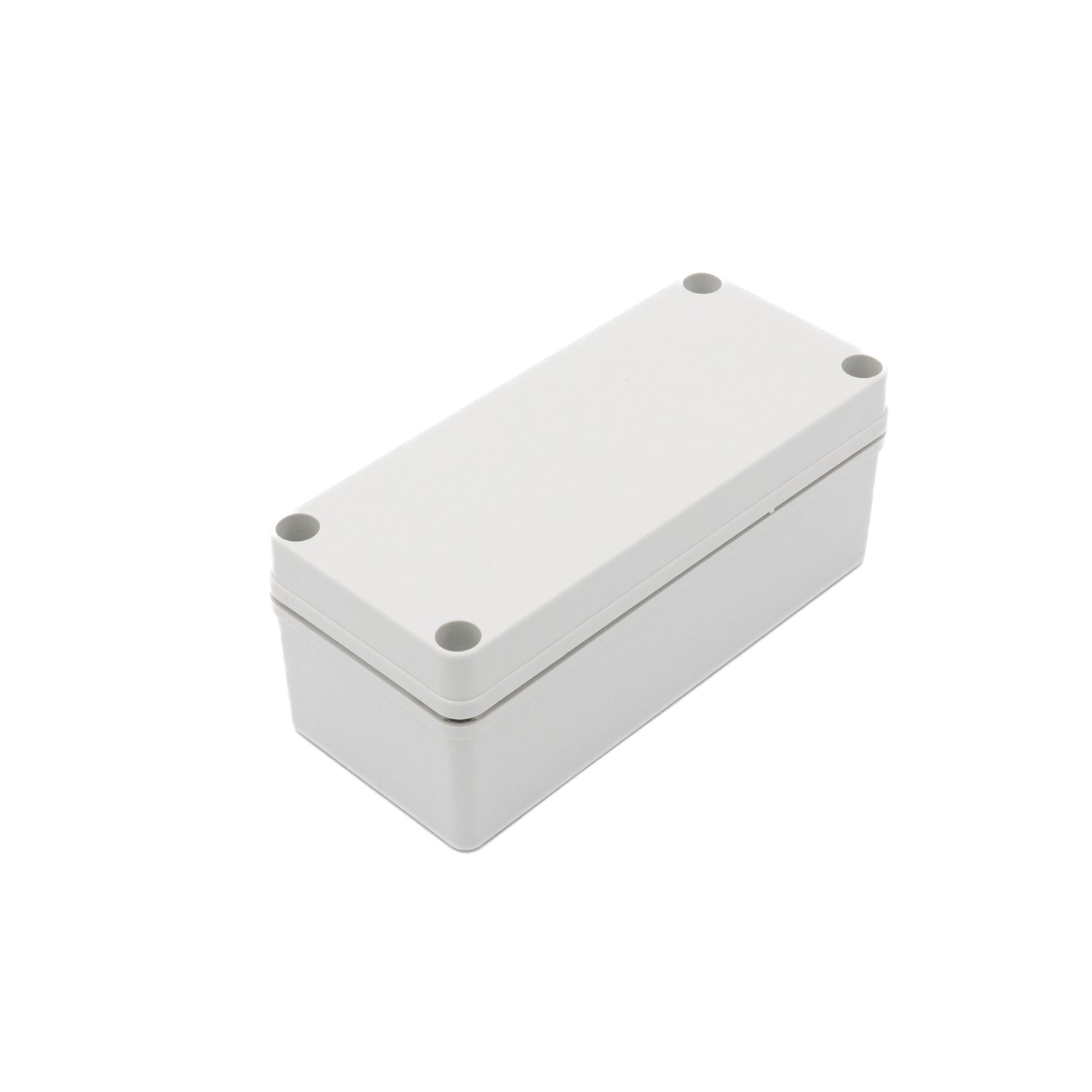

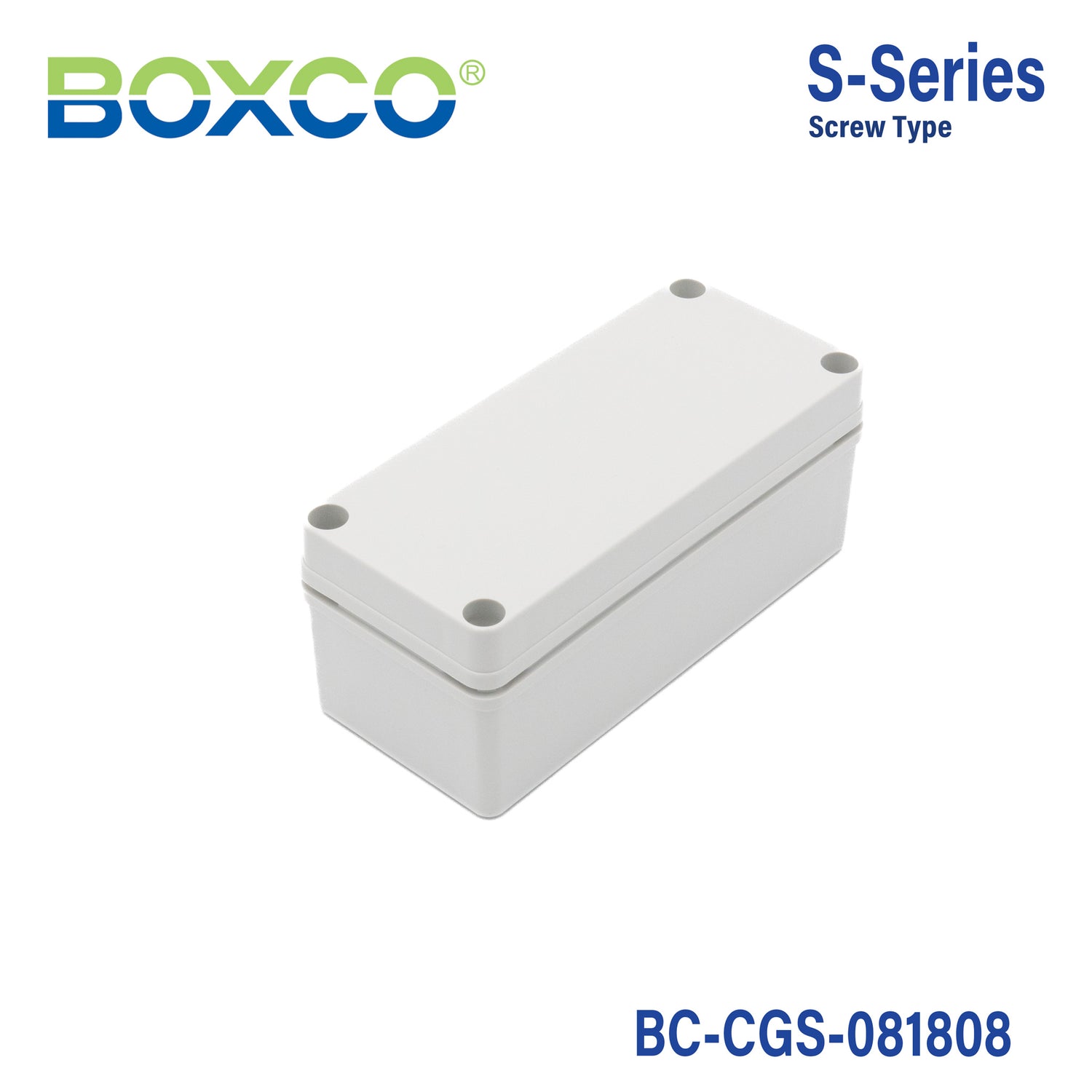

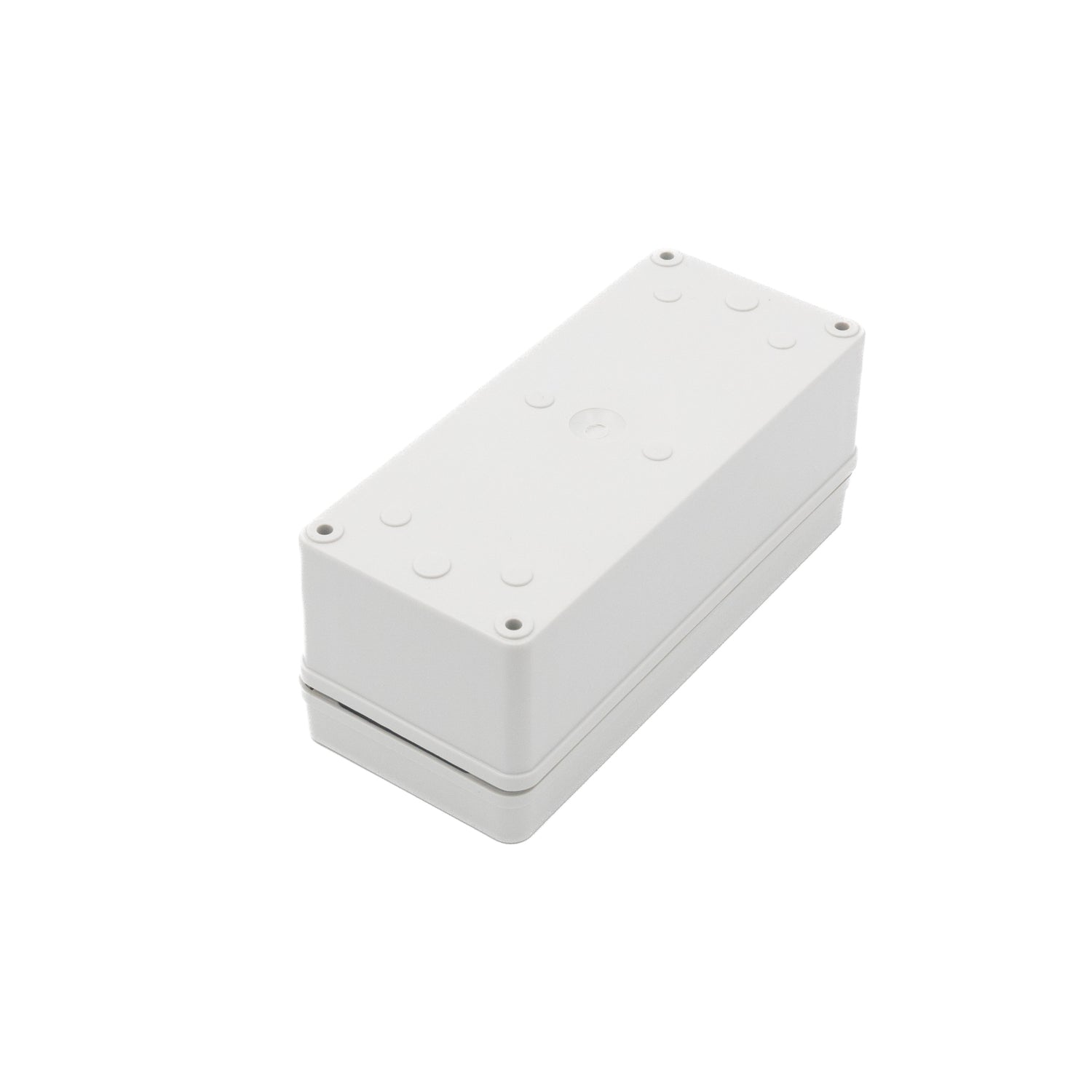

Boxco S-Series 80x180x85mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-081808
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGS-081808 is a 80×180×85 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-081808Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×180×85 mm (3.15×7.09×3.35 in)
Mounting plate dimension M1 × M2
65 × 165 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
0818 P (Plastic, P type), 0818 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

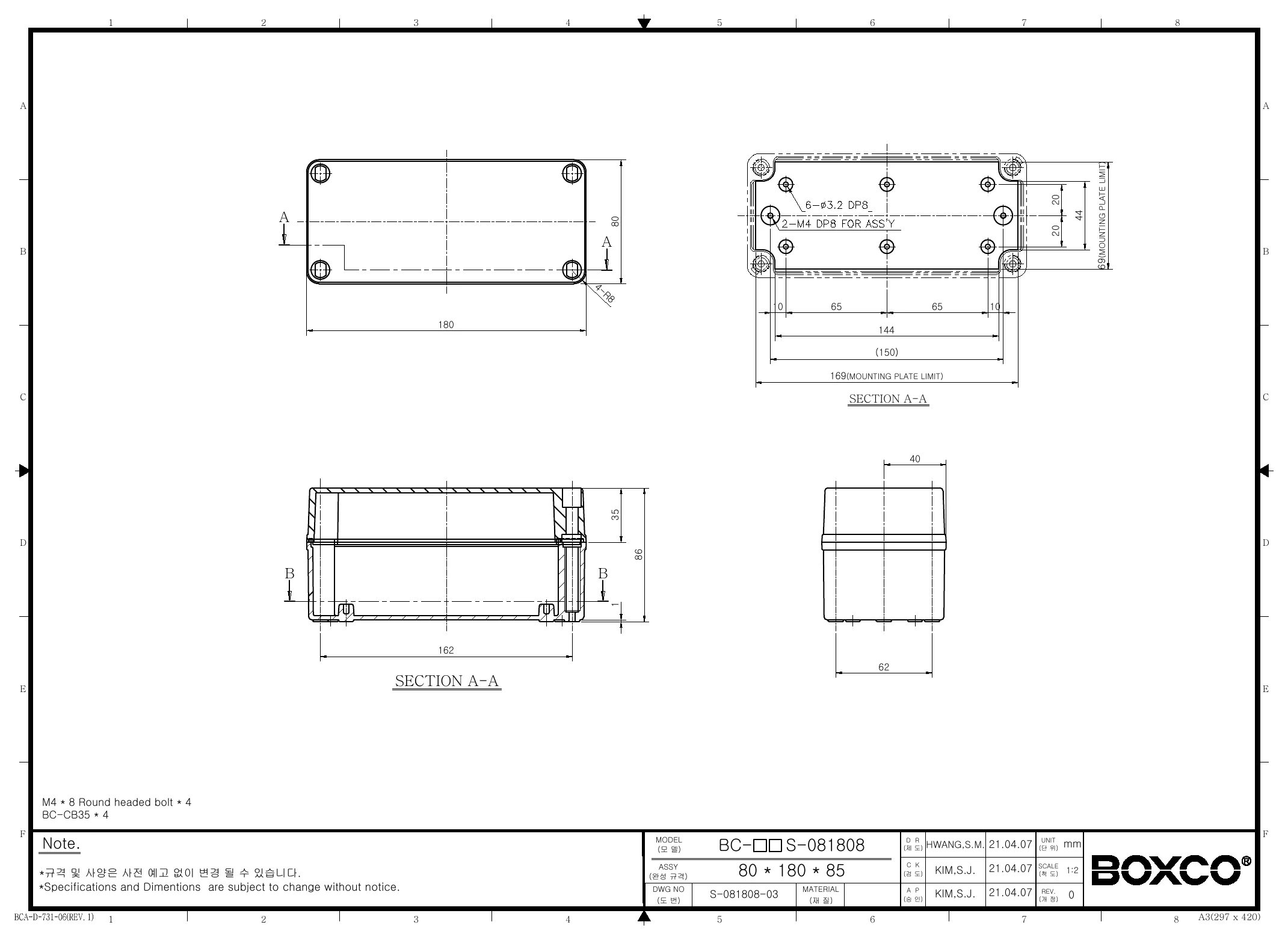

BC-CGS-081808 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of the Boxco S-Series BC-CGS-081808 enclosure?

This model measures 3.15 x 7.09 x 3.35 inches, which is 80 x 180 x 85 mm. That size makes it suitable when you need a compact but elongated plastic enclosure for internal component protection.

What material is this enclosure made from?

The BC-CGS-081808 is made from polycarbonate (PC) and has a grey cover. The product description also notes high impact resistance and anti-static material properties for protecting sensitive electronic instruments.

Is this enclosure suitable for outdoor or harsh environments?

Yes, this model is designed for demanding environments with an IP67 rating for dust-tight and water-resistant protection and an IK08 impact rating. The description also states that an ultraviolet stabilizer is added for outdoor usage and to reduce long-term color change.

What temperature range can this enclosure handle?

This enclosure is rated for use from -40 °C up to 110 °C. That wide operating range makes it a practical choice for industrial and outdoor applications exposed to both low and high temperatures.

What types of applications is this enclosure commonly used for?

This enclosure is intended for protecting electronic instruments and other internal equipment that need a durable plastic housing. Its anti-static material, outdoor UV stability, and waterproof and dust-proof design make it relevant for industrial and general-purpose protective enclosure use cases.

Does this enclosure support internal mounting hardware or accessories?

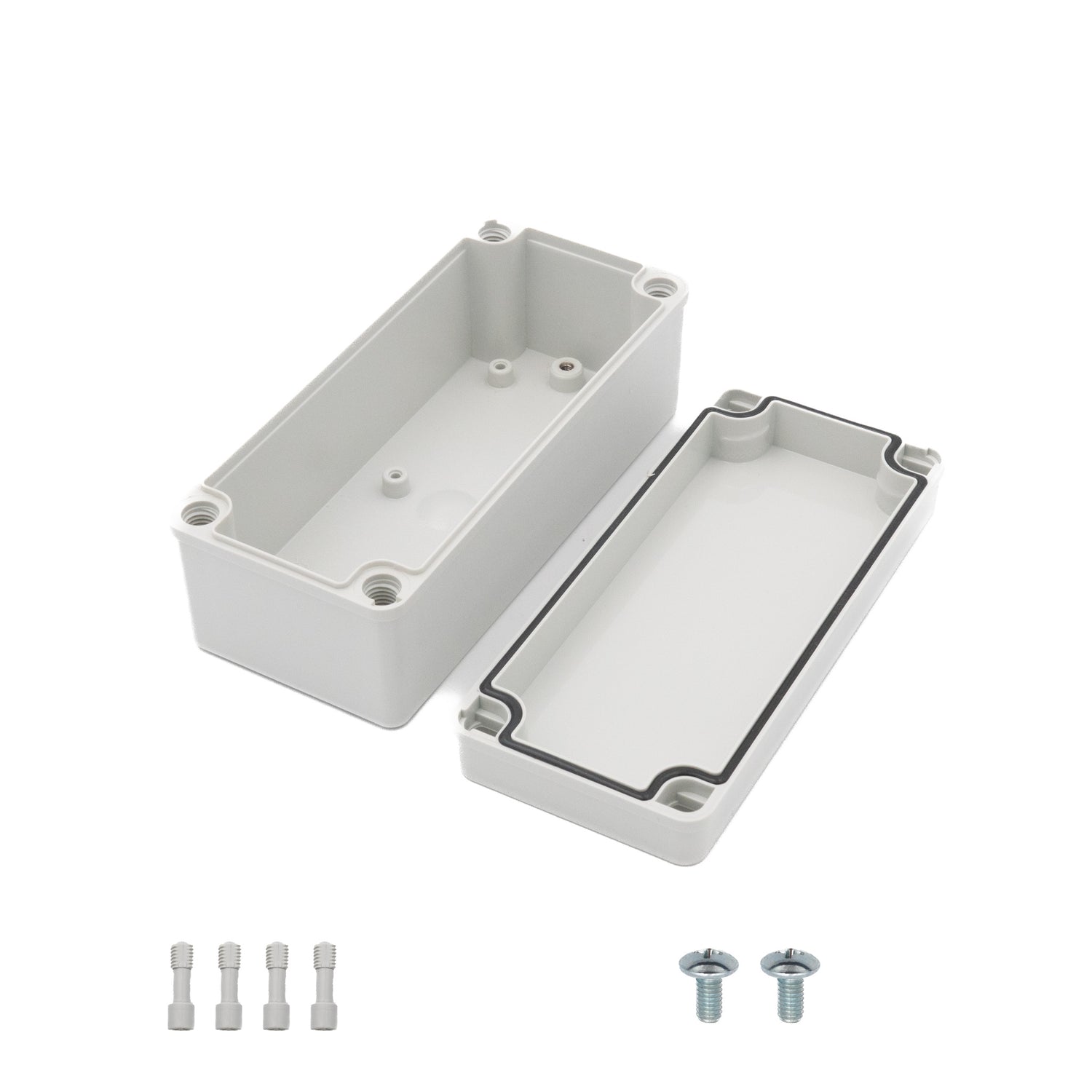

Yes, the product description includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features help support secure placement of internal equipment and mounting components inside the enclosure.

How much does the BC-CGS-081808 enclosure weigh?

This model has a listed weight of 0.3180 kg. That relatively light weight can be helpful when enclosure weight matters in panel, machine, or equipment designs.

What kind of cover style does this Boxco enclosure use?

This model is a screw type enclosure with a grey cover. The description also notes cover bolt attachment points formed during injection molding to provide strong threaded fastening.
