Boxco

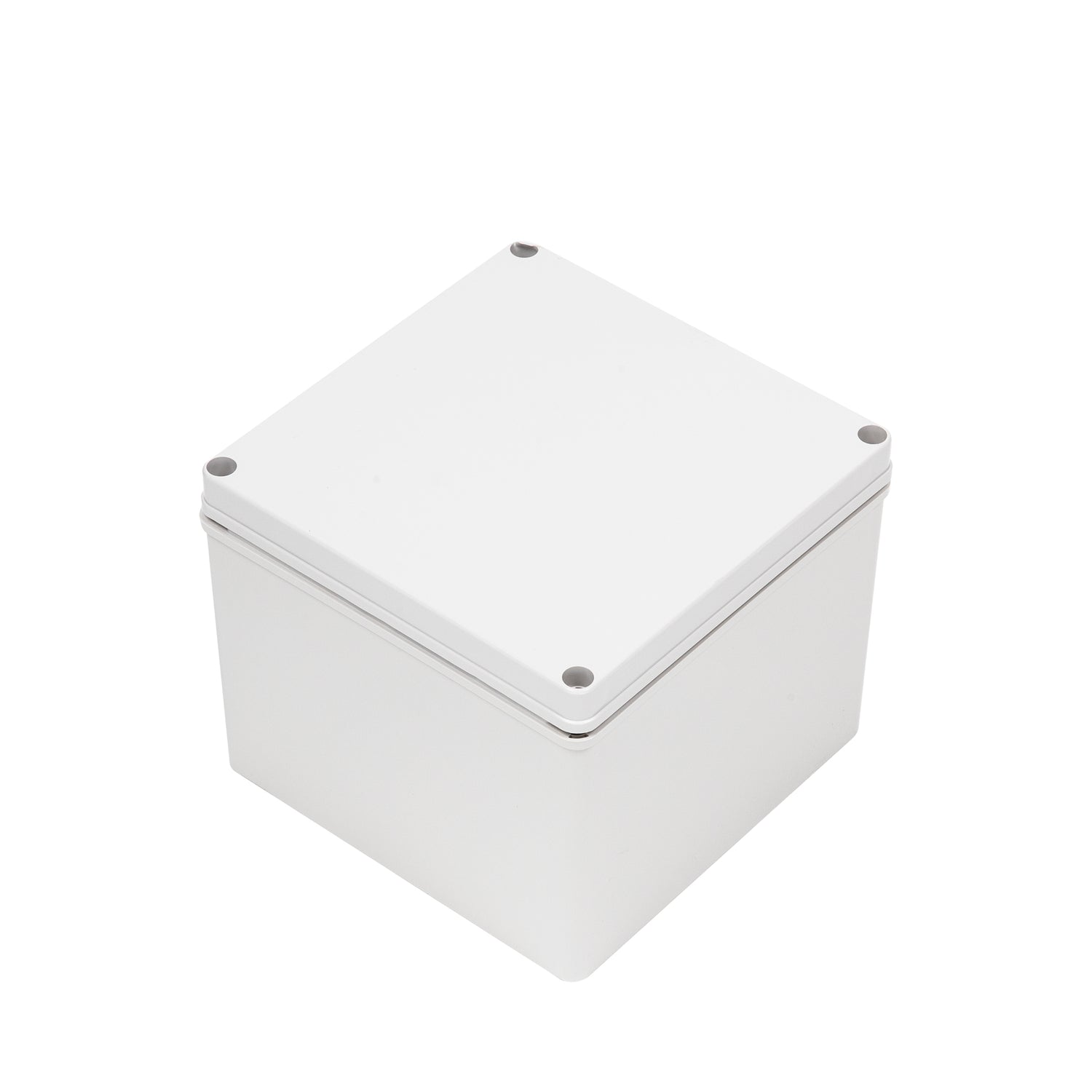

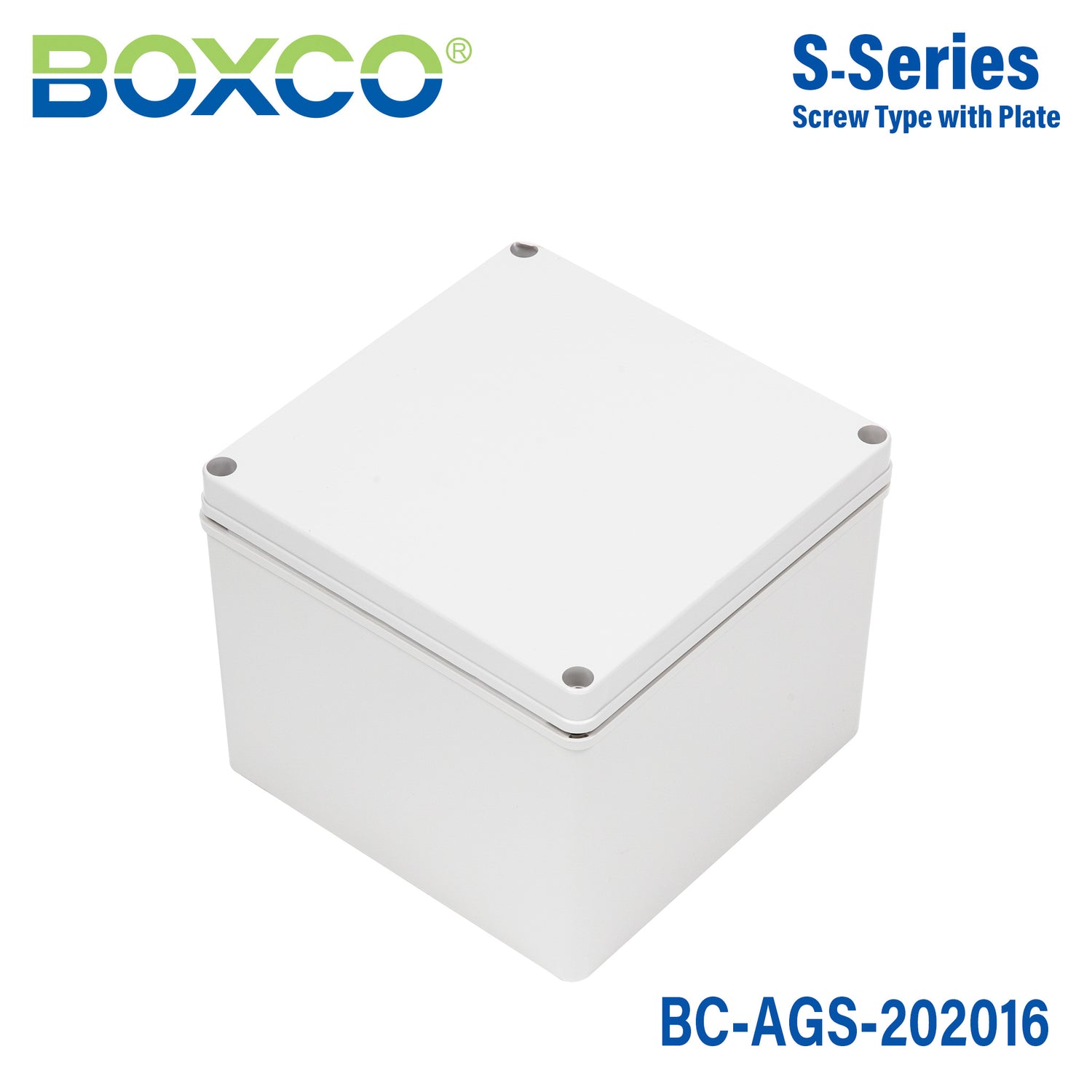

Boxco S-Series 200x200x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU:
BC-AGS-202016
Please for Pricing
|

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

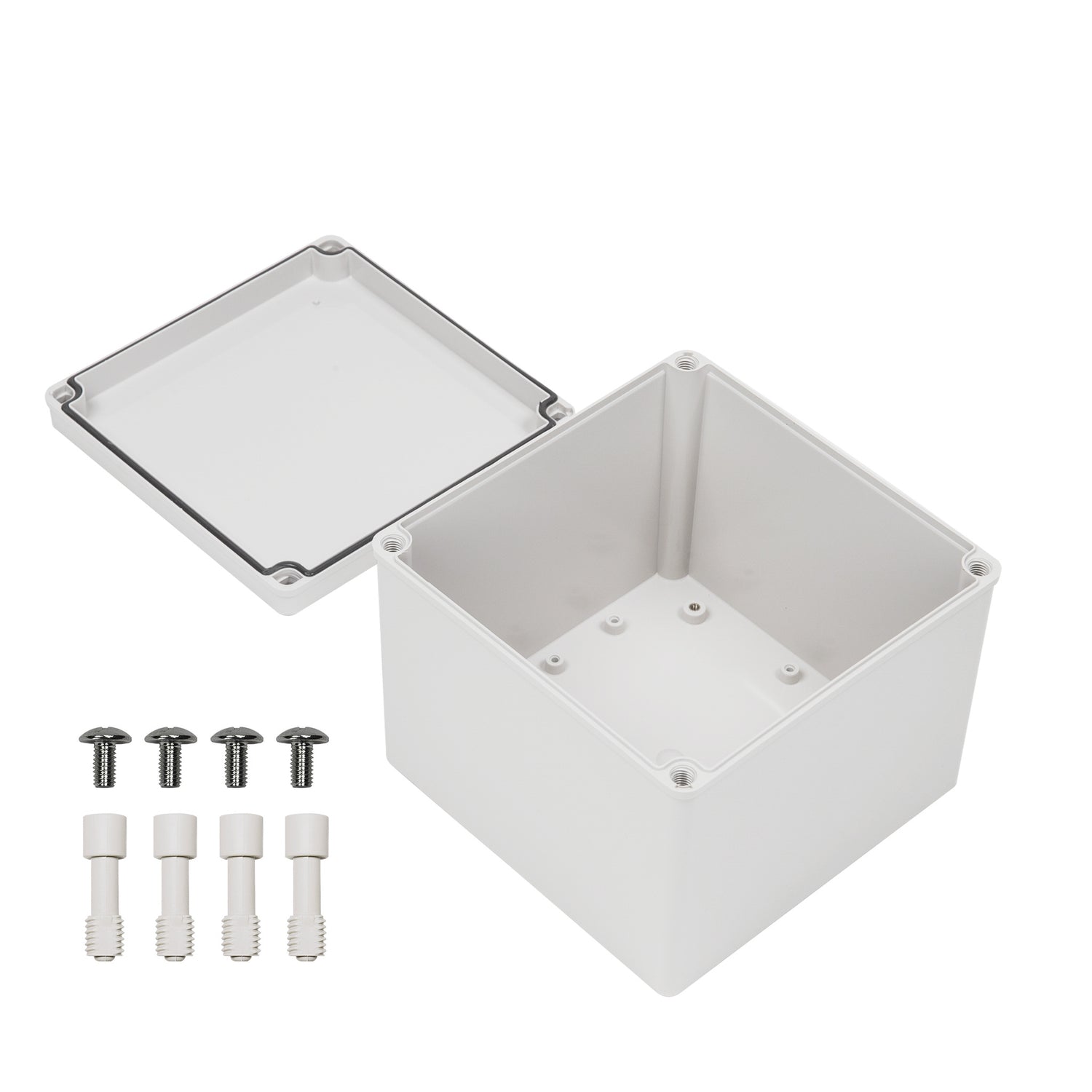

  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
  • Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications
  • Brand
    Boxco
  • Series
    Boxco S Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    20 cm
  • Width
    20 cm
  • Height
    16 cm
  • Weight
    0.8 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the dimensions of the Boxco S-Series BC-AGS-202016 enclosure?

This model measures 7.87 x 7.87 x 6.3 inches, which is 200 x 200 x 160 mm. That size gives it enough internal space for many control, protection, and instrumentation enclosure applications. It is part of the Boxco S-Series screw-type plastic enclosure range.

Is this enclosure suitable for outdoor or washdown environments?

This enclosure is rated IP67, which indicates strong protection against dust ingress and temporary immersion in water. The product description also states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time. Buyers needing a plastic enclosure for demanding indoor or outdoor environments often look for that combination.

What material is this enclosure made from?

The BC-AGS-202016 is made from ABS and has a grey cover. According to the product description, the material is high impact resistant and includes anti-static properties to help protect sensitive electronic instruments from static electricity. That makes it a practical choice where both durability and equipment protection matter.

How durable is this enclosure against physical impact?

This model carries an IK08 impact rating, indicating resistance to mechanical impact in industrial and commercial settings. The product description also highlights high impact resistant construction and reinforced molded features such as cover bolt attachment points. Together, those details make it well suited for applications where enclosure toughness is important.

What temperature range can this enclosure handle?

The specified operating temperature range is -40°C to 70°C. That range supports use in both cold and hot environments, depending on the broader system requirements. Buyers should still confirm that all installed components are rated for the same conditions.

What kinds of applications is this enclosure commonly used for?

This model is commonly considered for protecting sensitive electronic instruments and other internal equipment in industrial or commercial environments. Its IP67 rating, IK08 impact resistance, ABS construction, and anti-static material make it relevant for general-purpose protective enclosure use. It is especially useful where dust resistance, water resistance, and mechanical durability are priorities.

Does this enclosure support internal mounting hardware or accessory panels?

Yes, the product description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts. Those molded features are intended to support mounting plates, DIN rail, or other internal equipment. This helps buyers looking for an enclosure designed to accommodate organized internal component mounting.
